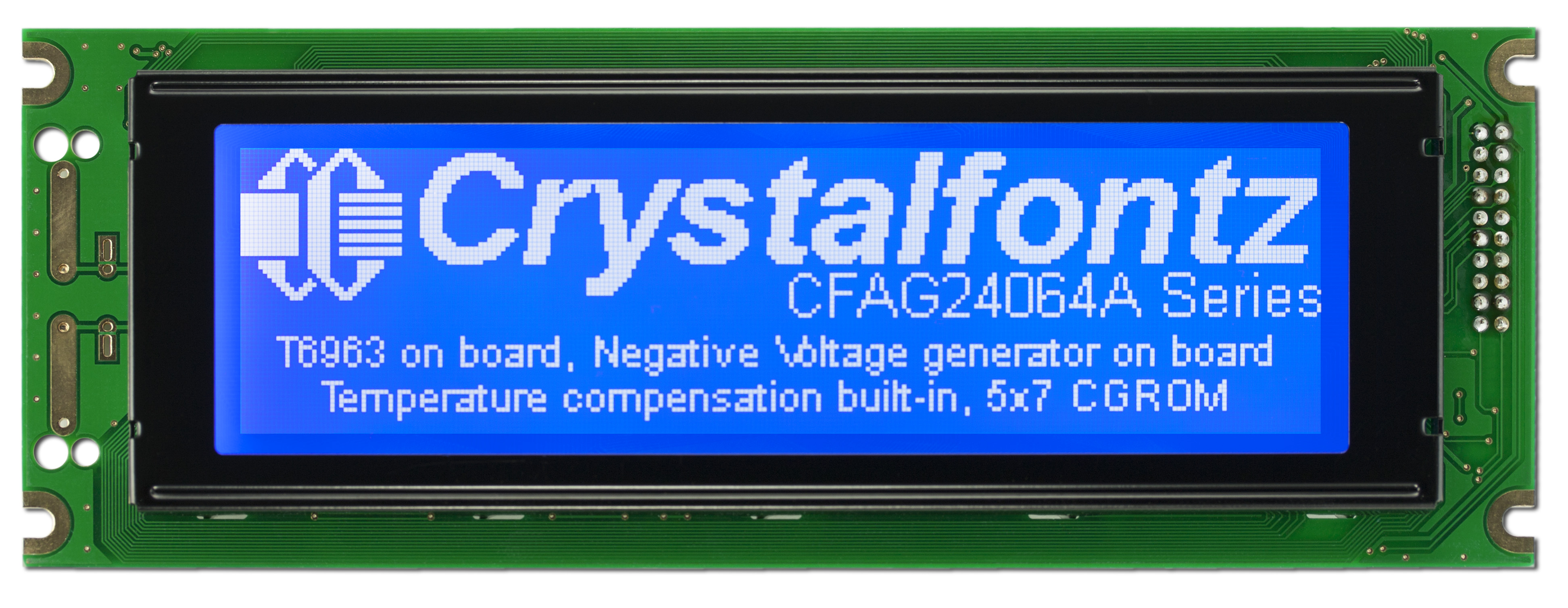

White on Blue 240x64 Graphic LCDPart Number: CFAG24064A-TMI-TZWhite on blue 240x64 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 240x64 pixels
Optics: 6:00 viewing direction
Backlight: White LED
Glass: STN Negative, Transmissive
Controller: RAiO Technology RA6963 (Toshiba T6963C Compatible) Controller
Operating Temp: -20°C to +70°C
Compliance: REACH & RoHS Compliant
Product VariationsColorsWhite on Blue
White LED BacklightWhite on Dark
White LED BacklightDark on Yellow-Green
Yellow-Green LED Backlight

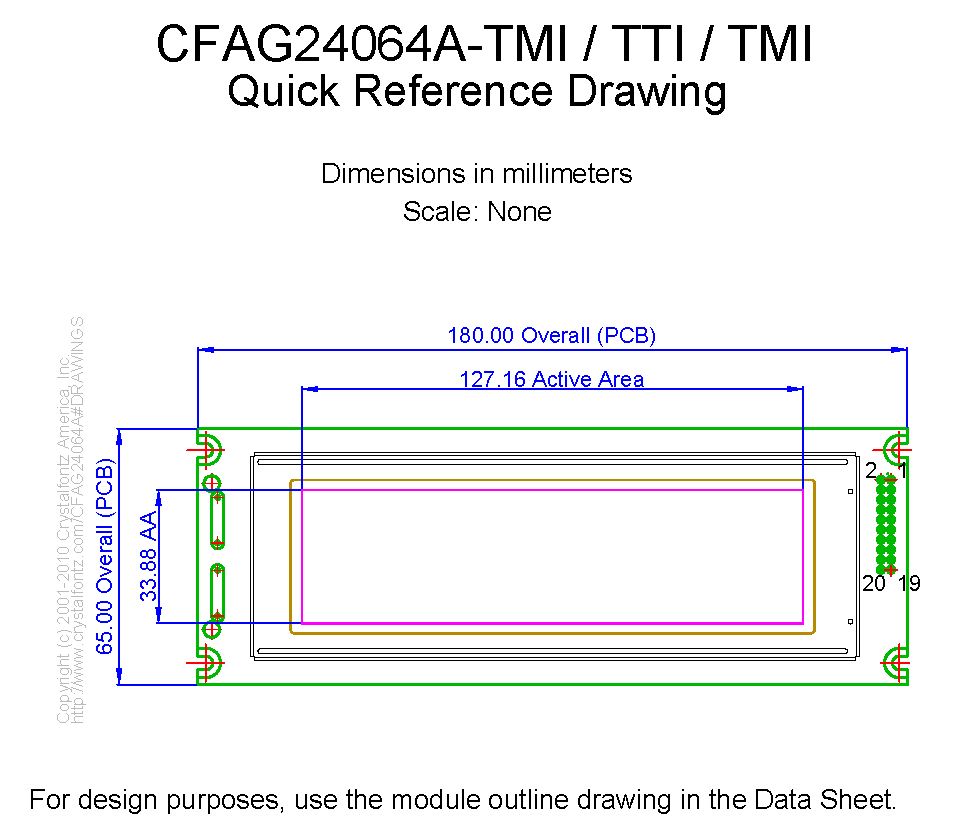

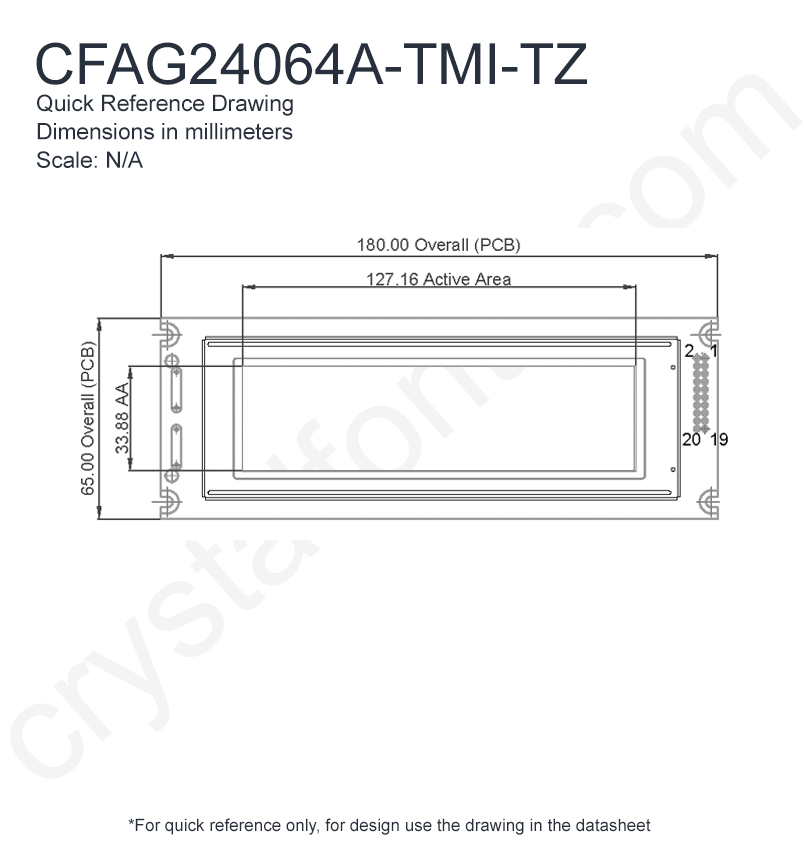

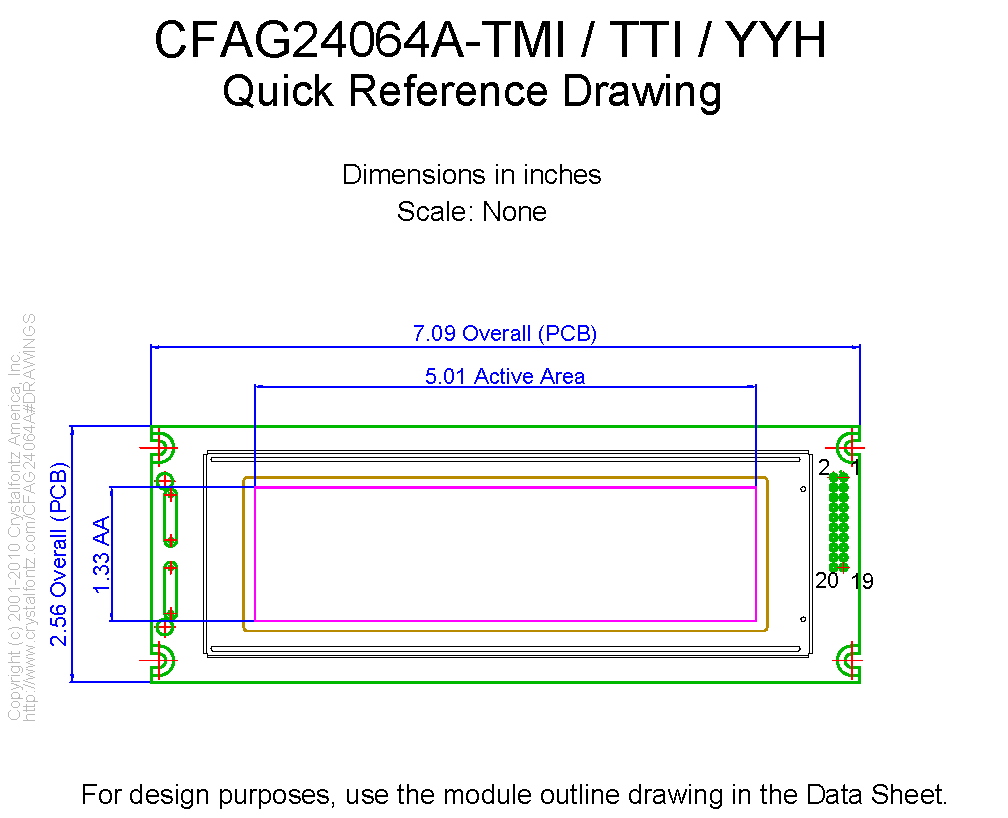

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 64


    Module Overall        width
        height
        depth


        millimeters
        180
        65
        12.3


        inches
        7.09
        2.56
        0.48



    PCB Outline        width
        height
        depth


        millimeters
        180
        65
        12.3


        inches
        7.09
        2.56
        0.48



        Diagonal Dimension
            5.18"


    Viewing Area        Width
        Height


        millimeters
        133
        39


        inches
        5.24
        1.54



    Active Area        Width
        Height


        millimeters
        127.16
        33.88


        inches
        5.01
        1.33



    Dot Size        Width
        Height


        millimeters
        0.49
        0.49


        inches
        0.019
        0.019



    Dot Pitch        Width
        Height


        millimeters
        0.53
        0.53


        inches
        0.021
        0.021



        Weight
            160g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Driving Panel Typical
            12.5V
Supply Current Minimum
            8.2mA


        Supply Current Maximum
            33mA
Supply Current Typical
            16.5mA
Module Connector Pitch
            2.54mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            25mA
Forward Current Maximum
            100mA
Forward Current Typical
            80mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG24064A-TMI-TZ Datasheet

 download Files and Downloads
folder_zip Software Source - Example code - ATMEGA2561
folder_zip Hardware Design - 3D Model
link RA6963 Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH










Ordering Information* This is a special order part.
Contact us for pricing, lead times, and order info.
Other components worth considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.






						72 Pin Header
Add (5) 72-pin headers?  $0.66 ea.





Colors	White on Blue White LED Backlight White on Dark White LED Backlight Dark on Yellow-Green Yellow-Green LED Backlight

Module Overall	width	height	depth
millimeters	180	65	12.3
inches	7.09	2.56	0.48

PCB Outline	width	height	depth
millimeters	180	65	12.3
inches	7.09	2.56	0.48

Viewing Area	Width	Height
millimeters	133	39
inches	5.24	1.54

Active Area	Width	Height
millimeters	127.16	33.88
inches	5.01	1.33

Dot Size	Width	Height
millimeters	0.49	0.49
inches	0.019	0.019

Dot Pitch	Width	Height
millimeters	0.53	0.53
inches	0.021	0.021

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11147: Changing to Special Order Part

Product Affected:	CFAG24064A-TMI-TZ
Date Issued:	August 8, 2022
Summary:	Changing to Special Order Part
Description:	The CFAG24064A-TMI-TZ is no longer being offered as a standard off-the-shelf product. It will now be built to order and an MOQ will be required. Please contact sales for updated pricing information.
Reason:	Warehouse inventory reduction.
Availability:	Contact sales@crystalfontz.com for up-to-date information.

Part Change Notice #10936: The products listed above are being updated.

Products Affected:	CFAG24064A-YYH-TZ, CFAG24064A-TTI-TZ, CFAG24064A-TMI-TZ
Date Issued:	February 28, 2018
Summary:	The products listed above are being updated.

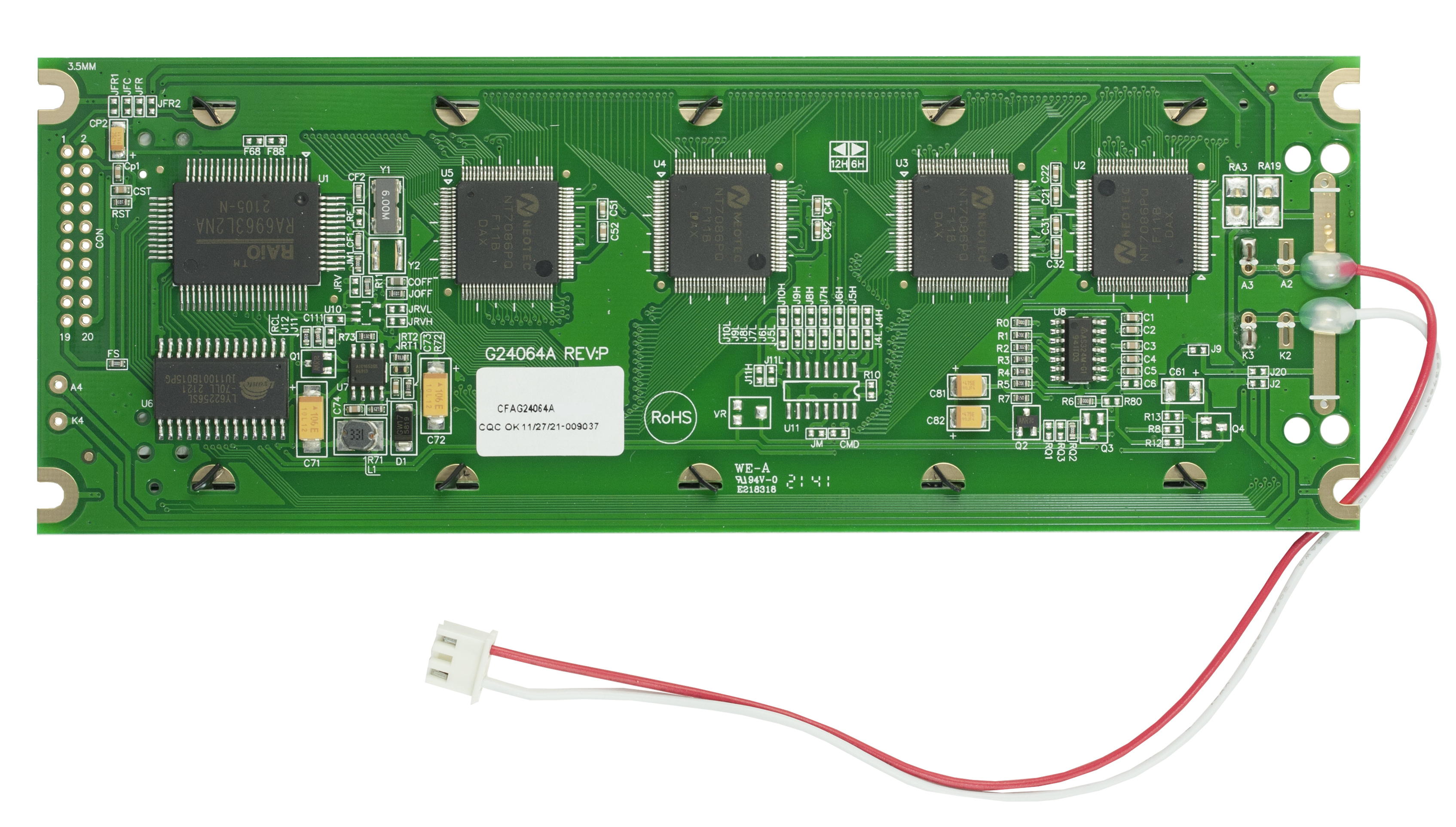

Description:	The printed circuit boards are being revised to improve operation and manufacturability.
Reason:	Continuing Product Improvement.
Impact:	The revision letter of the printed circuit board will change. The operation of the modules will not be affected.
Availability:	The revised modules will be available as current stocks are replenished.

Product Update #10638: (New Product) CFAG24064A-TMI-TZ

New Product:	CFAG24064A-TMI-TZ
Date Issued:	November 25, 2014
Summary:	(New Product) CFAG24064A-TMI-TZ
Description:	Standard Graphic Modules: 240x64 Graphic LCD, RoHS Compliant, White LED Backlight, Negative Blue STN LCD, Transflective -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator, Temperature Compensation.
