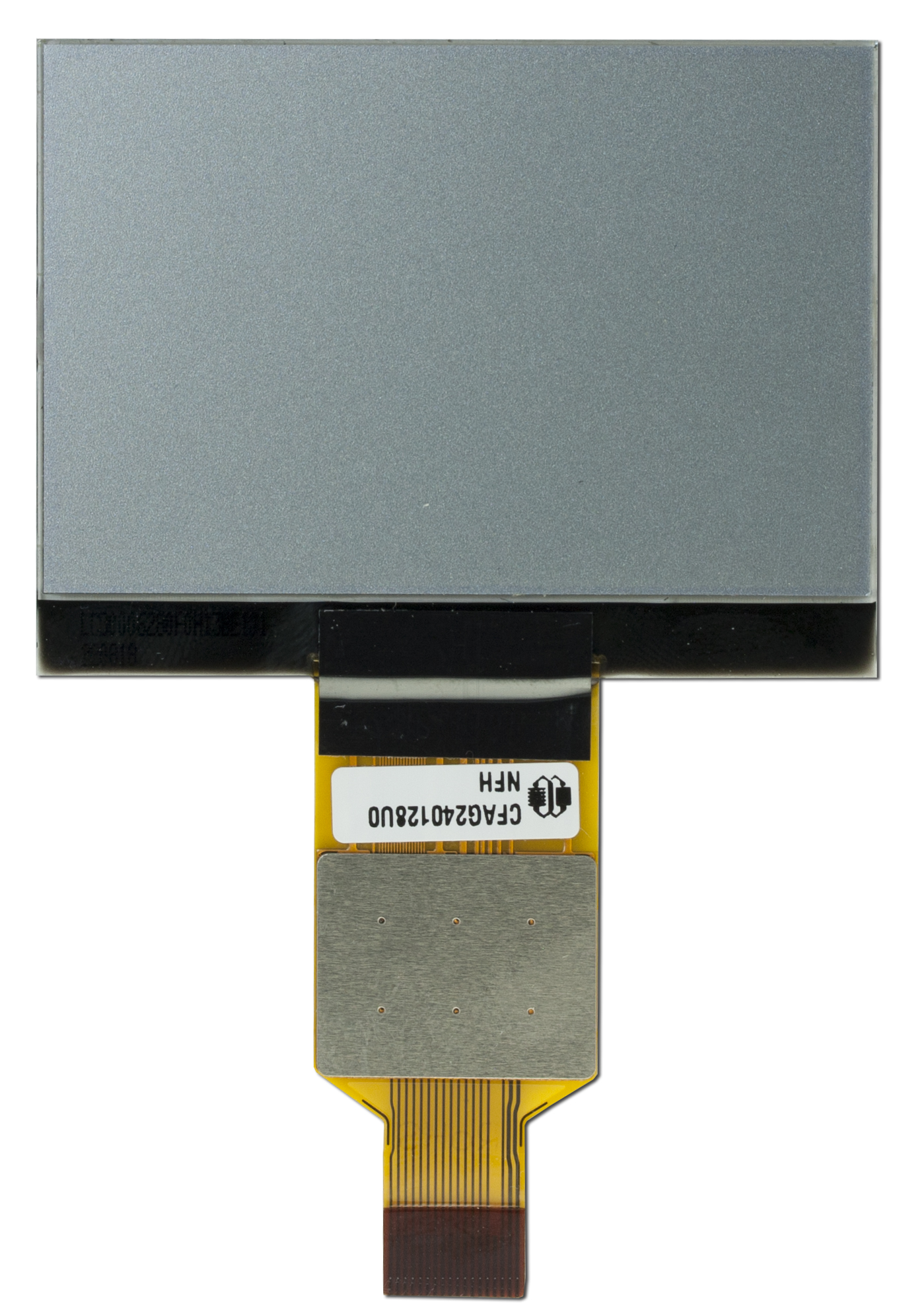

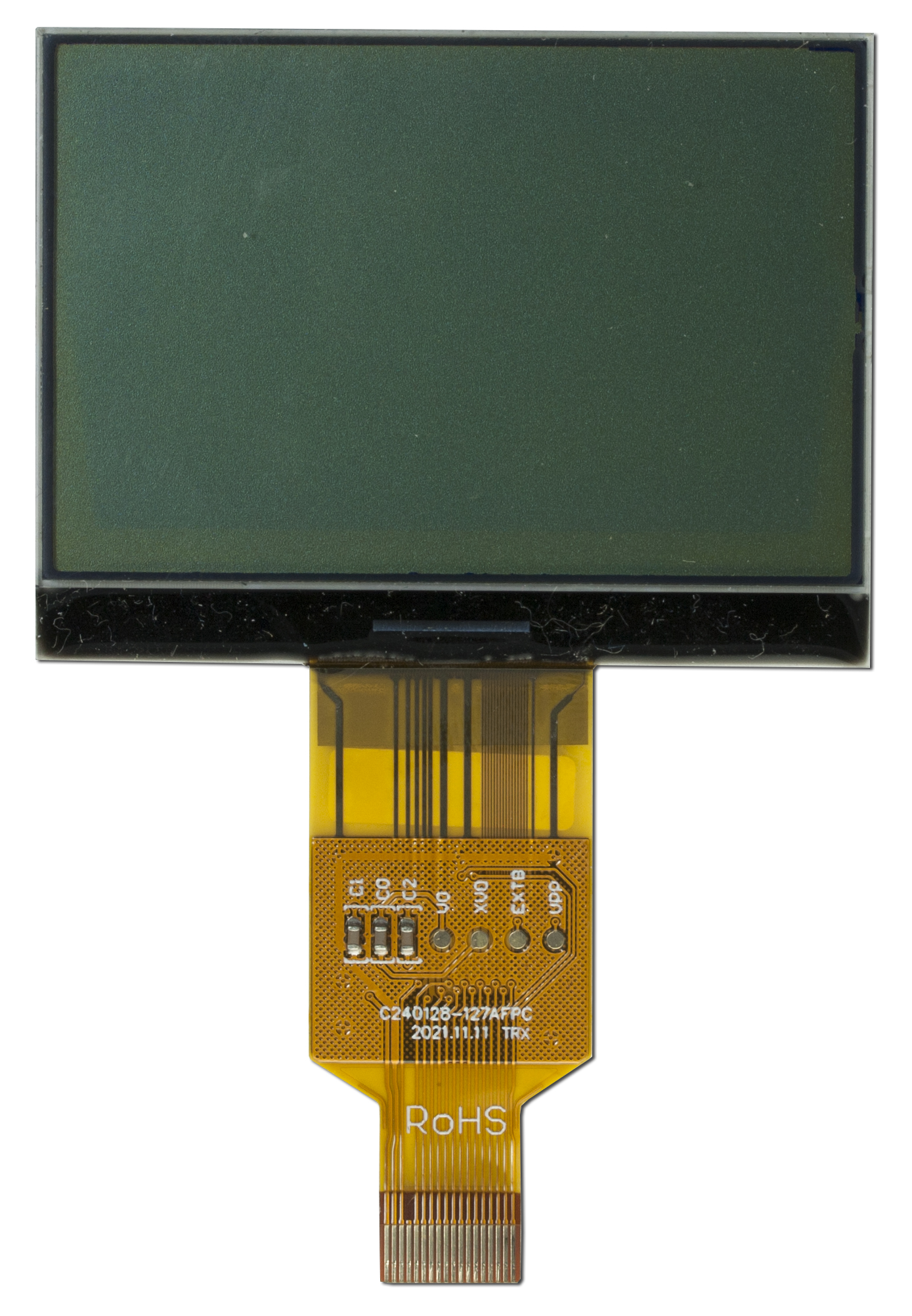

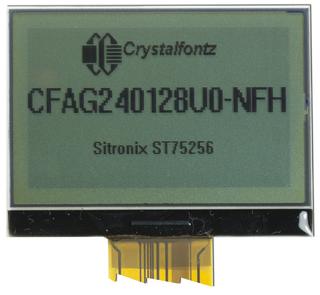

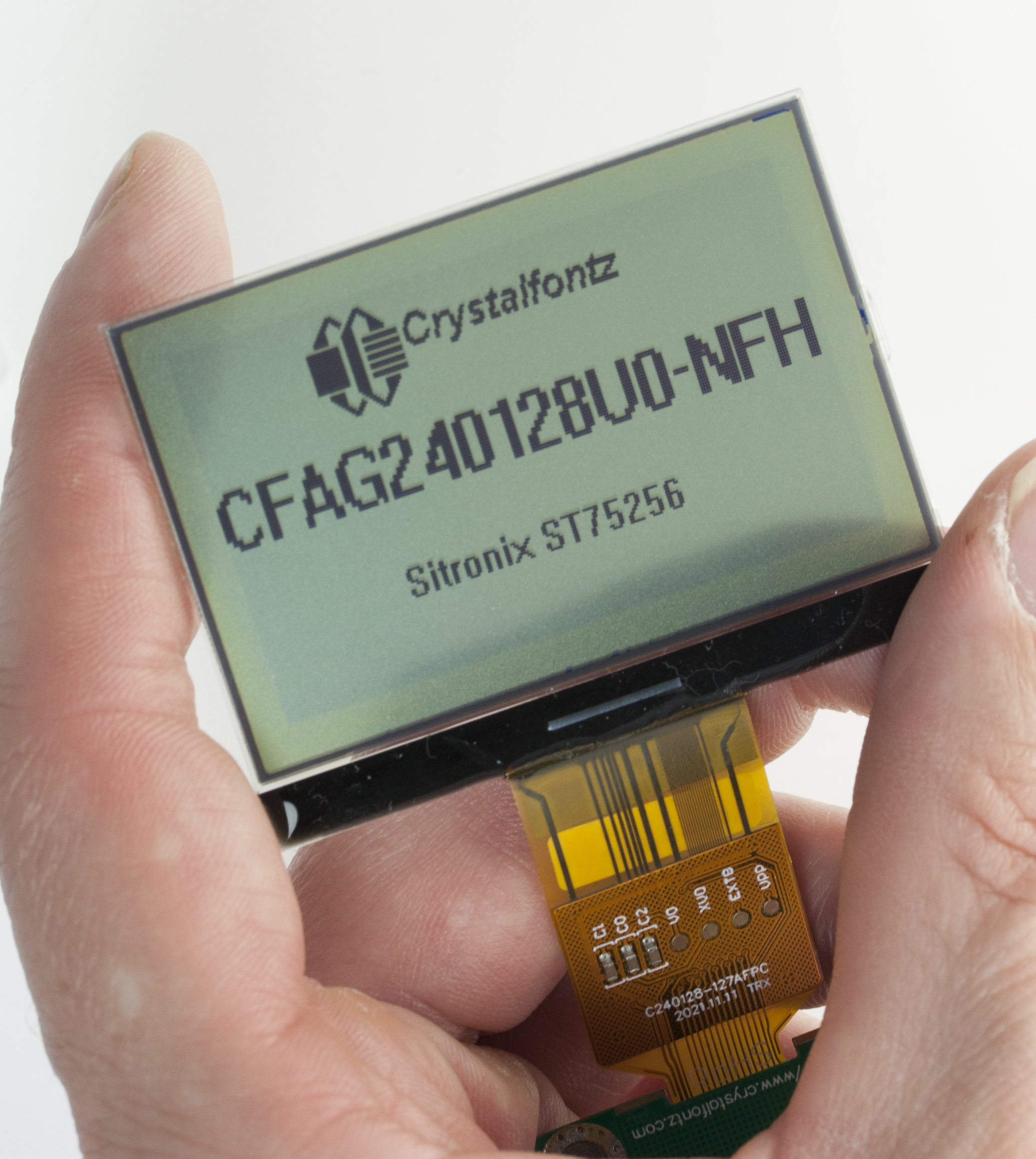

Low Power 240x128 Graphic LCD DisplayPart Number: CFAG240128U0-NFH

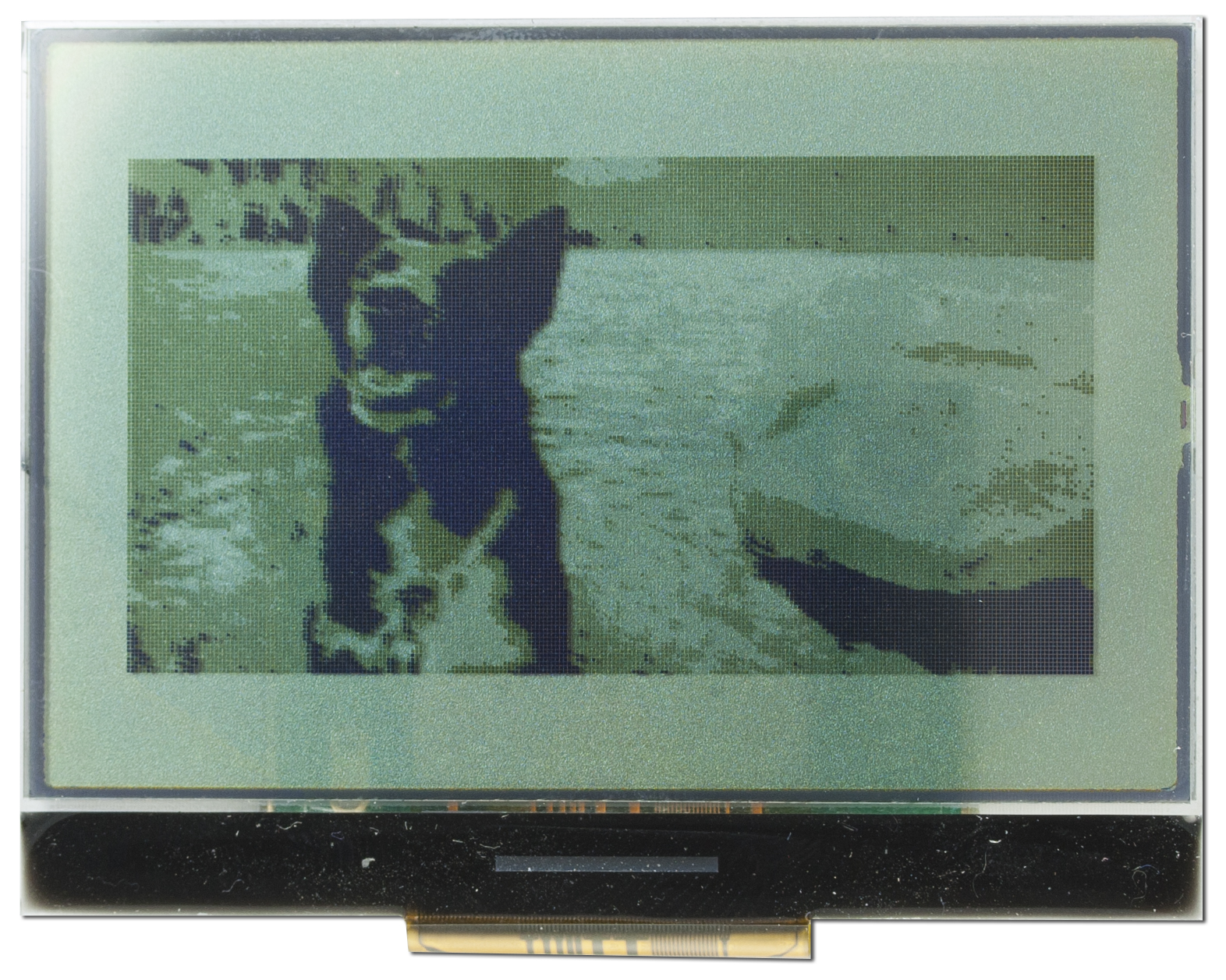

                        This high-density graphical LCD display is a great choice when both detail and power savings are important. This display packs 240x128 pixels into a 2.2" diagonal display and supports a 2-bit (4-color) grayscale.

This display is readable in bright light but does not have a backlight, so external light is required. If you need a backlight, this display is identical but includes a backlight.

Our popular low-power 128x64 graphic display has the same outline and similar pinout as this display but does have a different controller. This LCD breakout board will work with this 240x128 display.

Part Number:
CFA- Crystalfontz America
G- Graphic LCD
240128- 240x128 pixels
U0- Family and version number
N- No backlight
F- FSTN Positive
H- Transflective, 6:00 viewing angle
Product VariationsColorsDark on Gray
White LED BacklightDark on Gray
No Backlight

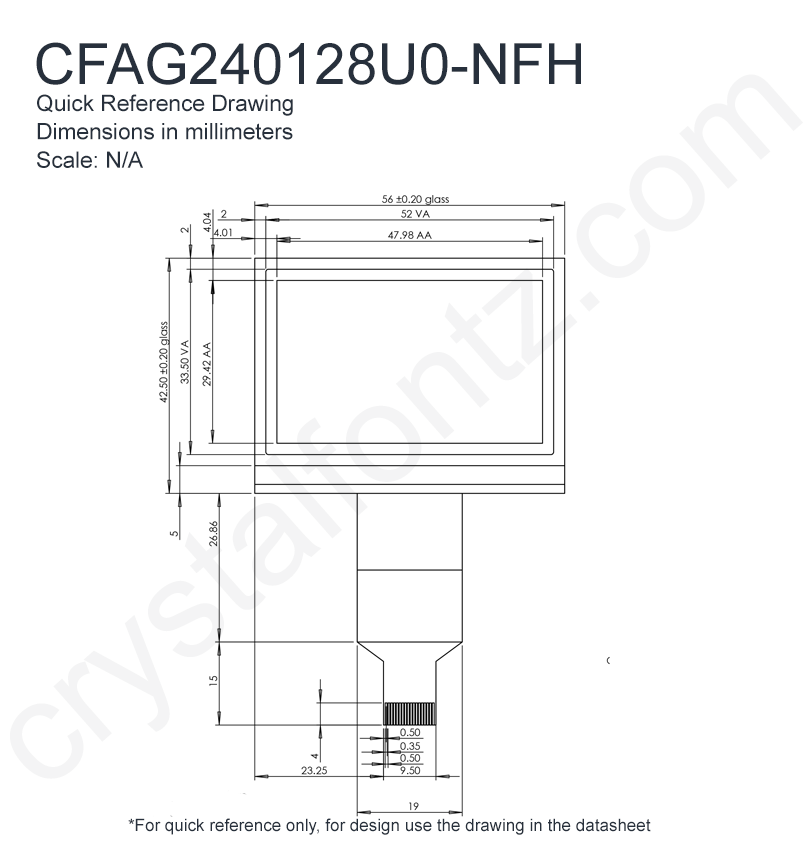

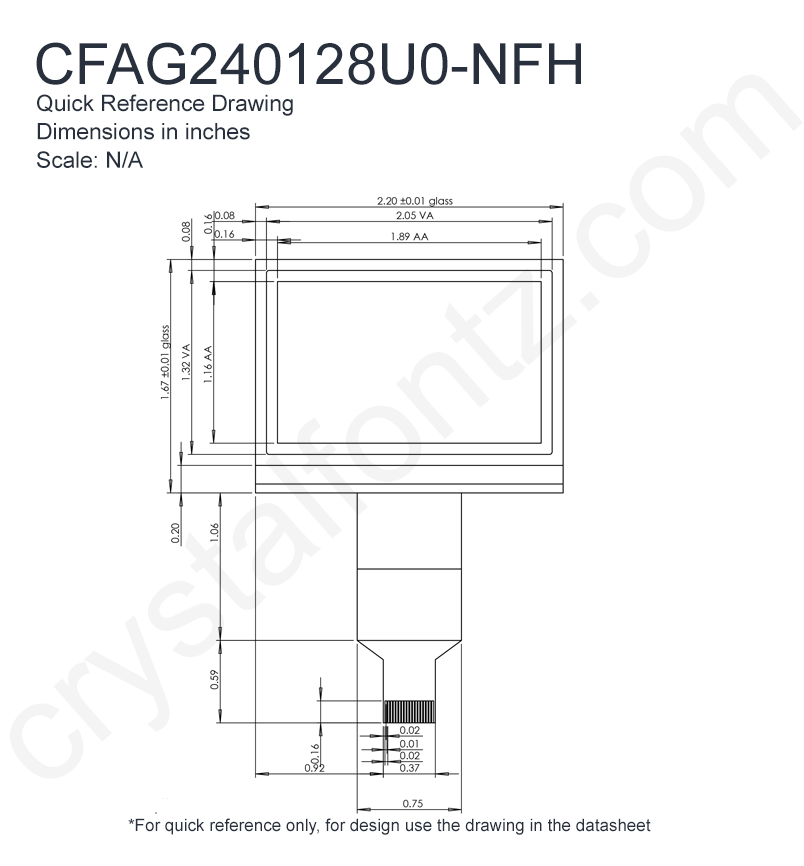

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 128

    Module Overall        width
        height
        depth

        millimeters
        56
        42.5
        1.9

        inches
        2.21
        1.67
        0.08

        Diagonal Dimension
            2.2"

    Viewing Area        Width
        Height

        millimeters
        52
        33.5

        inches
        2.05
        1.32

    Active Area        Width
        Height

        millimeters
        47.98
        29.42

        inches
        1.89
        1.16

    Dot Pitch        Width
        Height

        millimeters
        0.2
        0.23

        inches
        0.008
        0.009

        Weight
            10.1g
Pin Count
            18

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            LCD
Polarizer
            Transflective
View Direction
            6 o'clock
View Angle
            35°

        Foreground Color
            Dark
Background Color
            Gray

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V
Supply Current Typical
            1mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST75256
ST75256 4 Level Gray Scale Dot Matrix LCD Controller/Driver
Interface
            8-bit Parallel, I2C, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAG240128U0 Datasheet

download Files and Downloads
folder_zip Hardware Design - 3D Model
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $14.52

            10
            $14.15

            20
            $13.66

            50
            $13.19

            100
            $13.00

            200
            $12.90

            300
            $12.81

            500 *
            $12.71

            1000 *
            $12.62

466 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering

						LCD Breakout Board
Add a breakout board? $7.00 ea.

						18 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector
Need ZIF Connectors? $0.79 ea.

						18-Position ZIF Breakout Board
Add an 18-pin ZIF Breakout Board? $6.15 ea.

Colors	Dark on Gray White LED Backlight Dark on Gray No Backlight

Module Overall	width	height	depth
millimeters	56	42.5	1.9
inches	2.21	1.67	0.08

Viewing Area	Width	Height
millimeters	52	33.5
inches	2.05	1.32

Active Area	Width	Height
millimeters	47.98	29.42
inches	1.89	1.16

Dot Pitch	Width	Height
millimeters	0.2	0.23
inches	0.008	0.009

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$14.52
10	$14.15
20	$13.66
50	$13.19
100	$13.00
200	$12.90
300	$12.81
500 *	$12.71
1000 *	$12.62

Additional Options
Notices

Additional Options

Purchase this display with a breakout or complete development kit to start prototyping as soon as you get it.

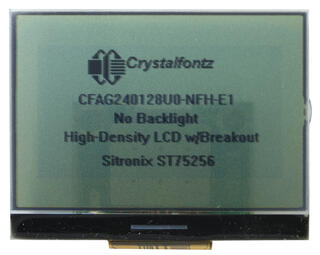

240x128 High Density Low Power LCD with Breakout Board
Part Number: CFAG240128U0-NFH-E1

Details

Quantity	1	10	20	50	100 *	200 *	300 *	500 *	1000 *
Unit Price	$23.97	$23.35	$22.57	$21.80	$21.51	$21.34	$21.19	$21.05	$20.88

Quantity:

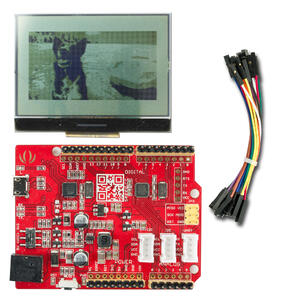

240x128 Low-Power LCD Development Kit
Part Number: CFAG240128U0-NFH-E1-2

Details

Quantity	1
Unit Price	$46.71

Quantity:

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11155: Low Power 240x128 Graphic LCD Display is now available.

New Product:	CFAG240128U0-NFH
Date Issued:	November 7, 2022
Summary:	Low Power 240x128 Graphic LCD Display is now available.
Description:	CFAG240128U0-NFH has been released on our website (https://www.crystalfontz.com/product/cfag240128u0nfh-low-power-240x128-graphic-lcd) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalftonz.com. Contact support@crystalfontz.com for any technical questions.
