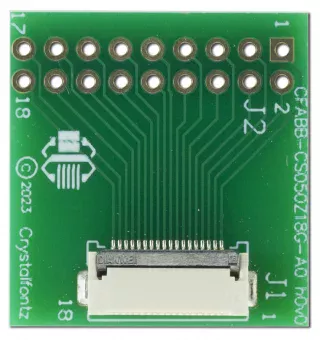

      18-Position ZIF Breakout Board
      Part Number: CFABB-CS050Z18G-A0
         This ZIF breakout board includes our 18-pin 0.5-millimeter pitch ZIF connector broken out to 0.1" through holes. Grab this breakout board for quick prototyping with displays that have a ZIF tail with 18 pins or fewer at a 0.5 mm pitch.

Don't forget to add a few of our dual row headers to populate the through holes.

This breakout board was specifically designed to connect to our multi-use ZIF breakout board. Solder this to the empty through holes on the multi-use board to add any size ZIF connector so you can have a perfect fit.

Part Number:

CFA- Crystalfontz America

BB- Breakout Board

CS050Z18G-A0 includes this connector

Connector Part Number:

CS- Crystalfontz Connector

050- 0.5mm pitch

Z- Top and Bottom Connectors

18- 18 pins

G- Gold

A0- Family and revision
 square_foot Physical Characteristics
Physical Characteristics

        Weight
            2g
Pin Count
            18

 download Files and Downloads
picture_as_pdf Other Document - CFA10102 Integration Guide
picture_as_pdf Other Document - Getting Started Guide
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $6.15

19 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
