      13-Position ZIF Adapter Board
      Part Number: CFABB-CS030Z13G-A0

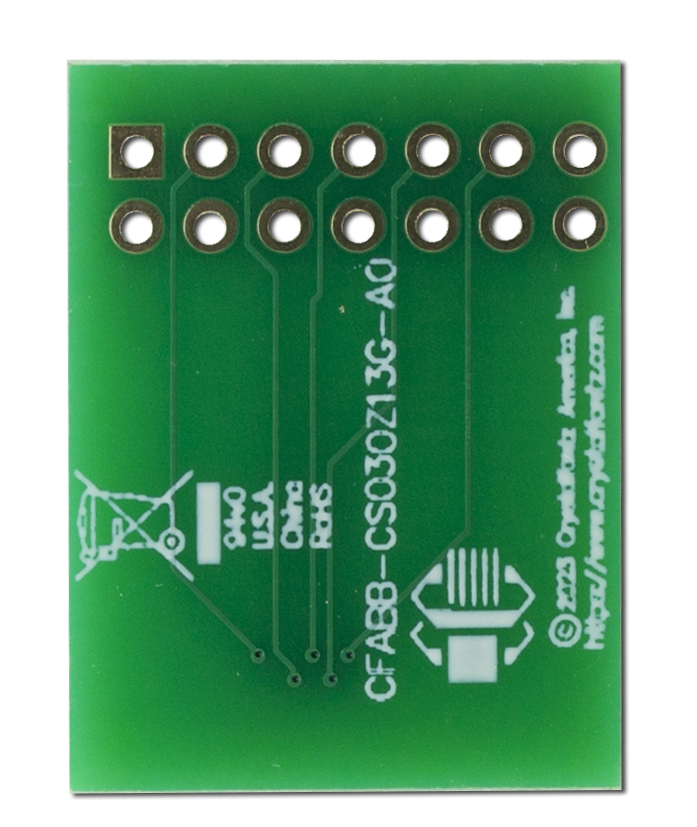

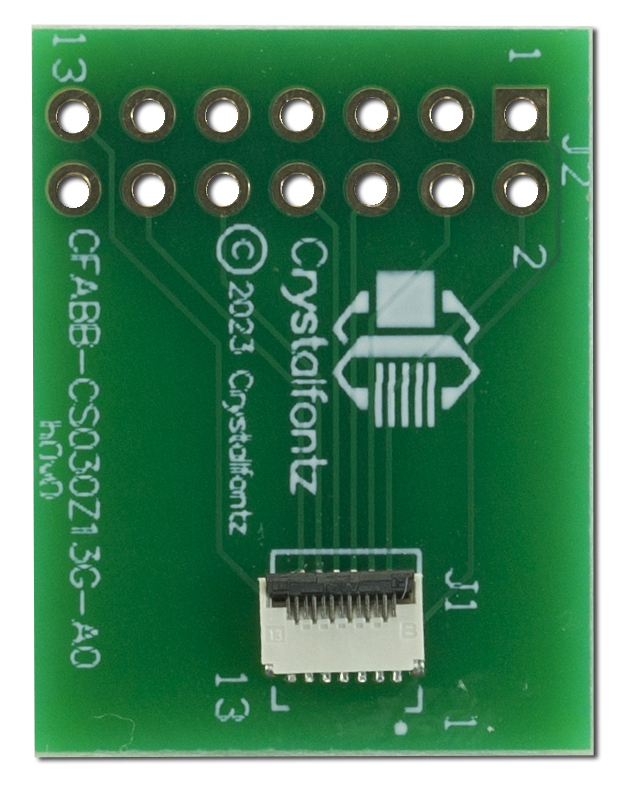

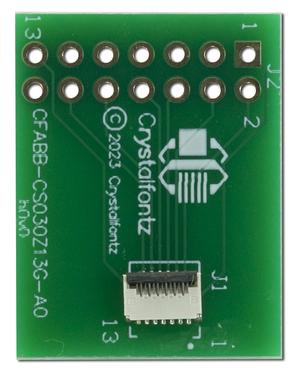

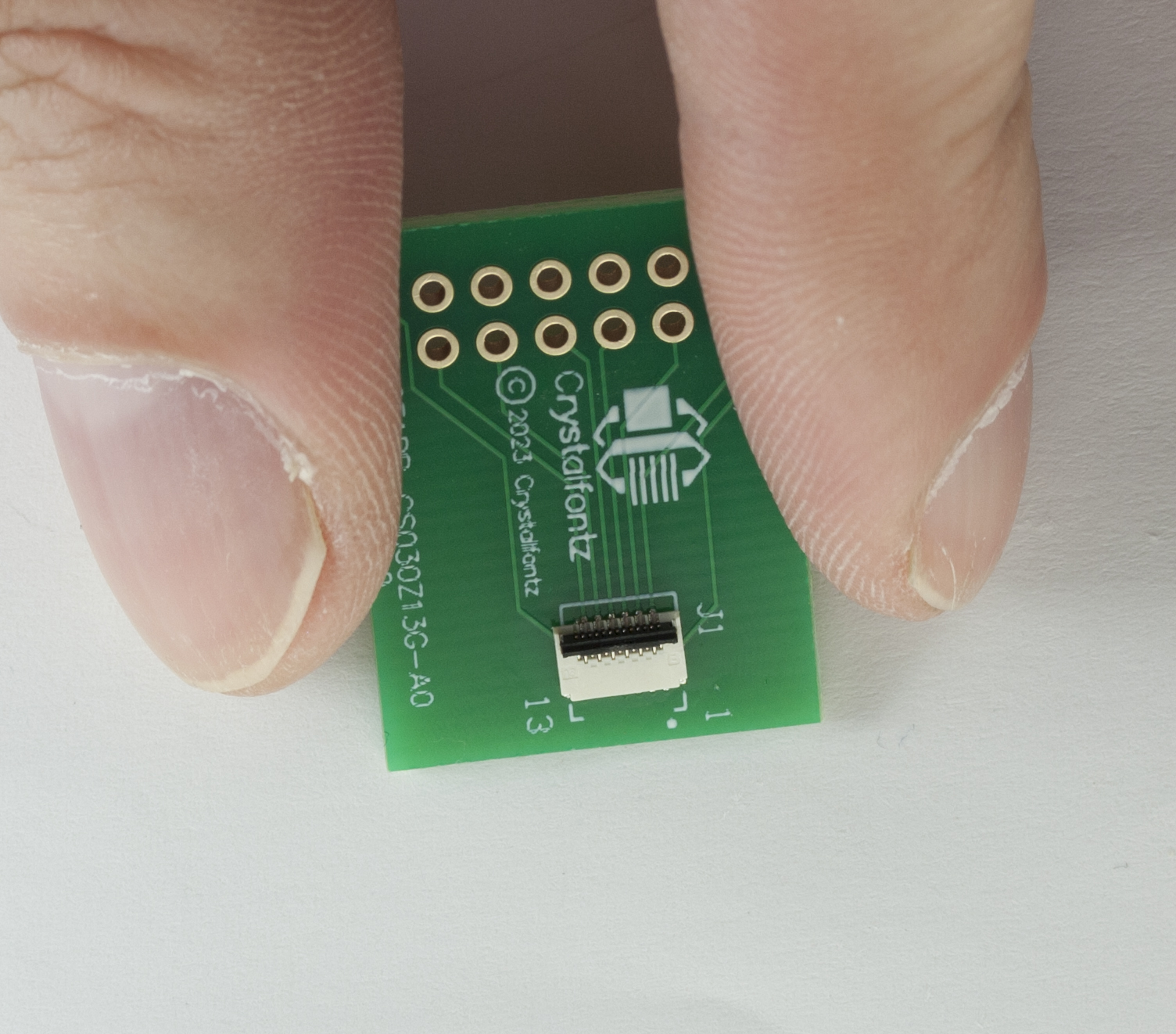

         This ZIF breakout board includes our 13-pin 0.3-millimeter pitch ZIF connector broken out to 0.1" through holes. Grab this breakout board for quick prototyping with displays that have a ZIF tail with 13 pins or fewer at a 0.3 mm pitch.

Don't forget to add a few of our dual row headers to populate the through holes.

This breakout board was specifically designed to connect to our multi-use ZIF breakout board. Solder this to the empty through holes on the multi-use board to add any size ZIF connector so you can have a perfect fit.

Part Number:

CFA- Crystalfontz America

BB- Breakout Board

CS030Z13G-A0 includes this connector

Connector Part Number:

CS- Crystalfontz Connector

030- 0.3mm pitch

Z- Top and Bottom Connectors

13- 13 pins

G- Gold

A0- Family and revision
 square_foot Physical Characteristics
Physical Characteristics

        Weight
            1.5g
Pin Count
            13

 download Files and Downloads
picture_as_pdf Other Document - CFA10102 Integration Guide
picture_as_pdf Other Document - Getting Started Guide
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $6.15

50 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						6-inch Female to Female Jumper Wires
Add jumper wires? $3.38 ea.

						72 Pin Header
Need header pins? $0.66 ea.

						Multi-use ZIF Breakout Board
Add a Breakout Board? $22.34 ea.

						13 Position, 0.30mm Pitch, Gold, FPC FFC ZIF Connector
Need more ZIFs? $0.79 ea.

Quantity	Unit Price
1	$6.15

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11230: 13-Position ZIF Adapter Board is now available

New Product:	CFABB-CS030Z13G-A0
Date Issued:	October 2, 2023
Summary:	13-Position ZIF Adapter Board is now available
Description:	CFABB-CS030Z13G-A0 has been released on our website (https://www.crystalfontz.com/product/cfabbcs030z13ga0-13-position-zif-adapter-board) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
