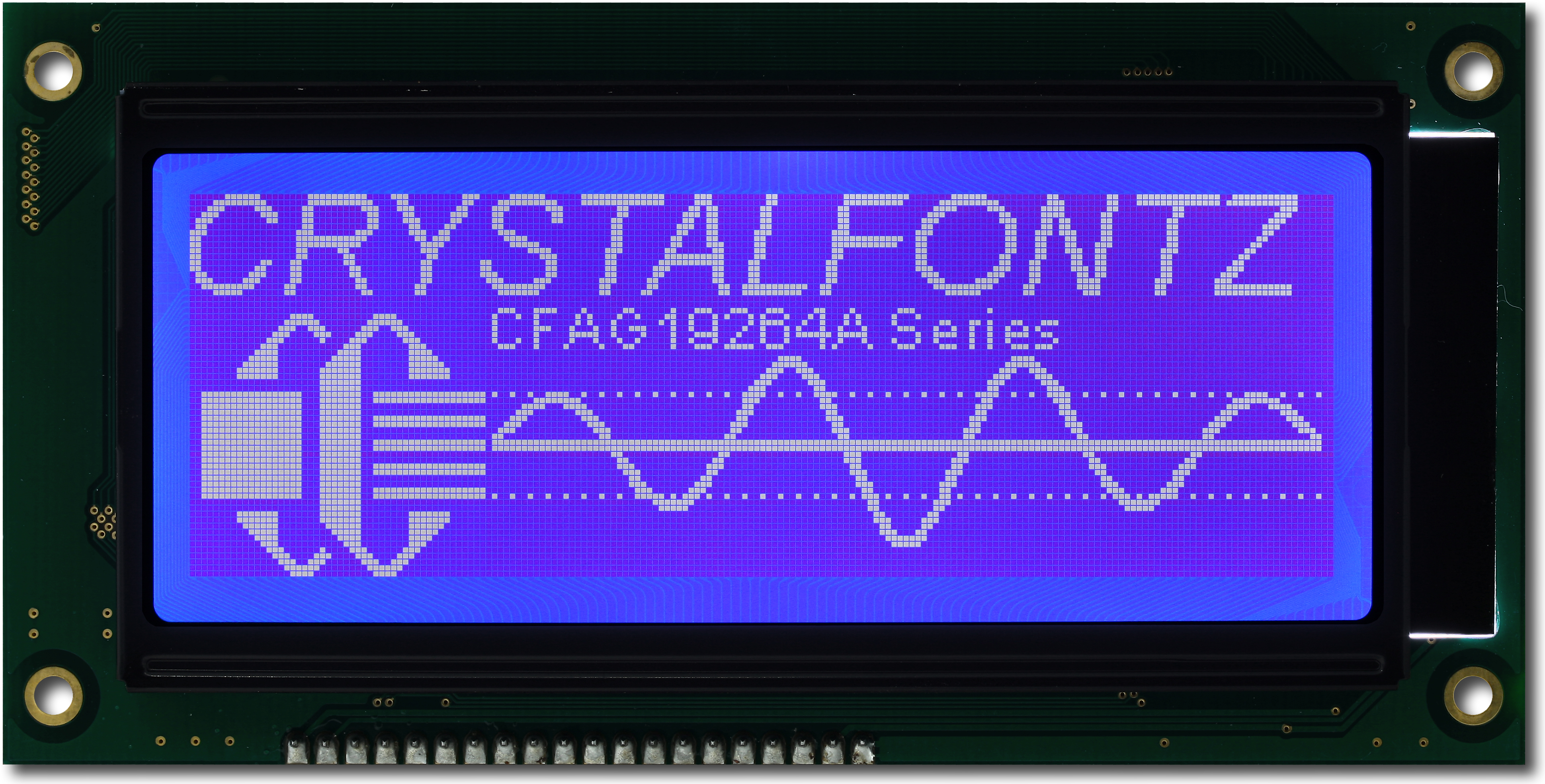

Blue 192x64 3.98 Inch Graphic LCDPart Number: CFAG19264A-TMI-TNWhite on blue 192x64 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 192x64 pixels
Optics: 6:00 viewing direction
Backlight: White LED
Glass: STN Negative, Transmissive
Controller: Neotec NT7108
Operating Temp:  -20°C to +70°C
Compliance: REACH & RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            192 x 64


    Module Overall        width
        height
        depth


        millimeters
        130
        65
        12.9


        inches
        5.12
        2.56
        0.51



    PCB Outline        width
        height
        depth


        millimeters
        130
        65
        12.9


        inches
        5.12
        2.56
        0.51



        Diagonal Dimension
            3.98"


    Viewing Area        Width
        Height


        millimeters
        102
        39


        inches
        4.02
        1.54



    Active Area        Width
        Height


        millimeters
        96
        32


        inches
        3.78
        1.26



    Dot Size        Width
        Height


        millimeters
        0.46
        0.46


        inches
        0.018
        0.018



    Dot Pitch        Width
        Height


        millimeters
        0.5
        0.5


        inches
        0.020
        0.020



        Weight
            105g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Neotec NT7108
NT7108

LCD Driver
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG19264A-TMI-TN Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAG19264A 2D CAD
picture_as_pdf 1 to 1 Template - CFAG19264A 1 TO 1.PDF
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $36.10

            5
            $33.34

            10
            $29.35

            20
            $28.49

            50
            $27.45

            100
            $27.11

            200 *
            $26.93

            300 *
            $25.43

            500 *
            $25.27

            1000 *
            $23.94

120 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $12.59 ea.





Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight

Module Overall	width	height	depth
millimeters	130	65	12.9
inches	5.12	2.56	0.51

PCB Outline	width	height	depth
millimeters	130	65	12.9
inches	5.12	2.56	0.51

Viewing Area	Width	Height
millimeters	102	39
inches	4.02	1.54

Active Area	Width	Height
millimeters	96	32
inches	3.78	1.26

Dot Size	Width	Height
millimeters	0.46	0.46
inches	0.018	0.018

Dot Pitch	Width	Height
millimeters	0.5	0.5
inches	0.020	0.020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$36.10
5	$33.34
10	$29.35
20	$28.49
50	$27.45
100	$27.11
200 *	$26.93
300 *	$25.43
500 *	$25.27
1000 *	$23.94
