Yellow 192x64 3.9 Inch Graphic LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Graphic

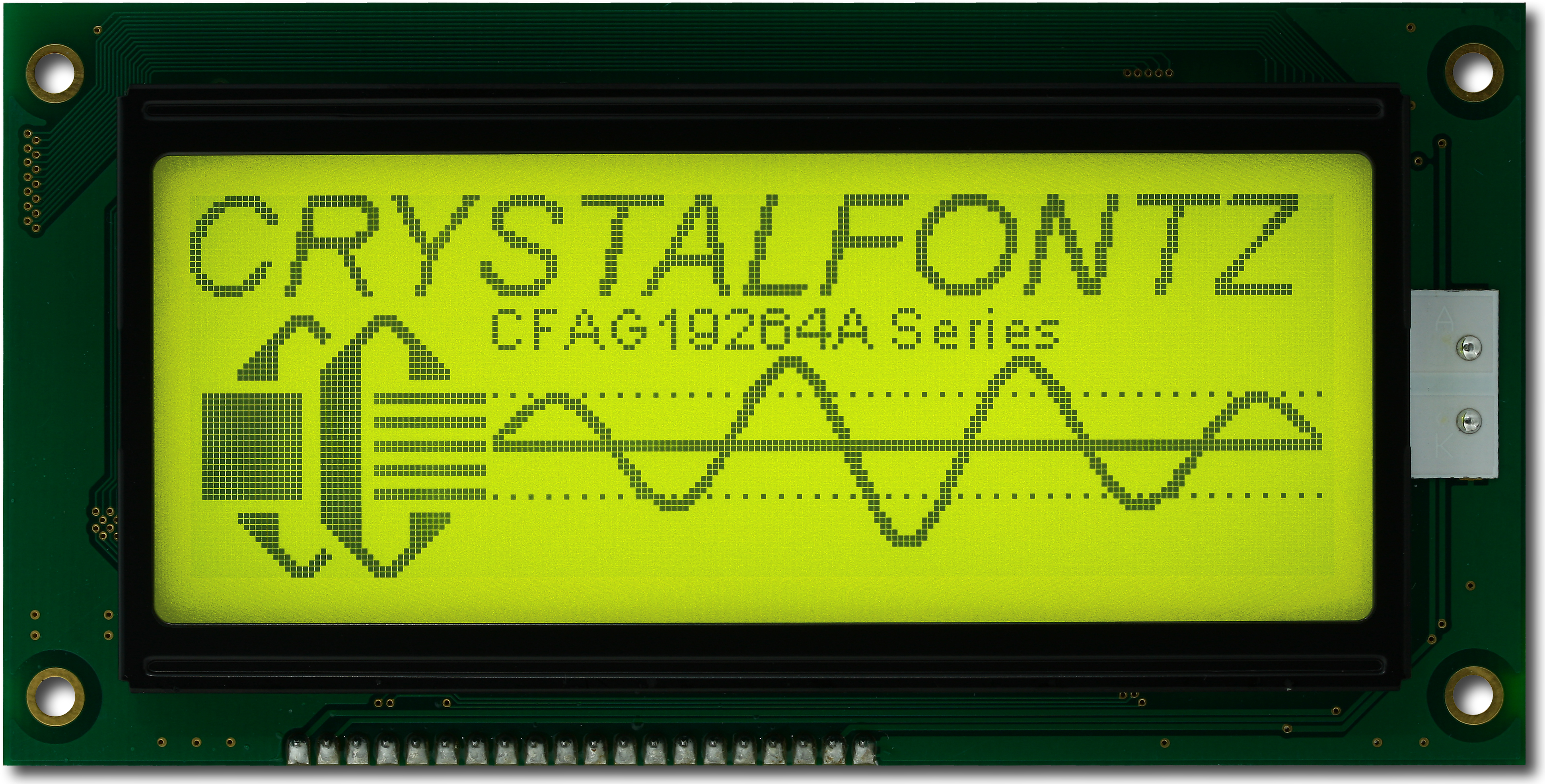

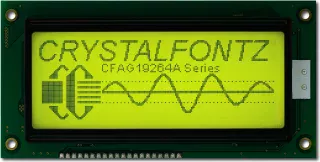

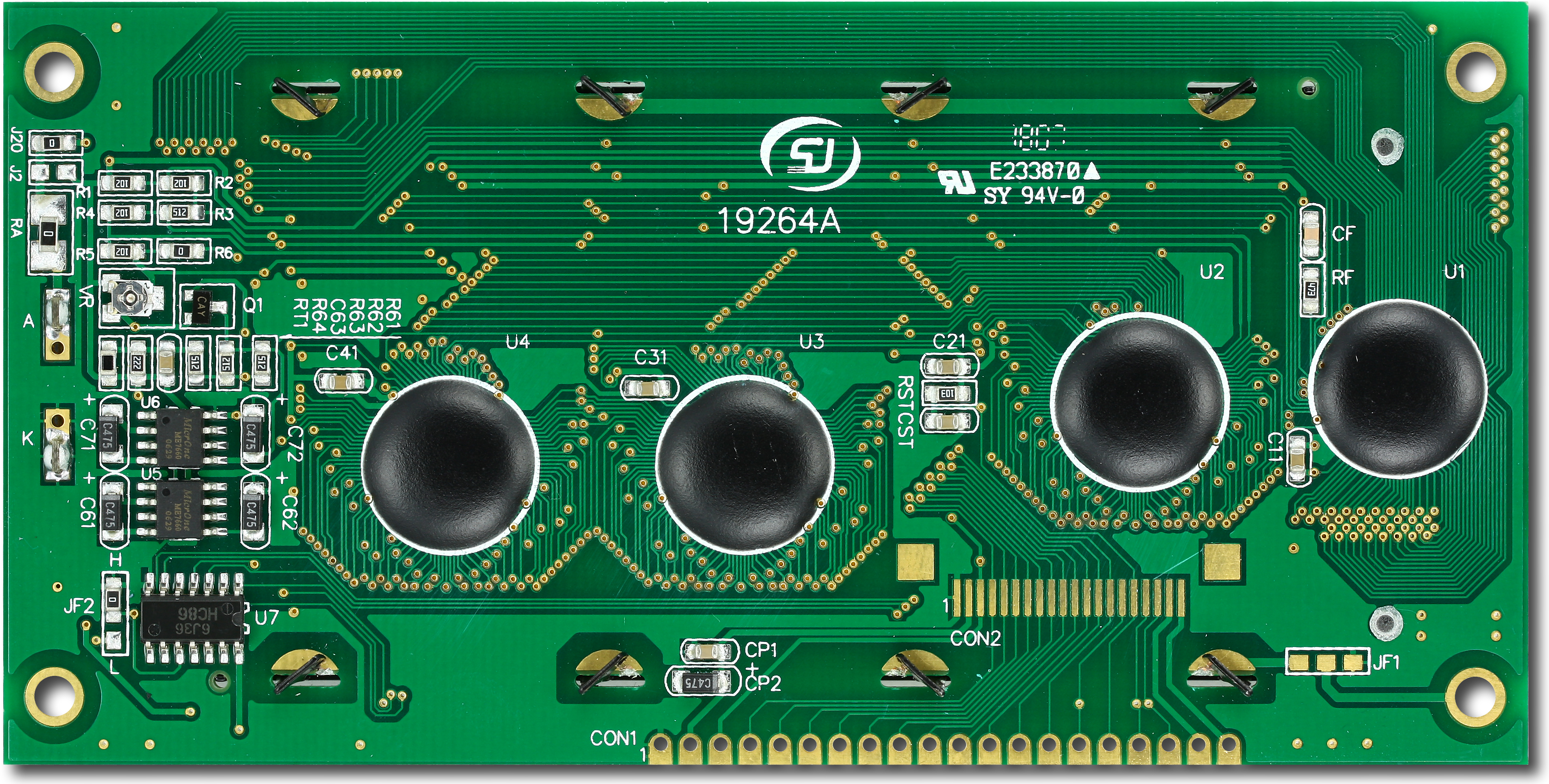

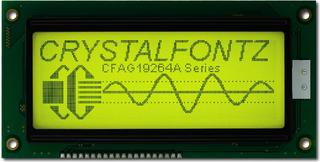

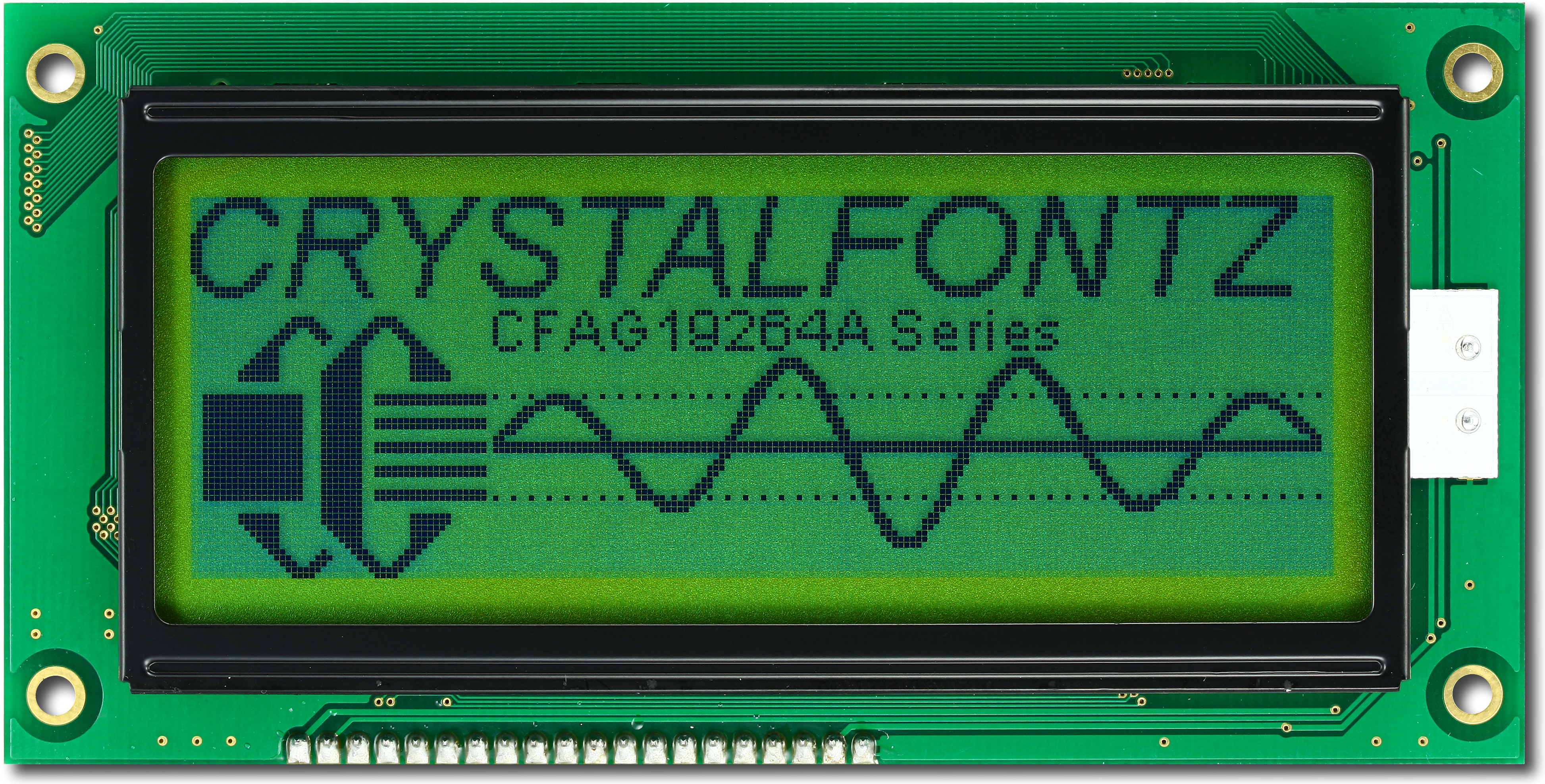

Yellow 192x64 3.9 Inch Graphic LCDPart Number: CFAG19264A-YYH-TN192x64 sunlight readable graphic LCD with negative voltage generator and temperature compensation.
Resolution: 192x64 pixels
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Transflective
Controller: Neotec NT7108
Operating Temp:  -20°C to +70°C
Compliance: REACH & RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

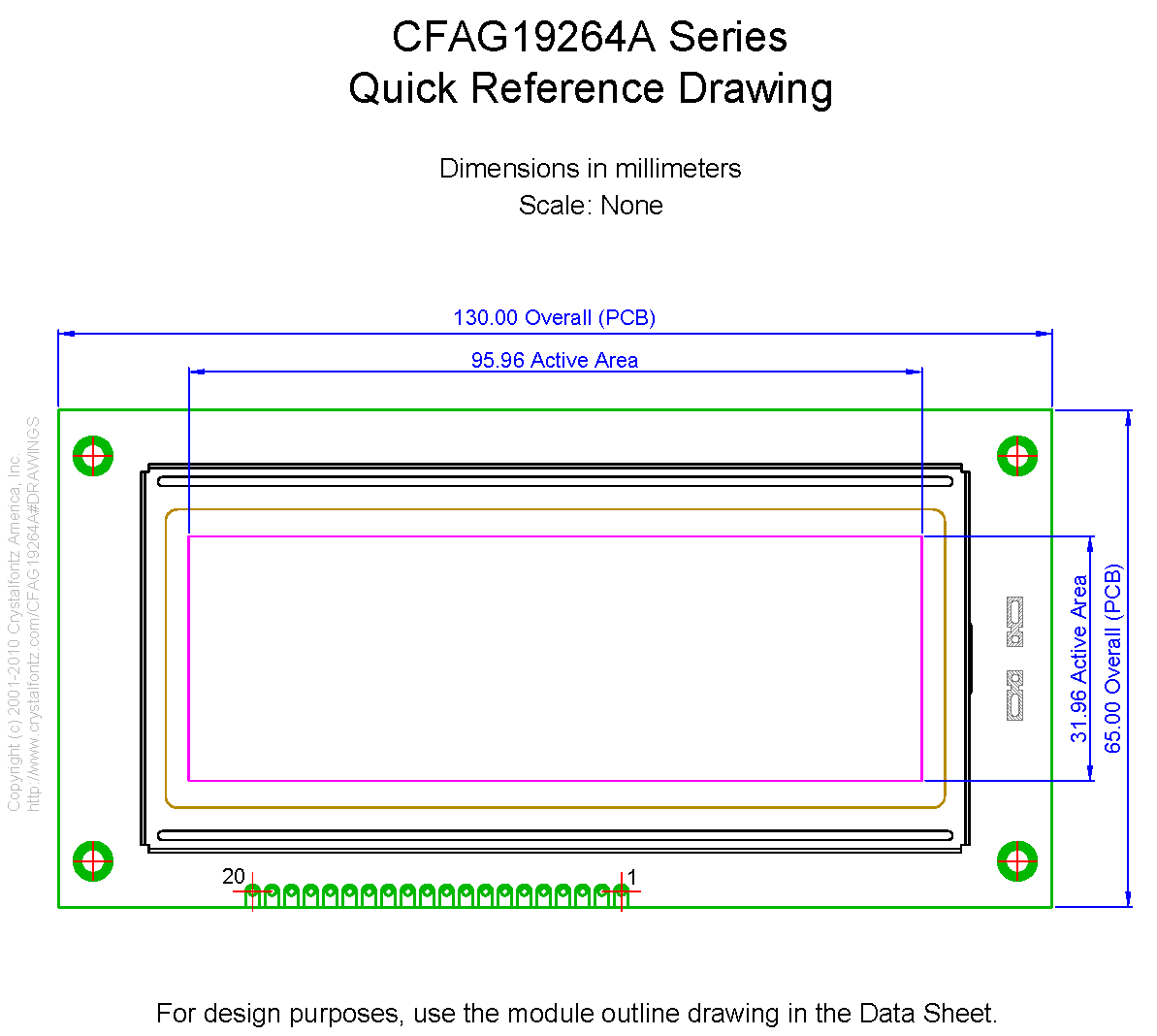

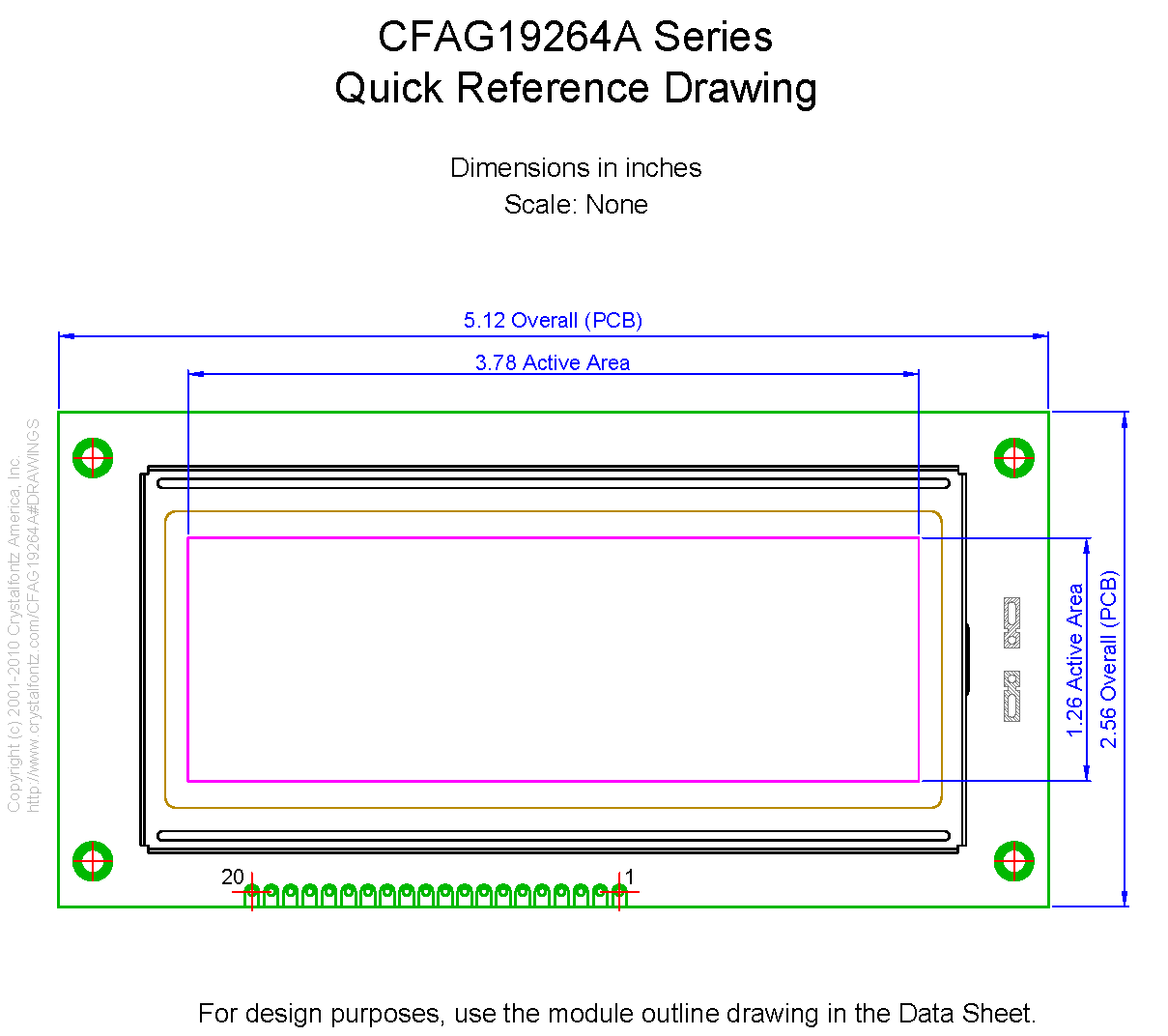

        Column Dots x Row Dots
            192 x 64


    Module Overall        width
        height
        depth


        millimeters
        130
        65
        12.4


        inches
        5.12
        2.56
        0.49



    PCB Outline        width
        height
        depth


        millimeters
        130
        65
        12.4


        inches
        5.12
        2.56
        0.49



        Diagonal Dimension
            3.98"


    Viewing Area        Width
        Height


        millimeters
        102
        39


        inches
        4.02
        1.54



    Active Area        Width
        Height


        millimeters
        95.96
        31.96


        inches
        3.78
        1.26



    Dot Size        Width
        Height


        millimeters
        0.46
        0.46


        inches
        0.018
        0.018



    Dot Pitch        Width
        Height


        millimeters
        0.5
        0.5


        inches
        0.020
        0.020



        Weight
            93g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Neotec NT7108
NT7108

LCD Driver
Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAG19264A-YYH-TN Datasheet

download Files and Downloads
folder_zip CAD Export - CFAG19264A 2D CAD
picture_as_pdf 1 to 1 Template - CFAG19264A 1 TO 1.PDF
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH














Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $36.06

            10
            $35.02

            20
            $30.81

            50
            $27.99

            100
            $25.05

            200
            $22.91

            500 *
            $20.42

            1000 *
            $18.35

402 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
