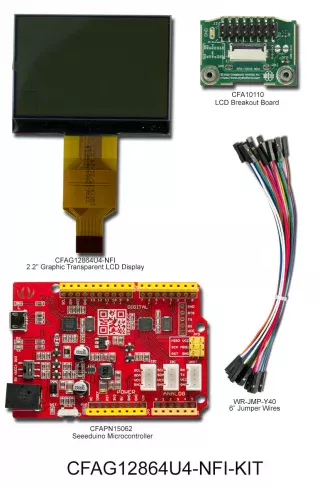

2.2" Graphic Transparent LCD Display
Part Number: CFAG12864U4-NFI

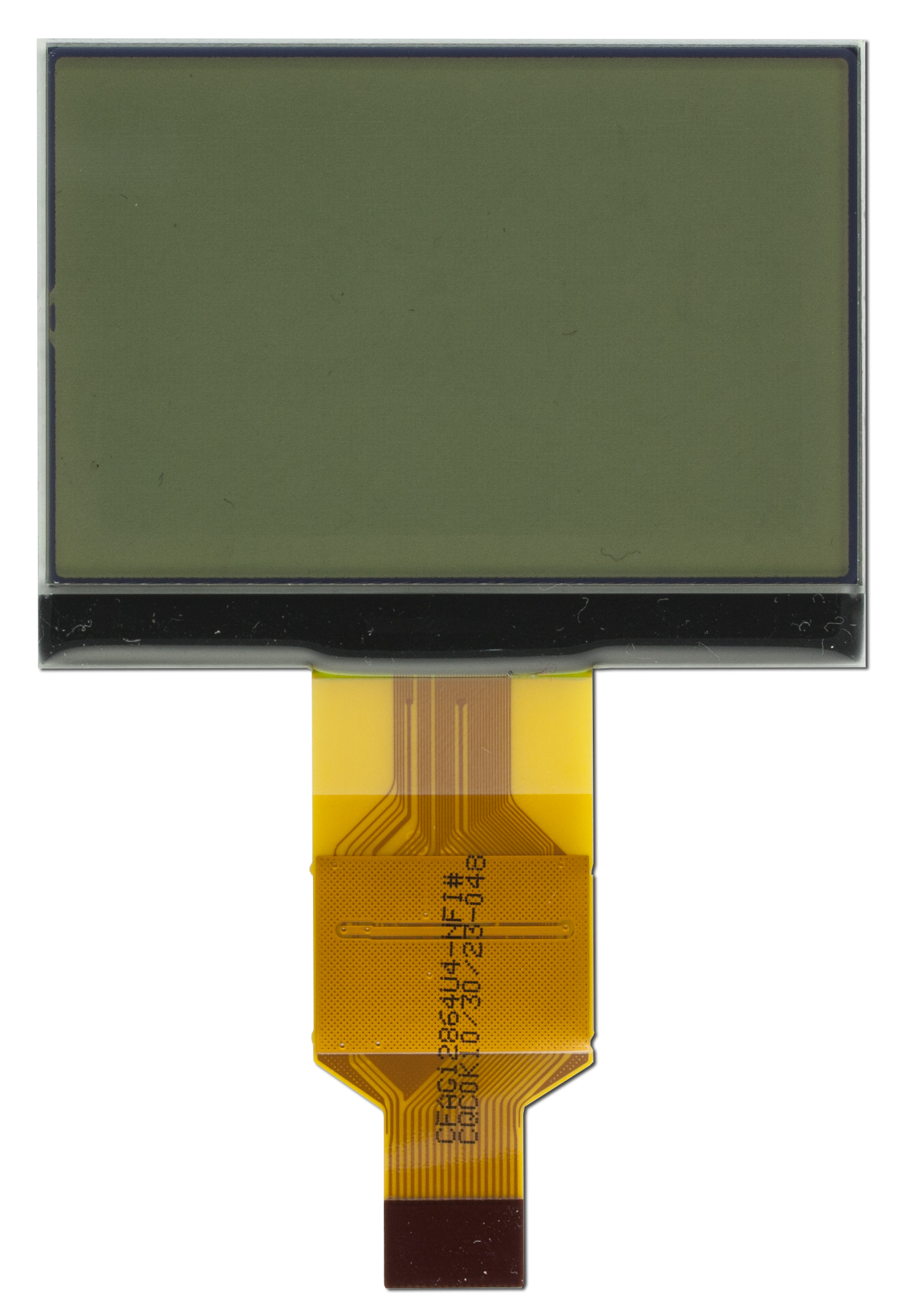

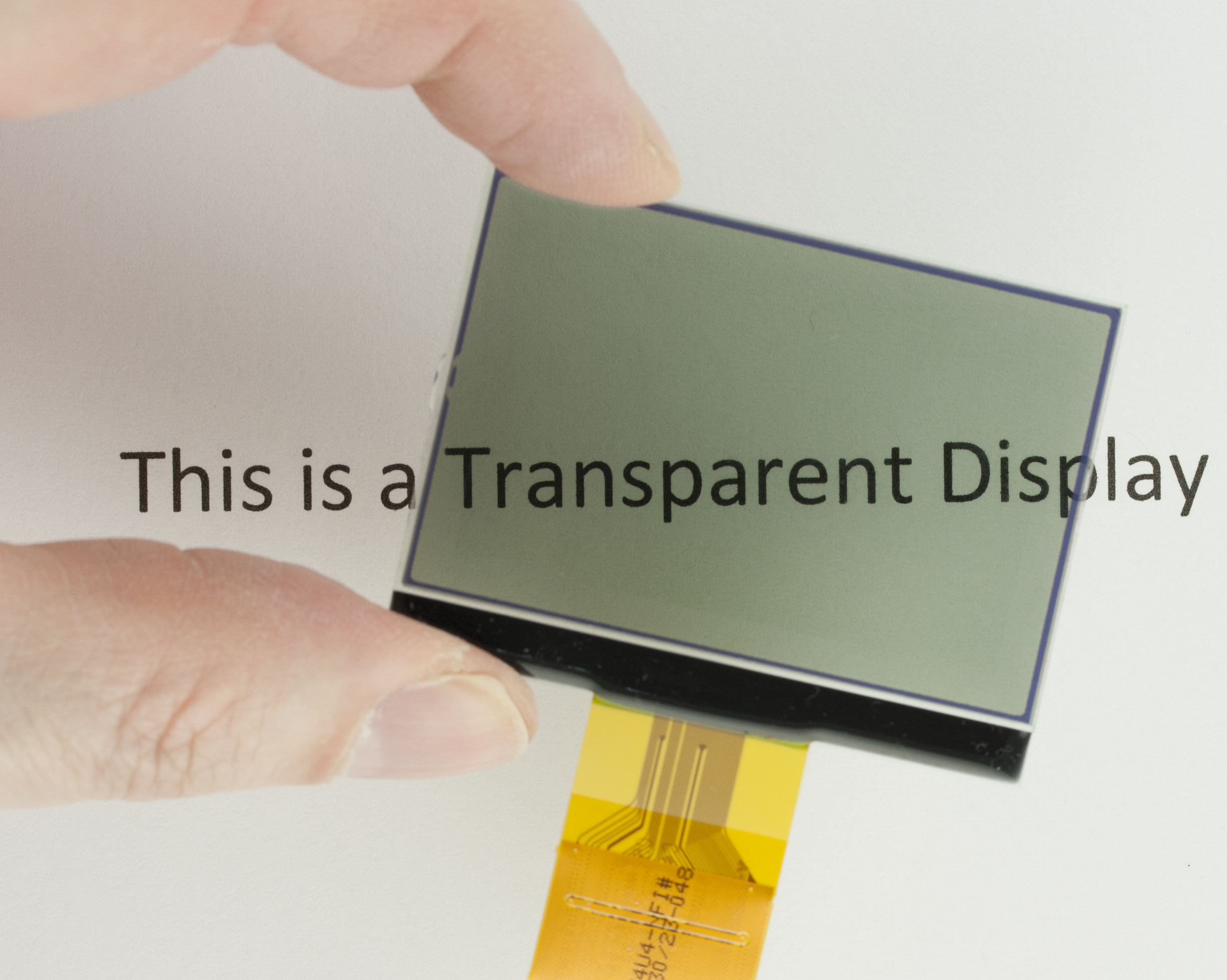

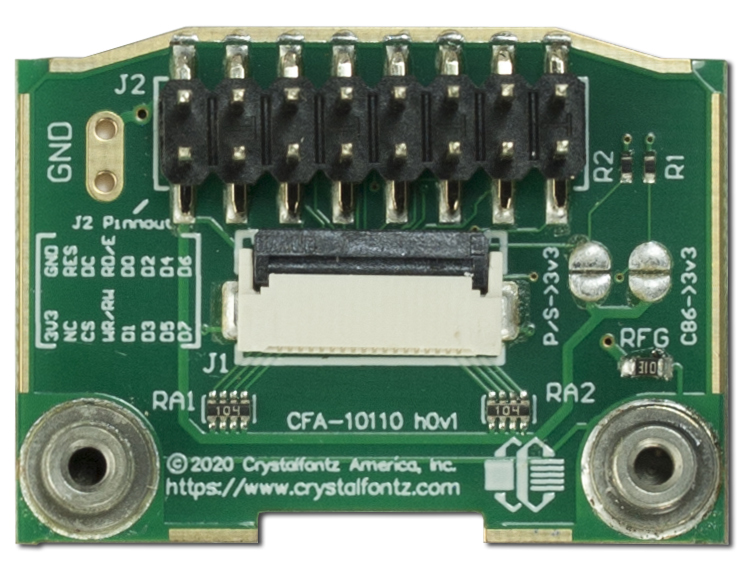

This LCD comes without a back panel, making it transparent! If you've seen our DIY transparent LCD and wanted the final product without having to source the polarizer yourself, this display is for you! If you wish our transparent OLED was available with black pixels, this is for you!This display is the same form factor and pinout as our popular CFAG12864U3-NFH display and can be used with the Graphic LCD breakout board.

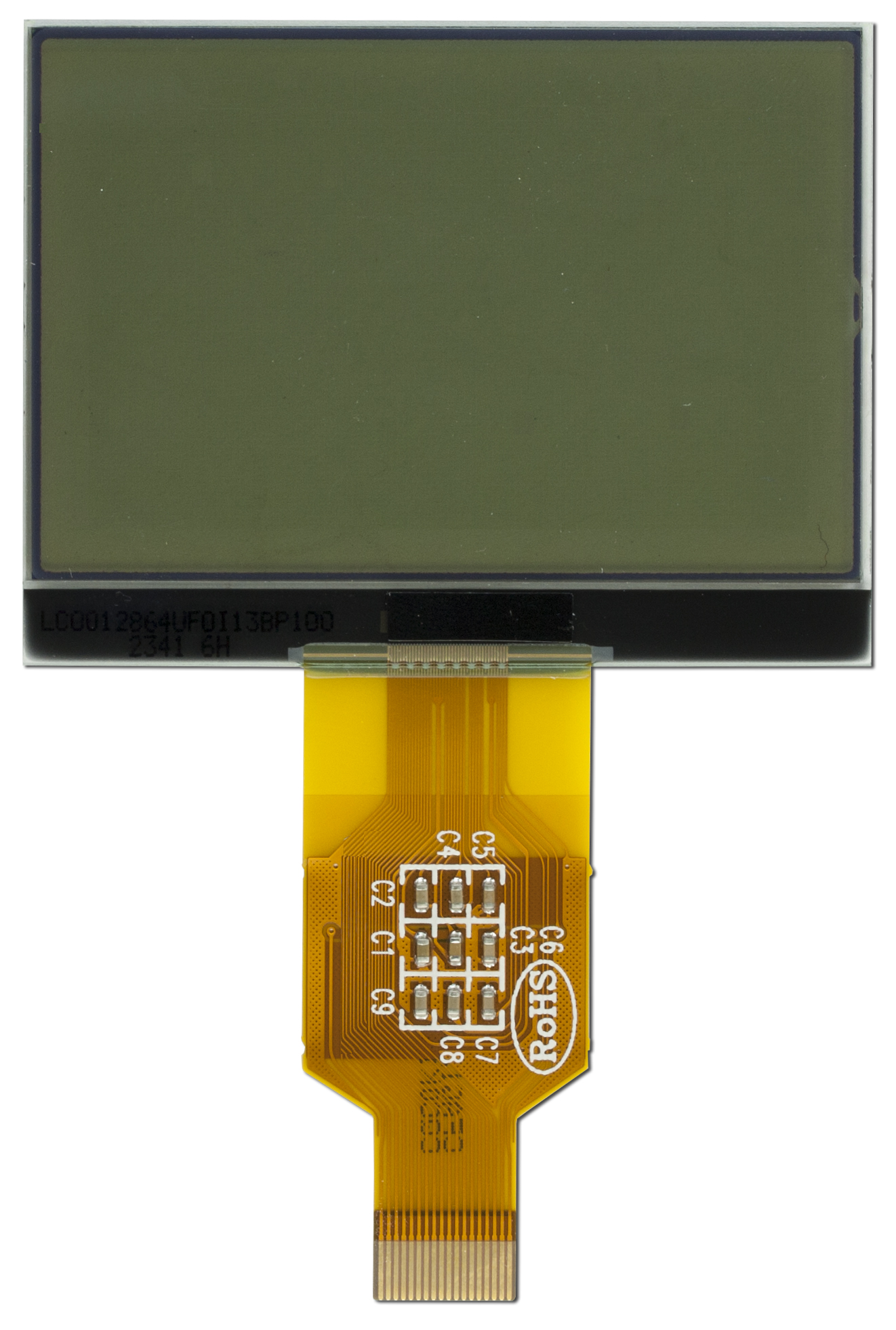

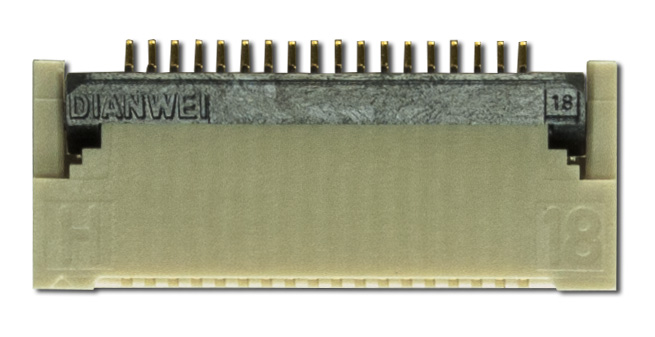

This LCD has an integrated controller and voltage-generating components mounted on the flexible tail. The tail connects to a standard 18-conductor 0.5mm pitch ZIF (Zero Insertion Force) connector. The included controller supports parallel or SPI communication.
Looking for a smaller version of this display? Check out the 1.1" transparent LCD.
Part Number:
CFA - Crystalfontz America
G - Graphic LCD
12864 - 128x64 pixel resolution
U4 - Family and series
N - No backlight
F - FSTN Positive
I - Transmissive Polarizer, 6:00 viewing direction
Product Variations
Colors | Dark on Transparent None backlightDark on Light Gray White LED backlightDark on Light Gray None backlight |
---|
- square_foot Physical Characteristics
Physical Characteristics

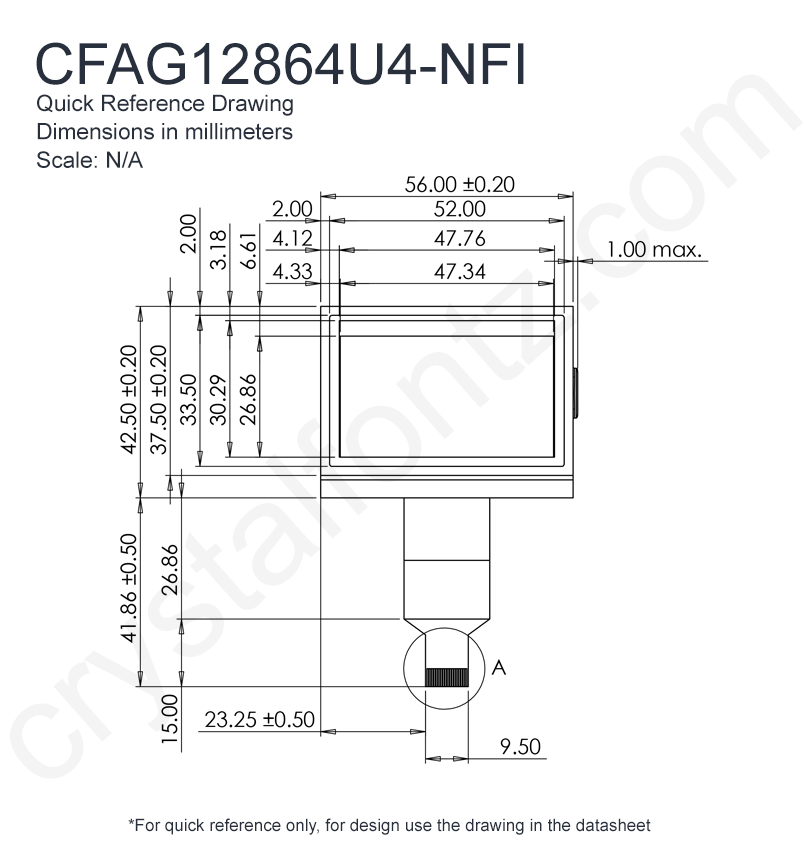

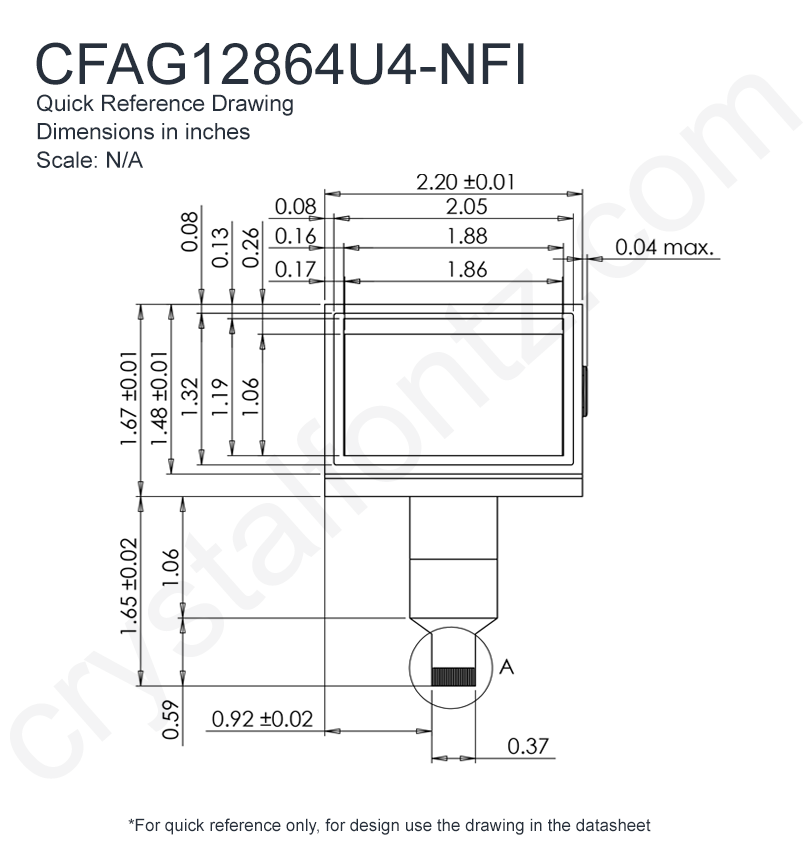

Column Dots x Row Dots 128 x 64 Module Overall width height depth millimeters 56 42.5 1.9 inches 2.21 1.67 0.08 *width / height does not include Foldable Tab Diagonal Dimension 2.2" Viewing Area Width Height millimeters 52 33.5 inches 2.05 1.32 Active Area Width Height millimeters 47.76 30.29 inches 1.88 1.19 Dot Pitch Width Height millimeters 0.42 0.37 inches 0.017 0.015 Weight 9.5g Pin Count 18 - visibility Optical Characteristics
Optical Characteristics
Glass Type LCD View Direction 6 o'clock Backlight Type None Foreground Color Dark Background Color Transparent - electric_bolt Electrical Specification
Electrical Specifications
Supply Voltage for Logic Minimum 3V Supply Voltage for Logic Maximum 3.3V Supply Current Maximum 2mA Supply Current Typical 1mA - nature Environmental
Environmental
Operating Temperatures min max Celsius -20° 70° Fahrenheit -4° 158° Storage Temperatures min max Celsius -30° 80° Fahrenheit -22° 176° - cable Electronics
Electronics

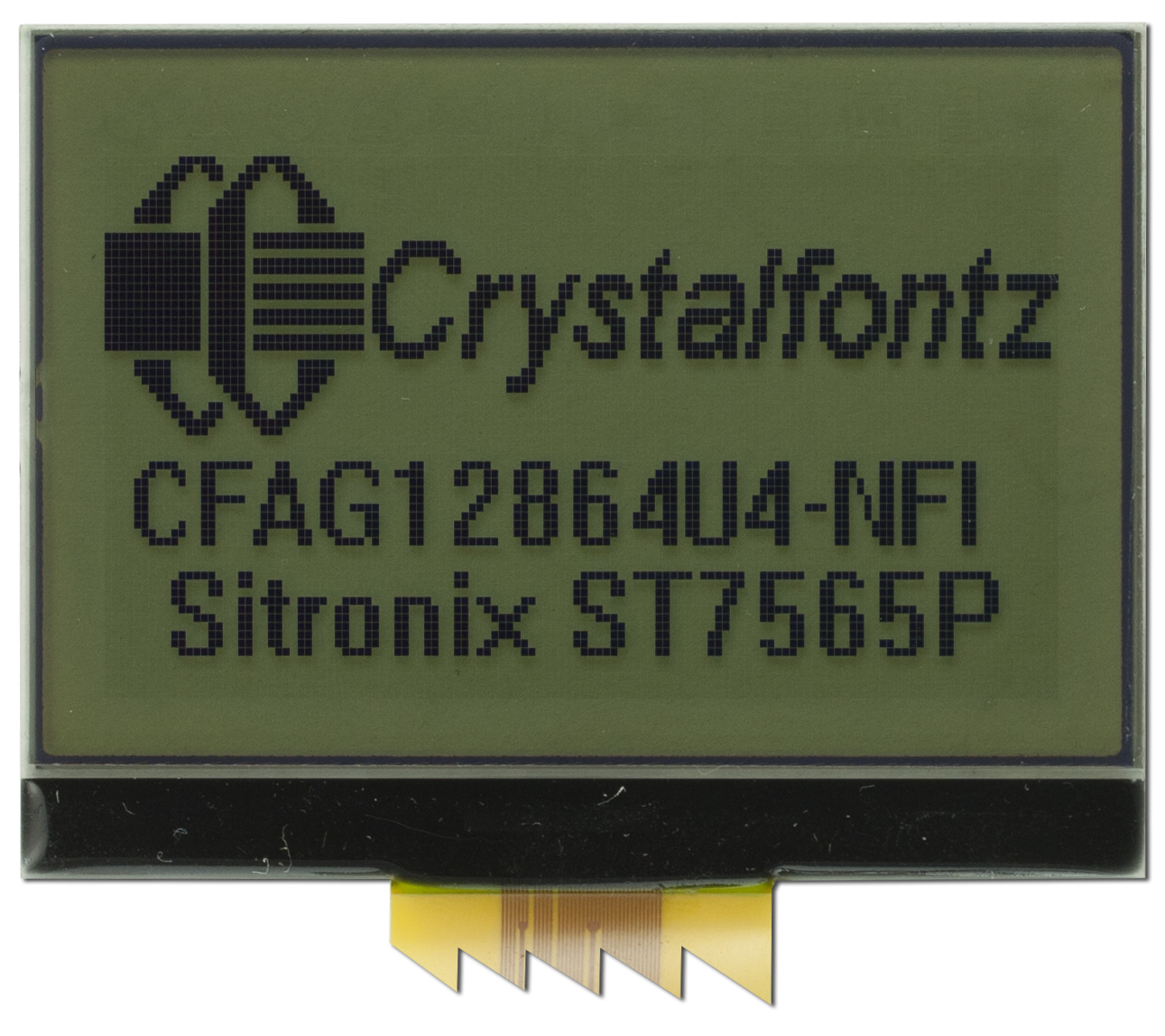

Controller Documents Sitronix ST7565P
ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.Interface 8-bit Parallel, SPI -
picture_as_pdf Datasheets
-
download Files and Downloads
-
assured_workload Compliance Documents
Other components worth considering
Part Change Notice
Subscribe to Part Change Notices by email or RSS
- text_snippet
Part Change Notice #11254: 2.2" Graphic Transparent LCD Display is now available.
New Product: CFAG12864U4-NFI Date Issued: January 10, 2024 Summary: 2.2" Graphic Transparent LCD Display is now available. Description: CFAG12864U4-NFI has been released on our website (https://www.crystalfontz.com/product/cfag12864u4nfi-128x64-transparent-graphic-lcd-display) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
