Small Backlit Sunlight Readable LCD

Part Number: CFAG12864T3-TFH

This 128x64 graphic LCD display module (CFAG12864T3-TFH) is thin, light, low-power, and LED backlit. This display is visible in all lighting situations, from darkness, normal office lighting, and even bright sunlight, making it an excellent sunlight/daylight readable LCD solution.

This graphic LCD is a transflective, positive-mode display, the backlight may be turned off when there is sufficient ambient light to read the display. Turning the backlight off will further reduce the already super-low power consumption. This display is well suited for compact hand-held devices, or any application where a lot of display in a very small area is needed.

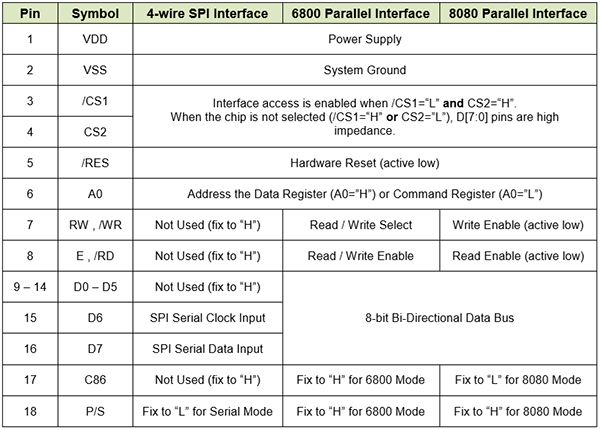

This LCD display has an integrated controller and voltage generating components mounted on the flexible tail. The tail connects to a standard 18-conductor 0.5mm pitch ZIF (Zero Insertion Force) connector:

This monochrome graphic LCD display is also available in a non-backlit version (CFAG12864T3-NFH).

• Thin and light TAB construction with white LED backlight
• Wide temperature range: -20°C to 70°C (-4°F to 158°F)
• Built-in Sitronix ST7565P controller
• Ultra-Low power consumption
• Perfect for handheld, battery operated devices
• Simple 4-wire, 8-bit SPI or 8-bit parallel interface

This display is the recommended replacement for the CFAG12864T2-TFH which are no longer in production. It is not an exact replacement, please consider ordering a sample to determine if it will work for you.

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  128 x 64

  Module Overall	width	height	depth
  millimeters	38	26.42	8.8
  inches	1.50	1.04	0.35
  *width / height does not include Foldable Tab

  Diagonal Dimension

  1.15"

  Viewing Area	Width	Height
  millimeters	29.58	16.22
  inches	1.17	0.64

  Active Area	Width	Height
  millimeters	25.58	14.06
  inches	1.01	0.55

  Dot Pitch	Width	Height
  millimeters	0.2	0.22
  inches	0.008	0.009

  Optional Connectors

  CS050Z18GA0

  Flexible Cable (FFC/FPC)	length
  millimeters	40.76
  inches	1.605

  Weight	5.3g
  Pin Count	18

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	FSTN/Light-Gray
  Polarizer	Transflective
  View Direction	6 o'clock
  View Angle	60°
  Sunlight Readable	Yes

  Backlight Color	White
  Backlight Type	LED
  Mode	Positive
  Foreground Color	Dark
  Background Color	Light Gray

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	3V
  Supply Voltage for Logic Maximum	3.3V

  Supply Current Typical

  2mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Typical	3.5V
  Forward Current Minimum	24mA

  Forward Current Maximum	40mA
  Forward Current Typical	32mA

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Sitronix ST7565P ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.
  Interface	8-bit Parallel, SPI
