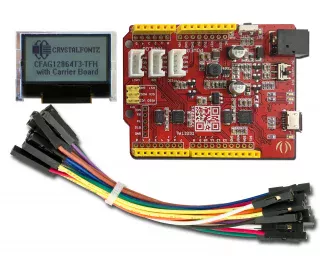

Small Backlit Monochrome LCD Dev KitPart Number: CFAG12864T3-TFH-E1-2

                        A development kit for this small backlit sunlight readableLCD display which includes an adapter board wired to a Seeeduino running a demonstration. All that's needed to see the display working is to plug the Seeeduino into a power supply using the included USB cable.

The CFAG12864T3-TFH is a small, monochrome, graphic LCD with an external backlight frame. The display is extremely low power and only requires the backlight when viewed in the dark. The adapter board breaks the display's ZIF tail out to a 0.1" header which makes integrating this display easy without any required soldering.

This kit makes it easy for to evaluate the CFAG12864T3-TFH and/or the CFAG12864T3-TFH-E1-1 for your product, or provides a great jumping off point for creating a project with this display.

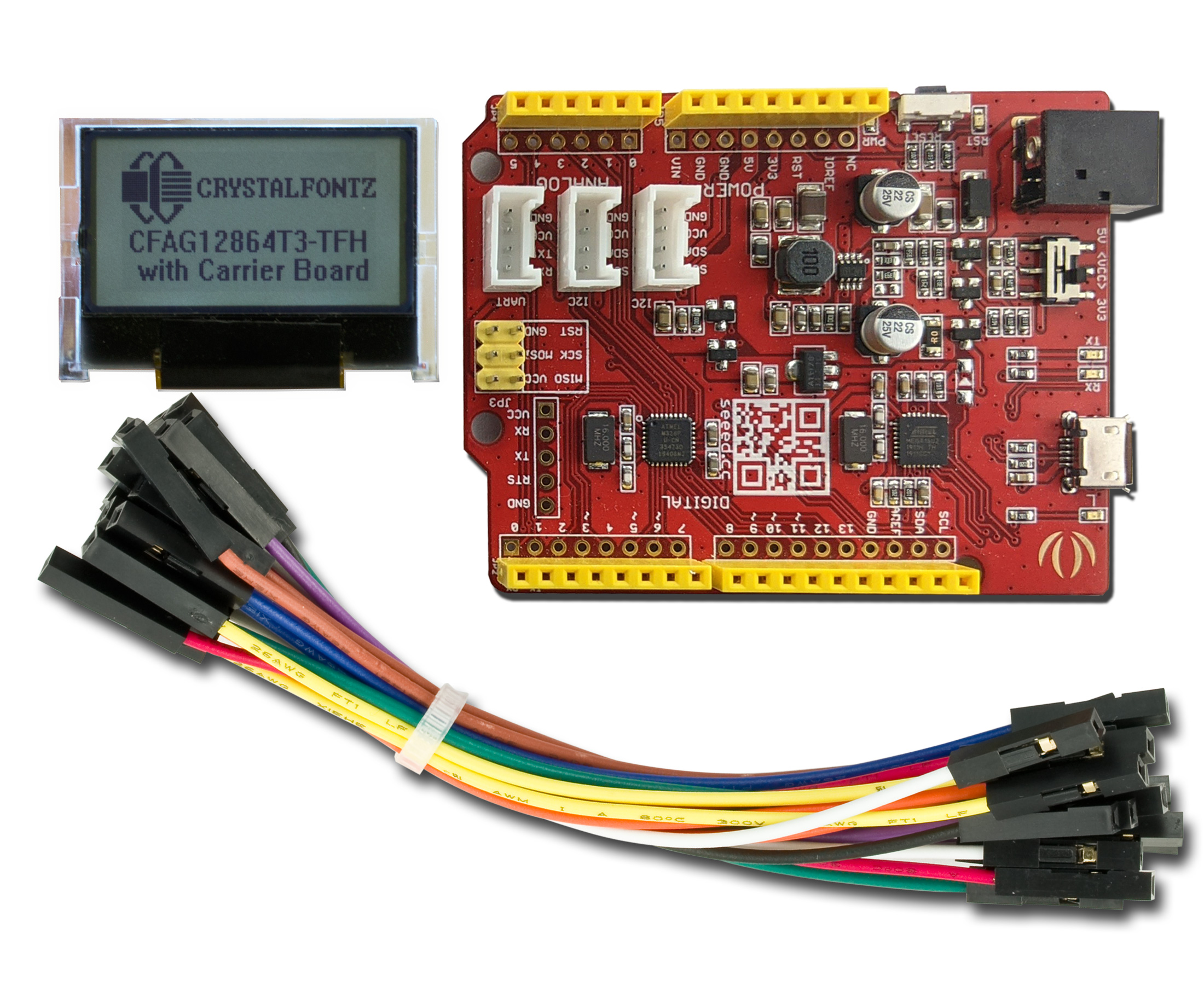

Kit Contents:CFAG12864T3-TFH display
Custom designed breakout board
Jumper Wires and headers as needed
Seeeduino
USB Cable

Check out our blog post for help getting started with this small graphic LCD.

Product VariationsColorsDark on Transparent
No BacklightDark on Light Gray
White LED BacklightDark on Light Gray
No Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        34
        24.22
        9.05

        inches
        1.34
        0.95
        0.36

    Viewing Area        Width
        Height

        millimeters
        29.58
        16.22

        inches
        1.17
        0.64

    Active Area        Width
        Height

        millimeters
        25.58
        14.06

        inches
        1.01
        0.55

    Dot Size        Width

        millimeters
        0.22

        inches
        0.009

    Dot Pitch        Height

        millimeters
        0.2

        inches
        0.008

        Weight
            88.6g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
View Angle
            60°
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            Dark
Background Color
            Light Gray

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Typical
            3.3V

        Supply Current Typical
            32mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            3.5V

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7565P
ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.
Interface
            8-bit Parallel, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAG12864T3-TFH-E1-1 Datasheet

download Files and Downloads
link Demo Code Download on Github
link Demo Code Repository on Github

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $41.15

66 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering

						Assorted Imperial Screws
Add mounting screws $3.08 ea.

						3-inch Female to Female Jumper Wires
Add short jumper wires? $2.51 ea.

						6-inch Female to Female Jumper Wires
Add long jumper wires? $2.76 ea.

Colors	Dark on Transparent No Backlight Dark on Light Gray White LED Backlight Dark on Light Gray No Backlight

Module Overall	width	height	depth
millimeters	34	24.22	9.05
inches	1.34	0.95	0.36

Viewing Area	Width	Height
millimeters	29.58	16.22
inches	1.17	0.64

Active Area	Width	Height
millimeters	25.58	14.06
inches	1.01	0.55

Dot Size	Width
millimeters	0.22
inches	0.009

Dot Pitch	Height
millimeters	0.2
inches	0.008

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$41.15

Resources
Notices

Additional Resources

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11197: New Seeeduino Version 4.3 Now Shipping

Products Affected:	CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued:	May 15, 2023
Summary:	New Seeeduino Version 4.3 Now Shipping
Description:	We are now releasing products as stated in PCN11190. https://www.crystalfontz.com/news/pcn.php?id=11190

Part Change Notice #11190: Part Change - Seeeduino 4.2 ->4.3

Products Affected:	CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued:	April 13, 2023
Summary:	Part Change - Seeeduino 4.2 ->4.3
Last revision:	4.2
Description:	Seeed Studios has updated the Seeeduino from v4.2 to v4.3. This change switches from the ATMEGA328P-MU to the ATMEGA328P-AU, and replaces the serial chip. This causes the Seeeduino to identify differently when connected to a computer.
Reason:	Supplier has changed their offering
Impact:	Kits using the Seeeduino will no longer be named "USB Serial Device"
Availability:	Immediate
