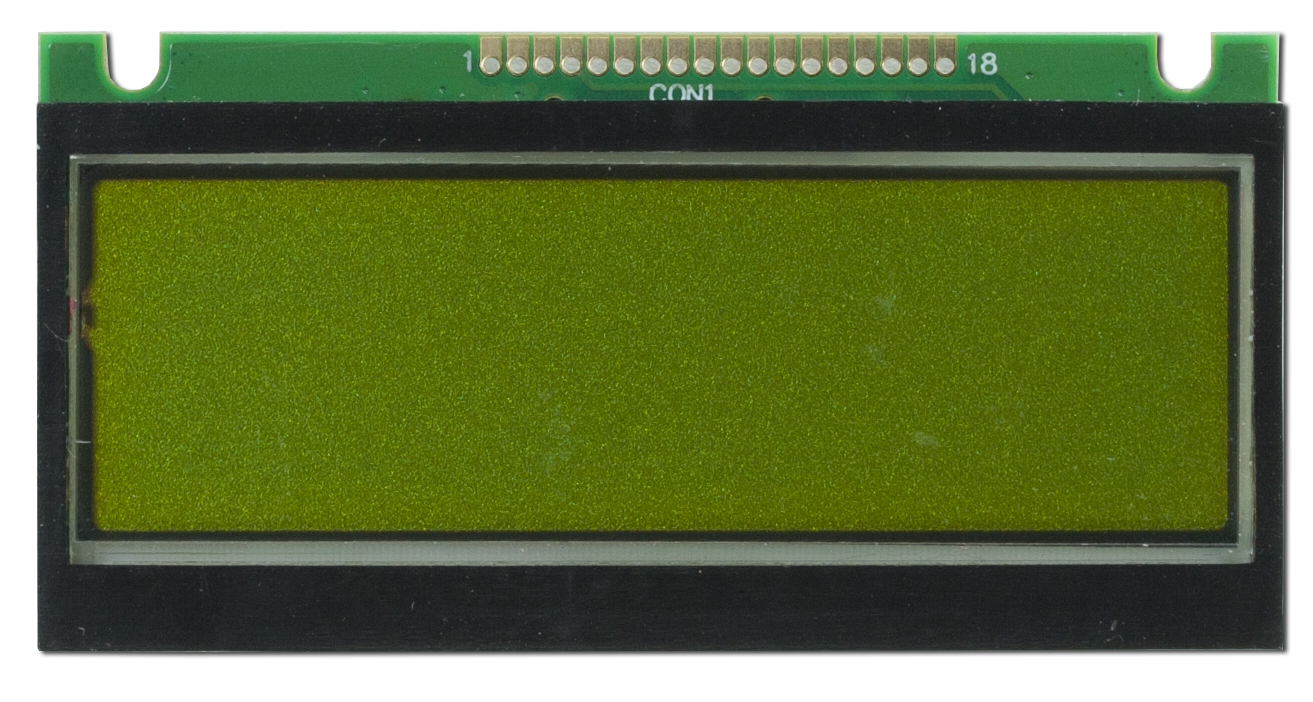

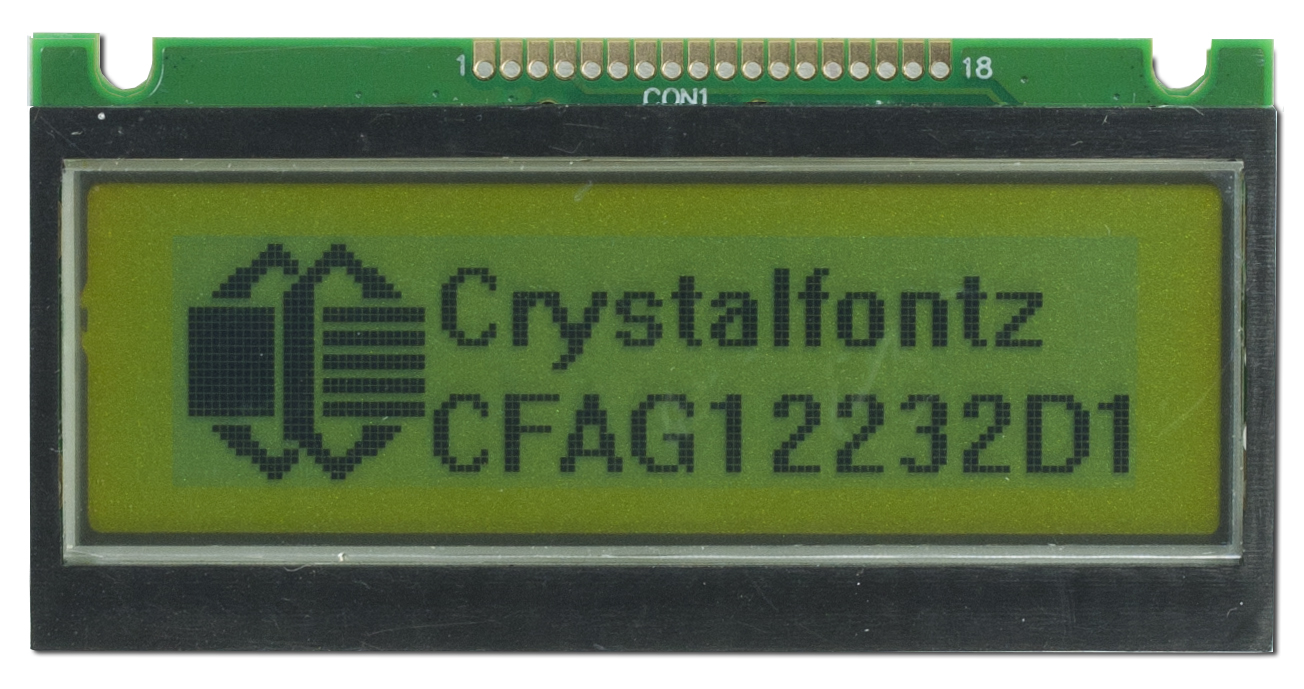

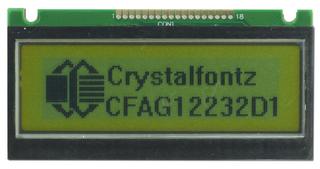

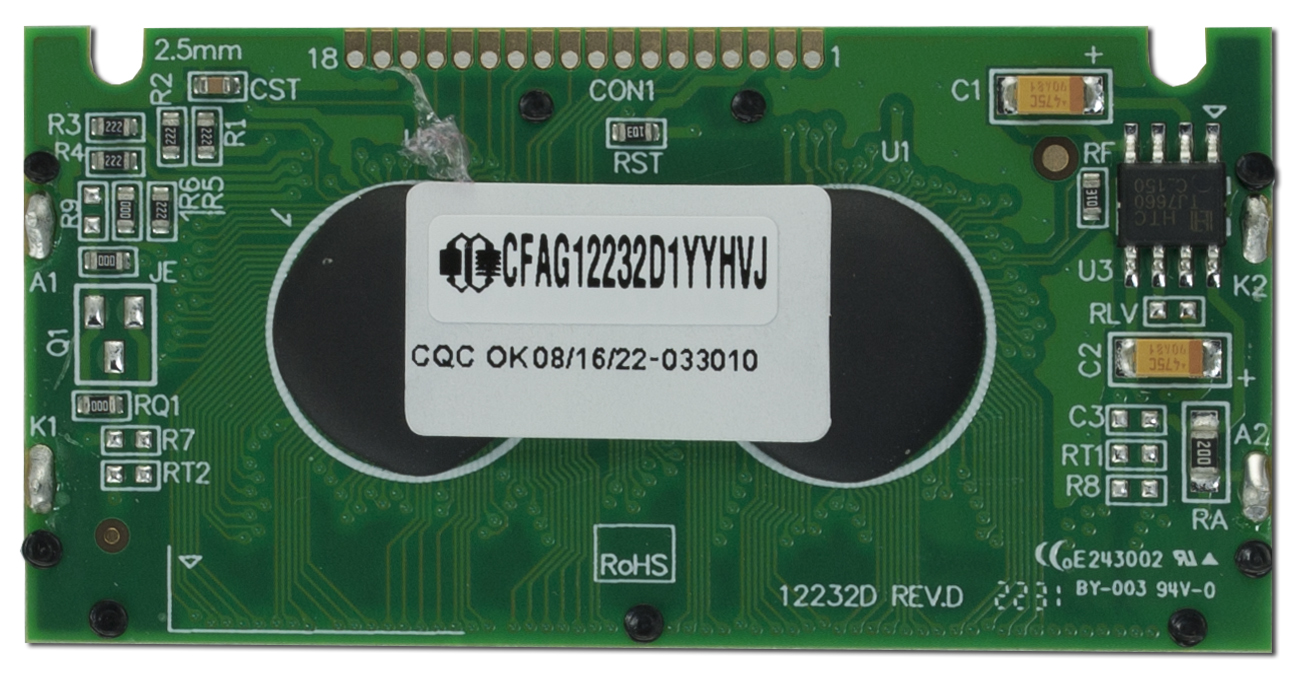

Backlit 122x32 Graphic LCD DisplayPart Number: CFAG12232D1-YYH-VJ
         This yellow-green graphic LCD with 122x32 dark pixels includes 0.05" (1.27mm) mounting holes to make it easy to integrate in your system.
Built-in I-CORE AiP31520 or compatible controller (Epson SED1520, Avant SBN1661G compatible)
8-bit 68 series parallel interface
Ultra thin ( < 6mm )
Yellow/Green Edge LED Backlight
Reflective
-20°C to +70°C Operating Temperature
6:00 viewing angle
Negative Voltage Generator

This graphic LCD display is comparable to this 16x2 Black on Yellow LCD, they have the same pinout and dimensions.


Part Number

CFA- Crystalfontz America

G- Graphic LCD

12232- 122x32 Pixel resolution

D1- family and revision (replaced CFAG12232D-YYH-JA)

Y- Yellow-Green backlight

Y- STN Positive Yellow-Green LCD

H- Transflective polarizer

V- Included Negative Voltage Generator

J- Wuxi I-CORE IC
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightDark on Yellow-Green
No Backlight

 square_foot Physical Characteristics

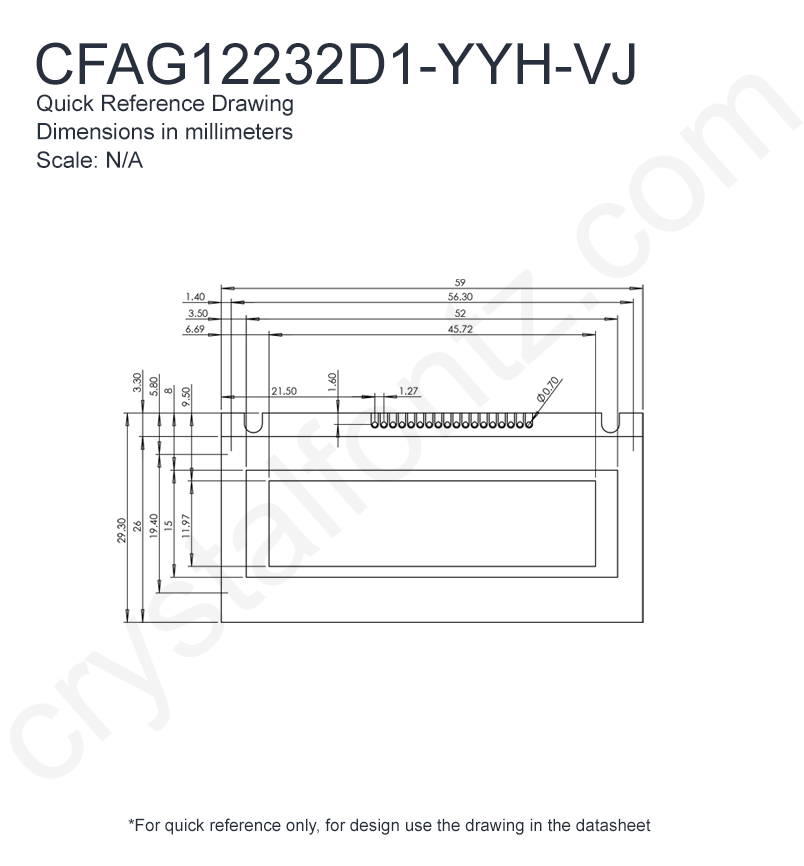

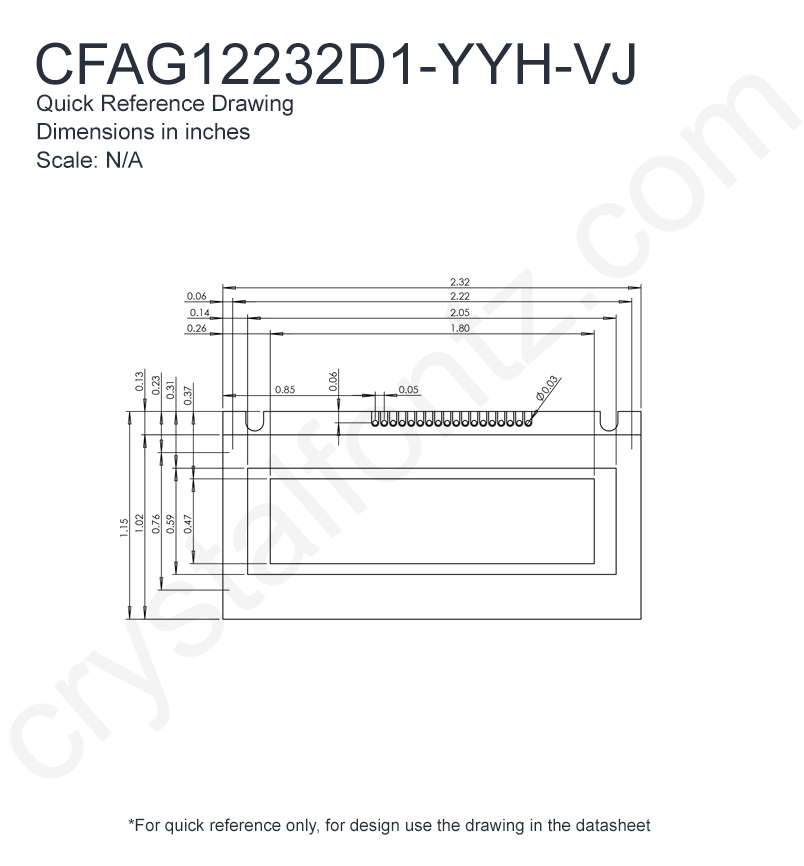

Physical Characteristics

        Column Dots x Row Dots
            122 x 32


    Module Overall        width
        height
        depth


        millimeters
        59
        29.3
        5.5


        inches
        2.32
        1.15
        0.22



    Viewing Area        Width
        Height


        millimeters
        52
        15


        inches
        2.05
        0.59



    Active Area        Width
        Height


        millimeters
        45.72
        11.97


        inches
        1.80
        0.47



    Dot Size        Width
        Height


        millimeters
        0.345
        0.345


        inches
        0.0136
        0.0136



    Dot Pitch        Width
        Height


        millimeters
        0.375
        0.375


        inches
        0.0148
        0.0148



        Weight
            10.3g
Pin Count
            18

 visibility Optical Characteristics
Optical Characteristics

        Polarizer
            Transflective
View Direction
            6 o'clock
View Angle
            40°
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            4.35V


        Supply Current Maximum
            1.5mA
Supply Current Typical
            0.5mA
Module Connector Pitch
            1.27mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            4.9V
Forward Voltage Maximum
            5.1V
Forward Voltage Typical
            5V


        Forward Current Minimum
            32mA
Forward Current Maximum
            60mA
Forward Current Typical
            40mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°


 cable Electronics
Electronics

        Controller Documents
            Wuxi AiP31520
61 SEG / 16 COM Driver for Dot Matrix LCD
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12232D1-YYH-VJ Datasheet

 download Files and Downloads
folder_zip Hardware Design - 3D Model
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH












Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price: $18.24



            Quantity
            Unit Price


            1
            $18.24

            10
            $16.07

            20
            $15.59

            50 *
            $15.03

            100 *
            $14.84

            200 *
            $14.74

            300 *
            $13.91

            500 *
            $13.82

            1000 *
            $13.11

43 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						LCD Starter Kit with Potentiometer
Add a development kit? $11.06 ea.





Colors	Dark on Yellow-Green Yellow-Green LED Backlight Dark on Yellow-Green No Backlight

Module Overall	width	height	depth
millimeters	59	29.3	5.5
inches	2.32	1.15	0.22

Viewing Area	Width	Height
millimeters	52	15
inches	2.05	0.59

Active Area	Width	Height
millimeters	45.72	11.97
inches	1.80	0.47

Dot Size	Width	Height
millimeters	0.345	0.345
inches	0.0136	0.0136

Dot Pitch	Width	Height
millimeters	0.375	0.375
inches	0.0148	0.0148

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$18.24
10	$16.07
20	$15.59
50 *	$15.03
100 *	$14.84
200 *	$14.74
300 *	$13.91
500 *	$13.82
1000 *	$13.11

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11172: 122x32 Graphic LCD Display is now available

New Product:	CFAG12232D1-YYH-VJ
Date Issued:	February 1, 2023
Summary:	122x32 Graphic LCD Display is now available
Description:	CFAG12232D1-YYH-VJ has been released on our website (https://www.crystalfontz.com/product/cfag12232d1yyhvj-122x32-transflective-graphic-lcd-display) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
