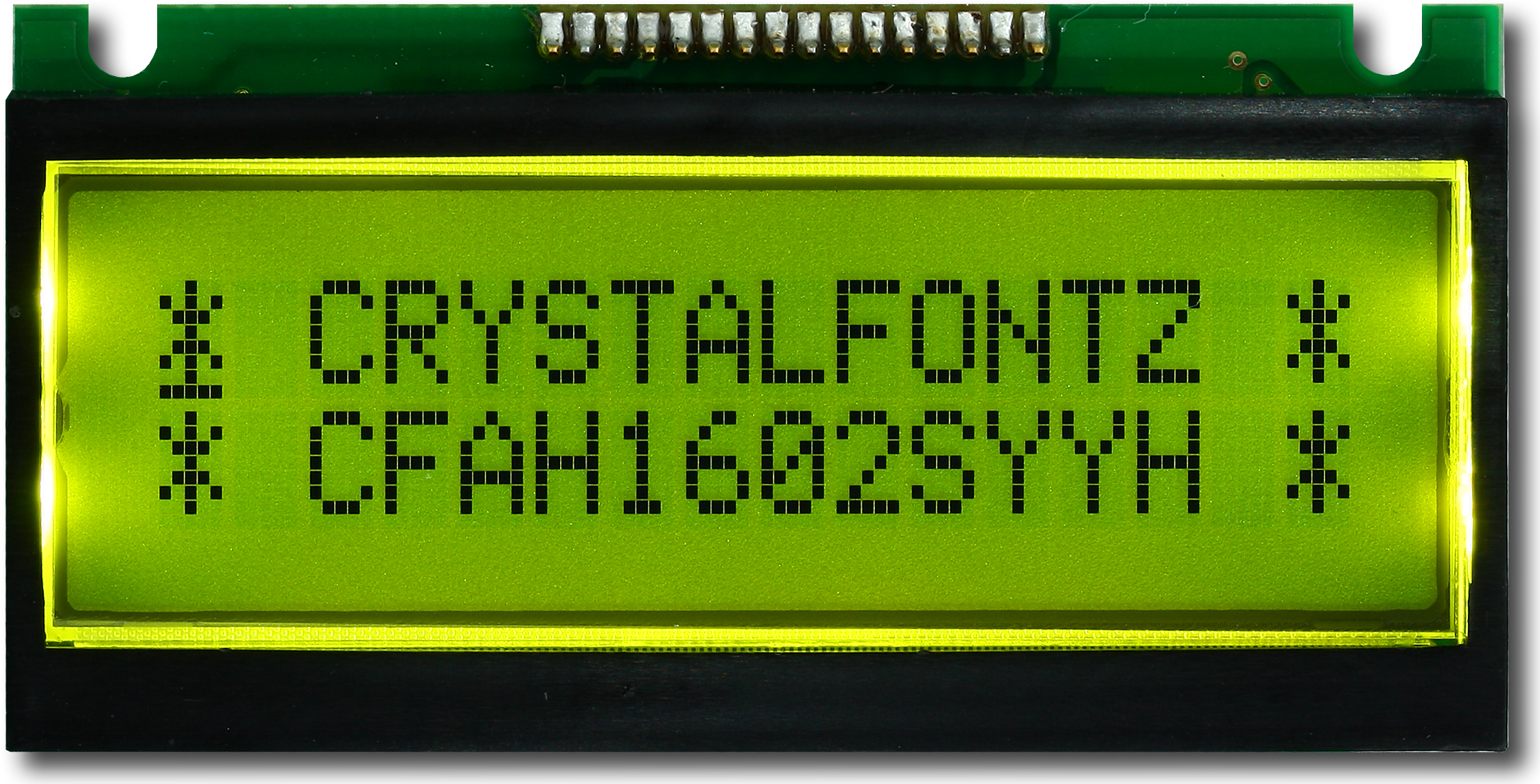

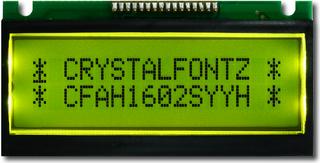

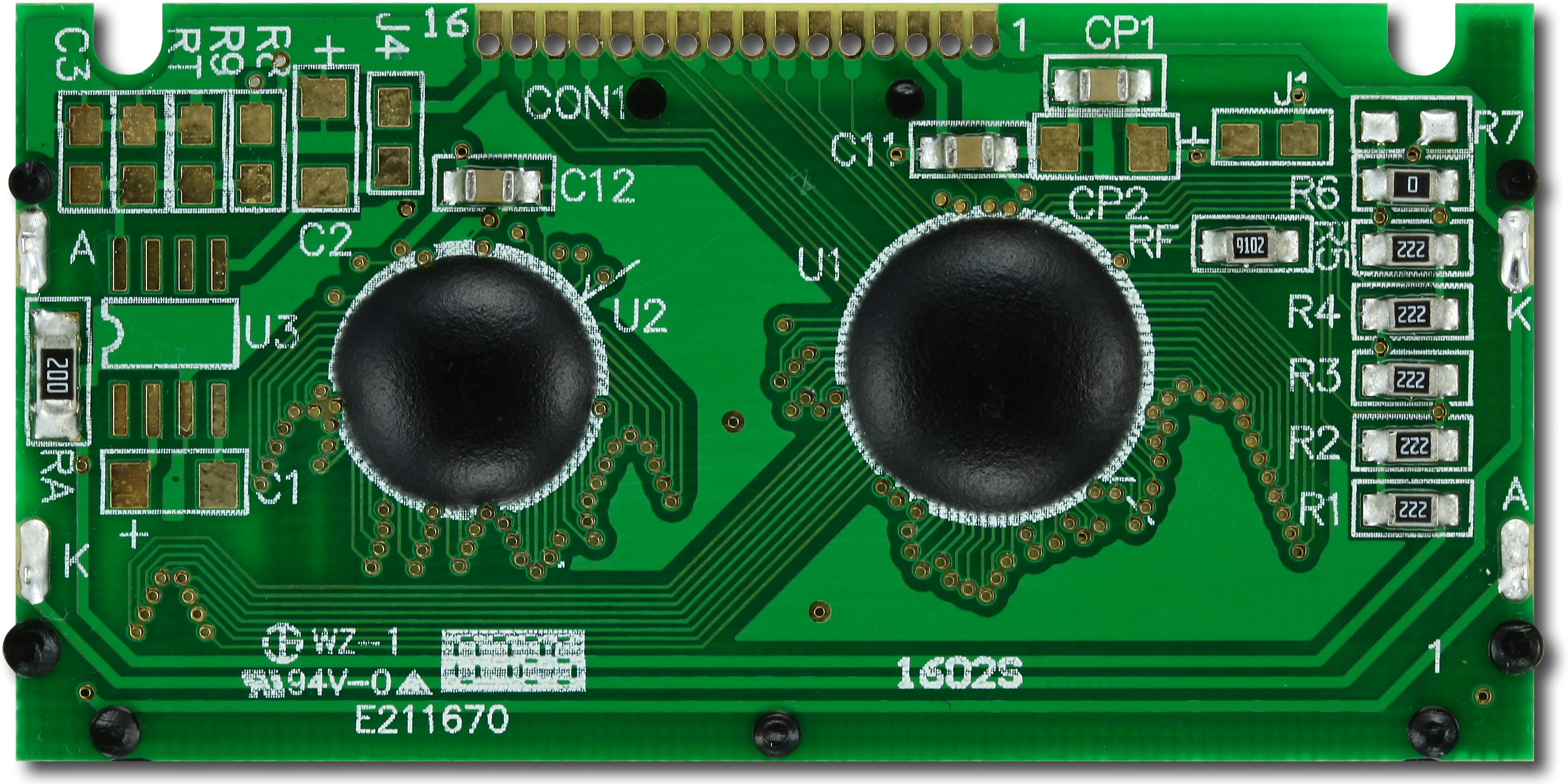

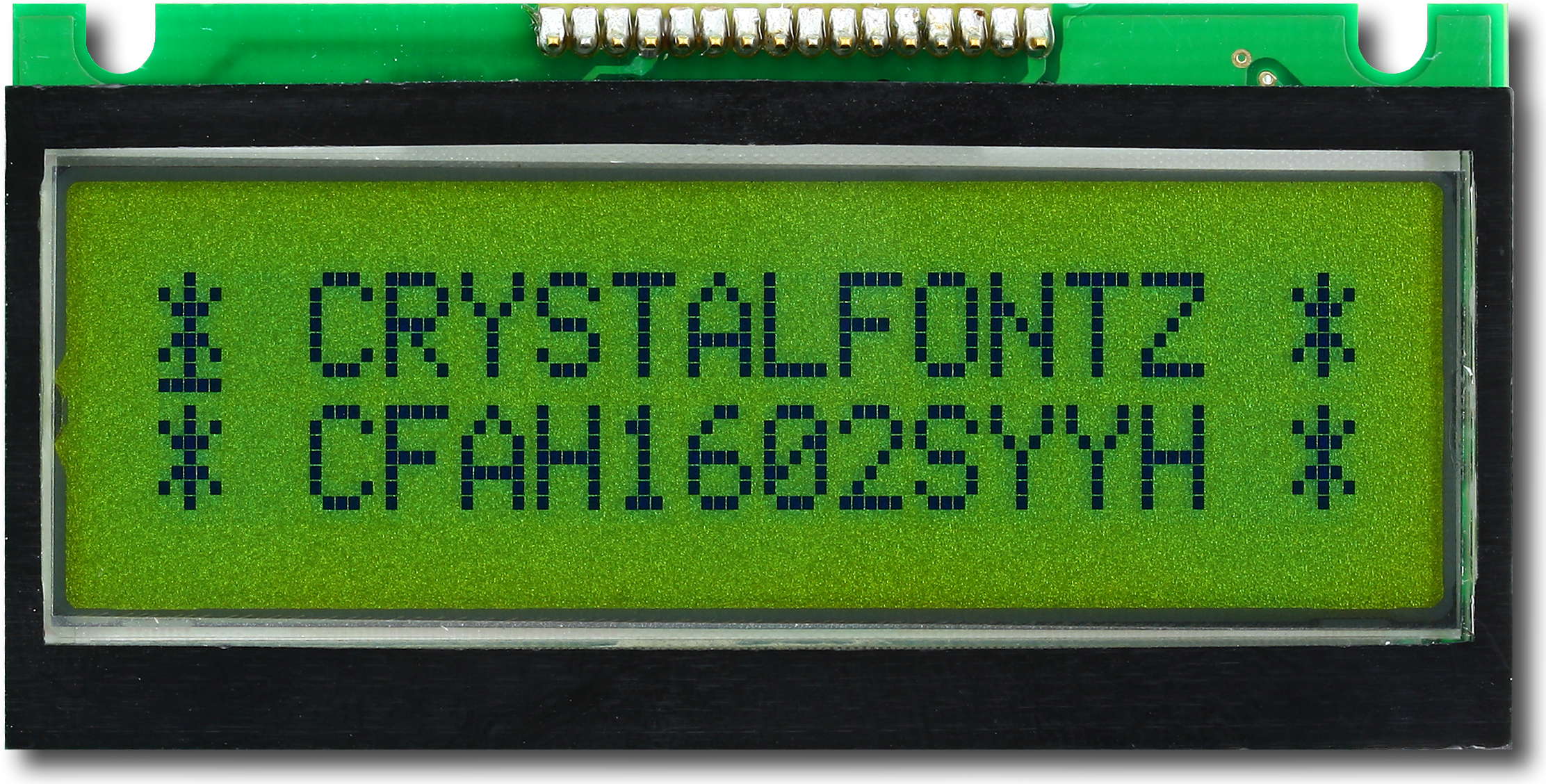

16x2 Black on Yellow LCDPart Number: CFAH1602S-YYH-ETParallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00 viewing angle.
Ultra-Compact and Thin Design
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
This character display is compatible with this 122x32 Parallel Graphic LCD, they have the same pinout and dimensions.

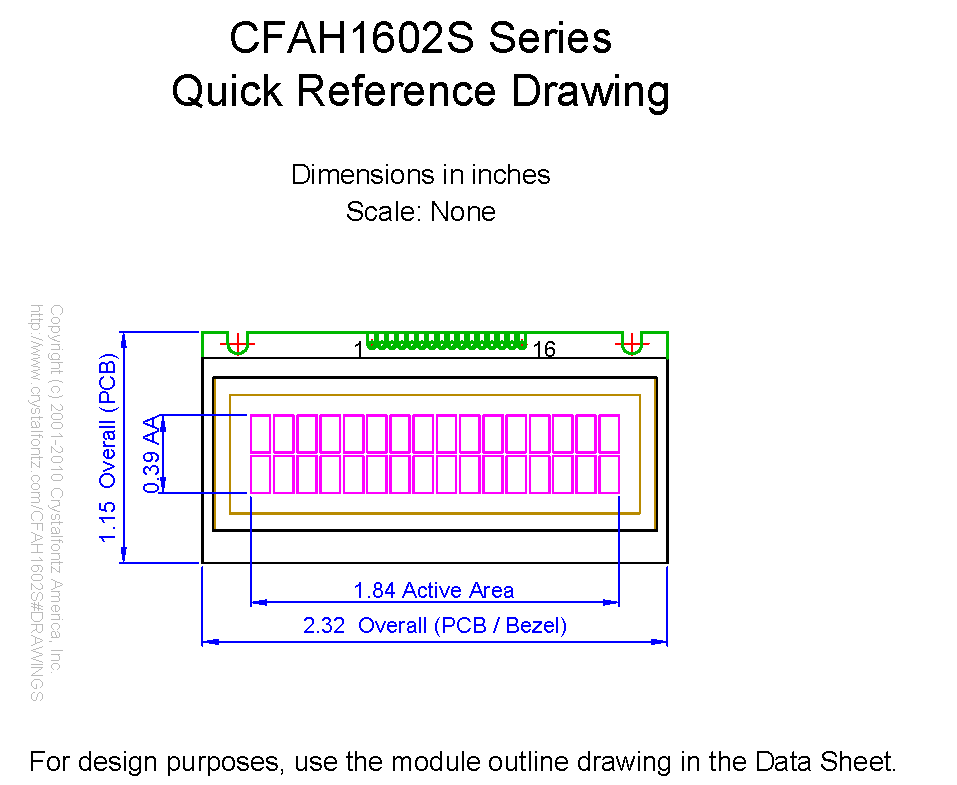

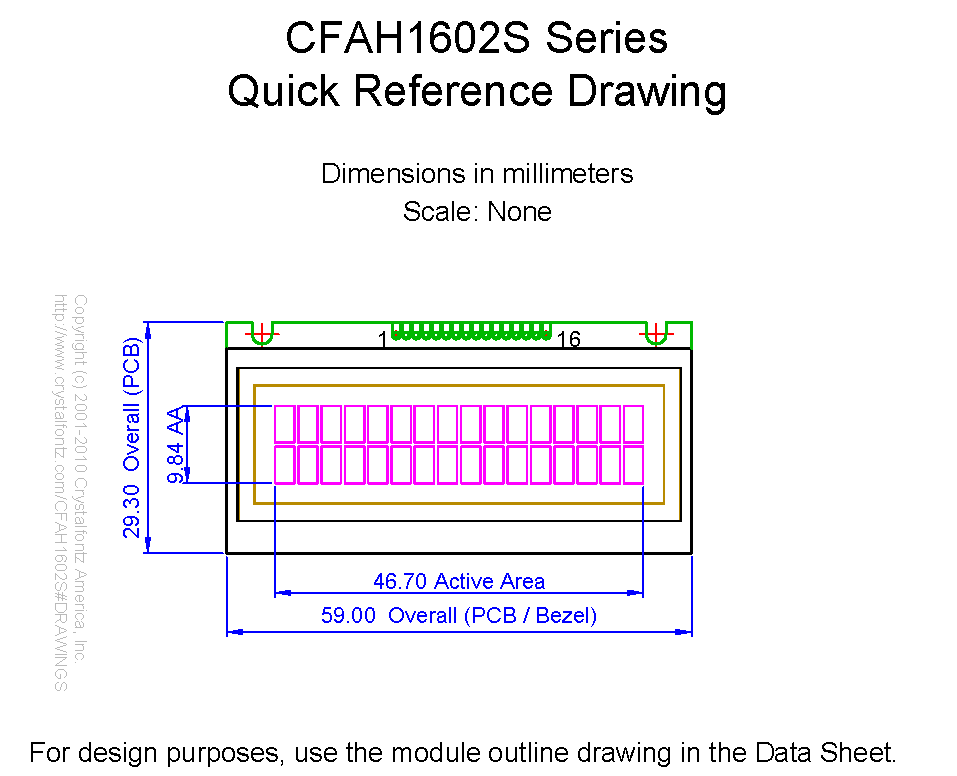

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2


    Module Overall        width
        height
        depth


        millimeters
        59
        29.3
        5.5


        inches
        2.32
        1.15
        0.22



    PCB Outline        width
        height
        depth


        millimeters
        59
        29.3
        5.5


        inches
        2.32
        1.15
        0.22



        Diagonal Dimension
            1.88"


    Viewing Area        Width
        Height


        millimeters
        52
        15


        inches
        2.05
        0.59



    Active Area        Width
        Height


        millimeters
        46.7
        9.84


        inches
        1.84
        0.39



    Character Size        Width
        Height


        millimeters
        2.45
        4.67


        inches
        0.096
        0.184



    Character Pitch        Width
        Height


        millimeters
        2.95
        5.17


        inches
        0.116
        0.204



    Dot Size        Width
        Height


        millimeters
        0.45
        0.54


        inches
        0.018
        0.021



    Dot Pitch        Width
        Height


        millimeters
        0.5
        0.59


        inches
        0.020
        0.023



        Weight
            9g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            3.7V


        Supply Current Minimum
            1mA
Supply Current Maximum
            1.5mA
Supply Current Typical
            1.2mA
Module Connector Pitch
            0.05mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            4.9V
Forward Voltage Maximum
            5.1V
Forward Voltage Typical
            5V


        Forward Current Minimum
            32mA
Forward Current Maximum
            60mA
Forward Current Typical
            40mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAH1602S-YYH-ET Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAH1602S-YYH-ET Datasheet Release 2016-08-11.pdf

download Files and Downloads
folder_zip CAD Export - CFAH1602S 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1602S 1 TO 1.PDF
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH














Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $8.94

            10
            $8.71

            20
            $8.41

            50
            $8.12

            100
            $8.00

            200
            $7.95

            300
            $7.53

            500
            $7.48

            1000
            $7.13

3216 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Compatible Software
CFAHWINTEST

Module Overall	width	height	depth
millimeters	59	29.3	5.5
inches	2.32	1.15	0.22

PCB Outline	width	height	depth
millimeters	59	29.3	5.5
inches	2.32	1.15	0.22

Viewing Area	Width	Height
millimeters	52	15
inches	2.05	0.59

Active Area	Width	Height
millimeters	46.7	9.84
inches	1.84	0.39

Character Size	Width	Height
millimeters	2.45	4.67
inches	0.096	0.184

Character Pitch	Width	Height
millimeters	2.95	5.17
inches	0.116	0.204

Dot Size	Width	Height
millimeters	0.45	0.54
inches	0.018	0.021

Dot Pitch	Width	Height
millimeters	0.5	0.59
inches	0.020	0.023

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%
