480x128 Bar-Type Capacitive Touch LCD from Crystalfontz

Product

                In order to keep this display in production over the long term, we are revising it to the CFAF480128A1-039TC. Any backorders placed now will be fulfilled with the new part when it becomes available. Please contact support with any questions.

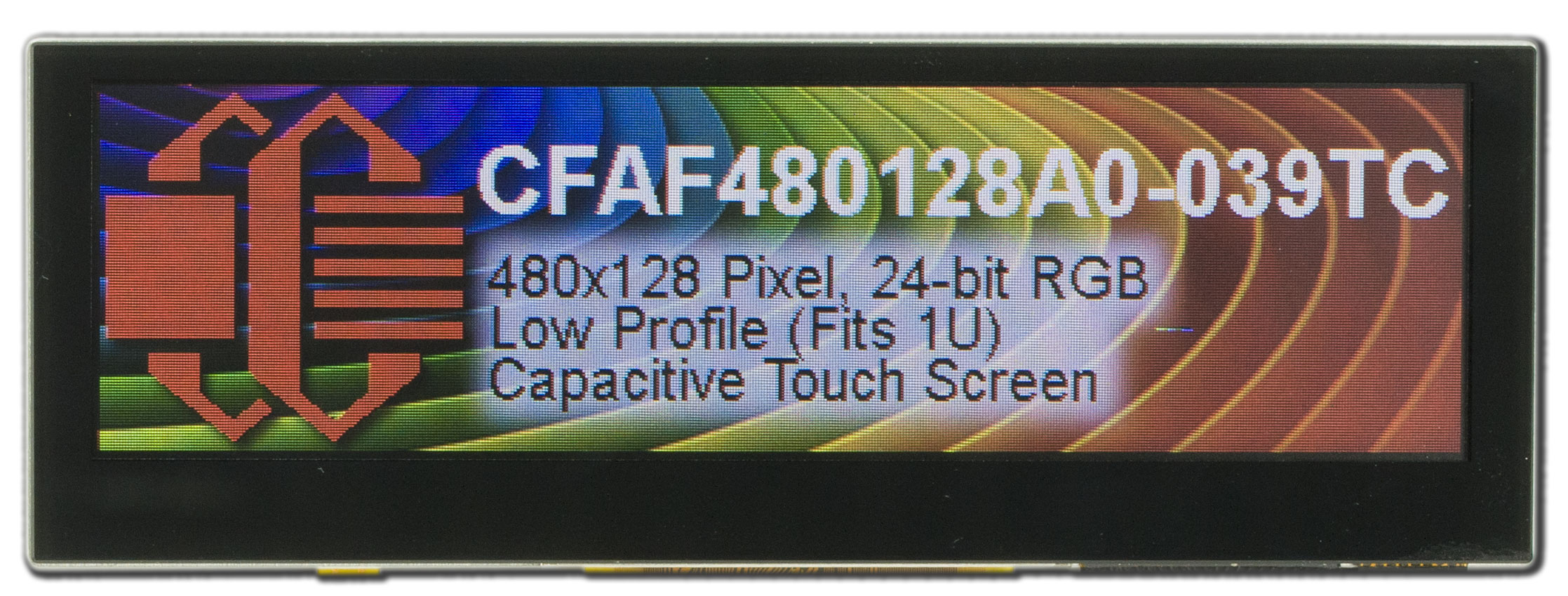

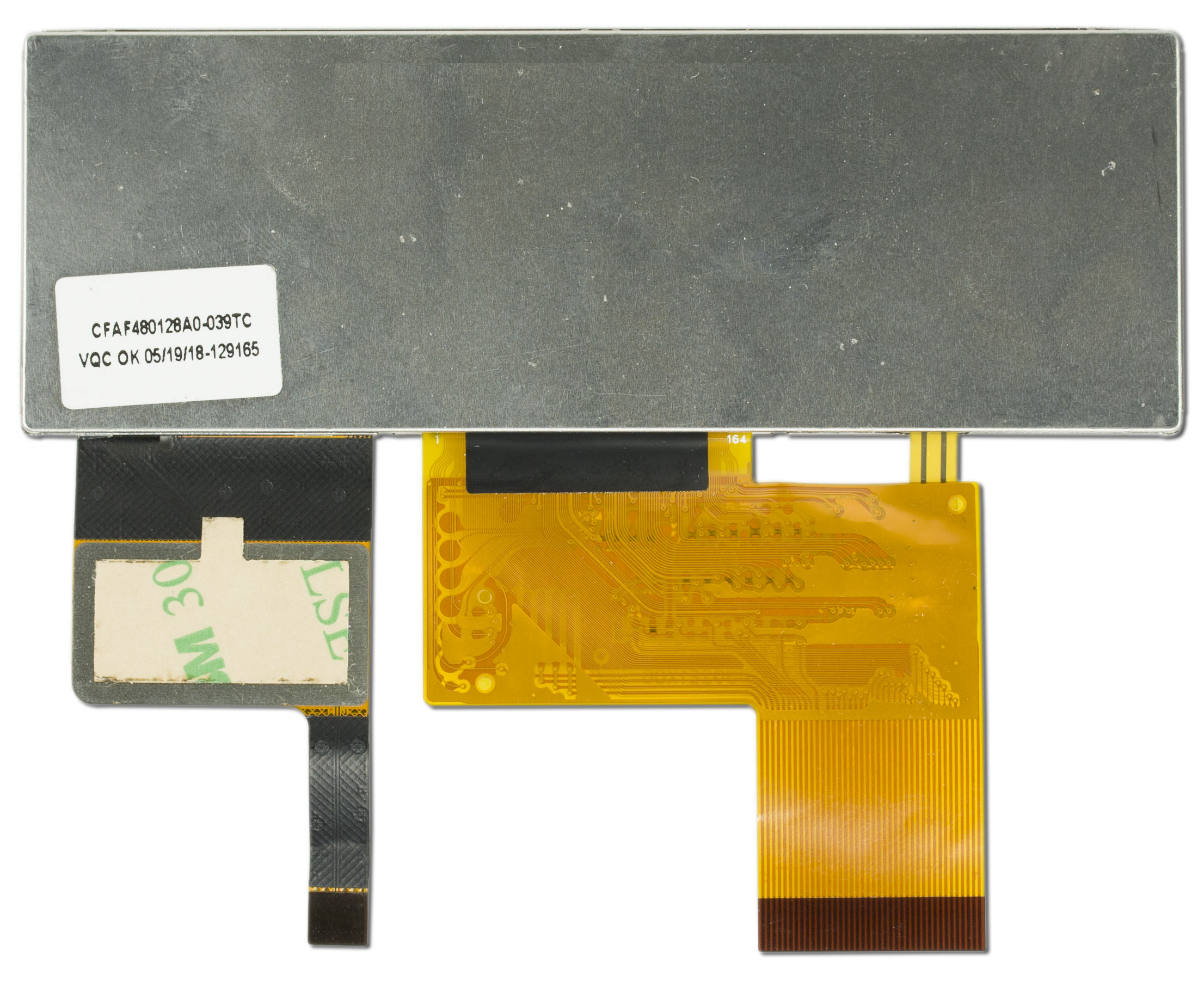

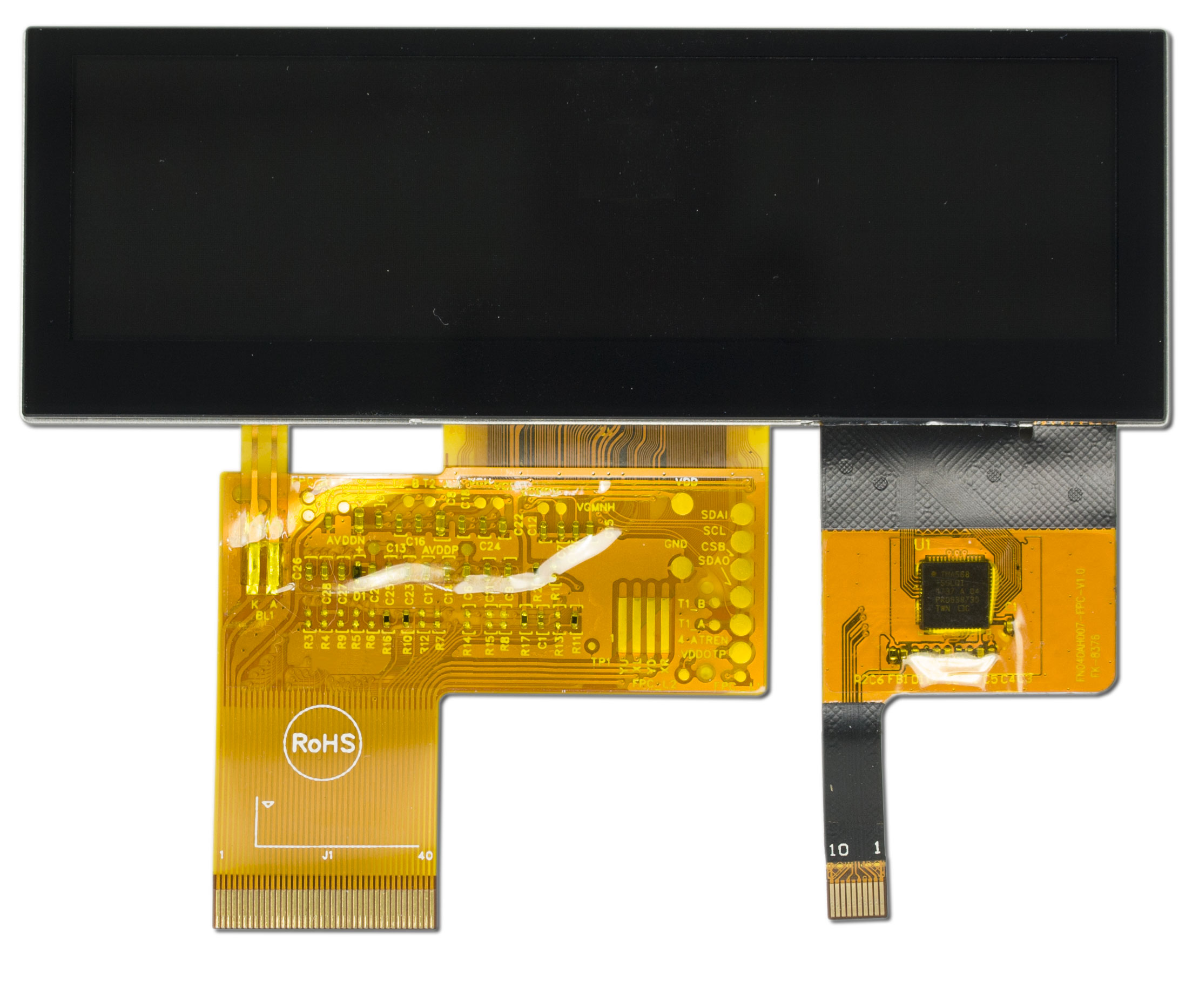

480x128 Bar-Type Capacitive Touch LCDPart Number: CFAF480128A0-039TC
    480x128 pixel, wide format, capacitive touchscreen LCD display. This LCD is perfect for many applications such as server displays, audio equipment or anything else needing a wide format. Perfect for displaying graphs or charts. It's six o'clock viewing direction is great for most viewing situations.Product VariationsTouchscreenCapacitiveResistiveNone

 square_foot Physical Characteristics

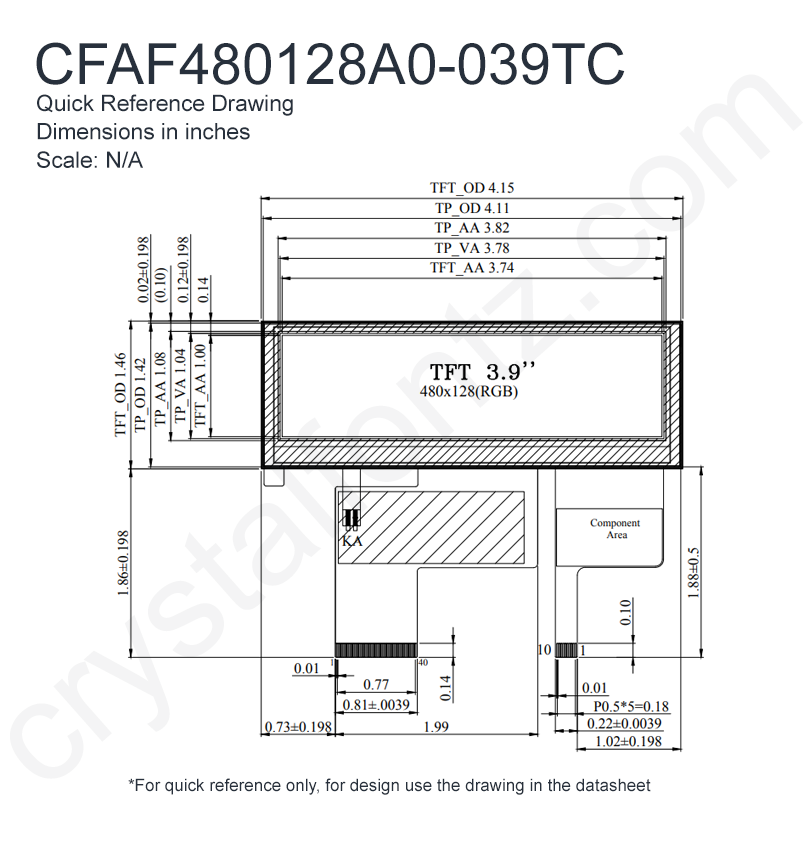

Physical Characteristics

        Column Dots x Row Dots
            480 x 128

    Module Overall        width
        height
        depth

        millimeters
        105.5
        37
        5.13

        inches
        4.15
        1.46
        0.20

*width / height does not include Foldable Tab

        Diagonal Dimension
            3.87"

    Viewing Area        Width
        Height

        millimeters
        97.04
        27.34

        inches
        3.82
        1.08

    Active Area        Width
        Height

        millimeters
        95.04
        25.34

        inches
        3.74
        1.00

    Dot Pitch        Width
        Height

        millimeters
        0.066
        0.198

        inches
        0.0026
        0.0078

        Optional Connectors
            CS050Z40GB0

    Flexible Cable (FFC/FPC)        length

        millimeters
        47.19

        inches
        1.858

        Weight
            43g
Pin Count
            40

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            Transmissive
View Direction
            0.25 o'clock
View Angle
            65°

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V
Supply Voltage for Logic Typical
            3.3V

        Supply Current Maximum
            25mA
Supply Current Typical
            15mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            14V
Forward Voltage Maximum
            17V

        Forward Voltage Typical
            15V
Forward Current Typical
            40mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Himax HX8278-A-LT
TFT LCD Single Chip Digital Driver Preliminary version 00 March, 2017
Interface
            DOT-CLK interface / Generic RGB

 picture_as_pdf Datasheets
picture_as_pdfCFAF480128A0-039TC Datasheet

 download Files and Downloads
folder_zip Software Source - Touchscreen Demo Code
folder_zip Hardware Design - 3D Model

Other components worth considering

						40 Position, 0.50mm Pitch, Gold, FCC FPC ZIF connector
Add 5 ZIF Connectors $1.45 ea.

Module Overall	width	height	depth
millimeters	105.5	37	5.13
inches	4.15	1.46	0.20
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	97.04	27.34
inches	3.82	1.08

Active Area	Width	Height
millimeters	95.04	25.34
inches	3.74	1.00

Dot Pitch	Width	Height
millimeters	0.066	0.198
inches	0.0026	0.0078

Flexible Cable (FFC/FPC)	length
millimeters	47.19
inches	1.858

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Pin Table
Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11113: End-of-Life Notification

Products Affected:	CFAF480128A0-039TC, CFAF480128A0-039TC-A1-1, CFAF480128A0-039TC-A1-2
Date Issued:	January 17, 2022
Summary:	End-of-Life Notification
Description:	The capacitive touch controller used with this display is being changed to a more readily available controller. The part number for the replacement part is CFAF480128A1-039TC. The display itself is not changing.
Reason:	To prepare for chip shortages, higher MOQs, and cost increases, Crystalfontz has determined to change the touch panel to a touch panel with a different touch controller.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

480x128 Bar-Type Capacitive Touch LCD

Part Number: CFAF480128A0-039TC

Product Variations

Touchscreen

Physical Characteristics

Optical Characteristics

Electrical Specifications

Backlight Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11113: End-of-Life Notification

LCD Software

User Forum

Tech Support

Glass Type	TFT
Polarizer	Transmissive
View Direction	0.25 o'clock
View Angle	65°

Backlight Color	White
Backlight Type	LED
Foreground Color	RGB
Background Color	Dark

Supply Voltage for Logic Minimum	3V
Supply Voltage for Logic Maximum	3.6V
Supply Voltage for Logic Typical	3.3V

Supply Current Maximum	25mA
Supply Current Typical	15mA

Forward Voltage Minimum	14V
Forward Voltage Maximum	17V

Forward Voltage Typical	15V
Forward Current Typical	40mA

Controller Documents	Himax HX8278-A-LT TFT LCD Single Chip Digital Driver Preliminary version 00 March, 2017
Interface	DOT-CLK interface / Generic RGB

Weight	43g
Pin Count	40
