3" 240x400 Full-Color TFT Display from Crystalfontz

Product

                This display is no longer available. If you are looking for alternative parts, please see CFAF240400C1-030TN.
3" 240x400 Full-Color TFT DisplayPart Number: CFAF240400E0-030TN
    Beautiful full-color, multi-interface, TFTLCD. This little display supports 8/9/16 and 18-bit parallel communication as well as SPI and RGB interfaces. It boasts a single 3.3v power to control both logic and the white LED backlight. It utilizes the Ilitek ILI9327 LCD controller.

The ZIF connector you need is a standard 45-position 0.5mm pitch. Here's a compatible connector:

45 Position, 0.50mm Pitch ZIF Connector
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 400

    Module Overall        width
        height
        depth

        millimeters
        45.04
        77
        2.6

        inches
        1.77
        3.03
        0.10

*width / height does not include Foldable Tab

        Diagonal Dimension
            2.98"

    Viewing Area        Width
        Height

        millimeters
        38.88
        64.8

        inches
        1.53
        2.55

    Active Area        Width
        Height

        millimeters
        38.88
        64.8

        inches
        1.53
        2.55

    Dot Pitch        Height

        millimeters
        0.162

        inches
        0.0064

        Optional Connectors
            CS050Z45GB0

    Flexible Cable (FFC/FPC)        length

        millimeters
        55.5

        inches
        2.185

        Weight
            15.8g
Pin Count
            45

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Dark
Polarizer
            Transmissive
View Direction
            12 o'clock

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.5V
Supply Voltage for Logic Typical
            3.3V

        Supply Voltage for Driving Panel Typical
            3.3V

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Ilitek ILI9327
a-Si TFT LCD Single Chip Driver

240RGBx432 Resolution and 262K color
Interface
            16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAF240400E0-030TN Datasheet

 download Files and Downloads
folder_zip Software Source - Arduino Demo Code
folder_zip Hardware Design - CFAF240400E0-030TN 3D Drawings

Other components worth considering

						45 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector
Add 5 ZIF Connectors $1.50 ea.

Module Overall	width	height	depth
millimeters	45.04	77	2.6
inches	1.77	3.03	0.10
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	38.88	64.8
inches	1.53	2.55

Active Area	Width	Height
millimeters	38.88	64.8
inches	1.53	2.55

Dot Pitch	Height
millimeters	0.162
inches	0.0064

Flexible Cable (FFC/FPC)	length
millimeters	55.5
inches	2.185

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

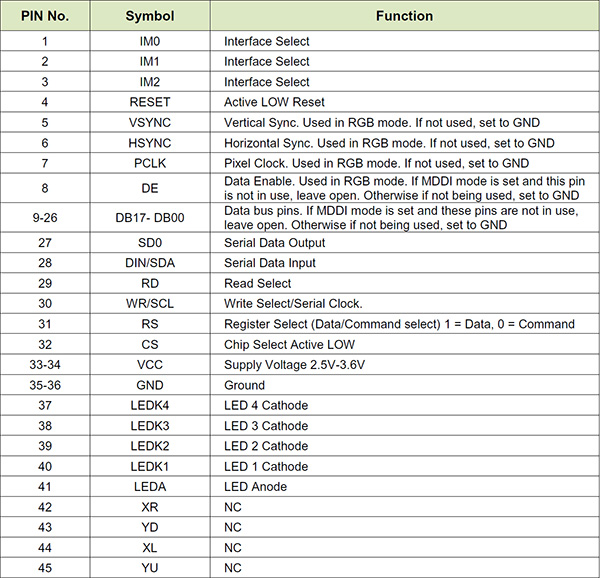

Pin Table
Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11061: End-Of-Life Notification

Products Affected:	CFAF240400C0-030SC, CFAF240400E0-030TN
Date Issued:	February 11, 2020
Summary:	End-Of-Life Notification
Reason:	The glass used on these displays is no longer available
Impact:	Neither part will be available when current stocks are depleted
Recommendation:	The displays are being replaced by new parts with more efficient glass CFAF240400C1-030TC replaces the CFAF240400C0-030SC CFAF240400C1-030TN replaces the CFAF240400E0-030TN The replacement parts are as close to "drop-in" as possible. There will be a difference in the initialization code.
Availability:	The new displays will be available after the current stock of the displays being set to EOL are depleted
Price Change:	TBA
Response:	It is recommended that customers obtain samples of the new display to verify compatibility. Contact sales@crystalfontz.com.

3" 240x400 Full-Color TFT Display

Part Number: CFAF240400E0-030TN

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11061: End-Of-Life Notification

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	TFT/Dark
Polarizer	Transmissive
View Direction	12 o'clock

Backlight Color	White
Backlight Type	LED
Foreground Color	RGB
Background Color	Black

Supply Voltage for Logic Minimum	2.5V
Supply Voltage for Logic Typical	3.3V

Controller Documents	Ilitek ILI9327 a-Si TFT LCD Single Chip Driver 240RGBx432 Resolution and 262K color
Interface	16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

Weight	15.8g
Pin Count	45
