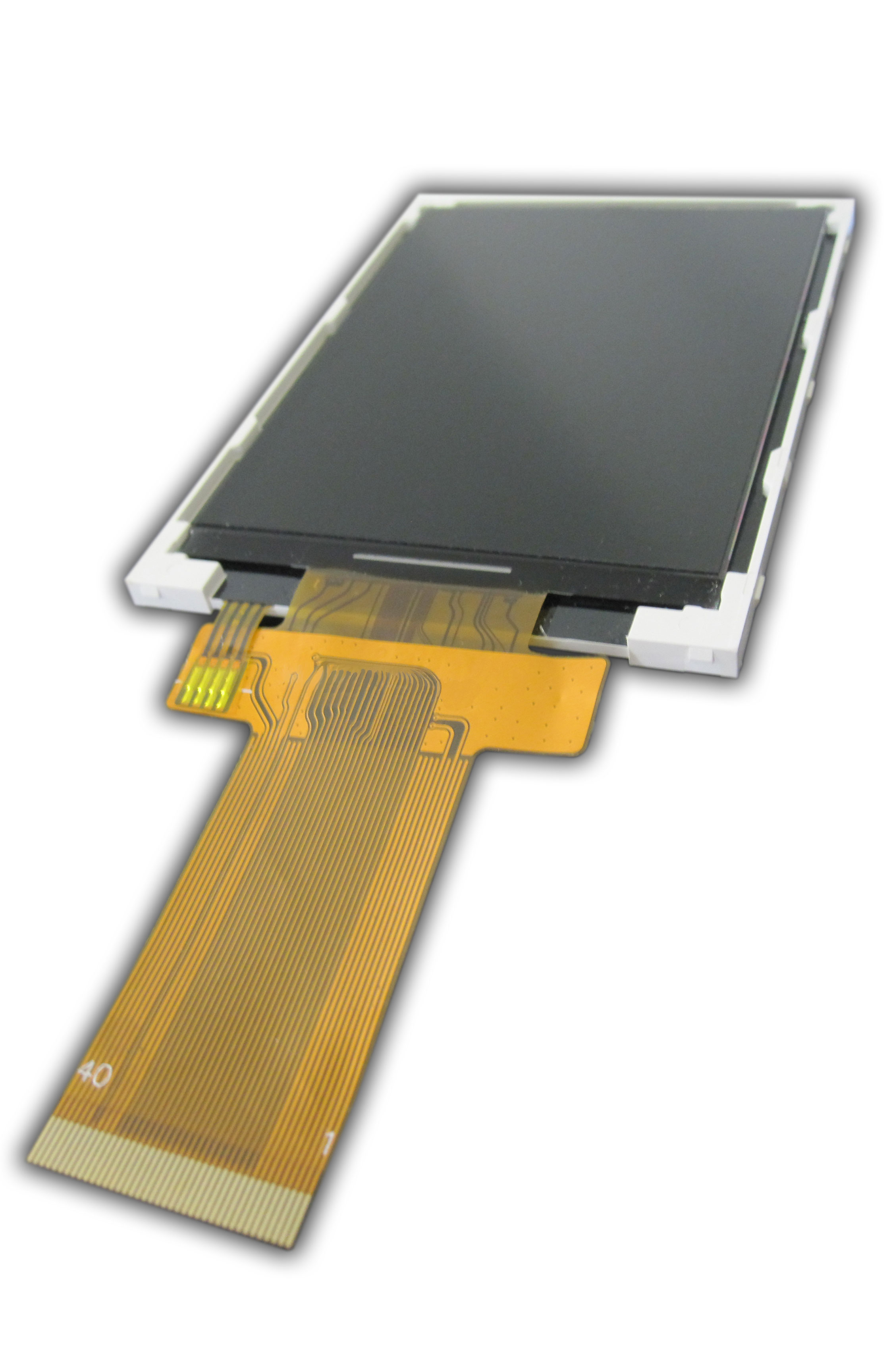

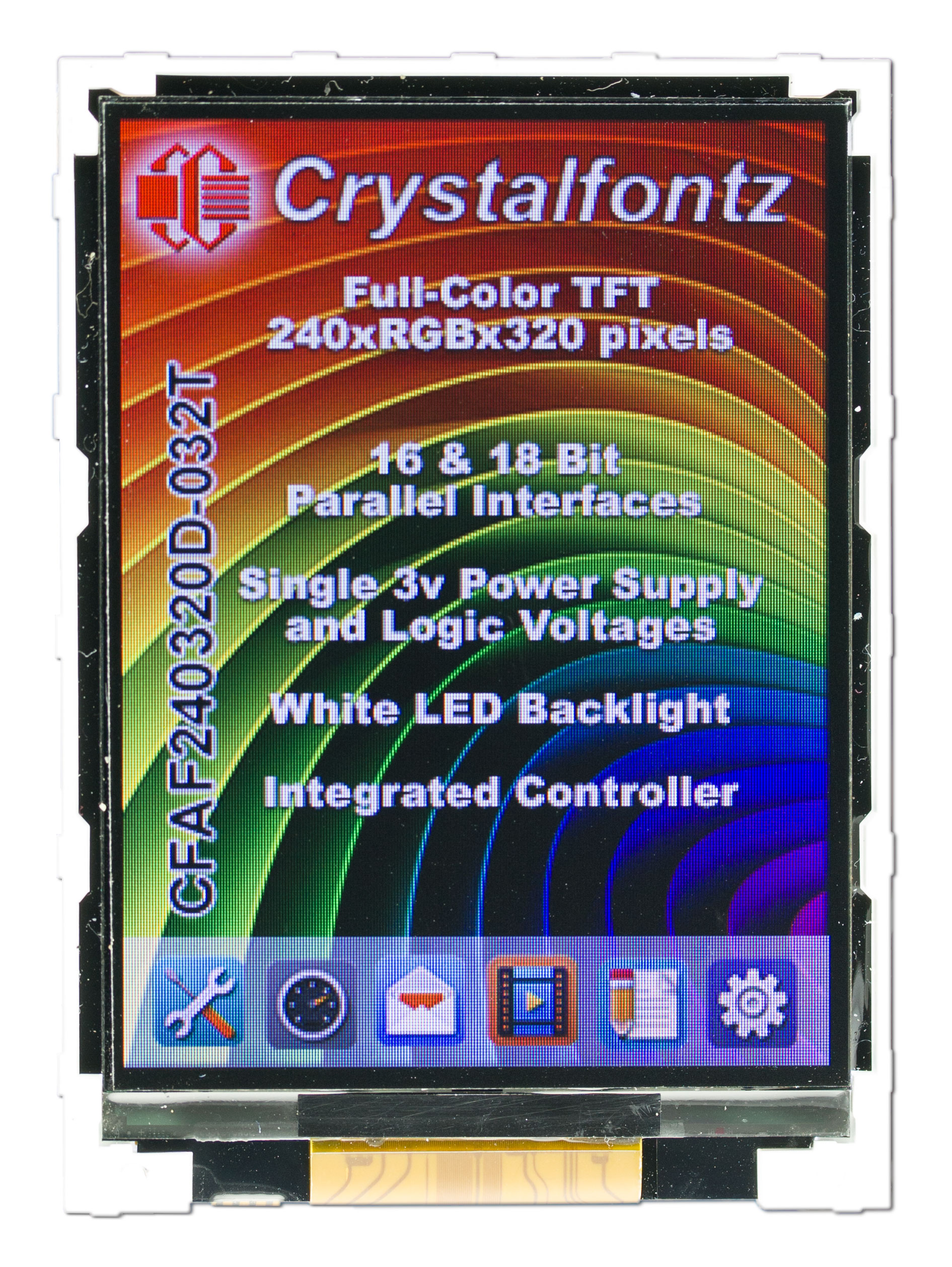

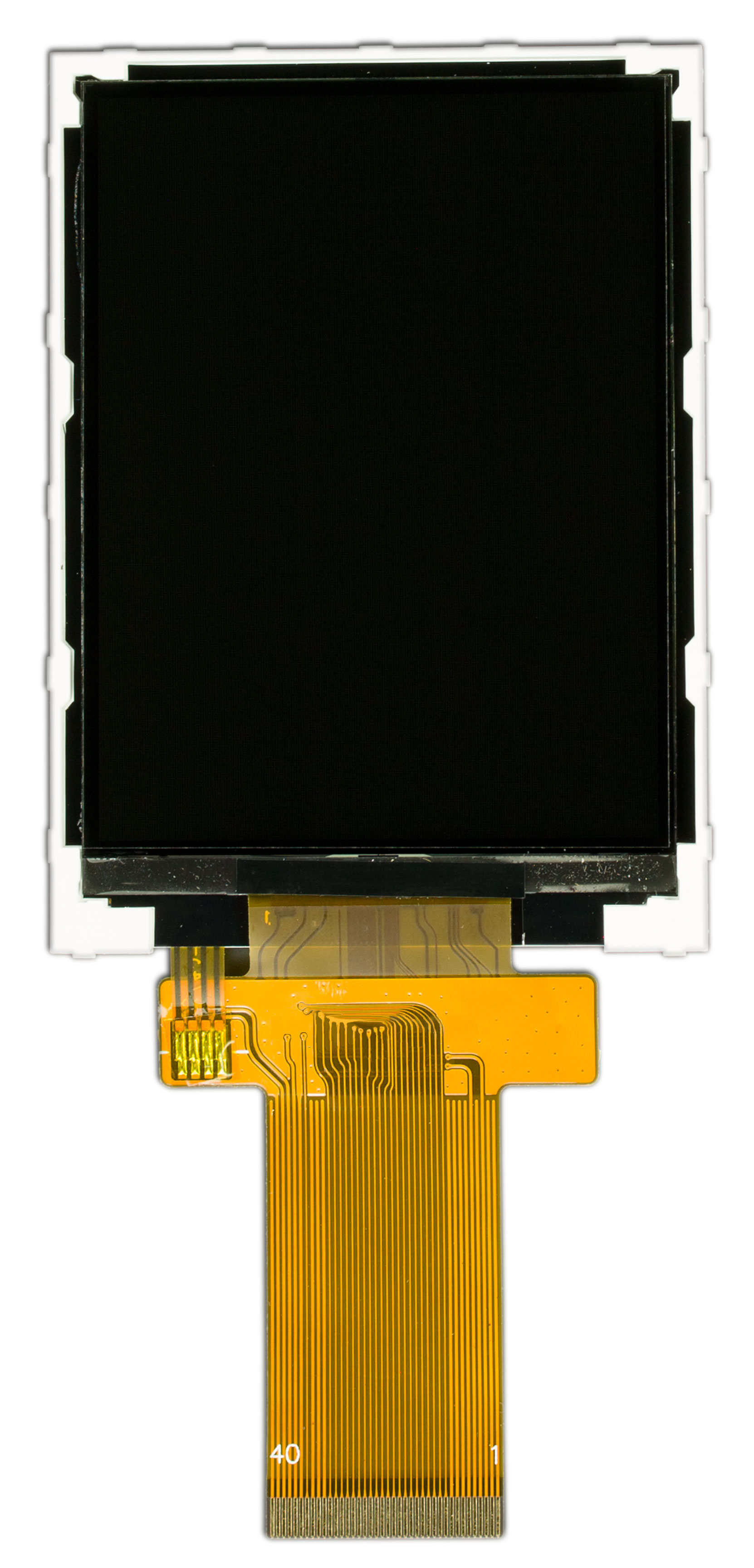

240x320 3.2" Full Color TFT LCDPart Number: CFAF240320D-032TOne of the most popular sizes in our line of TFTs, this true-to-life full color display has a 3.2-inch diagonal active area. The high density graphic TFT (240x320 pixels) renders your images with good detail where space is limited.

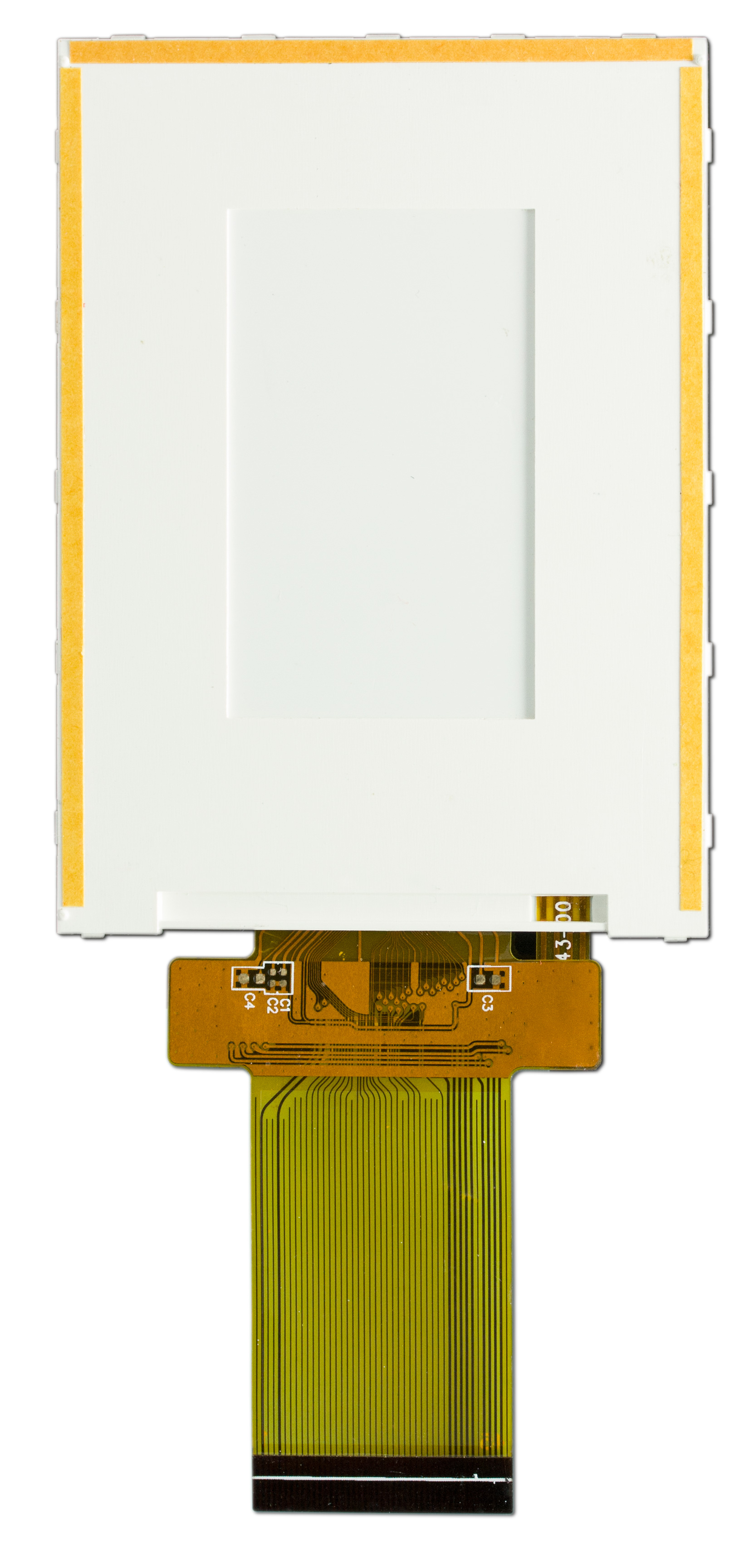

A single 40 pin, 0.5mm pitch FPC makes all the connections to the display, including the white LCD backlight. Standard ZIF mating connectors 40 Position, 0.50mm Pitch ZIF connector can easily be mounted to your PCB.
Key BenefitsCommunicates with your host using either 16- or 18-bit parallel interface.
This TFT has an integrated Sitronix ST7789V or compatible display controller.
Operating temperature range is from -20°C to +70°C.
All of our TFT displays are RoHS compliant.
Crystalfontz America, Incorporated is ISO 9001:2015 certified.
This display is a fine replacement for the discontinued CFAF240320S-032T. The CFAF240320S-032T was a strong seller, incorporated into customer designs for process controllers for industrial applications, a biotechnology wound care system, and elevator controls.
A detailed datasheet and 16-bit sample code are available to download under the Datasheets & Files tab below. As we do for  all of our displays, we offer superior customer service and technical support.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 320

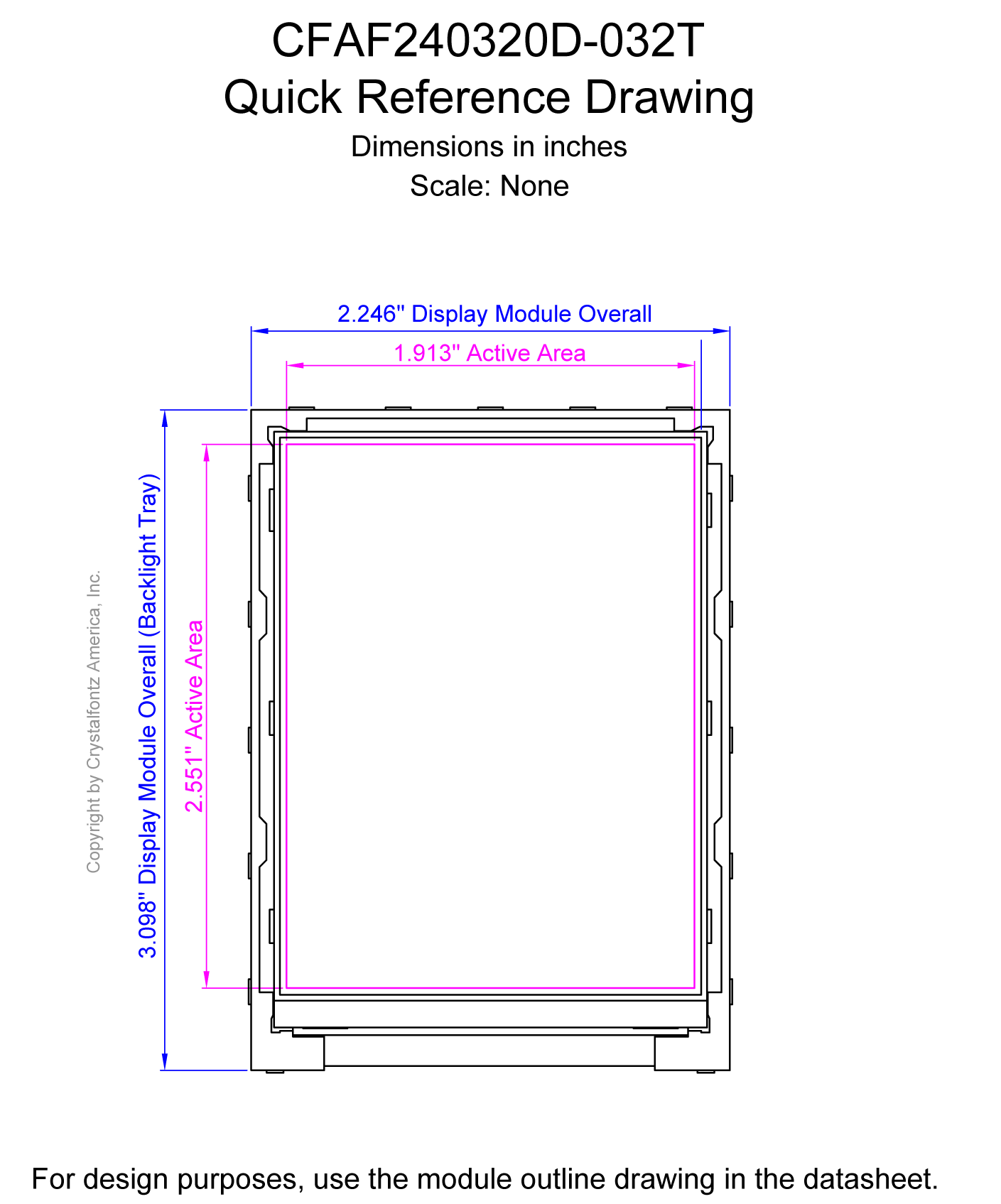

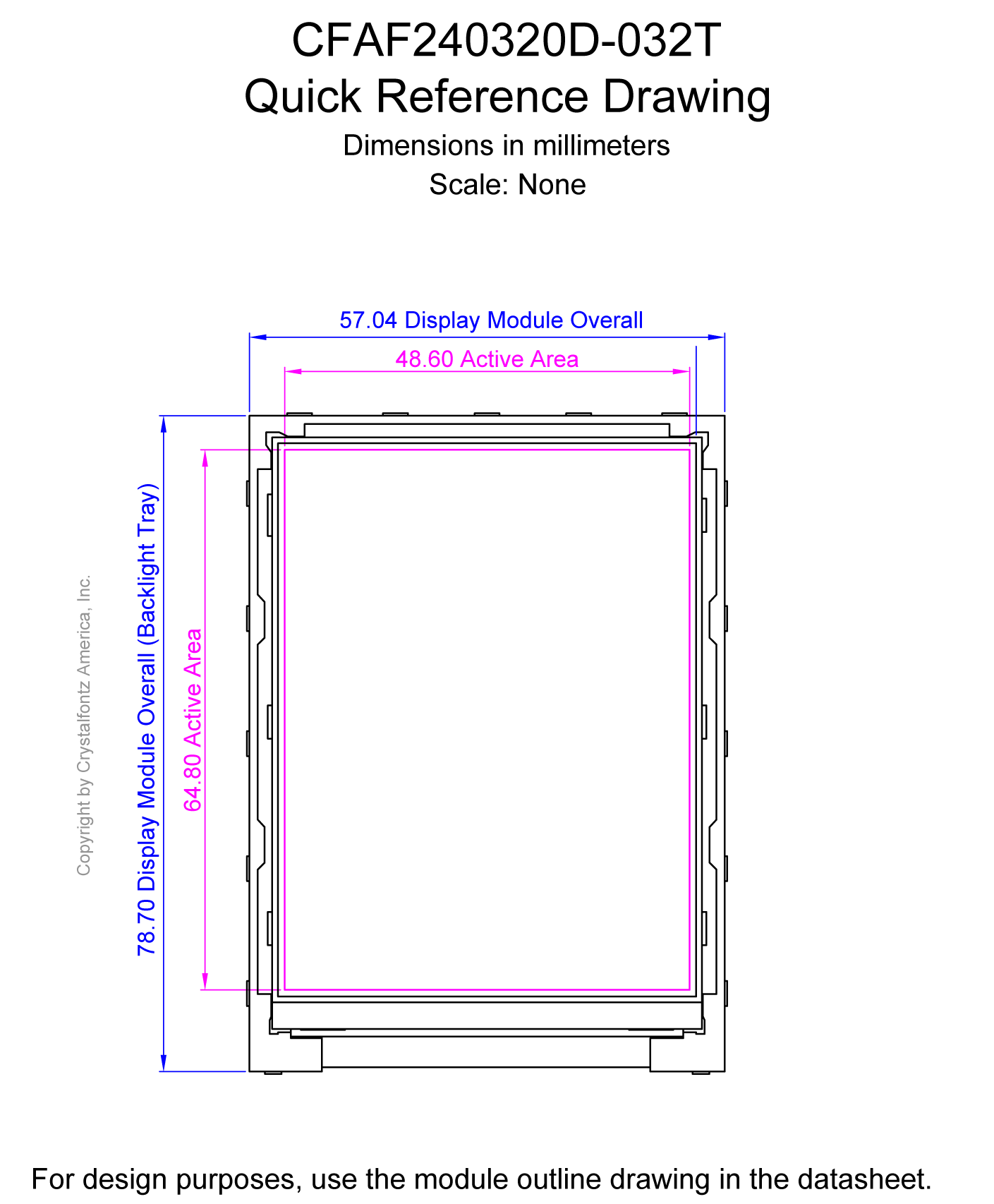

    Module Overall        width
        height
        depth

        millimeters
        57.04
        78.7
        3.1

        inches
        2.25
        3.10
        0.12

*width / height does not include Foldable Tab

        Diagonal Dimension
            3.19"

    Active Area        Width
        Height

        millimeters
        48.6
        64.8

        inches
        1.91
        2.55

    Dot Size        Width
        Height

        millimeters
        0.06
        0.21

        inches
        0.002
        0.008

    Dot Pitch        Width
        Height

        millimeters
        0.202
        0.202

        inches
        0.0080
        0.0080

        Optional Connectors
            CS050Z40GB0

    Flexible Cable (FFC/FPC)        length

        millimeters
        50

        inches
        1.969

        Weight
            19g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.4V
Supply Voltage for Logic Maximum
            3.3V

        Supply Voltage for Logic Typical
            3V

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7789V
Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver

Interface
            16-bit Parallel, 18-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAF240320D032T Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAF240320D-032T Datasheet 2015-12-08.pdf

 download Files and Downloads
folder_zip Software Source - ATMeg2561 16-bit Demo Code
folder_zip CAD Export - CFAF240320D-032T 2D CAD
picture_as_pdf 1 to 1 Template - CFAF240320D-032T 1 to 1 Module Outline
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $25.66

            5
            $21.47

            10
            $20.86

            20
            $20.25

            50
            $18.48

            100
            $17.24

            200
            $17.13

            300
            $15.92

            500
            $15.12

            1000
            $14.14

6101 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						40-Position ZIF Breakout Board
Add a 40-pin ZIF Breakout Board? $6.43 ea.

Module Overall	width	height	depth
millimeters	57.04	78.7	3.1
inches	2.25	3.10	0.12
*width / height does not include Foldable Tab

Active Area	Width	Height
millimeters	48.6	64.8
inches	1.91	2.55

Dot Size	Width	Height
millimeters	0.06	0.21
inches	0.002	0.008

Dot Pitch	Width	Height
millimeters	0.202	0.202
inches	0.0080	0.0080

Flexible Cable (FFC/FPC)	length
millimeters	50
inches	1.969

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$25.66
5	$21.47
10	$20.86
20	$20.25
50	$18.48
100	$17.24
200	$17.13
300	$15.92
500	$15.12
1000	$14.14

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Product Update #10687: (New Product) CFAF240320D-032T

New Product:	CFAF240320D-032T
Date Issued:	December 9, 2015
Summary:	(New Product) CFAF240320D-032T
Description:	TFT LCD Modules: One of the most popular sizes in our line of TFTs, this true-to-life full color display has a 3.2-inch diagonal active area. The high density graphic TFT (240x320 pixels) renders your images with good detail where space is limited. A single 40 pin, 0.5mm pitch FPC makes all the connections to the display, including the white LCD backlight. Standard ZIF mating connectors such as 609-1200-1-ND or 609-1195-1-ND from Digi-Key can easily be mounted to your PCB. Key Benefits Communicate with your host using 16- or 8-bit parallel interface. This TFT has an integrated Sitronix ST7789V or compatible display controller. Operating temperature range is from -20°C to +70°C. All of our TFT displays are RoHS compliant. Crystalfontz America, Incorporated is ISO 9001:2008 certified. This display is a fine replacement for the discontinued CFAF240320S-032T. The CFAF240320S-032T was a strong seller, incorporated into customer designs for process controllers for industrial applications, a biotechnology wound care system, and elevator controls. A detailed datasheet and 16-bit sample code are available to download under the Datasheets & Files tab below. As we do for all of our displays, we offer superior customer service and technical support.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAF240320D-032T

240x320 3.2" Full Color TFT LCD

Part Number: CFAF240320D-032T

Key Benefits

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Product Update #10687: (New Product) CFAF240320D-032T

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	TFT/Black
Polarizer	Transmissive
View Direction	6 o'clock

Backlight Color	White
Backlight Type	LED
Mode	Negative
Foreground Color	RGB
Background Color	Dark

Supply Voltage for Logic Minimum	2.4V
Supply Voltage for Logic Maximum	3.3V

Controller Documents	Sitronix ST7789V Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver
Interface	16-bit Parallel, 18-bit Parallel
