2.4" EVE Touchscreen TFT Development KitPart Number: CFAF240320A0-024SC-A1-2
        This is the full development kit for our 2.4" EVE display. This kit includes the 2.4" EVE module, connected to a Seeeduino (via our EVE breakout board) and running demonstration code.

This kit is perfect for demonstrating either the 2.4" EVE module or the 2.4" standalone display. It includes everything needed to demo the displays: plugging the Seeeduino to power and supplying 3.3V to the 10098 will start to show a demonstration on the display.

Some special features:
Graphics accelerating FT811 chip for easy graphics control
Capacitive Touchscreen
Sunlight Readable
SPI interface
IPS
Full color TFT
Seeeduino demo kit running a demonstration program
EVE chip that supports the display, touch, and audio functionality

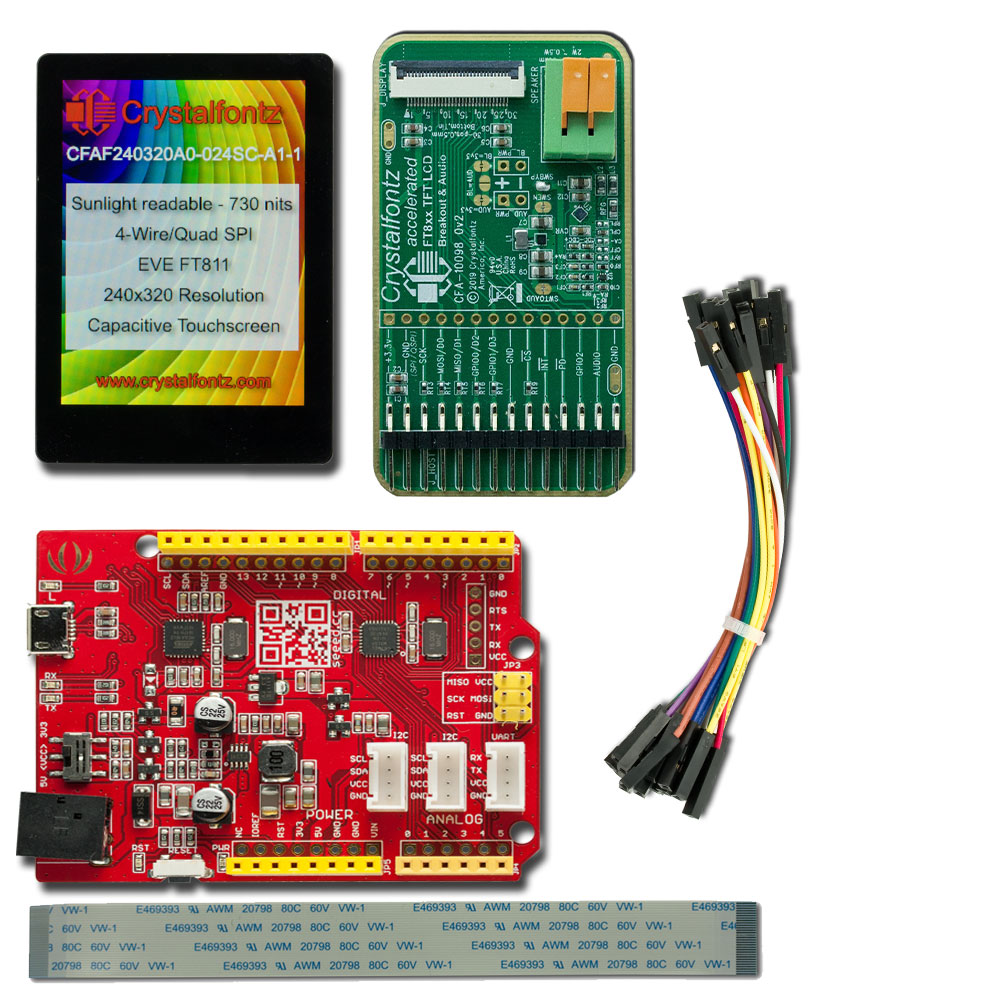

Included in this kit:
2.4" EVE module

Seeeduino
6" Flat flex cable
EVE breakout board

Necessary Female/Female jumper wires
Necessary header pins
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 320

        Diagonal Dimension
            2.41"

        Weight
            120.4g

 picture_as_pdf Datasheets
picture_as_pdfCFAF240320A0-024SC-A1-1 Datasheet

 download Files and Downloads
picture_as_pdf Other Document - Getting Started Guide
link Demo Code on Github
link Demo Code Repository on Github

Other components worth considering

						Assorted Imperial Screws
Add mounting screws $3.08 ea.

						12-inch 30-pin FFC
Add a longer cable? $2.30 ea.

						MicroSD Card Reader
Need a MicroSD Reader? $9.89 ea.

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11100: Board Revision

Products Affected:	CFAF240320A0-024SC-A1-1, CFAF240320A0-024SC-A1-2, CFAF240320A0-024SN-A1-1, CFAF240320A0-024SN-A1-2
Date Issued:	August 17, 2021
Summary:	Board Revision
Description:	The board is being revised to support a different NXP processor as the helper processor on the board. This will not affect the functionality of the module and is a drop-in replacement. Hardware Version Changes: h0v1 to h0v2 Firmware Version: N/A
Reason:	Due to the ongoing worldwide component shortage, we are unable to source the current processor until 2023. Instead of having a year-long lead time for our product, we are designing in a readily available processor.
Availability:	The new version will be available in Q4 of 2021.

Part Change Notice #11088: Touchscreen Voltage Change

Products Affected:	CFAF240320A0-024SC, CFAF240320A0-024SC-A1-1, CFAF240320A0-024SC-A1-2
Date Issued:	May 26, 2021
Summary:	Touchscreen Voltage Change
Description:	This change is to move the resistor on the capacitive touch tail from R2 to R1 so that the typical voltage for the capacitive touch screen is 3.3V as specified in the datasheet instead of 1.8V.
Reason:	The capacitive touch screen had a resistor placement that made the typical logic voltage 1.8V instead of 3.3V as specified in the datasheet.
Availability:	The display will be shipping with the changes on 2021-05-28.
