7" 1024x600 IPS TFT LCD from Crystalfontz

Product


            7" 1024x600 IPS TFT LCD
            Part Number: CFAF1024600B0-070SC

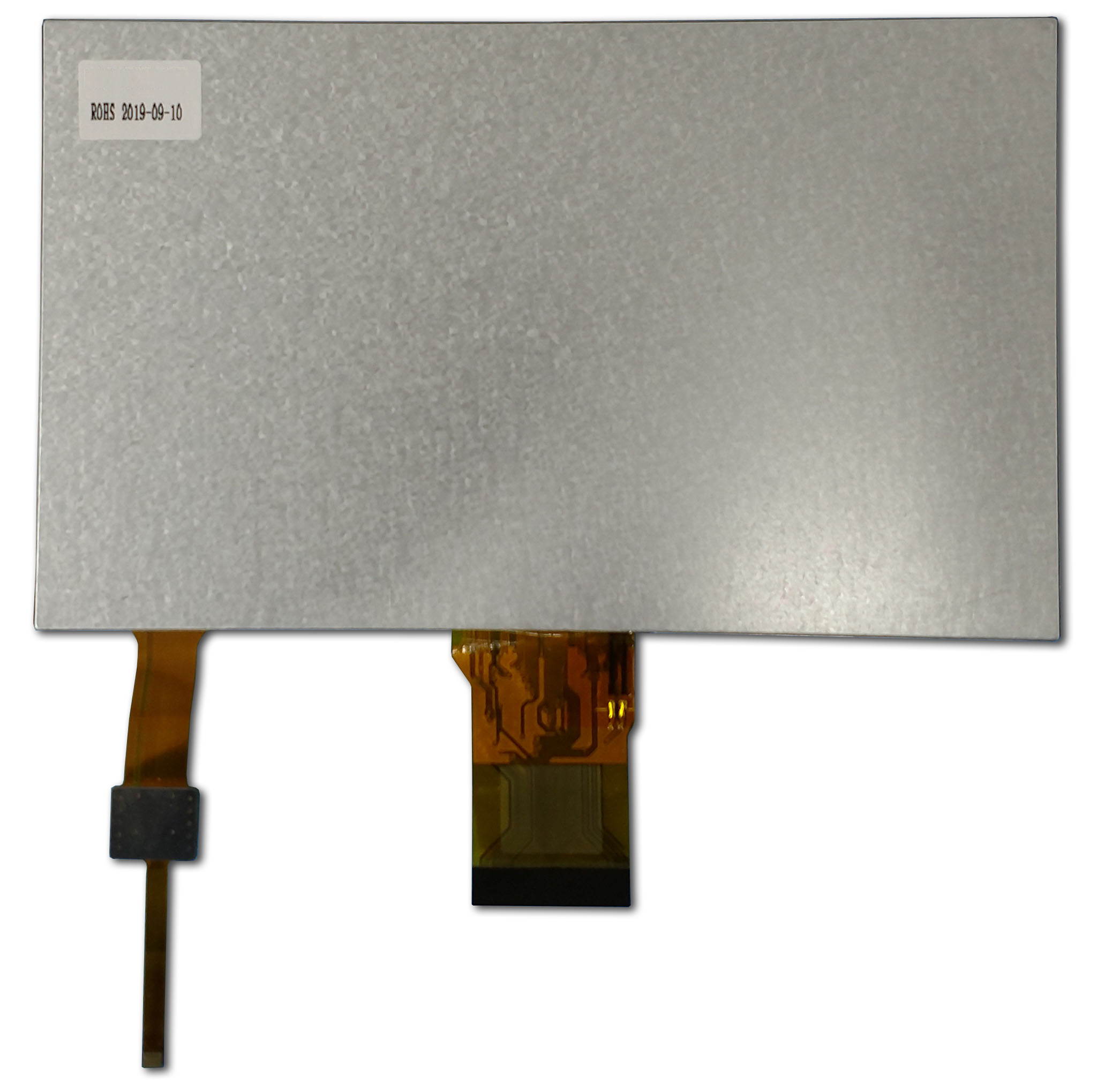

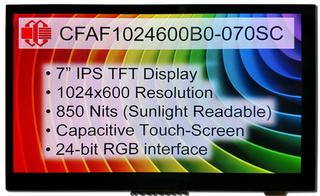

                        A truly remarkable TFT display, this 7" beauty is IPS, so it has incredibly wide viewing angles. The 24-bit RGB color gives tons of depth to images, and the high brightness makes this display sunlight readable.

The capacitive touchscreen for this display module can recognize five simultaneous distinct touches. With the nice amount of screen real estate, this display would make a great human-machine interface, dash display, or control panel user-interface.

Key Features:
1024x600 resolution
5 Multi-point Capacitive Touch
FT5316 touchscreen driver
IPS (in-plane-switching)--wide viewing angle from every direction
Sunlight readable (850 nits, typical)

Please Note:

This display requires external power supplies for:
VGH: +18v ~2mA
AVDD: +9.6v ~25mA
VCOM: +3.2v ~10mA
VGL: -6v ~2mA
Backlight, constant current, 200mA max, 16~19v

See the sample power supply circuits in the datasheet.

Here you can find its FocalTech FT5x16 touchscreen controller datasheet. square_foot Physical Characteristics

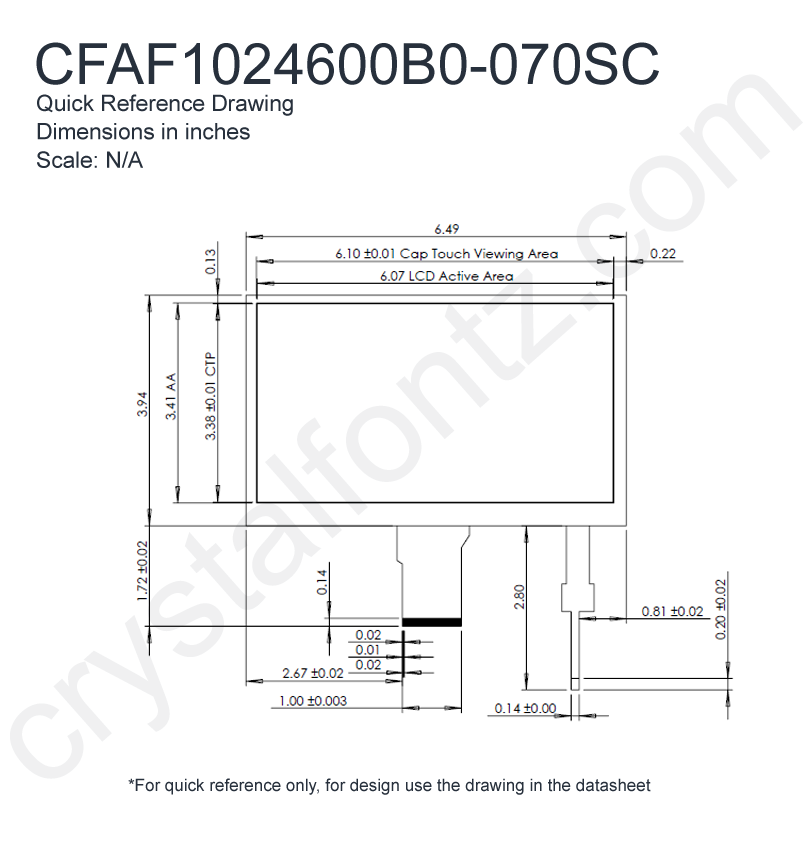

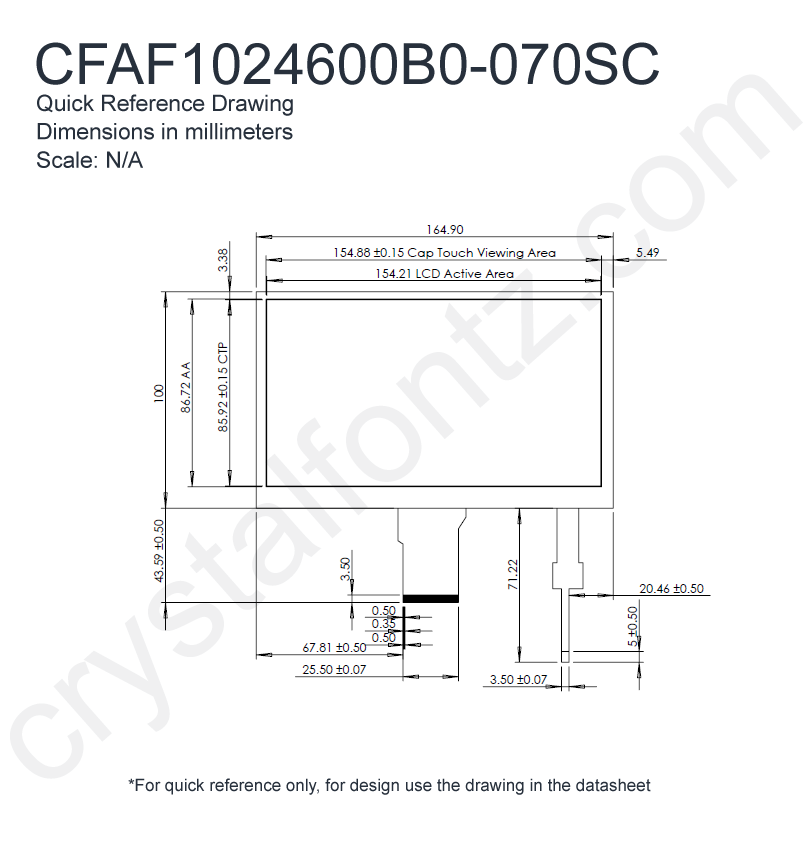

Physical Characteristics

        Column Dots x Row Dots
            1024 x 600

    Module Overall        width
        height
        depth

        millimeters
        164.9
        100
        5.15

        inches
        6.49
        3.94
        0.20

*width / height does not include Foldable Tab

        Diagonal Dimension
            6.95"

    Viewing Area        Width
        Height

        millimeters
        154.21
        86.72

        inches
        6.07
        3.41

    Active Area        Width
        Height

        millimeters
        154.21
        86.72

        inches
        6.07
        3.41

    Dot Pitch        Width
        Height

        millimeters
        0.05
        0.14

        inches
        0.002
        0.006

        Optional Connectors
            CS050Z50G-B0

    Flexible Cable (FFC/FPC)        length

        millimeters
        43.59

        inches
        1.716

        Weight
            146g
Pin Count
            50

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            IPS
View Angle
            170°
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Fitipower EK79001
Single Chip 1536 Channel Source Driver with Timing Controller for 1024RGB × 600 TFT LCD
Interface
            DOT-CLK interface / Generic RGB

picture_as_pdf Datasheets
picture_as_pdfCFAF1024600B0-070SC Datasheet

download Files and Downloads
folder_zip Hardware Design - CFAF1024600B0-070SC 3D Models
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $62.34

            10
            $60.56

            20
            $58.78

            50
            $56.64

            100
            $55.93

            200
            $55.58

            300 *
            $54.86

            500 *
            $54.51

            1000 *
            $54.15

224 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering

						50 Position, 0.50mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors? $1.76 ea.

						6 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Need Touchscreen ZIF Connectors? $0.40 ea.

						6-Position ZIF Breakout Board
Add a 6-position ZIF breakout board? $6.08 ea.

						50-Position ZIF Breakout Board
Add a 50-pin ZIF Breakout Board? $6.54 ea.

Module Overall	width	height	depth
millimeters	164.9	100	5.15
inches	6.49	3.94	0.20
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	154.21	86.72
inches	6.07	3.41

Active Area	Width	Height
millimeters	154.21	86.72
inches	6.07	3.41

Dot Pitch	Width	Height
millimeters	0.05	0.14
inches	0.002	0.006

Flexible Cable (FFC/FPC)	length
millimeters	43.59
inches	1.716

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$62.34
10	$60.56
20	$58.78
50	$56.64
100	$55.93
200	$55.58
300 *	$54.86
500 *	$54.51
1000 *	$54.15

Additional Options

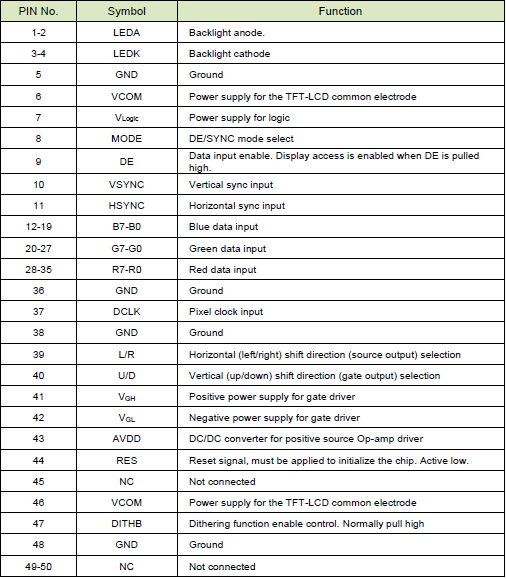

Pin Table
Notices

Additional Options

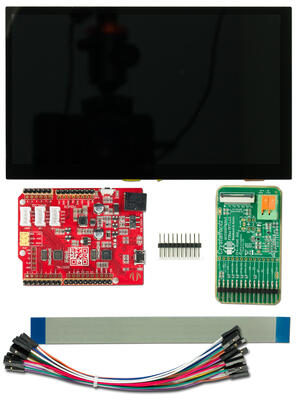

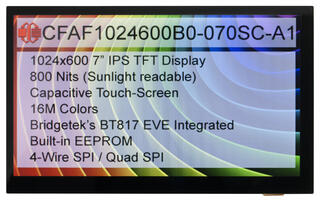

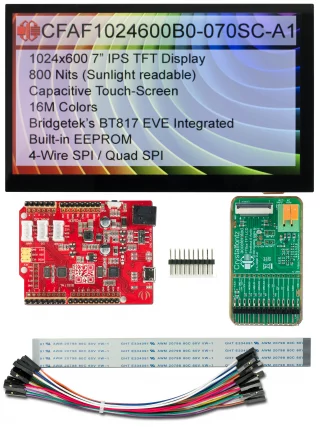

Purchase this TFT in an EVE development bundle to speed up your prototyping.

7" Capacitive Touchscreen EVE TFT
Part Number: CFAF1024600B0-070SC-A1

Details

Quantity	1	10	20	50 *	100 *	200 *	300 *	500 *	1000 *
Unit Price	$133.40	$133.11	$132.83	$132.54	$131.10	$129.95	$128.80	$127.65	$127.08

Quantity:

1024x600 7" EVE TFT Development Kit
Part Number: CFAF1024600B0-070SC-A1-2

Details

Quantity	1
Unit Price	$187.60

Quantity:

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11257: Touchscreen Controller Change

Product Affected:	CFAF1024600B0-070SC
Date Issued:	February 13, 2024
Summary:	Touchscreen Controller Change
Description:	The touch controller is changing from a FT5316 to a GT911. The part number will change once this is implemented.
Reason:	The FT5316 has become obsolete and needs to be replaced.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAF1024600B0-070SC
