      1024x600 7" EVE TFT Development Kit
      Part Number: CFAF1024600B0-070SC-A1-2

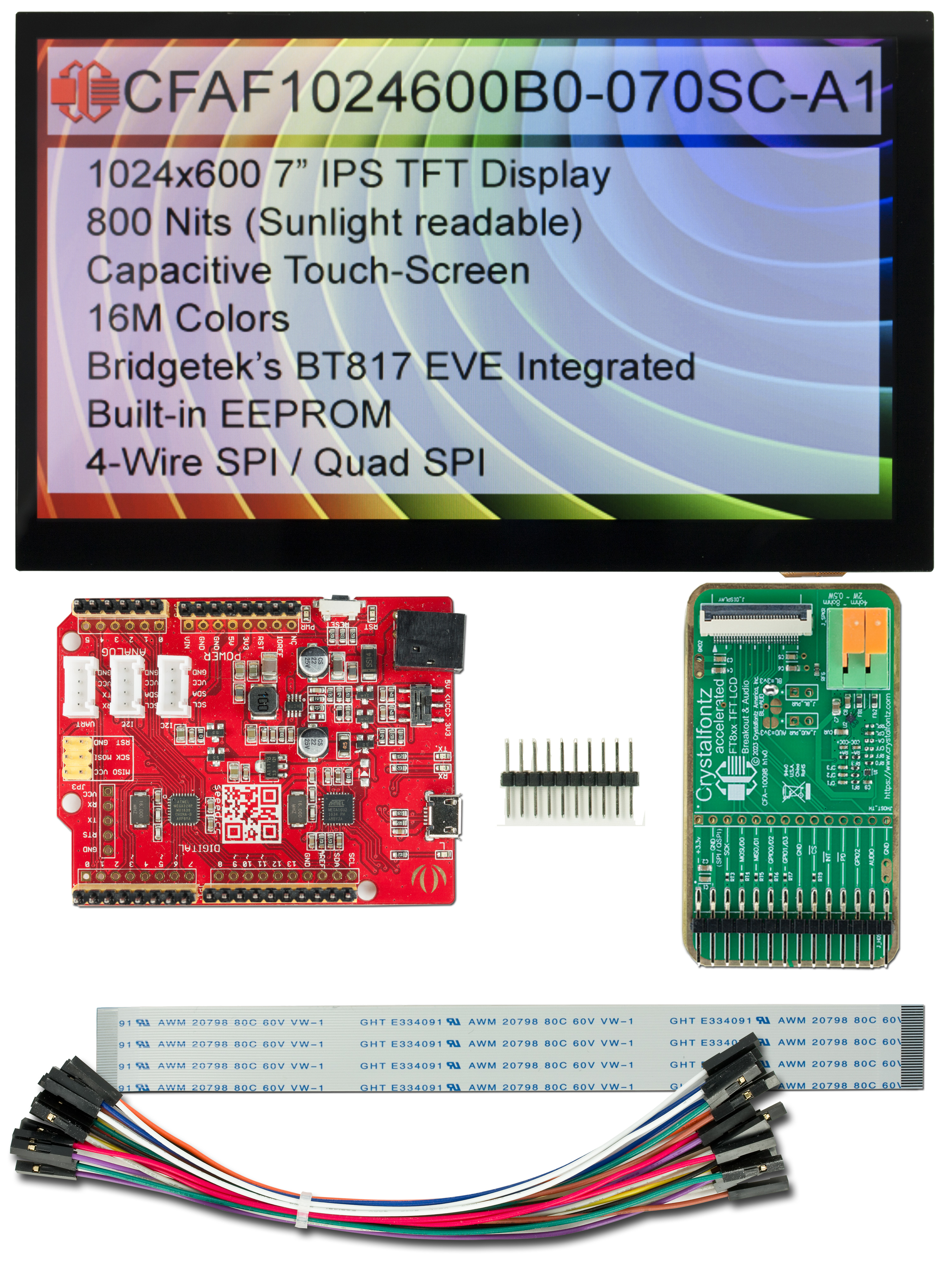

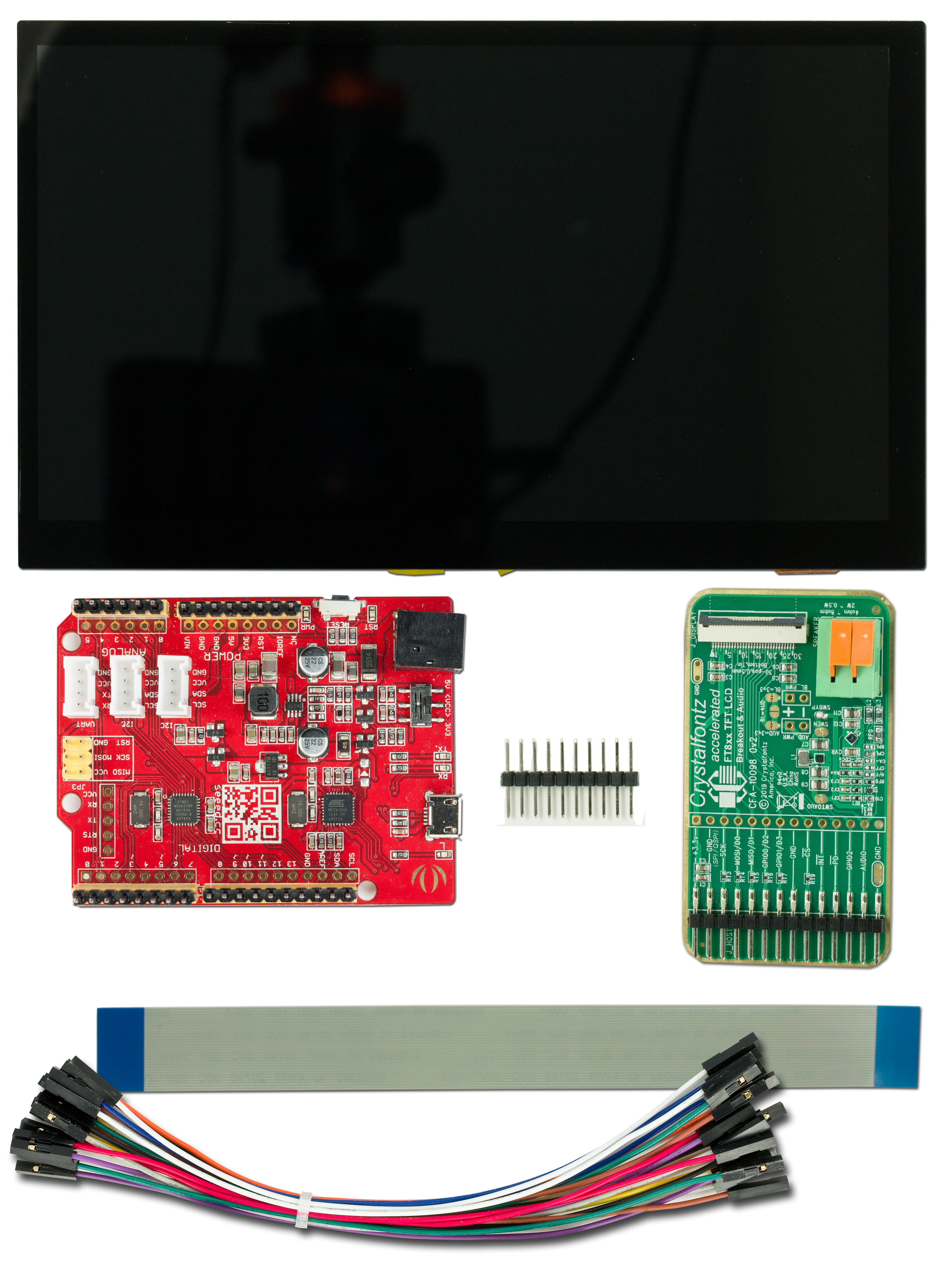

    This 7" EVE demonstration kit includes just about everything needed for a functioning demonstration of the Crystalfontz 7" EVE display with a capacitive touch screen (just add backlight power). Through the EVE breakout board, the EVE display is connected to an Arduino-clone microcontroller (Seeeduino). The kit comes loaded with demonstration software, so simply connecting the two cables, plugging in the Seeeduino, and supplying backlight power starts the demo.

Features:
7"
Sunlight readable @ 800nits
IPS
TFT
Capactive Touchscreen
16M colors
Bridgetek's BT817 EVE integrated
Built-in EEPROM
4-wire SPI / Quad SPI
Can be powered off of a single voltage source (requires higher current than provided by Seeeduino)
Working demonstration kit powered by a Seeeduino
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            1024 x 600

    Module Overall        width
        height
        depth

        millimeters
        164.9
        100
        8.05

        inches
        6.49
        3.94
        0.32

        Diagonal Dimension
            7"

    Viewing Area        Width
        Height

        millimeters
        154.88
        86.72

        inches
        6.10
        3.41

    Active Area        Width
        Height

        millimeters
        154.21
        85.92

        inches
        6.07
        3.38

    Dot Pitch        Width
        Height

        millimeters
        0.0502
        0.1432

        inches
        0.0020
        0.0056

        Weight
            303.1g
Pin Count
            30

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/RGB
Polarizer
            IPS
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Maximum
            3.6V
Supply Voltage for Logic Typical
            3.3V

        Supply Voltage for Driving Panel Typical
            3.3V
Supply Current Typical
            120mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3V
Forward Voltage Maximum
            5.5V

        Forward Voltage Typical
            5V
Forward Current Typical
            30mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Interface
            SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAF1024600B0-070SC-A1 Datasheet

 download Files and Downloads
link Demo Code Download on Github
link Demo Code Repository on Github

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $187.60

60 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						7" Capacitive Touchscreen EVE TFT
Purchase and additional EVE Module $138.00 ea.

						30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Need ZIF Connectors? $0.61 ea.

						6-inch 30-pin FFC Cable
Want additional ribbon cable? $2.30 ea.

						Assorted Imperial Screws
Mounting screws $3.08 ea.

Module Overall	width	height	depth
millimeters	164.9	100	8.05
inches	6.49	3.94	0.32

Viewing Area	Width	Height
millimeters	154.88	86.72
inches	6.10	3.41

Active Area	Width	Height
millimeters	154.21	85.92
inches	6.07	3.38

Dot Pitch	Width	Height
millimeters	0.0502	0.1432
inches	0.0020	0.0056

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$187.60

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11220: Changing Manufacturing Facility

Products Affected:	WR-FFC-Y50, CFAF320240F-035T-TS-A1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAF1024600B0-070SC-A1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFA480128E0-039TC-KIT, CFA800480E3-050SC-KIT, CFA800480E3-050SN-KIT, CFA800480E3-050SR-KIT, CFA800480E3-050SW-KIT
Date Issued:	August 7, 2023
Summary:	Changing Manufacturing Facility
Description:	The WR-FFC-Y50 will be manufactured at a different facility. There are no changes to the functionality of the Flat Flex Cable.
Reason:	Continuous improvement
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11202: Audio Power Supply Removed

Products Affected:	CFA10098, CFAF240400C0-030SC-A1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAF1024600B0-070SC-A1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFA800480E3-050SC-KIT, CFA800480E3-050SN-KIT, CFA800480E3-050SR-KIT, CFA800480E3-050SW-KIT
Date Issued:	May 25, 2023
Summary:	Audio Power Supply Removed
Description:	The audio power supply has been removed from the board. Audio power will now only be able to be supplied externally. Hardware Version Changes: h0v2 to h1v0
Reason:	The audio power supply chip is no longer available and it was determined that it would be better for external power supplies to be used to demonstrate the EVE's audio capabilities.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11197: New Seeeduino Version 4.3 Now Shipping

Products Affected:	CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued:	May 15, 2023
Summary:	New Seeeduino Version 4.3 Now Shipping
Description:	We are now releasing products as stated in PCN11190. https://www.crystalfontz.com/news/pcn.php?id=11190

Part Change Notice #11190: Part Change - Seeeduino 4.2 ->4.3

Products Affected:	CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued:	April 13, 2023
Summary:	Part Change - Seeeduino 4.2 ->4.3
Last revision:	4.2
Description:	Seeed Studios has updated the Seeeduino from v4.2 to v4.3. This change switches from the ATMEGA328P-MU to the ATMEGA328P-AU, and replaces the serial chip. This causes the Seeeduino to identify differently when connected to a computer.
Reason:	Supplier has changed their offering
Impact:	Kits using the Seeeduino will no longer be named "USB Serial Device"
Availability:	Immediate
