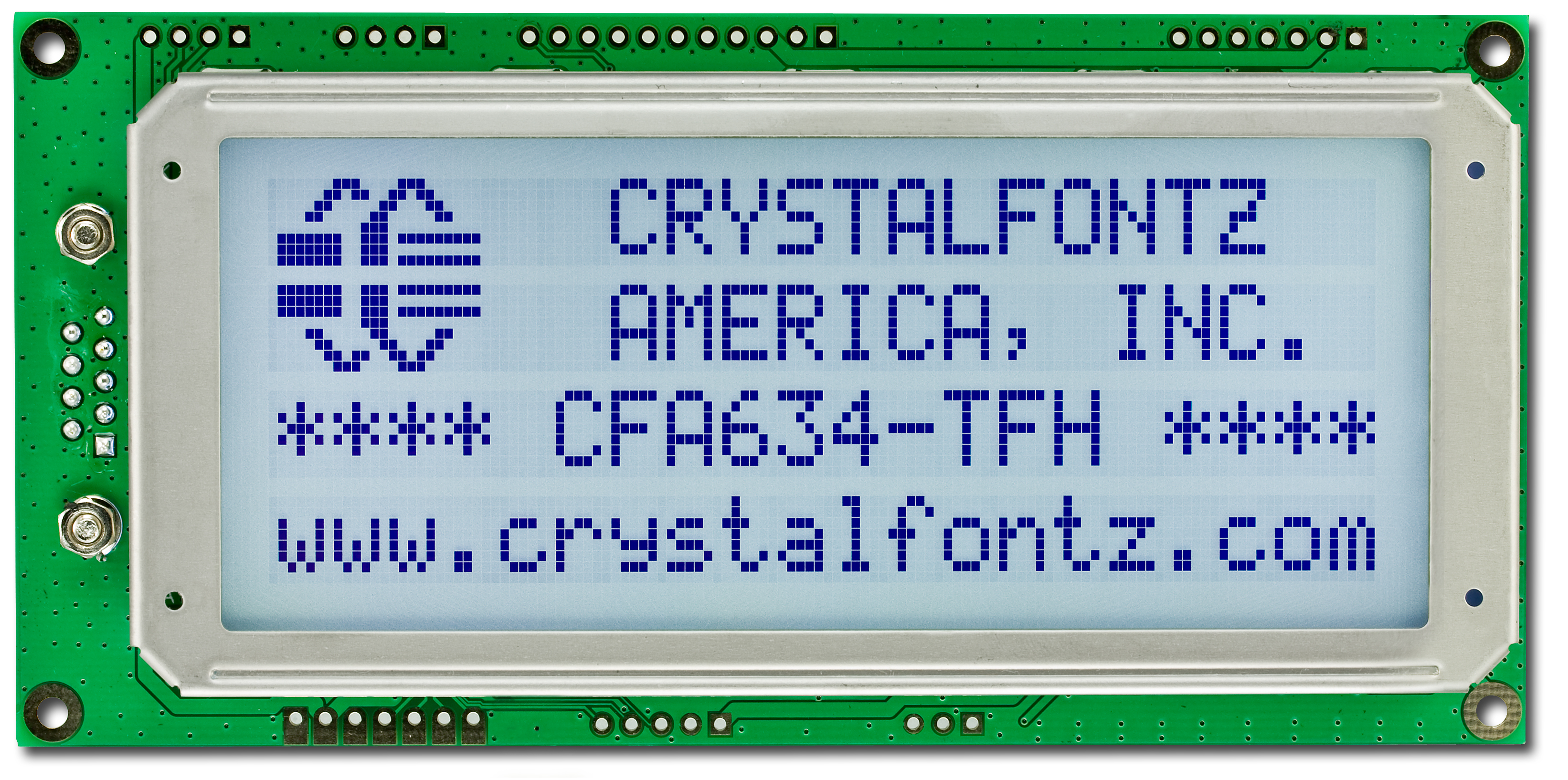

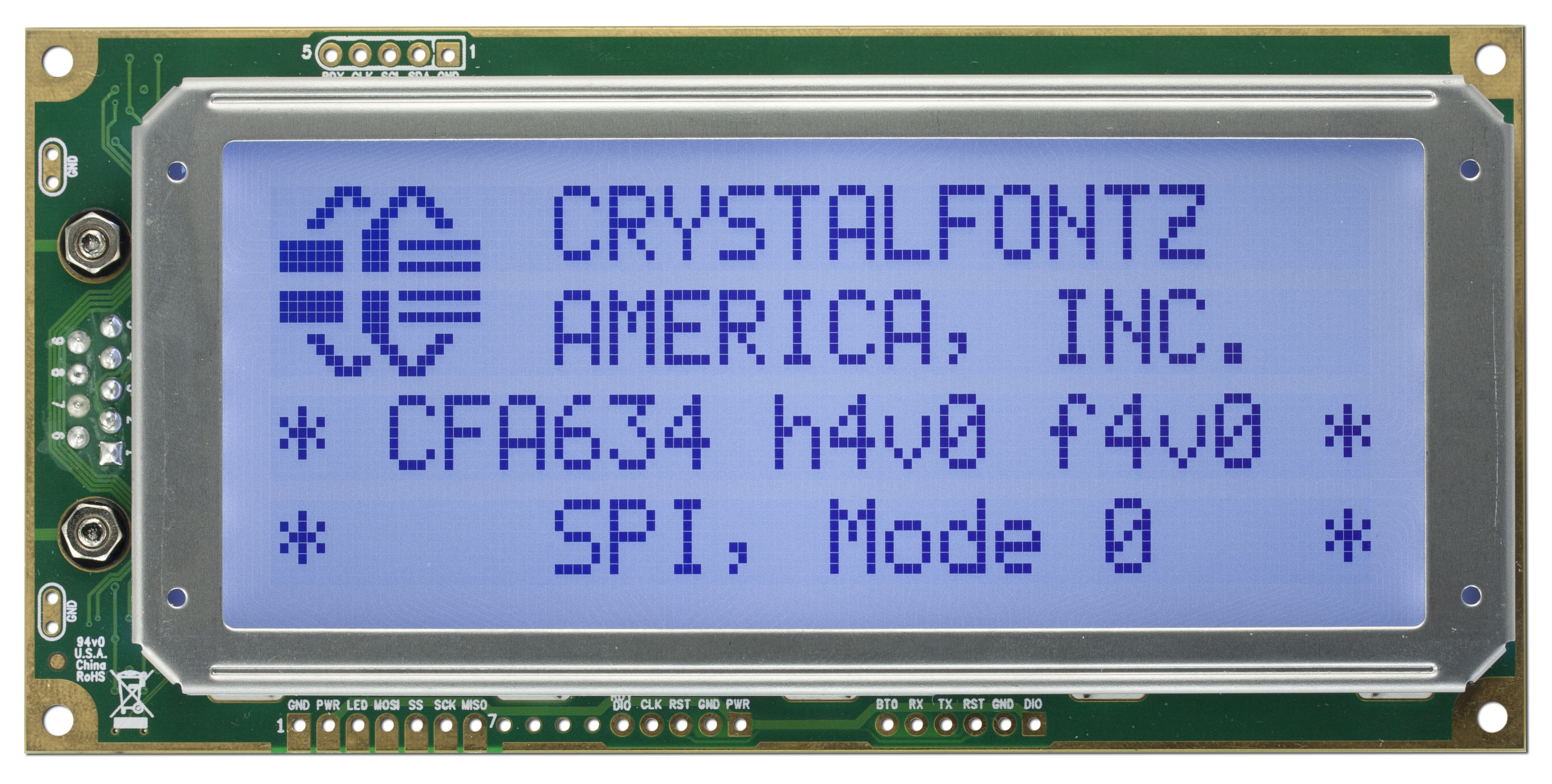

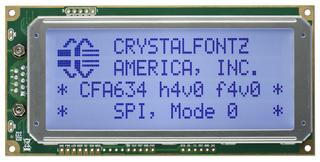

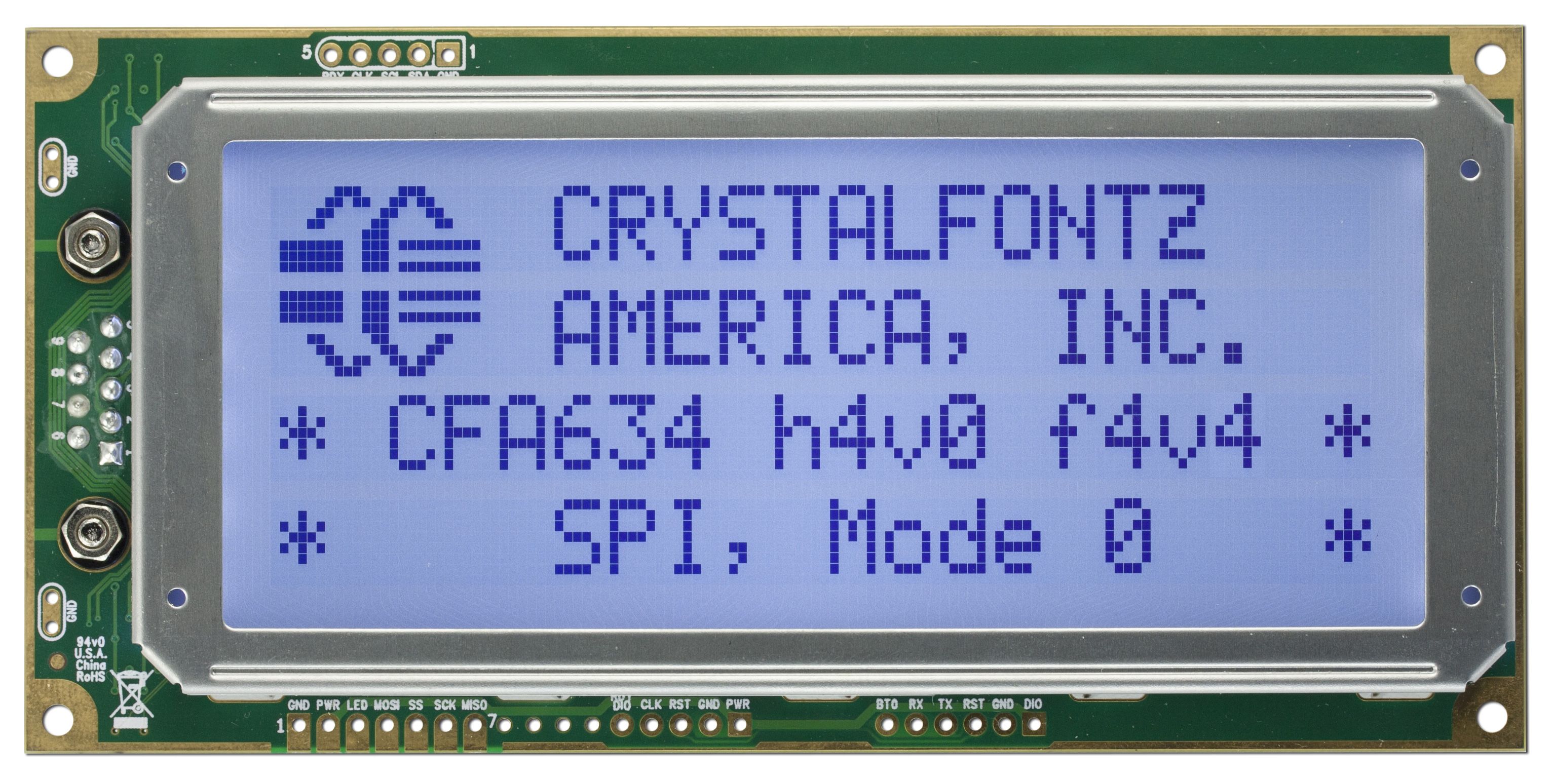

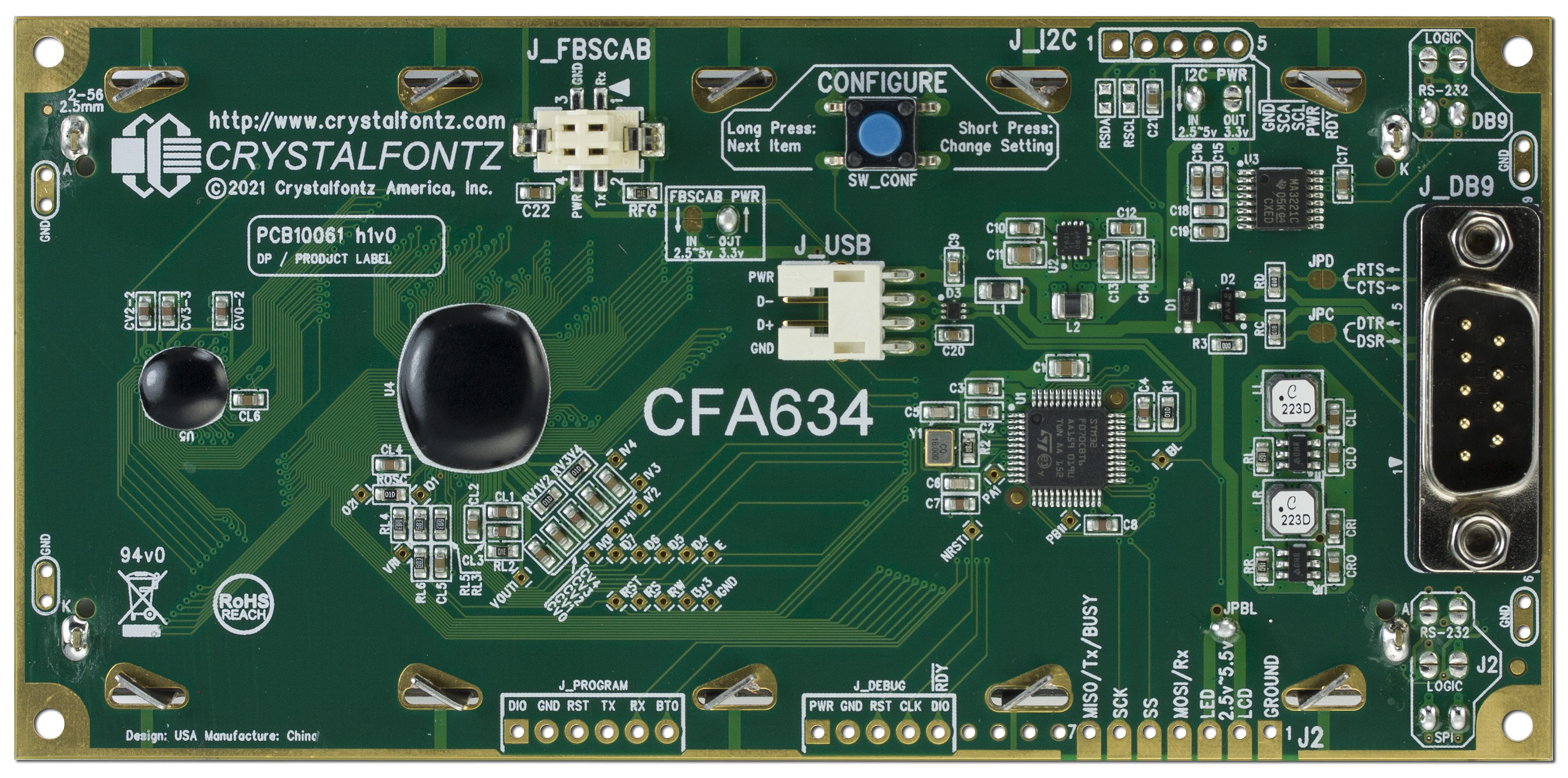

Blue SPI 20x4 Character LCDPart Number: CFA634-TFH-KPThis intelligent character display module allows the choice between the legacy serial communication for backward compatibility and Crystalfontz's error-reducing packet communication style. Both of these communication styles provide powerful command sets for controlling the display. Do you need to control fans too? Check out the CFAFBSCAB which is compatible with this module using packet communication.
The 20x4 character display in its attractive stainless steel bezel displays characters that are 7.3 mm (0.29") tall, making it easily readable. And the range of color options lets you choose the perfect module for your application.
Easily Choose Your InterfaceWith each module capable of communicating via 6 interfaces, and the interfaces configurable by the end user, this module offers tons of flexibility. While these modules can all be configured for any interface (see the datasheet for details), this module is configured for SPI. (-KP)
Key Features:Attractive stainless steel bezel.
Optional PC CDROM mounting bracket with overlay to fit two 5.25" wide bays is available.
The CFA634 can use any of SIX interfaces on any modules in the family by simply changing the interface selection using a command setting or tactile button and making the appropriate jumper configurations.
Adjustable contrast. The module's default contrast value will be acceptable for many applications. If necessary, you can adjust the contrast by using the control function.
Extended voltage (9-15 volts for interfaces using DB9 connector) and 5 volts power inputs standard for the controller.
Backlight is 5 volts only.
Use the nonvolatile memory capability (EEPROM) to customize the "power-on" display settings.
Not sure which intelligent LCD module to choose? Compare all of our intelligent display modules.
Currently Shipping: HW Version 4, Firmware Version: 4
Part Number:

CFA - Crystalfontz (no 4th letter indicates value added)

634 - Module Family Name

T -  White LED backlight

F - FSTN, positive image, neutral glass

H - Transflective, 6:00 viewing direction

KP - SPI Interface



Product VariationsInterfacesLogic Level Serial InvertedSPILogic Level SerialI2CUSBRS232
ColorsYellow-Green on Black
Yellow-Green LED BacklightWhite on Blue
White LED BacklightBlack on Yellow-Green
Yellow-Green LED BacklightDark on Light-Gray
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            20 x 4


    Module Overall        width
        height
        depth


        millimeters
        130
        63
        19.9


        inches
        5.12
        2.48
        0.78



        Diagonal Dimension
            3.92"


    Viewing Area        Width
        Height


        millimeters
        102
        41.5


        inches
        4.02
        1.63



    Active Area        Width
        Height


        millimeters
        93.54
        34


        inches
        3.68
        1.34



    Character Size        Width
        Height


        millimeters
        3.84
        7.3


        inches
        0.151
        0.287



    Character Pitch        Width
        Height


        millimeters
        4.68
        8.9


        inches
        0.184
        0.350



    Dot Size        Width
        Height


        millimeters
        0.72
        0.86


        inches
        0.028
        0.034



    Dot Pitch        Width
        Height


        millimeters
        0.78
        0.92


        inches
        0.031
        0.036



        Weight
            110g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Neutral
Polarizer
            Transflective
View Direction
            6 o'clock
View Angle
            60°
Sunlight Readable
            Yes


        Backlight Color
            White
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Light-Gray

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.5V


        Supply Voltage for Logic Maximum
            5.5V

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Current Minimum
            16mA


        Forward Current Maximum
            130mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        10%
        90%


 cable Electronics
Electronics

        Interface
            SPI

 picture_as_pdf Datasheets
picture_as_pdfCFA634 Datasheet
(Hardware 4v0, Firmware 4v0)
Previous Versions of Datasheetspicture_as_pdfCFA634 Series Data Sheet Release 2015-03-30.pdf
(Datasheet V 2015-03-30, Hardware 3.2, Firmware 3.2)
picture_as_pdfCFA634 Family Data Sheet Release 2014-02-26.pdf
(Hardware 3.1 & 3.2, Firmware 3.1)
picture_as_pdfCFA634 Family Data Sheet Release 2013-09-10.pdf
(Datasheet V 2013-09-10, Hardware 3.1, Firmware 3.1)
picture_as_pdfCFA634 Series Datasheet
(Datasheet V 2019-11-19, Hardware 3.2, Firmware 3.3.1)
picture_as_pdfCFA634 Family Preliminary Data Sheet Release 2013-08-21.pdf
(Datasheet V 2013-08-21, Hardware 3.1, Firmware 3.1)
 download Files and Downloads
folder_zip CAD Export - CFA634 Series 2D CAD
picture_as_pdf 1 to 1 Template - 1 to 1 Outline Drawing
picture_as_pdf Other Document - Version 3v0 to 4v0 Change Notes
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Add to cart without customizations
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:


        Prices without customizations:


            Quantity
            Unit Price


            1
            $80.63

            10
            $66.63

            20
            $64.25

            50
            $61.87

            100
            $60.92

            200
            $60.44

            500
            $59.97

            1000 *
            $59.02

946 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Interfaces	Logic Level Serial Inverted SPI Logic Level Serial I2C USB RS232

Colors	Yellow-Green on Black Yellow-Green LED Backlight White on Blue White LED Backlight Black on Yellow-Green Yellow-Green LED Backlight Dark on Light-Gray White LED Backlight

Module Overall	width	height	depth
millimeters	130	63	19.9
inches	5.12	2.48	0.78

Viewing Area	Width	Height
millimeters	102	41.5
inches	4.02	1.63

Active Area	Width	Height
millimeters	93.54	34
inches	3.68	1.34

Character Size	Width	Height
millimeters	3.84	7.3
inches	0.151	0.287

Character Pitch	Width	Height
millimeters	4.68	8.9
inches	0.184	0.350

Dot Size	Width	Height
millimeters	0.72	0.86
inches	0.028	0.034

Dot Pitch	Width	Height
millimeters	0.78	0.92
inches	0.031	0.036

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	10%	90%

Prices without customizations:
Quantity	Unit Price
1	$80.63
10	$66.63
20	$64.25
50	$61.87
100	$60.92
200	$60.44
500	$59.97
1000 *	$59.02

Pin Table
Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS
