            CFA-FBSCAB
            Part Number: CFA-FBSCAB

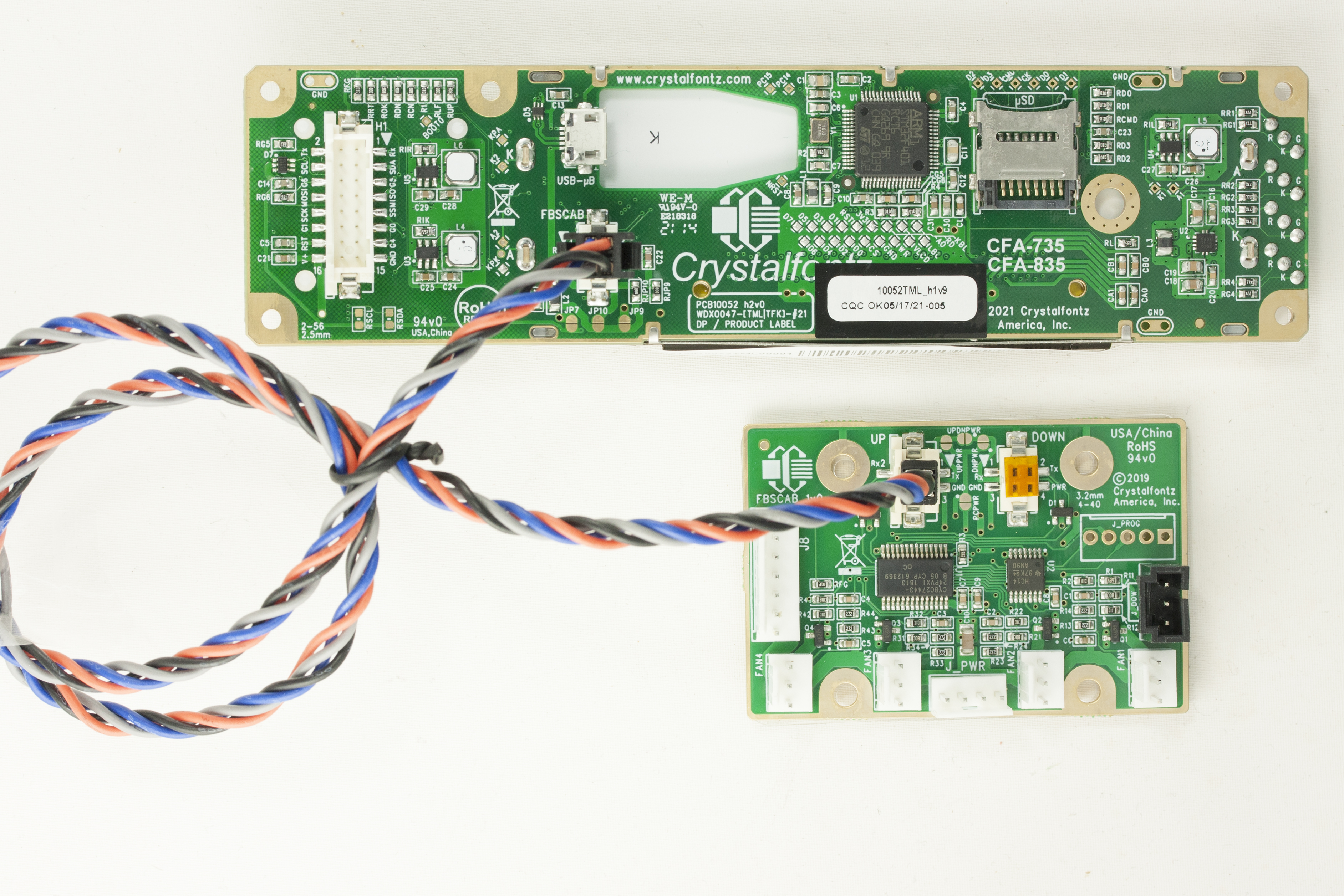

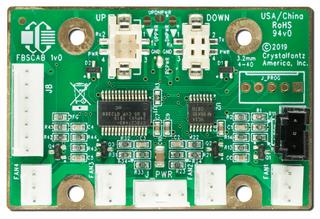

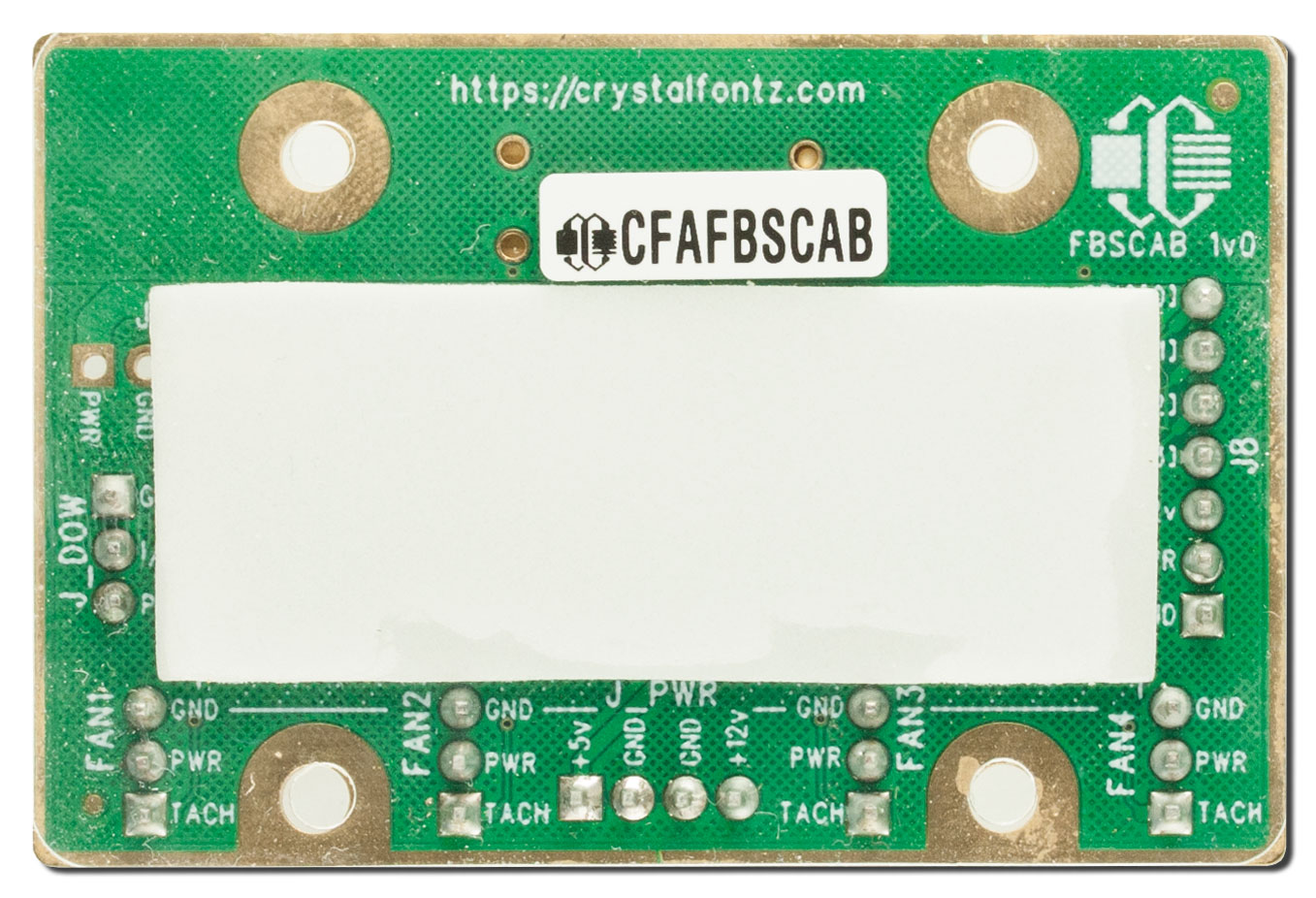

                        The FB System Cooling Accessory Board adds the same fan and temperature cooling functions to our CFA735, CFA835, CFA039A0NVD Series and CFA635 V1.5.

For cooling, add up to four fans with RPM monitoring and variable PWM fan power control. Connect fans to the CFA-FBSCAB with our 3-pin fan extension cable, WR-FAN-X01.
Monitor temperatures with up to 0.5°C absolute accuracy. Add up to 16 WR-DOW-Y17 Dallas Semiconductor 1-Wire (DOW) temperature sensors to use with the CFA735 or up to 32 temperature sensors for the CFA835.
For a CFA835, up to 32 CFA-FBSCABs can be connected to each other (“daisy chained”). Maximum configuration will allow 128 fans and 512 temperature sensors.

4 GPIO lines on the CFA-FBSCAB plus CFA835 allows:
     ATX power supply control functionality. Use CFA735, CFA835 and CFA635 V1.5 display module keypad buttons as "power" and "reset" buttons for your host system.
Hardware watchdog can reset the host in the case of host software failure.
Advanced digital GPIO control with PWM output.

The CFA-FBSCAB plus CFA735, CFA835, and CFA635 V1.5 fit nicely in a 1U rack mount case (37 mm overall height) using our optional mounting bracket. Or buy the SLED chassis that holds the display module, CFA-FBSCAB, and a 3.5-inch disk drive. To order a complete Drive Bay Kit, see our Kit Configurator.
 square_foot Physical Characteristics
Physical Characteristics

        Weight
            13.8g

picture_as_pdf Datasheets
picture_as_pdfCFA-FBSCAB Data Sheet 0v9.pdf
(Datasheet V 0v9, Hardware 0v9)
download Files and Downloads
folder_zip Hardware Design - 3D Model

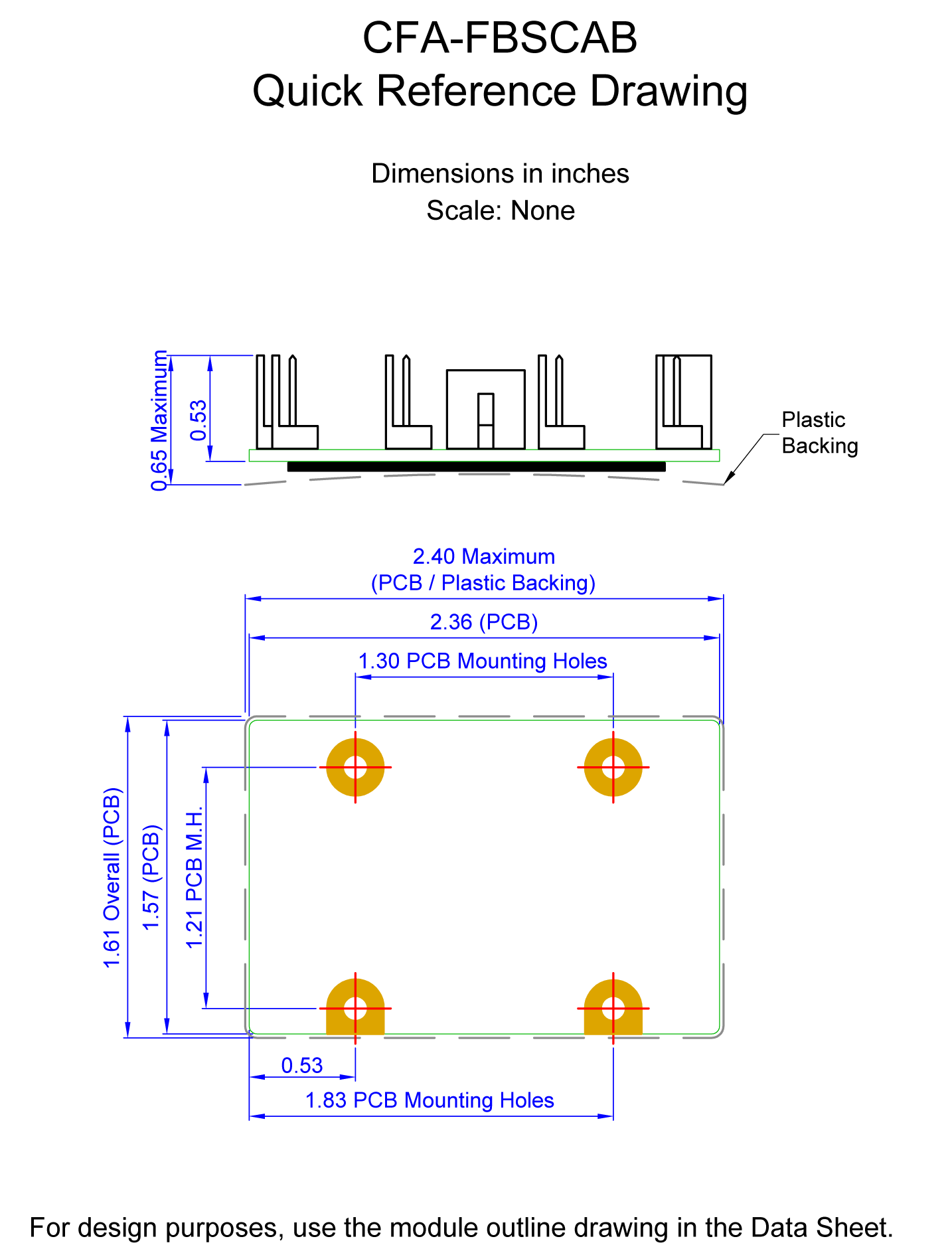

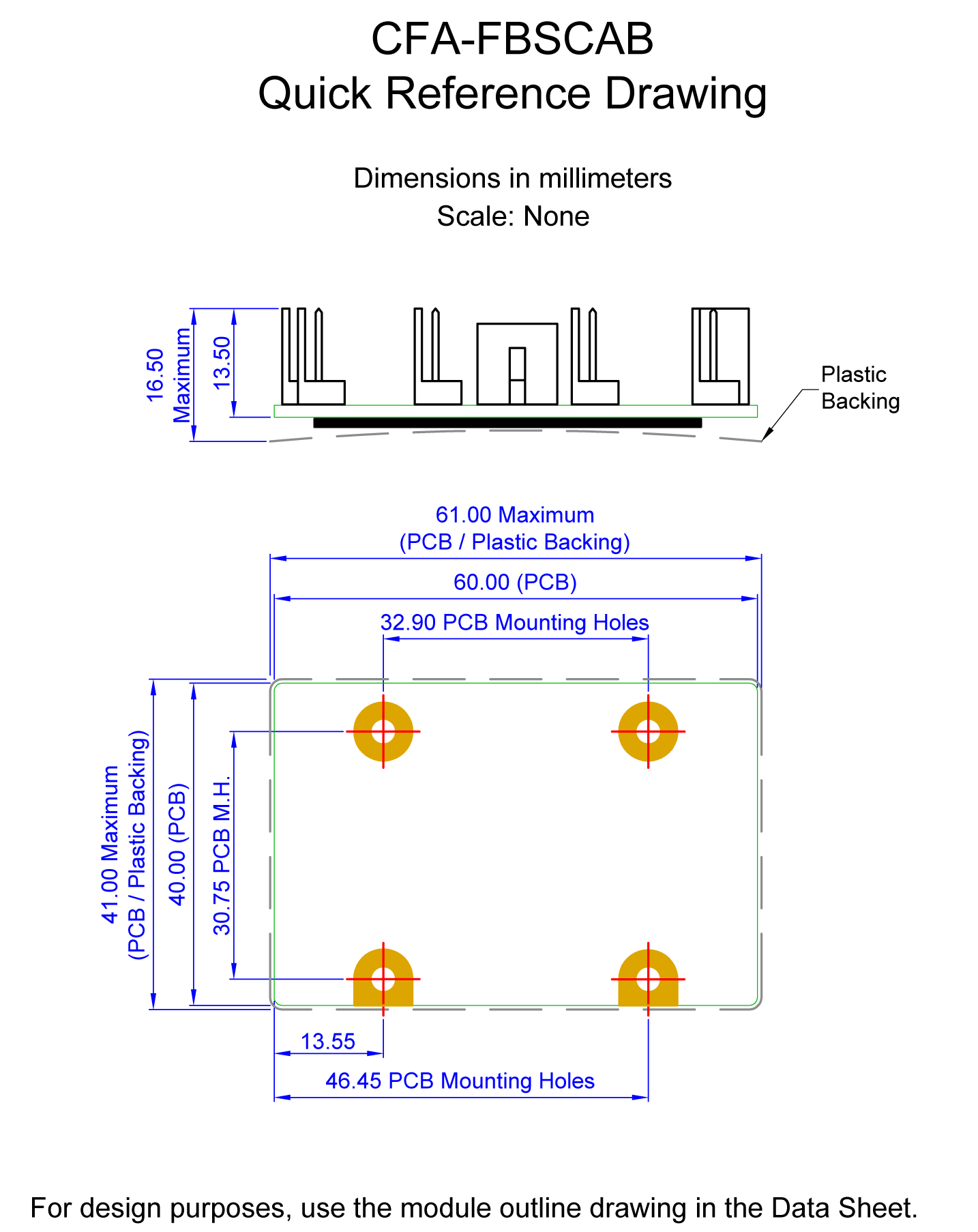

picture_as_pdf 1 to 1 Template - CFA-FBSCAB 1 to 1 Outline Drawing
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $22.60

            10
            $21.96

            20
            $21.31

            50
            $20.53

            100
            $20.28

            200
            $20.15

            300
            $19.89

            500 *
            $19.76

            1000 *
            $19.63

354 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.

Quantity	Unit Price
1	$22.60
10	$21.96
20	$21.31
50	$20.53
100	$20.28
200	$20.15
300	$19.89
500 *	$19.76
1000 *	$19.63
