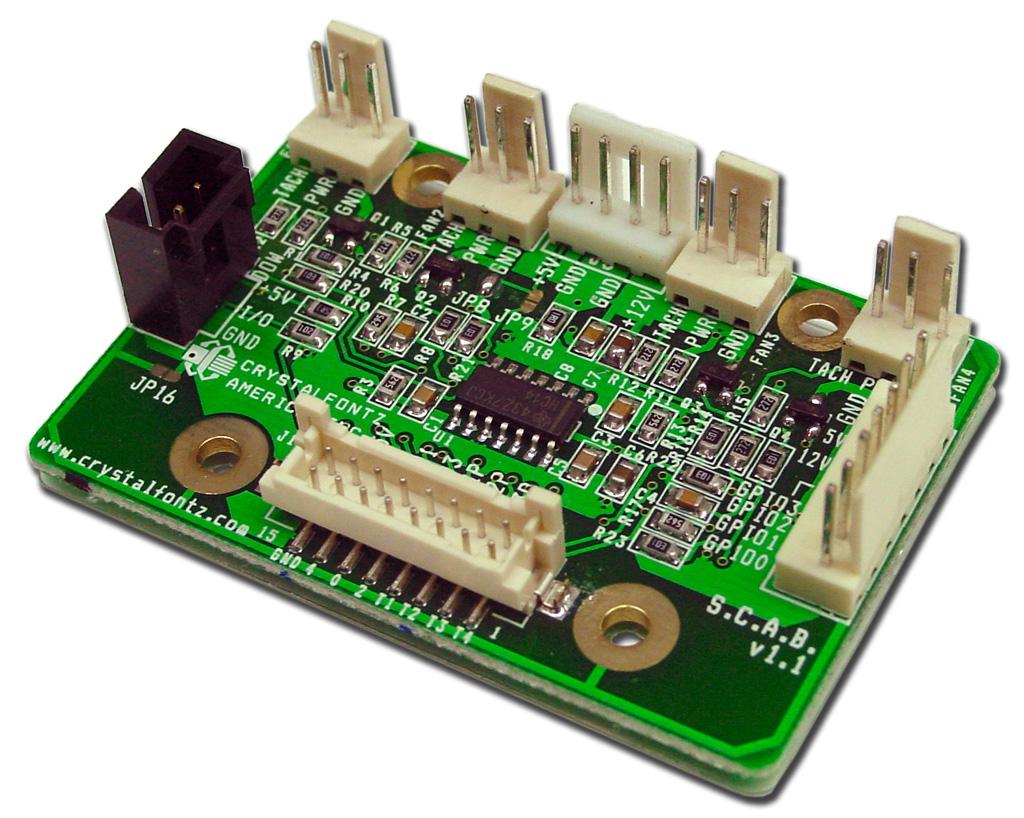

UBERSCABPart Number: UBERSCABSystem Cooling Accessory Board adds fan and temperature cooling functions to CFA631 and CFA635 displays.

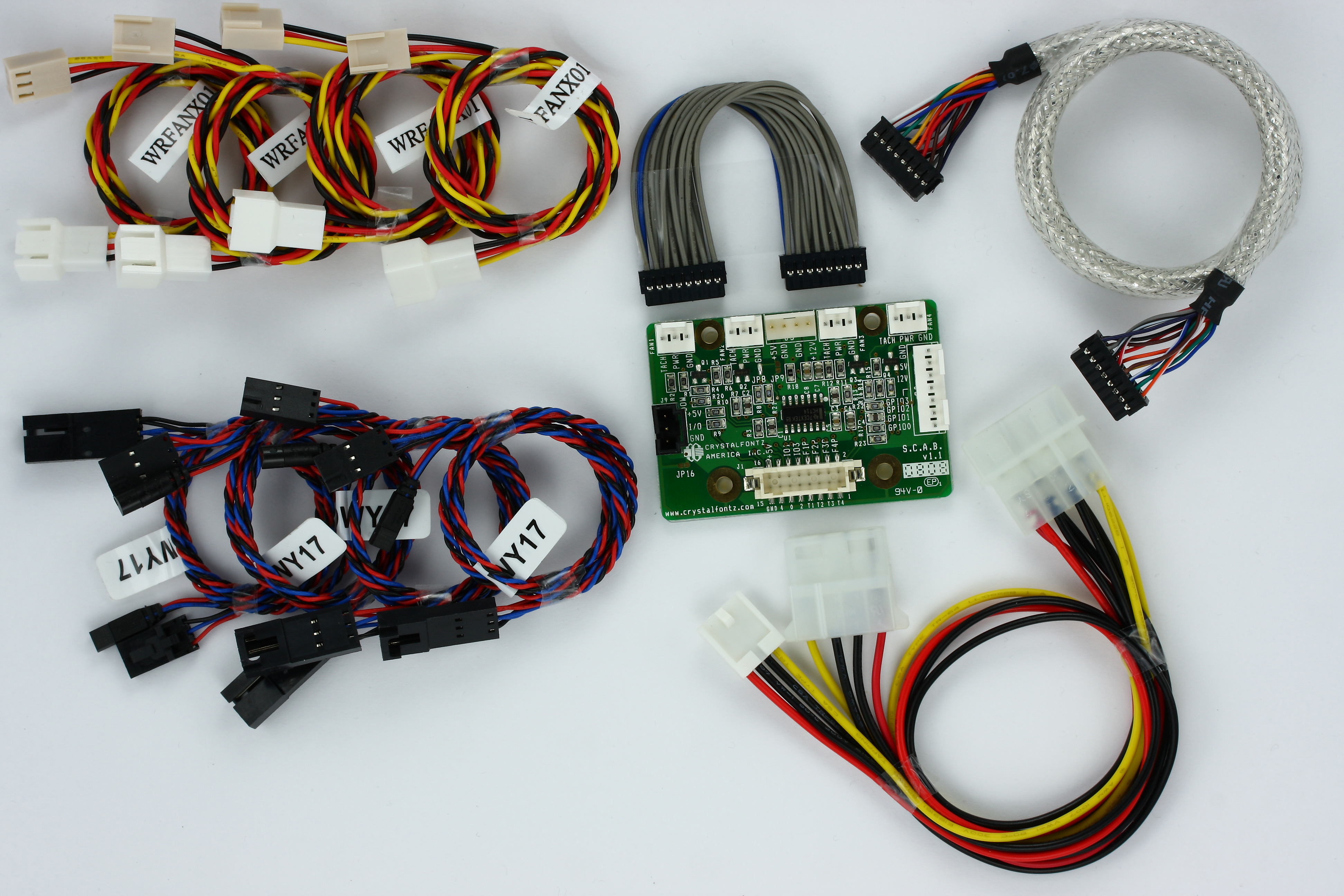

The UBERSCAB includes:
(1) SCAB
(4) WR-DOW-Y17 temperature cables
 (4) WR-FANX-01 fan extension cables
(1) WR-PWR-Y12 power cable splitter
(1) WR-EX-TY19 3.5" CFA631/CFA635 to SCAB connector cable
(1) WR-EXT-Y15 16" CFA631/CFA635 to SCAB connector cable.
The System Cooling Accessory Board adds the same fan and temperature cooling functions to our CFA631 and CFA635 Intelligent LCD Displays that are available natively (without accessory board) on our CFA533 and CFA633 Intelligent LCD displays.
For cooling, add up to four fans with RPM monitoring and variable PWM fan power control. Connect fans to the SCAB with our 3-pin fan extension cable, WR-FAN-X01.
Monitor temperatures with up to 0.5°C absolute accuracy. Add up to 16 WR-DOW-Y17 Dallas Semiconductor 1-Wire (DOW) temperature sensors.
4 GPIO lines on the SCAB allows:

ATX power supply control functionality. Use CFA631 or CFA635 display module keypad buttons as "power" and "reset" buttons for your host system.
Hardware watchdog can reset the host in the case of host software failure.
Advanced digital GPIO control with PWM output.

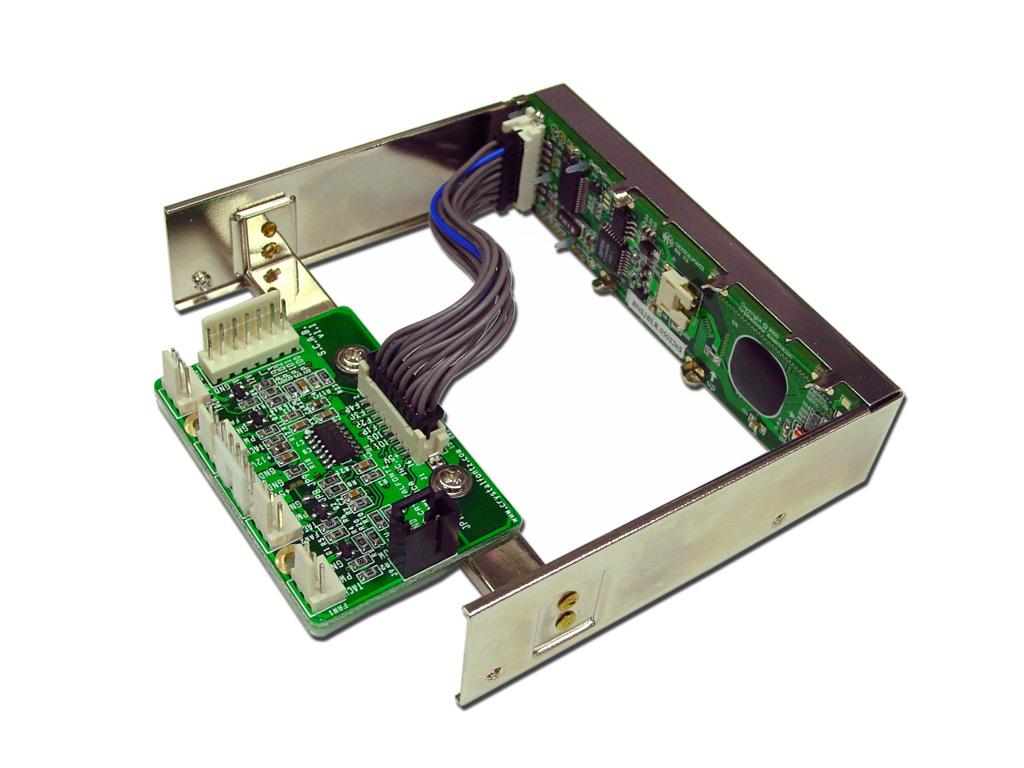

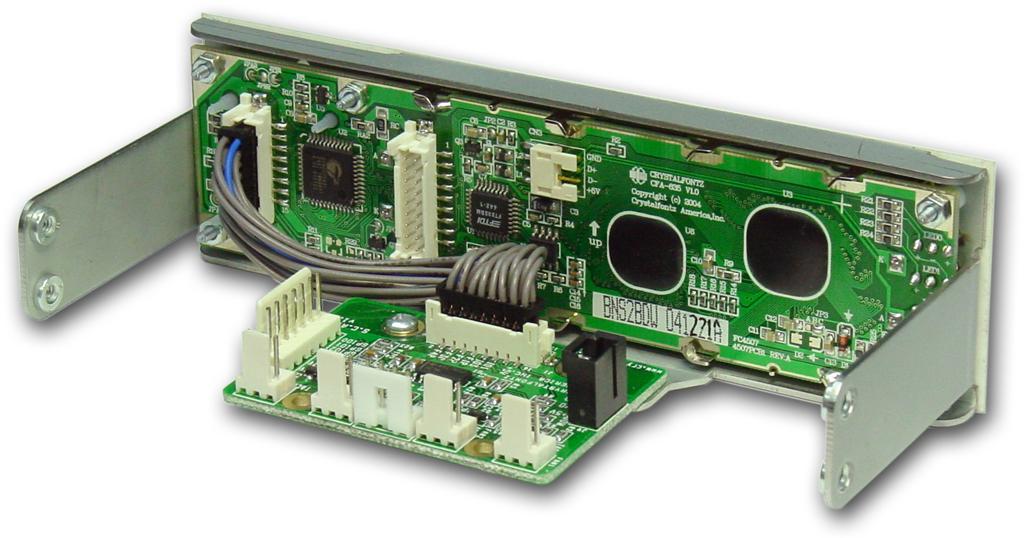

The SCAB plus CFA631 or CFA635 fit nicely in a 1U rack mount case (37 mm overall height) using our optional mounting bracket. Or buy the SLED chassis that holds the display module, SCAB, and a 3.5-inch disk drive. To order a complete Drive Bay Kit, see our Kit Configurator.
 square_foot Physical Characteristics
Physical Characteristics

    Module Overall        width
        height

        millimeters
        60
        40

        inches
        2.36
        1.58

    PCB Outline        width
        height

        millimeters
        60
        40

        inches
        2.36
        1.58

        Weight
            108.8g

 picture_as_pdf Datasheets
picture_as_pdfSCAB HWv1.2 Datasheet Release 2016-07-07.pdf

Previous Versions of Datasheetspicture_as_pdfCFA SCAB v1.1.pdf
(Datasheet V 1.1, Hardware 1.1)
picture_as_pdfCFA SCAB Data Sheet.pdf

 download Files and Downloads
picture_as_pdf 1 to 1 Template - SCAB 1 to 1 Module Outline
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Add to cart without customizations
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

        Prices without customizations:

            Quantity
            Unit Price

            1
            $50.09

            20
            $49.20

            50
            $48.02

            200 *
            $47.30

91 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.

Module Overall	width	height
millimeters	60	40
inches	2.36	1.58

PCB Outline	width	height
millimeters	60	40
inches	2.36	1.58

Prices without customizations:
Quantity	Unit Price
1	$50.09
20	$49.20
50	$48.02
200 *	$47.30

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10702: SCAB revision from v1.1 to v1.2

Products Affected:	SCAB, UBERSCAB
Date Issued:	June 16, 2016
Summary:	SCAB revision from v1.1 to v1.2
Last revision:	1.1
Description:	The System Cooling Accessory Board; SCAB, is being revised from version 1.1 to version 1.2.
Reason:	As part of our continuous improvement, the SCAB is being revised for improved manufacturability, and increased usability. Improved manufacture: Component placement and layout Increased Usability: 1. Jumpers JP8 and JP9 moved to more accessible location 2. High current / Fan headers rotated 90 degrees to ease connection of cables
Impact:	The revision 1.2 hardware is Fit and Functional compatible with revision 1.1 hardware. The Form has changed primarily with the 90 degree rotation of the high current / fan headers for ease of installation.
Recommendation:	It is recommended to verify the new hardware revision in your system design to make any necessary modifications to accommodate the From changes.
Availability:	Immediate.
Price Change:	There is no scheduled price change at this time.
Attachment:	SCAB_1v1_to_1v2_compare.pdf (117KB)
