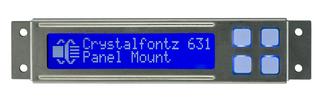

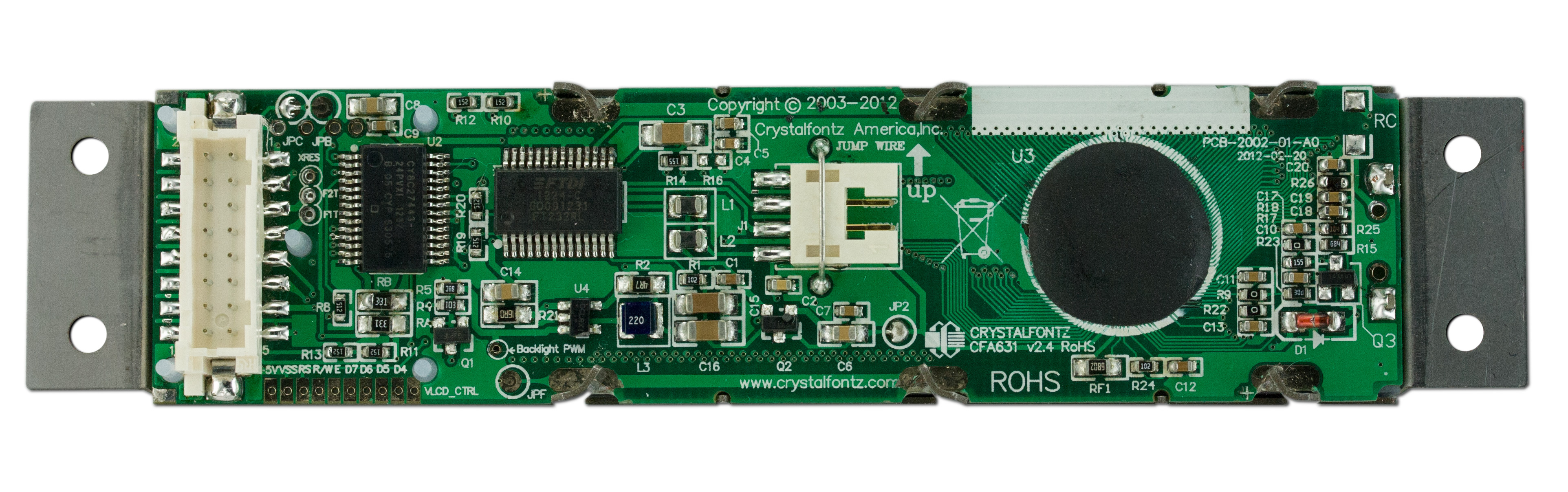

Panel Mount 20x2 Character USB LCDPart Number: CFA631P-TMF-KUPanel mountable 20x2 character LCD, USB interface, negative Blue STN with White edge LED backlight, 4 button keypad with blue LED backlight, GPIO.
 Panel mount version of our CFA631-TMF-KU.

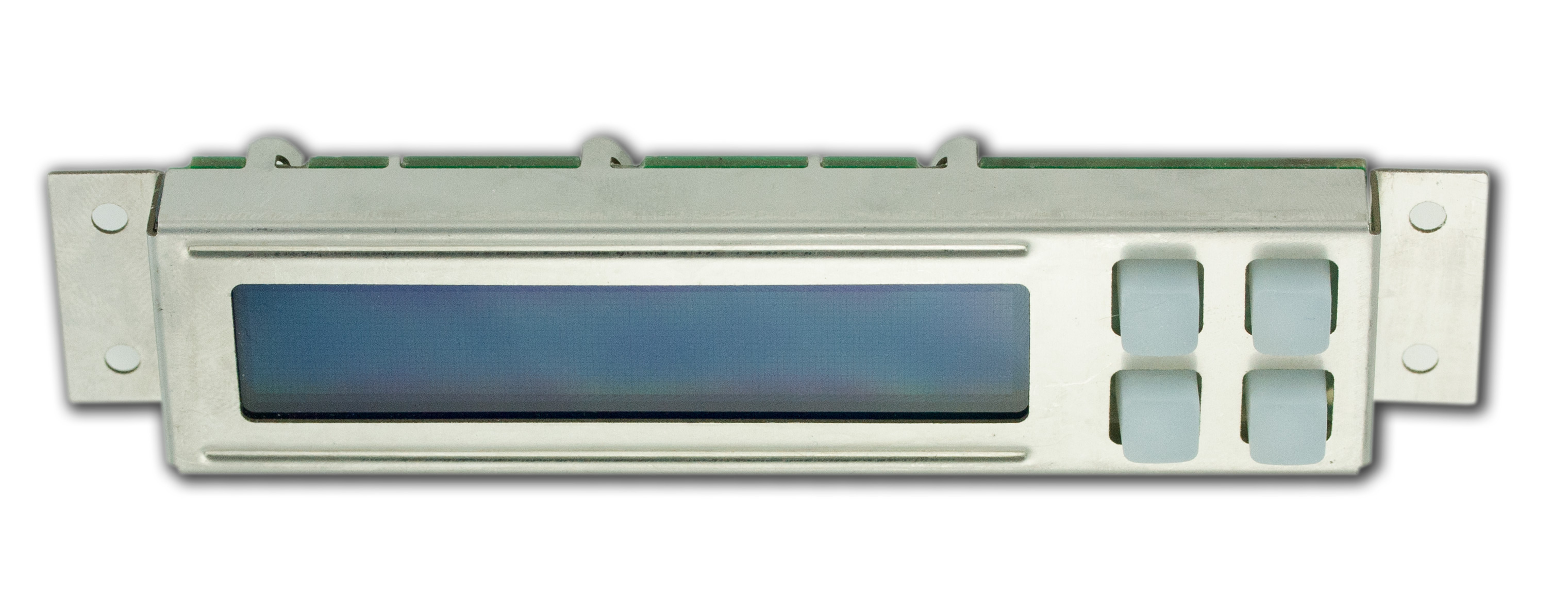

Modeled after our popular CFA631-TMF-KU, the CFA631P-TMF-KU doesn't need a drive bay. All it needs is a small space - 101.6mm wide (excluding mounting tabs), 25.4mm tall, and less than 18mm deep.
20x2 USB LCD with keypad designed to fit as panel mount where vertical space and mounting depth is at premium
USB interface (115200 baud throughput)
LED backlit negative mode STN 20x2 LCD
Integrated LED backlit 4-button translucent silicon keypad
"key legends" allows user assignment of soft keys to be shown easily on the LCD
LCD characters are contiguous in both X and Y directions to allow the host software to display "gapless" bar graphs in horizontal or vertical directions
Fully decoded keypad: any key combination is valid and unique
Robust packet-based communications protocol with 16-bit CRC
Built-in re-programmable microcontroller (factory operation)
Non-volatile memory capability ("EEPROM"):
Customize the "power-on" display settings
16-byte "scratch" register for storing IP, netmask, system serial number
Hardware watchdog can reset host system on host software failure.
May be used with our optional SCAB to add fan and temperature sensor and fan functions.
Free sample code.
This module is now available with I2C interface, please contact support@crystalfontz.com for more information.

Not sure which USB character LCD to choose? Compare all of our intelligent display modules.


Currently Shipping: HW Version 2H4, Firmware Version: U3v1

Product VariationsColorsWhite on Blue
White LED BacklightRed on Dark
Red LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            20 x 2

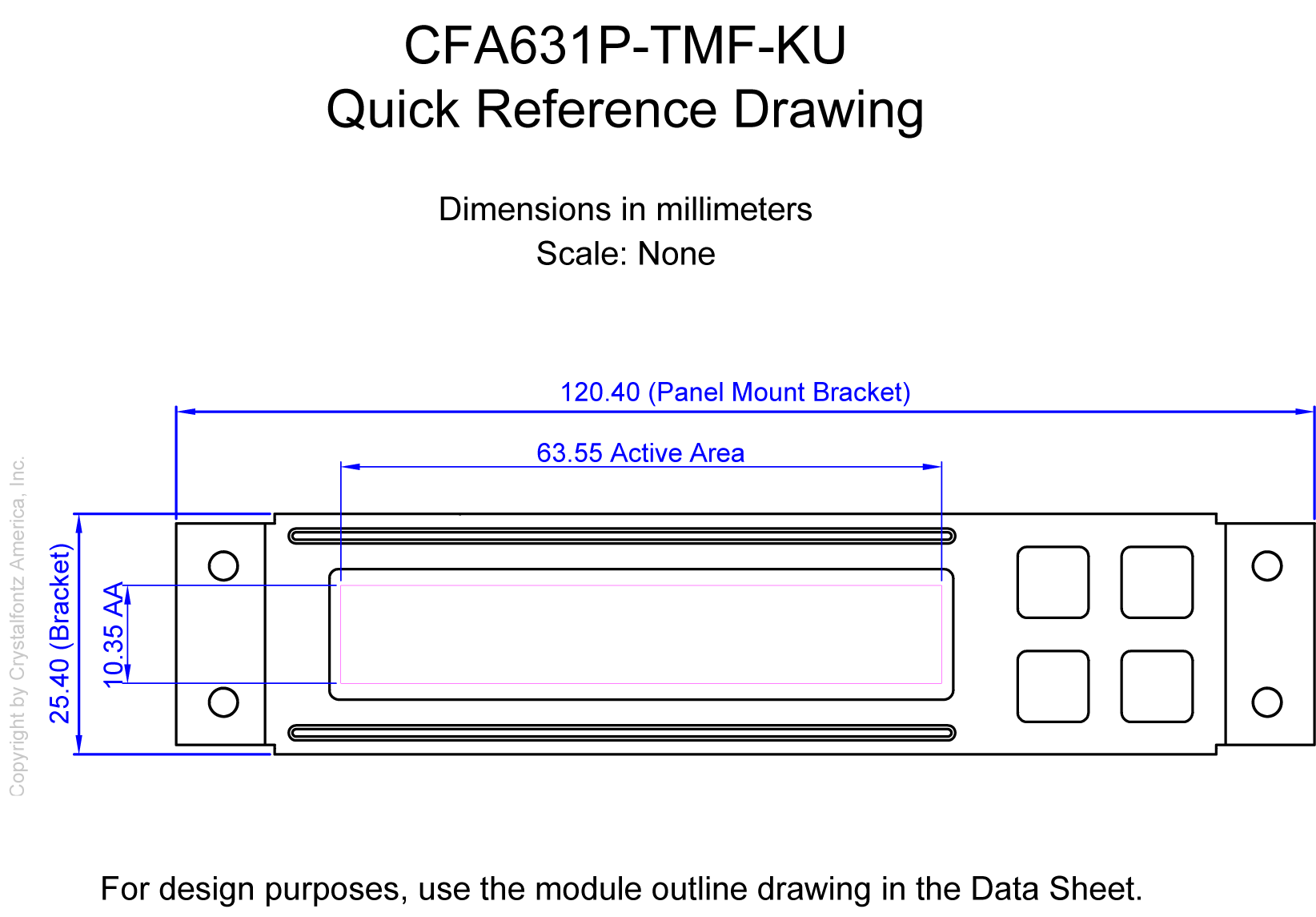

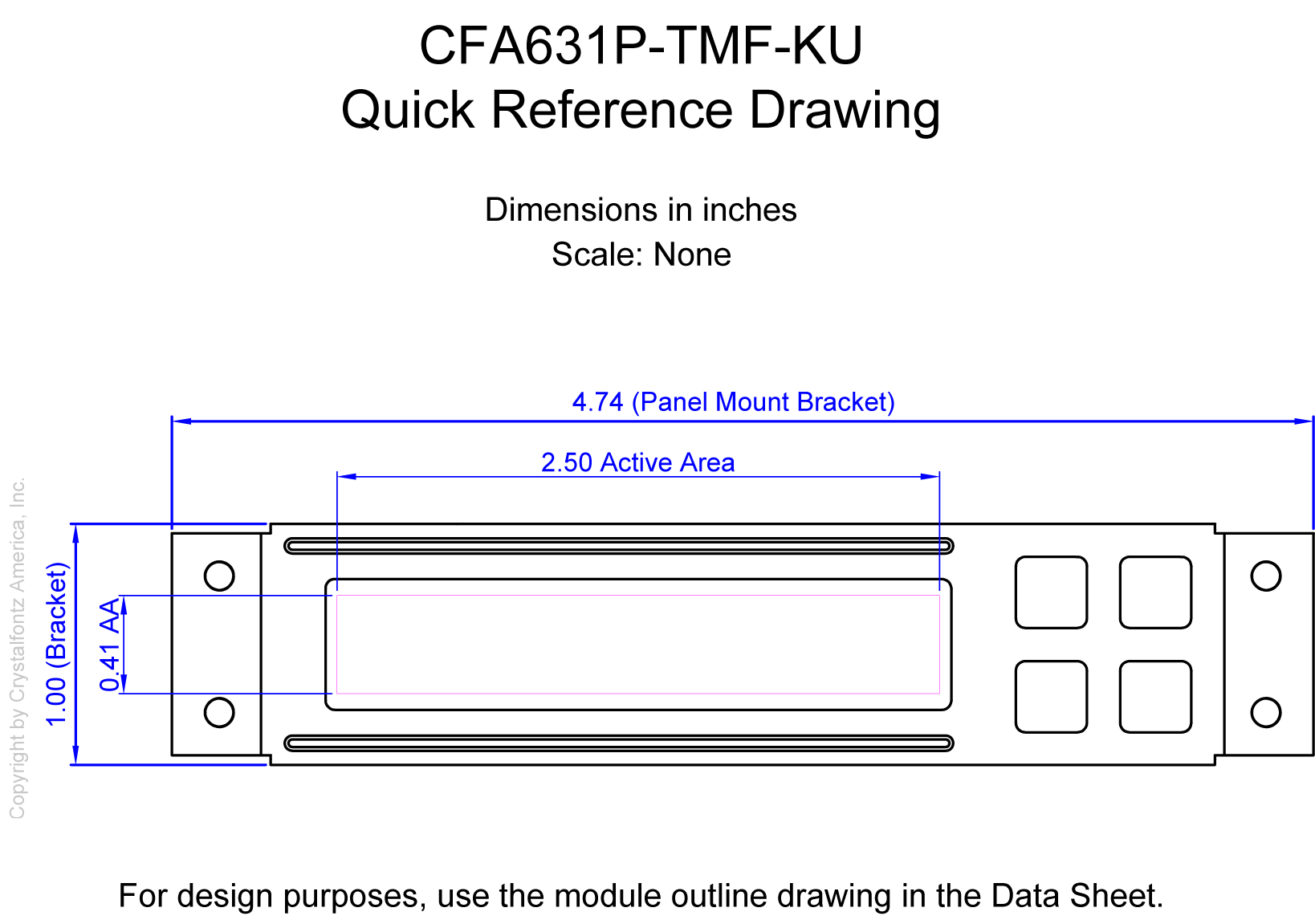

    Module Overall        width
        height
        depth


        millimeters
        120.4
        25.4
        18


        inches
        4.74
        1.00
        0.71

*depth doesn't include Keypad


        Diagonal Dimension
            2.53"


    Viewing Area        Width
        Height


        millimeters
        66
        13.8


        inches
        2.60
        0.54



    Active Area        Width
        Height


        millimeters
        63.55
        10.35


        inches
        2.50
        0.41



    Character Size        Width
        Height


        millimeters
        2.6
        4.5


        inches
        0.102
        0.177



    Character Pitch        Width
        Height


        millimeters
        3.18
        5.2


        inches
        0.125
        0.205



    Dot Size        Width
        Height


        millimeters
        0.48
        0.6


        inches
        0.019
        0.024



    Dot Pitch        Width
        Height


        millimeters
        0.53
        0.65


        inches
        0.021
        0.026



        Weight
            53g


        Keystroke Travel
            2mm

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            12 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Typical
            5V

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        0°
        50°


        Fahrenheit
        32°
        122°



    Storage Temperatures        min
        max


        Celsius
        -10°
        60°


        Fahrenheit
        14°
        140°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Interface
            USB

 picture_as_pdf Datasheets
picture_as_pdfCFA631 Data Sheet Release 2014-11-17.pdf
(Hardware 2h4, Firmware u3v1)
 download Files and Downloads
folder_zip Software Source - Linux - List  USB Device Path Script
folder_zip CAD Export - CFA631 CAD Exports
picture_as_pdf 1 to 1 Template - CFA631P-TMF-KU
picture_as_pdf Other Document - Intelligent LCD Comparison
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Add to cart without customizations
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:


        Prices without customizations:


            Quantity
            Unit Price


            1
            $79.09

            10
            $76.79

            20
            $71.37

            50
            $65.83

            100
            $60.27

            200
            $54.86

            500
            $49.31

            1000
            $43.76

1168 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Colors	White on Blue White LED Backlight Red on Dark Red LED Backlight

Module Overall	width	height	depth
millimeters	120.4	25.4	18
inches	4.74	1.00	0.71
*depth doesn't include Keypad

Viewing Area	Width	Height
millimeters	66	13.8
inches	2.60	0.54

Active Area	Width	Height
millimeters	63.55	10.35
inches	2.50	0.41

Character Size	Width	Height
millimeters	2.6	4.5
inches	0.102	0.177

Character Pitch	Width	Height
millimeters	3.18	5.2
inches	0.125	0.205

Dot Size	Width	Height
millimeters	0.48	0.6
inches	0.019	0.024

Dot Pitch	Width	Height
millimeters	0.53	0.65
inches	0.021	0.026

Operating Temperatures	min	max
Celsius	0°	50°
Fahrenheit	32°	122°

Storage Temperatures	min	max
Celsius	-10°	60°
Fahrenheit	14°	140°

Humidity	min	max
Non-condensing	0%	90%

Prices without customizations:
Quantity	Unit Price
1	$79.09
10	$76.79
20	$71.37
50	$65.83
100	$60.27
200	$54.86
500	$49.31
1000	$43.76

Resources
Notices

Additional Resources

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11226: Change to ENIG from Gold Plating

Products Affected:	CFA631-RMF-KU1, CFA631-RMF-KU2, CFA631-RMF-KU, CFA631-TMF-KU, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-YFH-KU, CFA632-YDI-KU, CFA634-TFH-KS, CFA634-TMI-KS, CFA634-YFH-KS, CFA634-YDI-KS, CFA634-TFH-KU, CFA634-TMI-KU, CFA634-YFH-KU, CFA634-YDI-KU, CFA631-RMF-KU32, CFA631-RMF-KU128, CFA631-RMF-KU160, CFA631-RMF-KU33, CFA631-RMF-KU129, CFA631-RMF-KU161, CFA631-RMF-KU-162, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP, CFA634-YDI-KC, CFA634-TMI-KC, CFA634-YFH-KC, CFA634-TFH-KC, CFA634-YFH-KL, CFA634-TFH-KL, CFA634-TMI-KL, CFA634-YDI-KL, CFA634-TFH-KP, CFA634-YFH-KP, CFA634-TMI-KP, CFA634-YDI-KP, CFA634-TFH-KN, CFA634-YFH-KN, CFA634-TMI-KN, CFA634-YDI-KN, CFA631P-TMF-KU, DBBK-CFA631-RMF-KU1, DBBK-CFA631-RMF-KU2, DBBK-CFA631-RMF-KU32, DBBK-CFA631-RMF-KU33, DBBK-CFA631-RMF-KU34, DBBK-CFA631-RMF-KU128, DBBK-CFA631-RMF-KU129, DBBK-CFA631-RMF-KU130, DBBK-CFA631-RMF-KU160, DBBK-CFA631-RMF-KU161, DBBK-CFA631-RMF-KU162
Date Issued:	September 5, 2023
Summary:	Change to ENIG from Gold Plating
Description:	The plating on these PCBs is changing from gold plating to ENIG.
Reason:	Gold plating is not as often used anymore and ENIG is a better plating process.
Availability:	This will be implemented on serial numbers with a SN date more recent than week 21 of 2023 with one exception: SNs 2321634TFHP544035 - 2321634TFHP544219 on a CFA634-TFH product will have the original gold plating. Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #10658: Deprecation of "Drive Bay Kit Configurator" / New part numbers for drive bay kits.

Products Affected:	CFA631-RMF-KU1, CFA631-RMF-KU2, CFA631-RMF-KU, CFA633-YYB-KS, CFA633-TMC-KS, CFA633-RMC-KS, CFA633-YYB-KU, CFA633-TMC-KU, CFA633-RMC-KU, CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KL, CFA631-TMF-KU, CFA635-TFE-KU, CFA635-YYE-KL, CFA635-TMF-KU, CFA635-YYE-KU, DS635-AL, DS635-BG, DS635-BK, DS635-AK, CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-YYH-KI, CFA633-YYH-KS, CFA633-TMI-KS, CFA633-YYH-KU, CFA633-TMI-KU, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-YFH-KU, CFA632-YDI-KU, CFA634-TFH-KS, CFA634-TMI-KS, CFA634-YFH-KS, CFA634-YDI-KS, CFA634-TFH-KU, CFA634-TMI-KU, CFA634-YFH-KU, CFA634-YDI-KU, CFA633-RDI-KU, CFA633-RDI-KS, CFA533-TFH-KU, CFA533-TFH-KS, CFA633-TFH-KU, CFA633-TFH-KS, CFA533-TFH-KL, CFA533-TFH-KC, CFA735-TFK-KR, CFA735-TFK-KT, CFA735-TML-KR, CFA735-TML-KT, CFA735-YYK-KR, CFA735-YYK-KT, CFA631-RMF-KU32, CFA631-RMF-KU128, CFA631-RMF-KU160, CFA631-RMF-KU33, CFA631-RMF-KU129, CFA631-RMF-KU161, CFA631-RMF-KU-162, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP, CFA634-YDI-KC, CFA634-TMI-KC, CFA634-YFH-KC, CFA634-TFH-KC, CFA634-YFH-KL, CFA634-TFH-KL, CFA634-TMI-KL, CFA634-YDI-KL, CFA634-TFH-KP, CFA634-YFH-KP, CFA634-TMI-KP, CFA634-YDI-KP, CFA634-TFH-KN, CFA634-YFH-KN, CFA634-TMI-KN, CFA634-YDI-KN, CFA631P-TMF-KU
Date Issued:	July 1, 2015
Summary:	Deprecation of "Drive Bay Kit Configurator" / New part numbers for drive bay kits.
Description:	Starting August 1, 2015 the "Drive Bay Kit Configurator" located at https://www.crystalfontz.com/products/select_kit.html will no longer be functional for ordering one of our Serial or USB displays (CFA533, CFA631, CFA632, CFA633, CFA634, CFA635, and CFA735) in a bracket or SLED. This functionality is being moved to the Customize and Add to Cart process when checking out. This will allow for further customization by our customers to better fit their needs. This change will eliminate the current "kits", but will add options not previously available such as pre-configured ATX functionality, and ALL the currently available interfaces will be orderable in a drive bay bracket or SLED. The new part numbers will have the bracket / SLED and overlay type as a PREFIX to the configured part number. The choice for bracket / SLED to a display order will be via the cart options. Our CFA835 displays were introduced with these configuration options. To see how the new options will look, and what the new part numbers will look like, please see one of our CFA835 parts: https://www.crystalfontz.com/cart/addtocart.php?product_id=2277&qty=1 NOTE: The SLED is only available for the CFA635, CFA735, and CFA835 products.
Reason:	As part of our continuous improvement process, we are integrating the ordering of displays in drive bay and SLED kits as part of the display ordering process.
Impact:	Drive bay kits in their current configuration will no longer be available.
Recommendation:	Place orders prior to 2015-08-01 for upcoming production needs via our website or by contacting our logistics department via email: sales@crystalfontz.com, or by calling 1-888-206-9720 (International call +1-509-892-1200). After the 2015-08-01, please contact our engineering department via support@crystalfontz.com to assist you with ordering your bracket / SLED kits.
Availability:	Starting 2015-08-01, the bracket and SLED options for our serial and USB display will be part of the ordering process for the displays
Price Change:	Pricing bracket / SLED configurations will reflect manufacturing costs.

Product Update #10616: (New Product) CFA631P-TMF-KU

New Product:	CFA631P-TMF-KU
Date Issued:	November 18, 2014
Summary:	(New Product) CFA631P-TMF-KU
Description:	Intelligent USB LCD Modules: Compact 20*2 Character USB LCD with keypad
