1.54" 200x200 Square ePaper Display

Part Number: CFAP200200A3-0154

This black and white square 200x200 pixel ePaper display module is a perfect size for small, low power electronic shelf labels. EPD/ePaper displays are bi-stable, meaning once an image is displayed on the ePaper, it remains visible even when the display is disconnected from power.

This display module includes built-in voltage generation, requiring only a few external components, or check out our ePaper Adapter Board that handles the external components.

Ultra thin, with a depth of 1.05mm and weight of only 2.2 grams, ePaper has a clear advantage over other display technologies for small handheld battery-operated devices or devices powered by solar. Epaper displays are growing rapidly in popularity and can be scanned by barcode readers. That makes this square display a great choice for displaying a QR code or the like.

• Wide viewing angle makes the display easily readable from all directions.
• Supports 3 or 4 wire SPI for communications
• Sunlight Readable! Displays reflect light like ordinary paper, making them easy to read in direct sunlight.
• Bi-stable image displays without any flickering.
• Supports partial screen updates
• Long lifetime: ~5 years / ~1M updates.
• Very fast updates ~2sec for a full screen update

This ePaper is a replacement for the end-of-life CFAP200200A1-0154.

Use our sample code in the files section to display your own images. Our open-source demonstration code runs directly on a low-cost Seeeduino (3.3v Arduino clone) .

Use our free ePaper software to prepare your bitmap image for this display.

Adapter / Breakout Board
Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  200 x 200

  Module Overall	width	height	depth
  millimeters	31.8	37.32	1.05
  inches	1.25	1.47	0.04
  *width / height does not include Foldable Tab

  Diagonal Dimension

  1.5"

  Active Area	Width	Height
  millimeters	27	27
  inches	1.06	1.06

  Dot Pitch	Width	Height
  millimeters	0.135	0.135
  inches	0.0053	0.0053

  Optional Connectors

  CS050Z24GA0

  Weight	2.1g

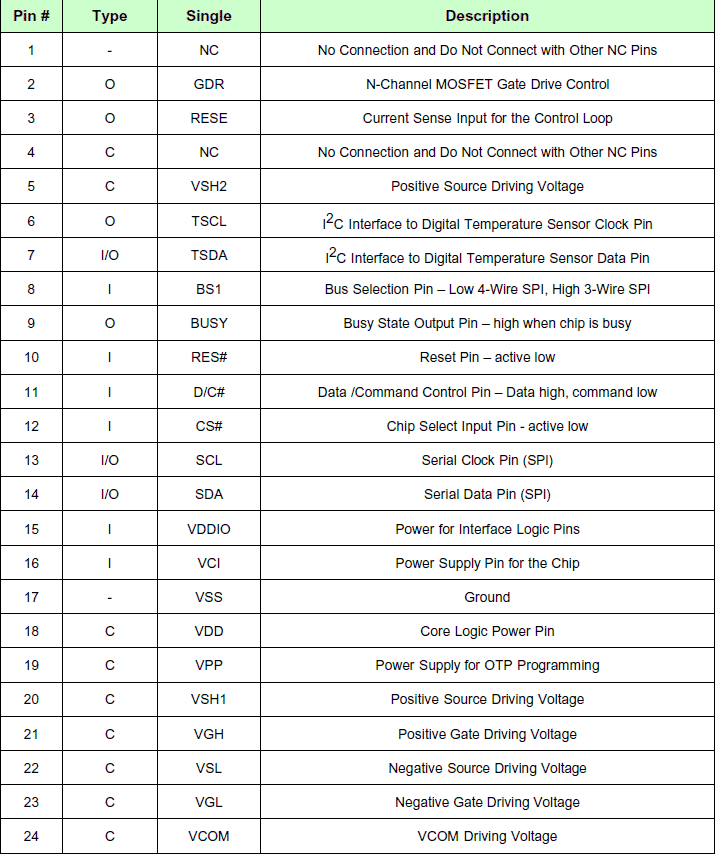

  Pin Count	24

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	ePaper
  Sunlight Readable	Yes

  Foreground Color	black
  Background Color	white

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	2.2V
  Supply Voltage for Logic Maximum	3.7V

  Supply Voltage for Logic Typical	3.3V
  Module Connector Pitch	0.5mm

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	0°	50°
  Fahrenheit	32°	122°

  Storage Temperatures	min	max
  Celsius	-25°	60°
  Fahrenheit	-13°	140°

  Humidity	min	max
  Non-condensing	40%	70%

• cable Electronics

  Electronics

  Interface

  SPI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAP200200A3-0154 Datasheet




• download Files and Downloads
  folder_zip Hardware Design - 3D Model


  link Arduino Demonstration Code on Github


  link Code Repository on Github
