1.54" 152x152 Square ePaper Display from Crystalfontz

Product

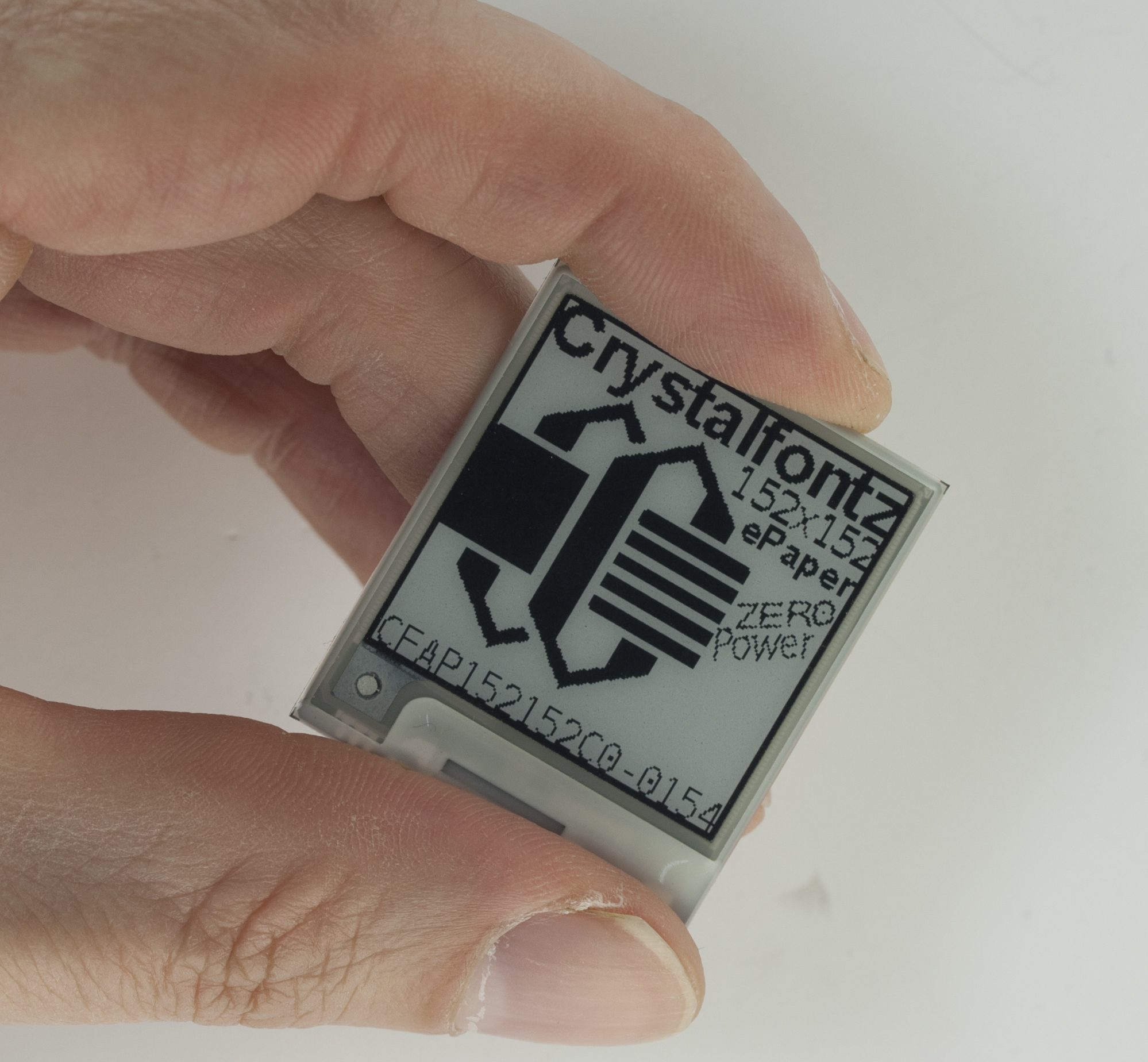

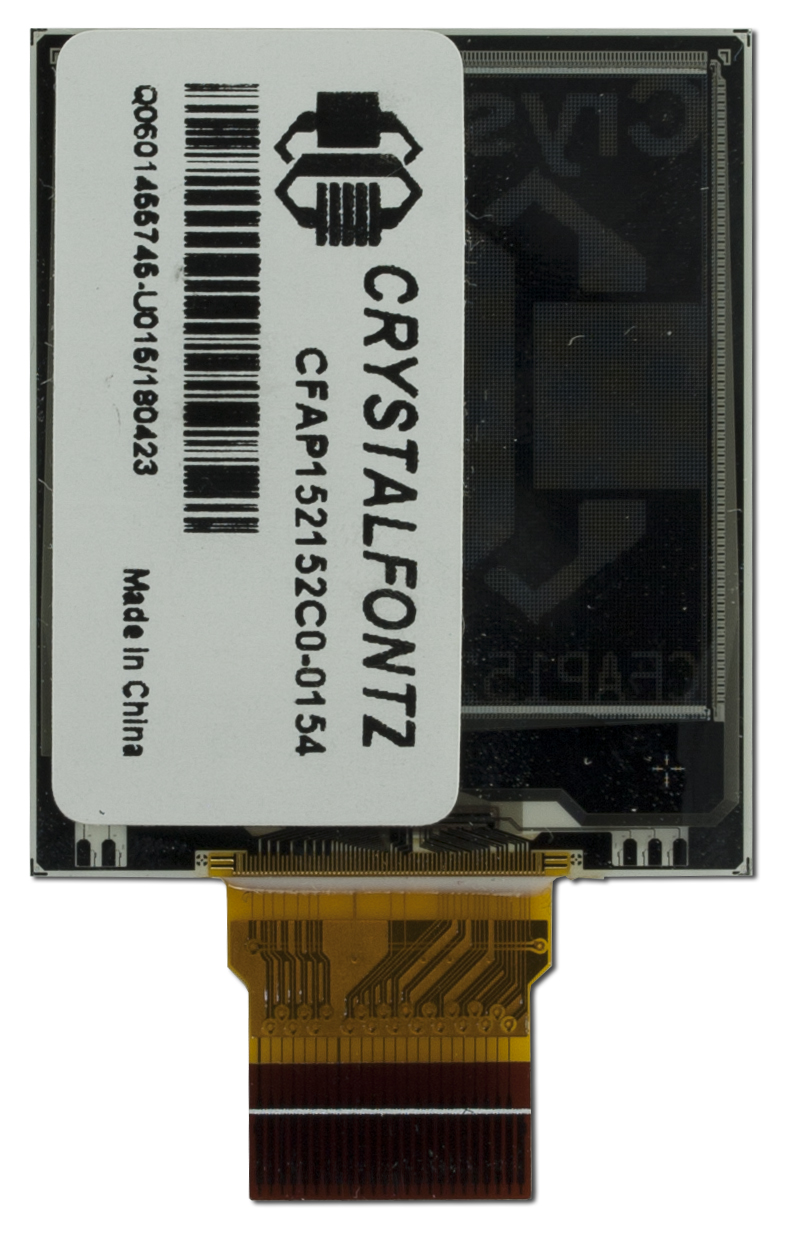

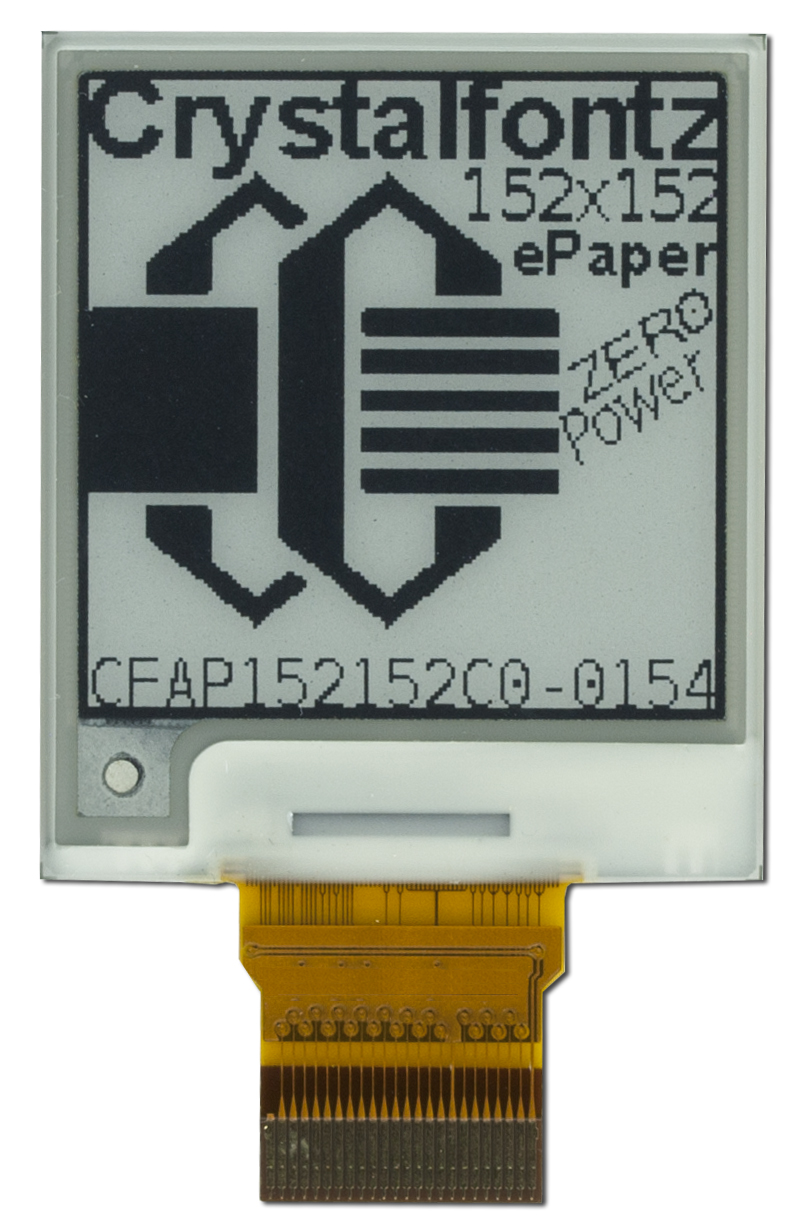

1.54" 152x152 Square ePaper DisplayPart Number: CFAP152152C0-0154

                        Ultra-low-power, 152x152 pixel,  Black and White, Square, ePaper Display. Electrophoretic displays are perfect for semi-static content that doesn't need a fast refresh, such as electronic signage, electronic shelf labels, barcodes, etc. Once this display is updated it requires no power or connection whatsoever. Its display will remain indefinitely.

Use our free ePaper software to load your bitmap image on to this display.

*This ePaper supports partial updates see datasheet for details.

Adapter / Breakout Board

Want to get this display up and running quickly with an Arduino or Seeeduino? We have an ePaper Adapter Board that makes connecting our ePaper simple and fast.

The ZIF connector you need is a standard 24-position 0.5mm pitch.

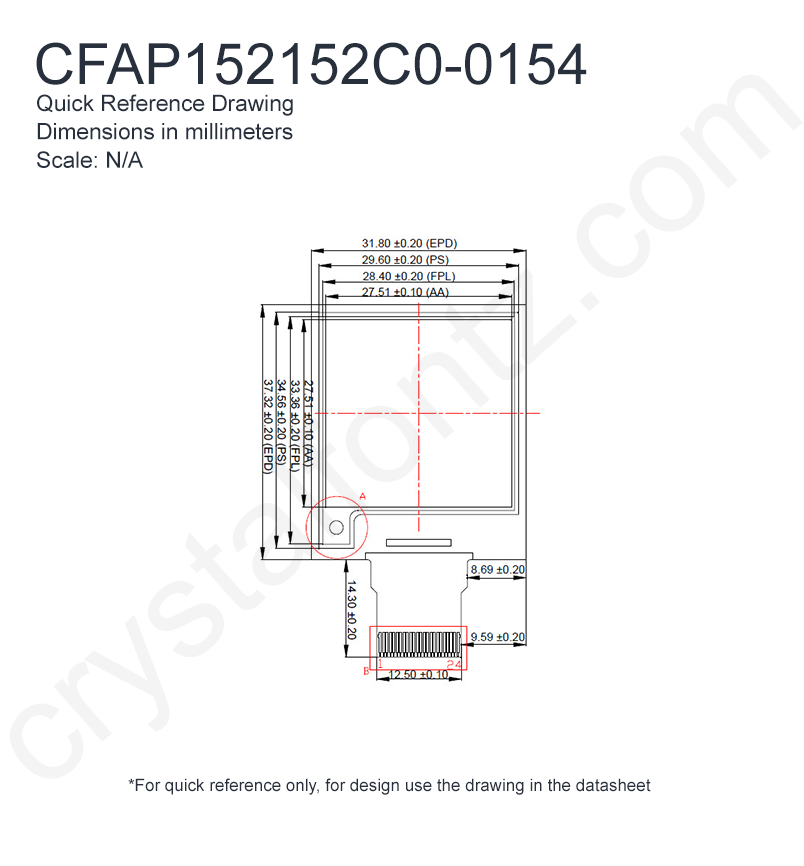

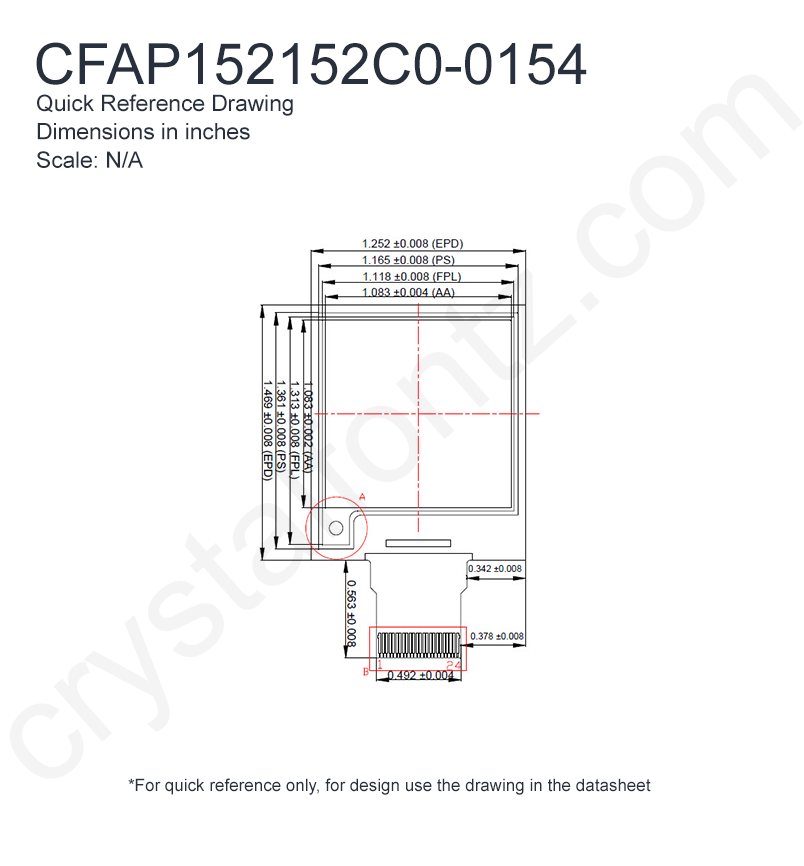

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            152 x 152

    Module Overall        width
        height
        depth

        millimeters
        31.8
        37.32
        0.98

        inches
        1.25
        1.47
        0.04

*width / height does not include Foldable Tab

        Diagonal Dimension
            1.53"

    Active Area        Width
        Height

        millimeters
        27.51
        27.51

        inches
        1.08
        1.08

    Dot Pitch        Width
        Height

        millimeters
        0.181
        0.181

        inches
        0.0071
        0.0071

        Optional Connectors
            CS050Z24GA0

    Flexible Cable (FFC/FPC)        length

        millimeters
        14.3

        inches
        0.563

        Weight
            2.4g
Pin Count
            24

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            ePaper
View Angle
            Ultra-Wide°

        Foreground Color
            Black
Background Color
            White

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V
Module Connector Pitch
            0.5mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        0°
        50°

        Fahrenheit
        32°
        122°

    Storage Temperatures        min
        max

        Celsius
        -25°
        70°

        Fahrenheit
        -13°
        158°

    Humidity        min
        max

        Non-condensing
        40%
        70%

 cable Electronics
Electronics

        Interface
            SPI

picture_as_pdf Datasheets
picture_as_pdfCFAP152152C0-0154 Datasheet

download Files and Downloads
folder_zip Software Source - Arduino / Seeeduino Demonstration Sketch
folder_zip Hardware Design - 3D Model
picture_as_pdf Hardware Design - CFA10084 Schematic
picture_as_pdf Other Document - ePaper Getting Started Guide
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $7.71

            10
            $6.29

            20
            $6.08

            50
            $5.86

            100
            $5.81

            200
            $5.78

            500
            $5.73

            1000 *
            $5.69

995 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering

						ePaper Adapter Board
Faster development $11.68 ea.

						24 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $0.97 ea.

Module Overall	width	height	depth
millimeters	31.8	37.32	0.98
inches	1.25	1.47	0.04
*width / height does not include Foldable Tab

Active Area	Width	Height
millimeters	27.51	27.51
inches	1.08	1.08

Dot Pitch	Width	Height
millimeters	0.181	0.181
inches	0.0071	0.0071

Flexible Cable (FFC/FPC)	length
millimeters	14.3
inches	0.563

Operating Temperatures	min	max
Celsius	0°	50°
Fahrenheit	32°	122°

Storage Temperatures	min	max
Celsius	-25°	70°
Fahrenheit	-13°	158°

Humidity	min	max
Non-condensing	40%	70%

Quantity	Unit Price
1	$7.71
10	$6.29
20	$6.08
50	$5.86
100	$5.81
200	$5.78
500	$5.73
1000 *	$5.69

Additional Options
Pin Table
Resources
Notices

Additional Options

ePaper development bundles make getting your ePaper running quick!

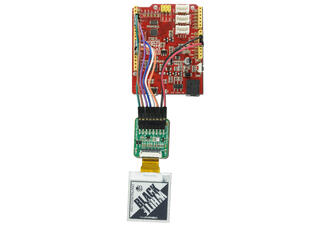

1.54 inch Arduino ePaper Development Kit
Part Number: CFAP152152C0-E2-2

Details

Quantity	1
Unit Price	$51.44

Quantity:

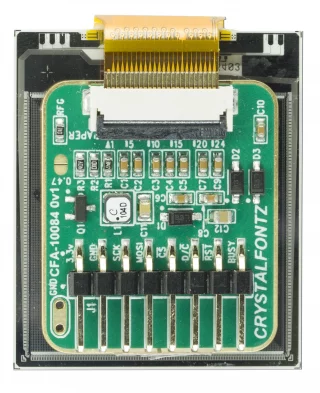

1.54" ePaper Display with Adapter Board
