152x152 ePaper with Adapter Board

152x152 3-color ePaper display with our CFA10084 ePaper adapter board.

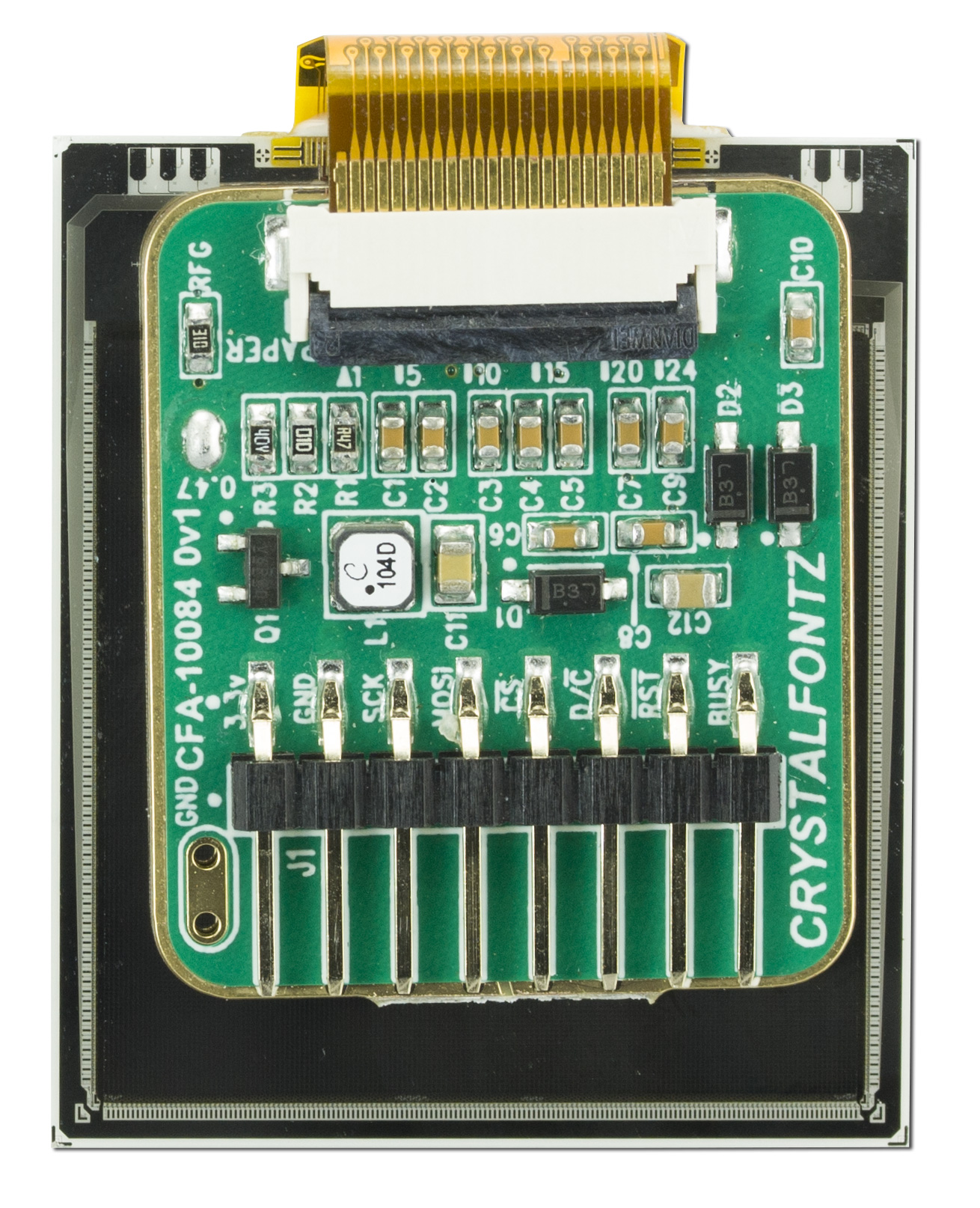

The adapter board is designed to attach to the back of the ePaper display.

Physical Characteristics
Physical Characteristics

Diagonal Dimension 1.53"

Weight 4.8g
Electrical Specification
Electrical Specifications

Module Connector Pitch 2.54mm
Files and Downloads

picture_as_pdf Hardware Design - CFA10084 Schematic

Products Affected:	CFAP128296D0-0290, CFAP176264A0-0270, CFAP104212C0-0213, CFAP152152A0-0154, CFAP176264A0-E2-1, CFAP176264A0-E2-2, CFAP152152A0-E2-1, CFAP152152A0-E2-2, CFAP400300A0-0420, CFAP400300A0-E2-1, CFAP400300A0-E2-2, CFAP128296D0-E2-1, CFAP128296D0-E2-2
Date Issued:	April 28, 2021
Summary:	Red ePaper End-of-Life notice.
Description:	These products will no longer be stocked at our facility or offered for sale on our website.
Reason:	Due to quality issues with the red ink during storage, we have determined that we will no longer offer this line of products to our customers.
