2.13 Inch 3-color ePaper display

Part Number: CFAP104212E0-0213

ePaper displays are the perfect solution for low power environments where saving energy is key. This 3-color ePaper is perfect for electronic shelf labels, battery-operated devices that require minimal display refreshing or semi-static signage. Whatever you decide to use them for Crystalfontz is here to support you.

This ePaper module has 104x212 pixel resolution packed in a 2.13 inch diagonal screen. 3-colors gives you the ability to make certain elements stand out in yellow, white or black. To extend the life of your ePaper display its recommended you limit refreshing the display to one refresh every few minutes. So if you want to play video, this isn't going to work for you and instead we'd recommend a TFT or OLED display module.

Use our free ePaper software to prepare your bitmap image for this display.

* This ePaper DOES NOT supports partial refresh

Adapter / Breakout Board
Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  104 x 212

  Module Overall	width	height	depth
  millimeters	29.2	59.2	0.98
  inches	1.15	2.33	0.04
  *width / height does not include Foldable Tab

  Diagonal Dimension

  2.13"

  Active Area	Width	Height
  millimeters	23.71	48.55
  inches	0.93	1.91

  Dot Pitch	Width	Height
  millimeters	0.228	0.229
  inches	0.0090	0.0090

  Optional Connectors

  CS050Z24GA0

  Flexible Cable (FFC/FPC)	length
  millimeters	14.3
  inches	0.563

  Weight	3g

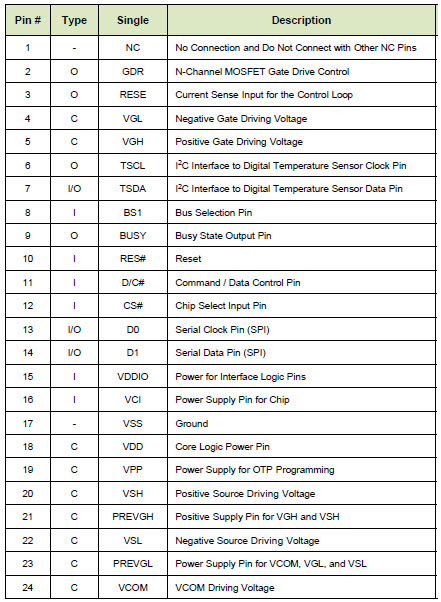

  Pin Count	24

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	ePaper
  View Angle	Ultra-Wide°

  Foreground Color	Black / Gold
  Background Color	White

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	2.3V
  Supply Voltage for Logic Maximum	3.6V

  Supply Voltage for Logic Typical	3.3V
  Module Connector Pitch	0.5mm

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	0°	40°
  Fahrenheit	32°	104°

  Storage Temperatures	min	max
  Celsius	-25°	60°
  Fahrenheit	-13°	140°

  Humidity	min	max
  Non-condensing	40%	70%

• cable Electronics

  Electronics

  Interface

  SPI
