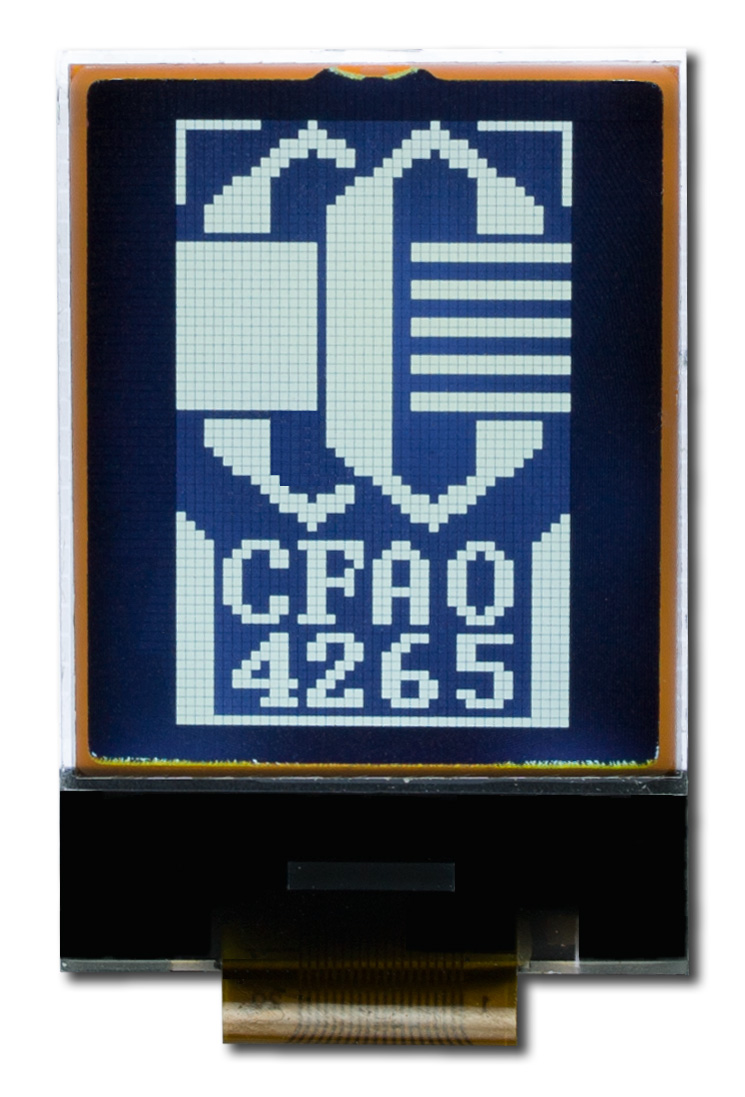

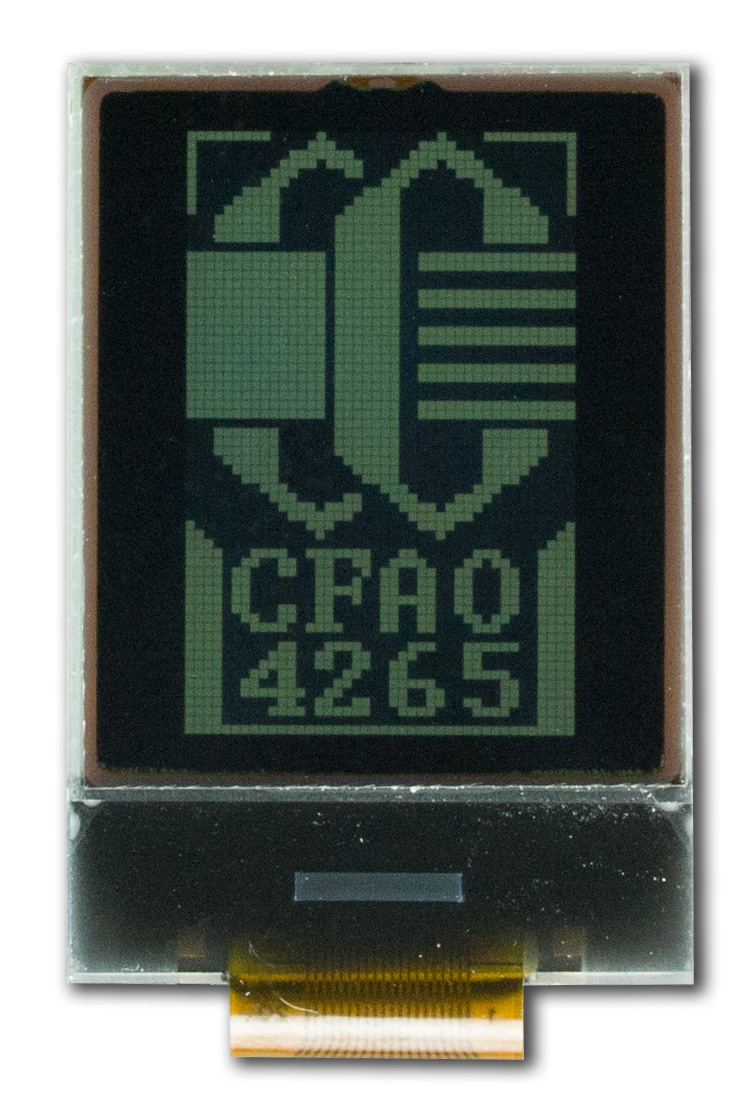

42x65 White on Dark Graphic LCDPart Number: CFAO4265A-TTL42x65 Graphic LCD – White On DarkWe designed this 42 x 65 graphic LCD display module so it fits on the face of 1-inch wide devices such as blade servers, disk drive carriers, and expansion cards. The 0.88-inch (22.40 mm) width leaves room for the metalwork and mechanical clearance. This economical COG (Chip-On-Glass) FSTN transmissive display is suitable for typical office lighting and is easy to see in dimly lit areas.
Key Features42 pixels by 65 pixels.
12 o'clock viewing direction can be used in portrait or landscape mode.
SPI interface (4-wire Serial Peripheral Interface).
Sitronix ST7565R or compatible controller.

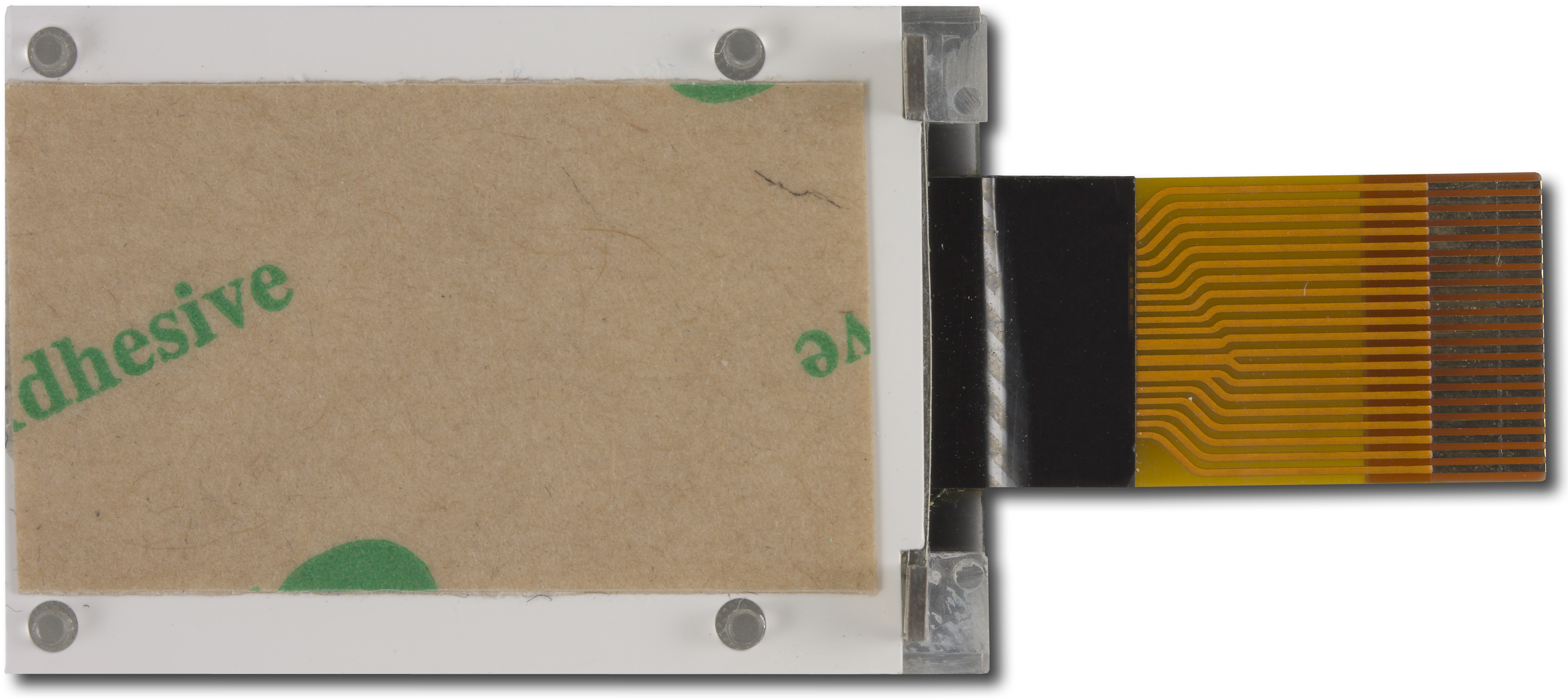

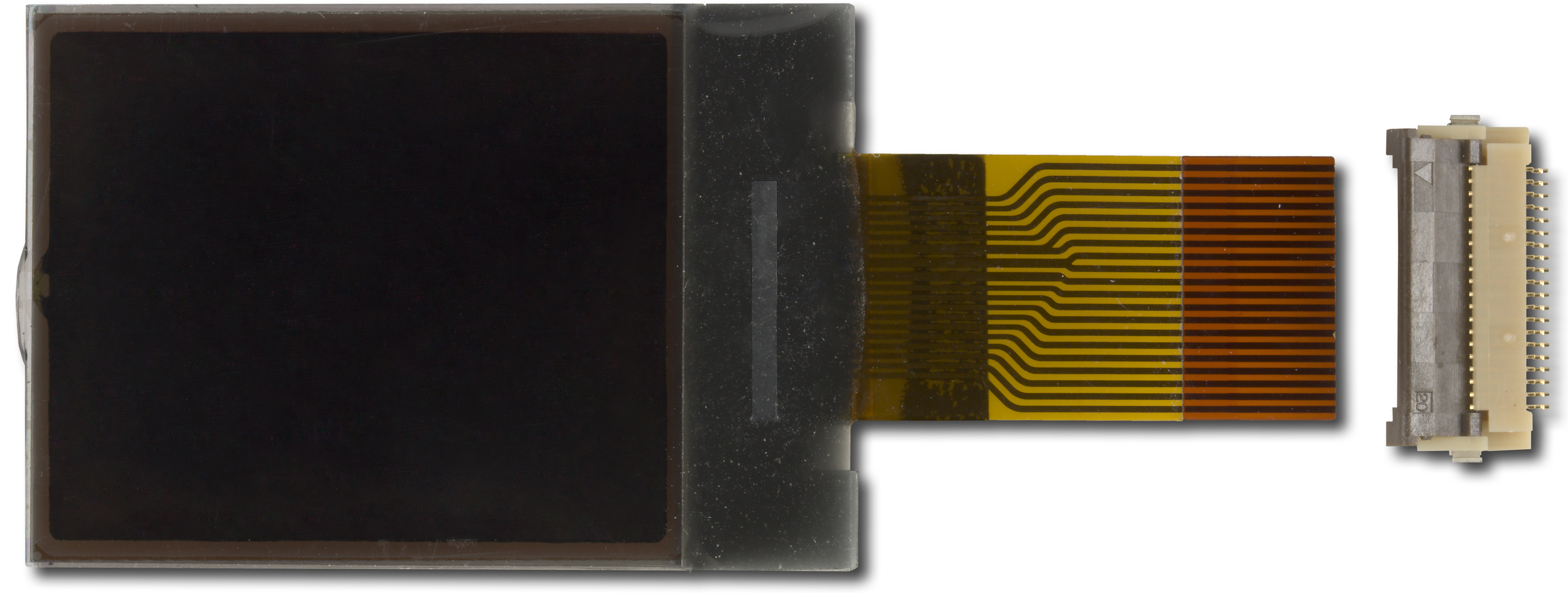

The FFC/FPC flexible tail is easy to connect with any standard  20 pin 0.5mm pitch ZIF connector.
Show off your creativity by tiling multiple displays on 1-inch centers.
An additional color choice in the CFAO4265A0 series is the CFAG4265A0-TFK, which has dark/ pixels on a light gray background

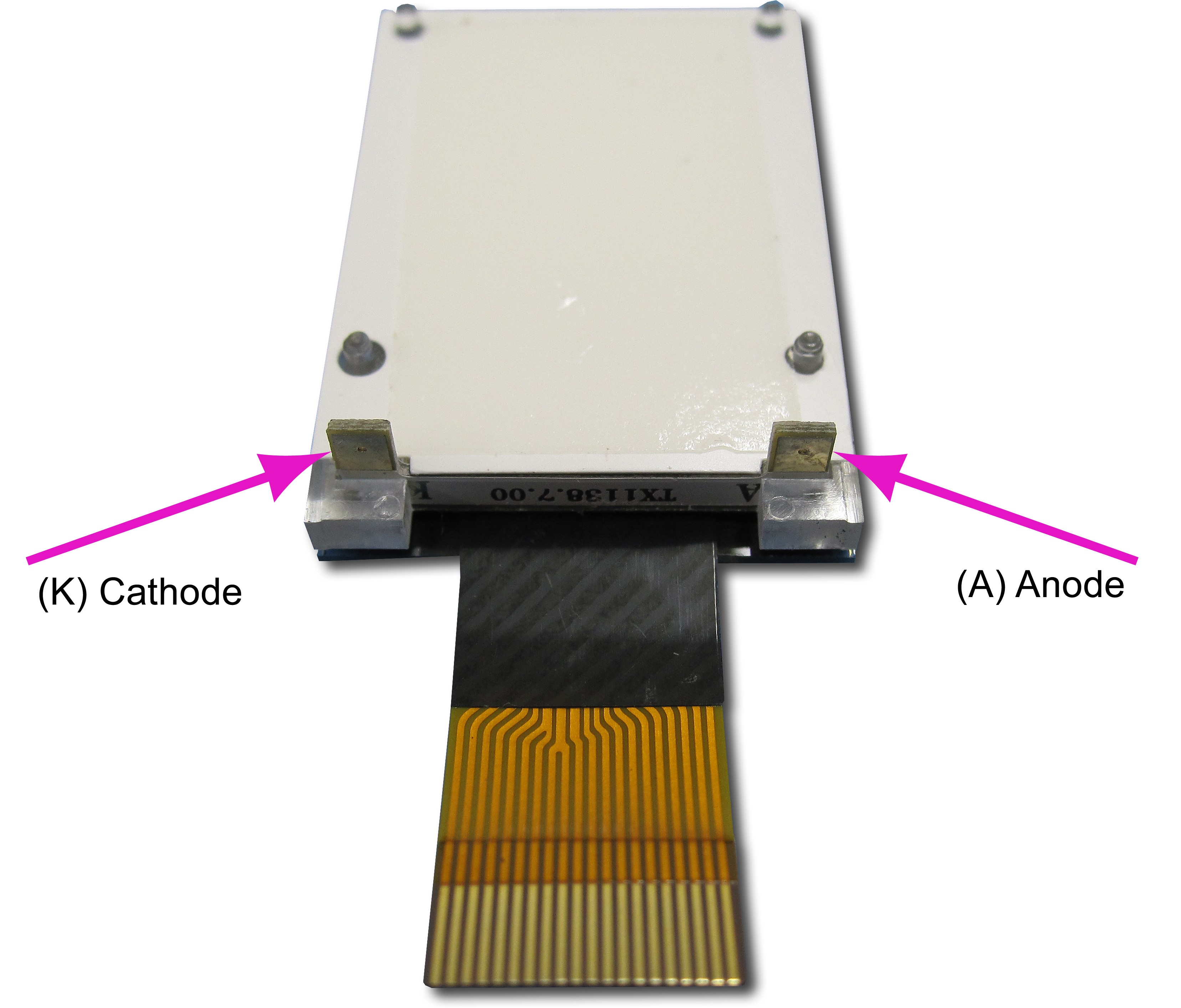

This display uses three long-life white LEDs for its backlight. The forward voltage is 9.6v to 10.8v. For long life, we recommend driving the backlight at 12mA. The best way to drive the backlight is to use a constant current supply. Typically a switching supply designed to control current works well. For details, see the circuit example using LED driver NCP5007 on page 23 of the CFAO4265A_Series_Data_Sheet_Release_2015-07-07.pdf ,

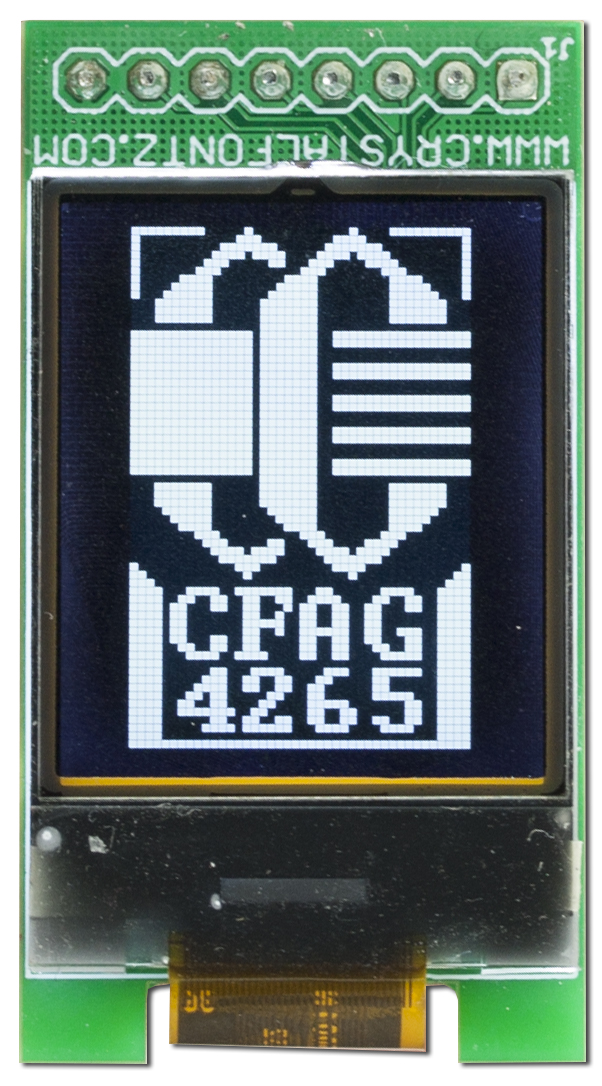

Streamline Development With Carrier Board To make prototyping or small production with this display quick and easy, we offer the CFAO4265A-TTL mounted on a carrier board. The carrier board has the current-controlled, switching LED driver, including SPI control of the LED brightness. All external components for panel voltage generation are included.

CFAO4265A-TTL-CB Need more advice to integrate a display into your design? Customers around the world know they can rely on our free technical support to be responsive and knowledgeable.
Product VariationsColorsDark on White
White LED BacklightWhite on Dark
White LED Backlight

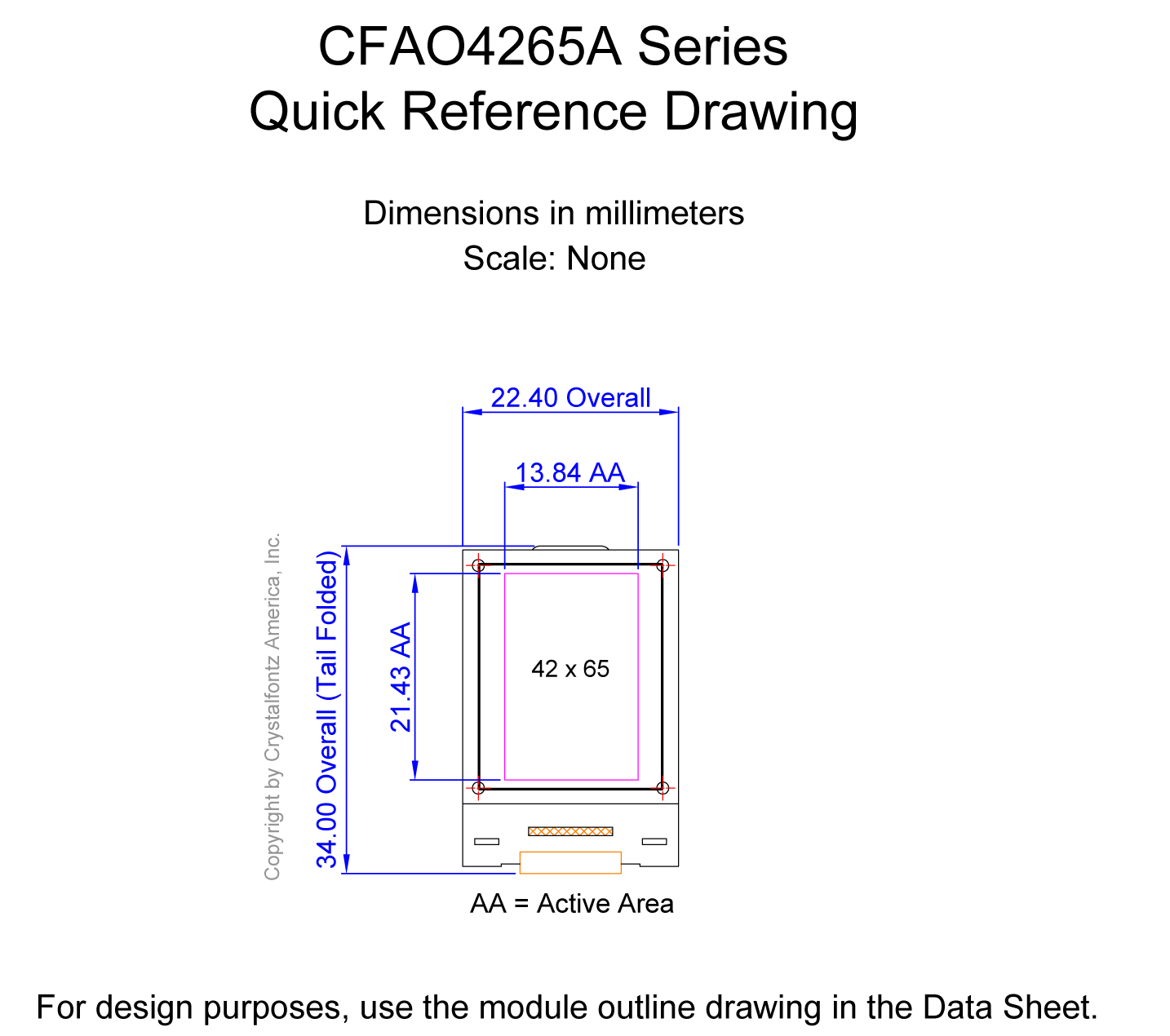

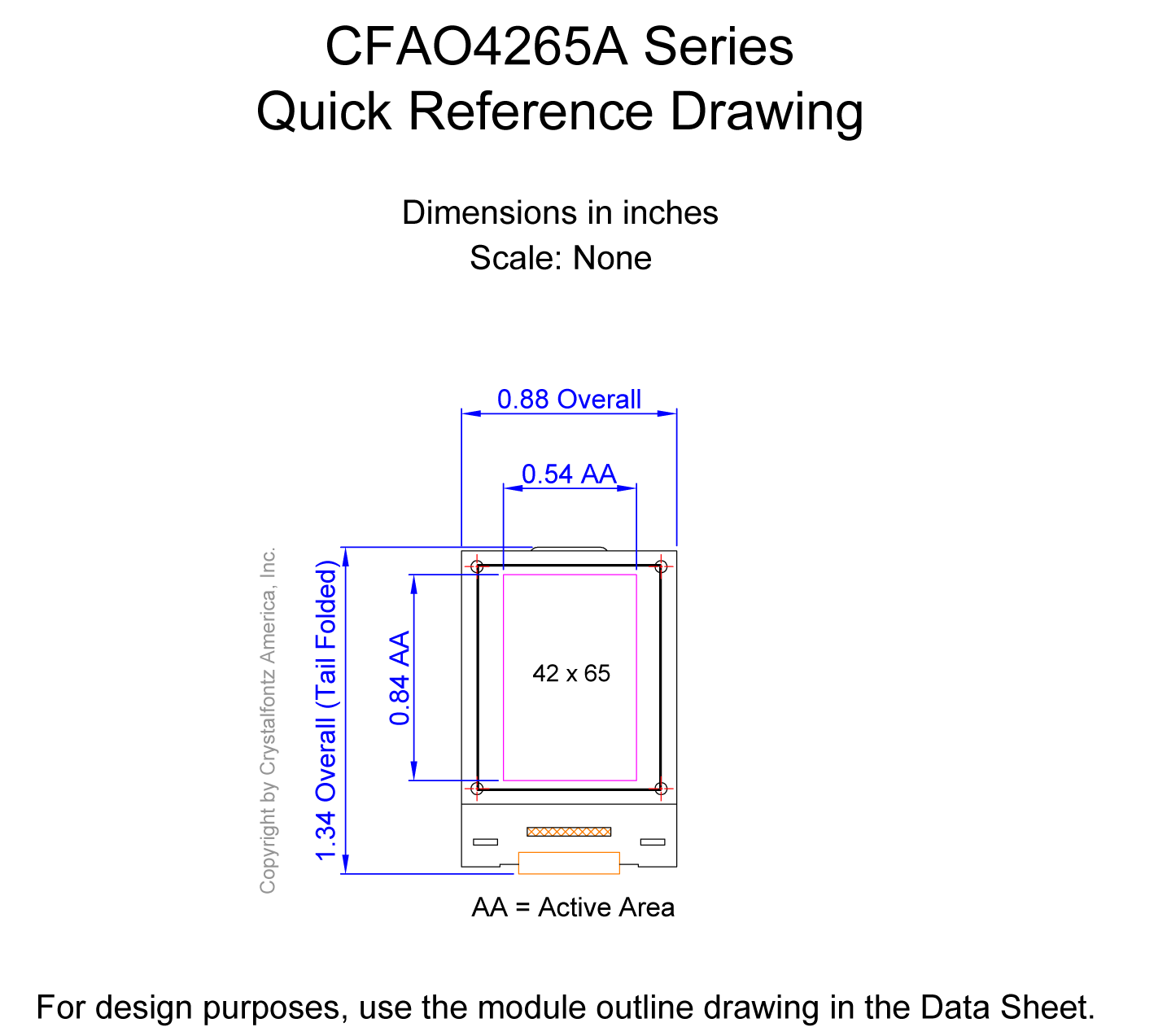

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            42 x 65

    Module Overall        width
        height
        depth

        millimeters
        22.4
        32.85
        4.8

        inches
        0.88
        1.29
        0.19

*width / height does not include Foldable Tab

        Diagonal Dimension
            1."

    Viewing Area        Width
        Height

        millimeters
        19
        23.35

        inches
        0.75
        0.92

    Active Area        Width
        Height

        millimeters
        13.84
        21.43

        inches
        0.55
        0.84

    Dot Size        Width
        Height

        millimeters
        0.31
        0.31

        inches
        0.012
        0.012

    Dot Pitch        Width
        Height

        millimeters
        0.33
        0.33

        inches
        0.013
        0.013

        Optional Connectors
            CS050Z20GA0

        Weight
            6g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FFSTN/Black
Polarizer
            Transmissive
View Direction
            12 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Maximum
            3.2V
Supply Voltage for Logic Typical
            3V

        Supply Current Maximum
            0.7mA
Supply Current Typical
            0.8mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Maximum
            10.8V
Forward Voltage Typical
            9V

        Forward Current Typical
            16mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7565R
ST7565R

65 x 132 Dot Matrix LCD Controller/Driver
Interface
            SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAO4265A Series Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAO4265A Series Data Sheet Release 2015-05-29.pdf

picture_as_pdfCFAO4265A-TTL Data Sheet Release 2013-02-26.pdf

picture_as_pdfCFAO4265A-TTL Data Sheet v1.0 2011-10-21.pdf
(Datasheet V 1.0, Hardware A)
 download Files and Downloads
folder_zip CAD Export - CFAO4265A Series 2D CAD
picture_as_pdf 1 to 1 Template - CFAO4265A Series 1 to 1 Module Outline
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $6.82

            5
            $5.69

            10
            $5.54

            20
            $5.35

            50
            $5.16

            100
            $5.09

            200
            $5.05

            300
            $5.01

            500
            $4.98

            1000 *
            $4.95

711 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						20 position, 0.50mm pitch, Gold, FCC FPC ZIF connector
Add 5 ZIF Connectors $0.89 ea.

						42 x 65 Graphic LCD with Carrier Board
Purchase mounted on a breakout board. $53.68 ea.

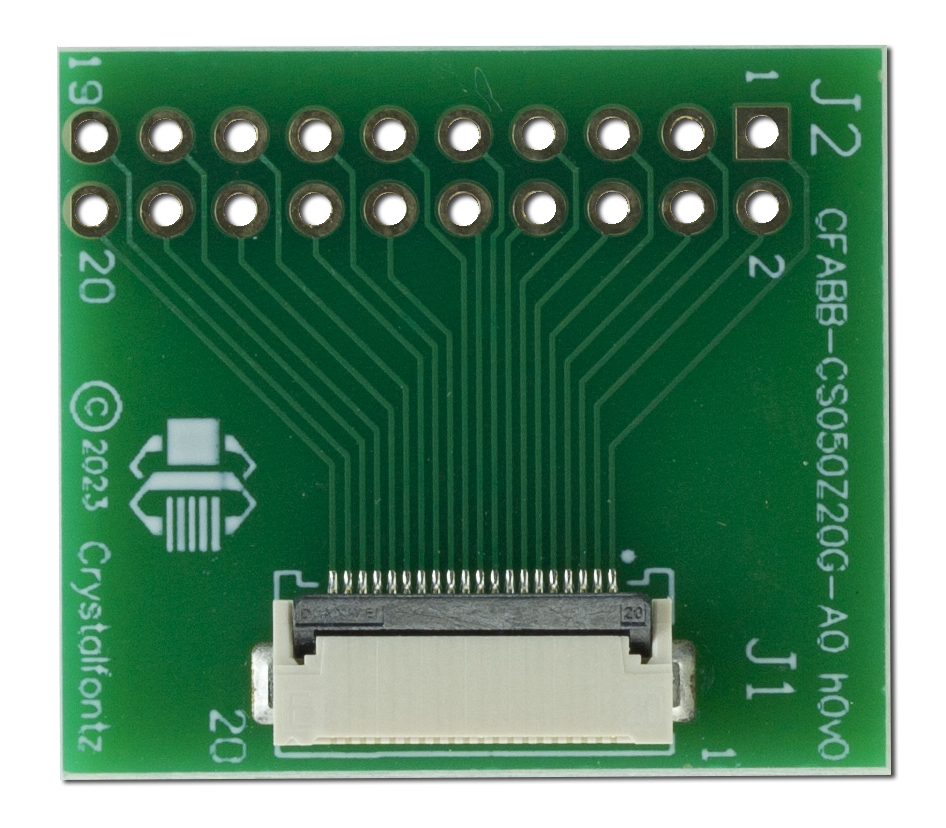

						20-Position ZIF Breakout Board
Add a 20-pin ZIF Breakout Board? $6.15 ea.

Colors	Dark on White White LED Backlight White on Dark White LED Backlight

Module Overall	width	height	depth
millimeters	22.4	32.85	4.8
inches	0.88	1.29	0.19
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	19	23.35
inches	0.75	0.92

Active Area	Width	Height
millimeters	13.84	21.43
inches	0.55	0.84

Dot Size	Width	Height
millimeters	0.31	0.31
inches	0.012	0.012

Dot Pitch	Width	Height
millimeters	0.33	0.33
inches	0.013	0.013

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$6.82
5	$5.69
10	$5.54
20	$5.35
50	$5.16
100	$5.09
200	$5.05
300	$5.01
500	$4.98
1000 *	$4.95

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10909: End-of-Life Notification

Products Affected:	CFAO4265A-TFK, CFAO4265A-TTL, CFAO4265A-TTL-CB
Date Issued:	December 12, 2017
Summary:	End-of-Life Notification
Description:	The parts listed have been assigned to End of Life Status.
Reason:	Critical components have been discontinued by the manufacturer.
Impact:	These parts are not recommended for new designs.
Recommendation:	The CFAO4265A-TFK has been replaced by a new design that will function as a "drop-in" replacement. The new part number is CFAG4265A0-TFK and can be found here: https://www.crystalfontz.com/product/cfag4265a0tfk-42x65-graphic-one-inch-lcd A new series of development kits are also available: Part #: CFAG4265A0-TFK-E1-1 This is a CFAG4265A0-TFK mounted to a CFA10004 carrier board. Part #: CFAG4265A0-TFK-E1-2 This is a CFAG4265A0-TFK mounted to a CFA10004 carrier board with a Seeeduino 4.2 The CFAO4265A-TTL and CFAO4265A-TTL-CB do not have replacements.
Availability:	The new parts are available now. The CFAO4265A-TTL and CFAO4265A-TTL-CB will be available until current stocks are depleted.
Price Change:	Current prices are shown on our website.

Part Change Notice #10648: Controller change from ST7565P to ST7565R

Products Affected:	CFAO4265A-TFK, CFAO4265A-TTL, CFAO4265A-TFK-CB, CFAO4265A-TTL-CB
Date Issued:	March 25, 2015
Summary:	Controller change from ST7565P to ST7565R
Description:	As part of our continuous improvement, the controller on the CFAO4265A display modules is changing from the Sitronix ST7565P to the ST7565R. ECO-49. Sitronix ST7565P controller datasheet: https://www.crystalfontz.com/controllers/Sitronix/ST7565P/299 Sitronix ST7565R controller datasheet: https://www.crystalfontz.com/controllers/Sitronix/ST7565R/300
Reason:	Improved manufacturability, component availability, and lower cost.
Impact:	This change effects all CFAO4265A parts. Testing has shown functional compatibility between the ST7565P and ST7565R. There are no physical changes to the display.
Recommendation:	It is recommended to obtain test units prior to implementing new parts in production volumes.
Availability:	Inventory with ST765R controller will be available late Q2 / Early Q3 2015.
Price Change:	Lower manufacturing costs are reflected in lower product pricing.

Product Update #10367: New Product in Standard Graphic Modules: CFAO4265A-TTL

New Product:	CFAO4265A-TTL
Date Issued:	October 18, 2011
Summary:	New Product in Standard Graphic Modules: CFAO4265A-TTL
Description:	42x65 Graphic LCD, RoHS, FSTN Negative, Transmissive, -20°C to +70°C, 12:00 viewing angle.
