10.1" HDMI Resistive Touch TFT LCDPart Number: CFAM1280800B0-101R

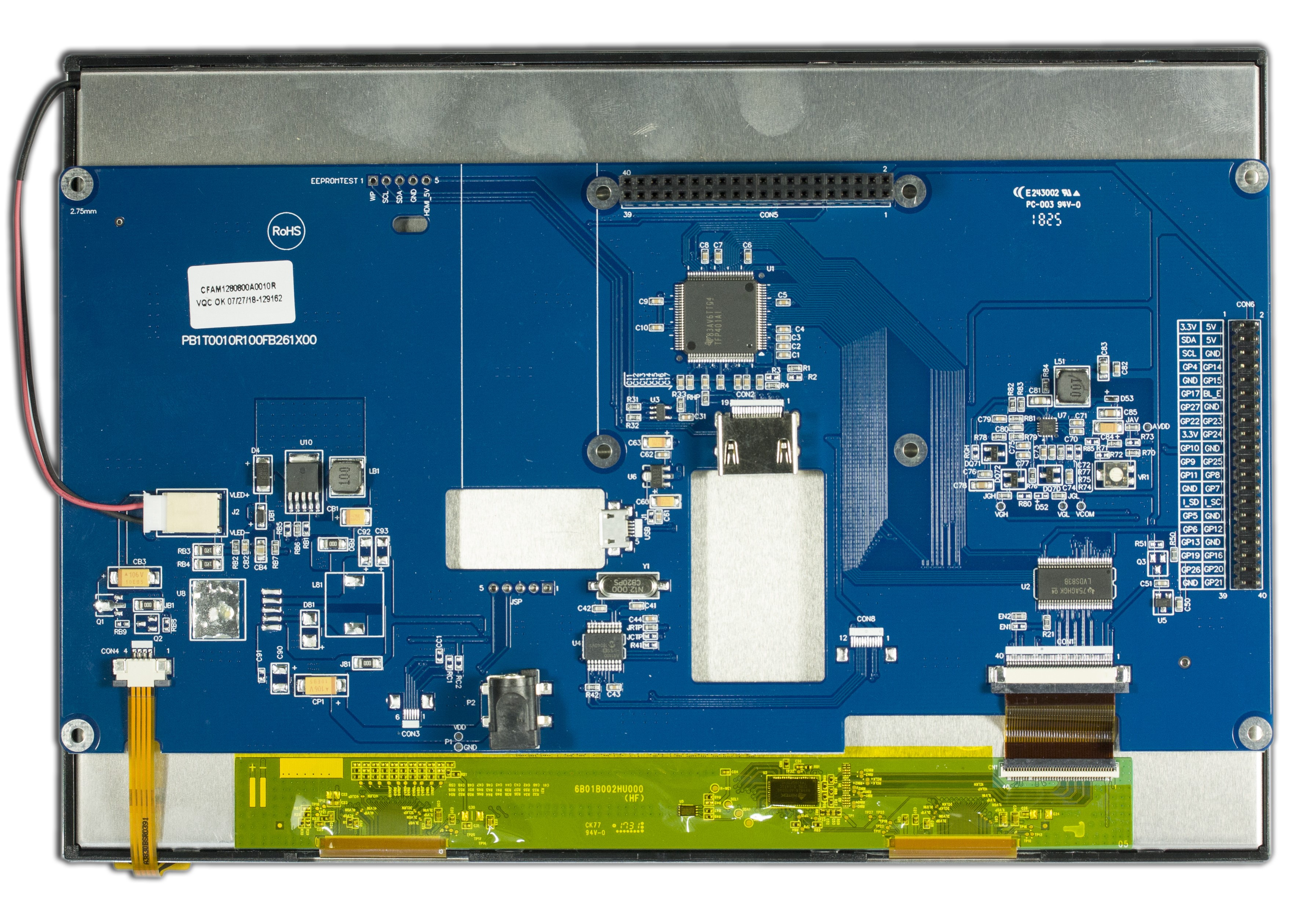

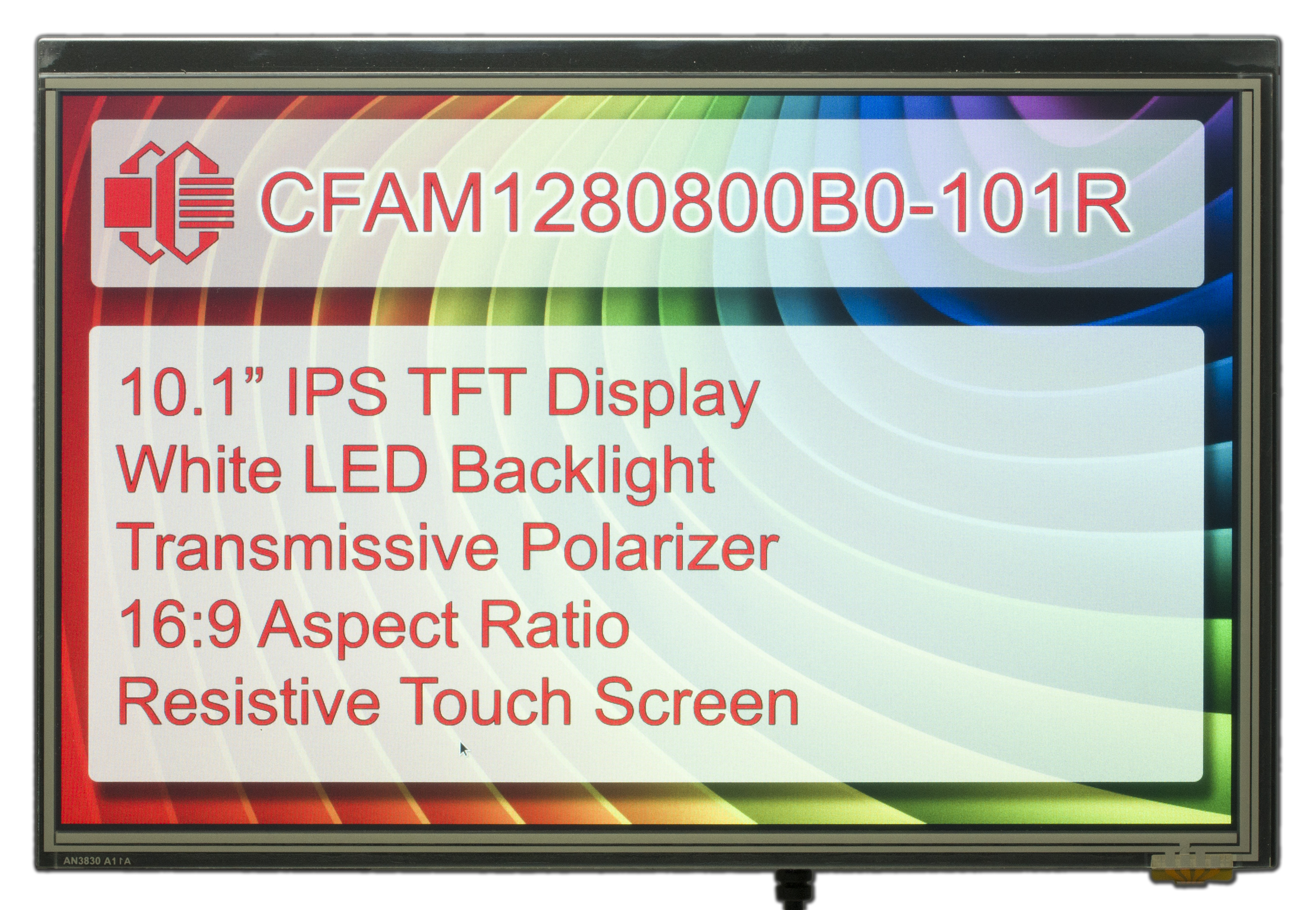

    This super-bright, high-density, IPS, 10.1-inch display is specially designed for integrating with a Raspberry Pi. This model comes with a resistive touch-screen.

Using it's HDMI port you can literally plug it into your computer and use it as a monitor or you can drive it using any HDMI compatible device like a Raspberry Pi.

If you decide to integrate with your Raspberry Pi, this displays power requirements are a bit high for the Raspberry Pi when using the Pi's power source to supply the LCD display, so we've used this additional power supply for powering the backlight when controlling it via a Raspberry Pi.

Use our Short USB for RPi and our HDMI to HDMI Converter for connecting to your Raspberry Pi controller.

This device's touch-screen drivers are not supported by the Android OS

Product VariationsTouchscreenNoneCapacitiveResistive

 square_foot Physical Characteristics

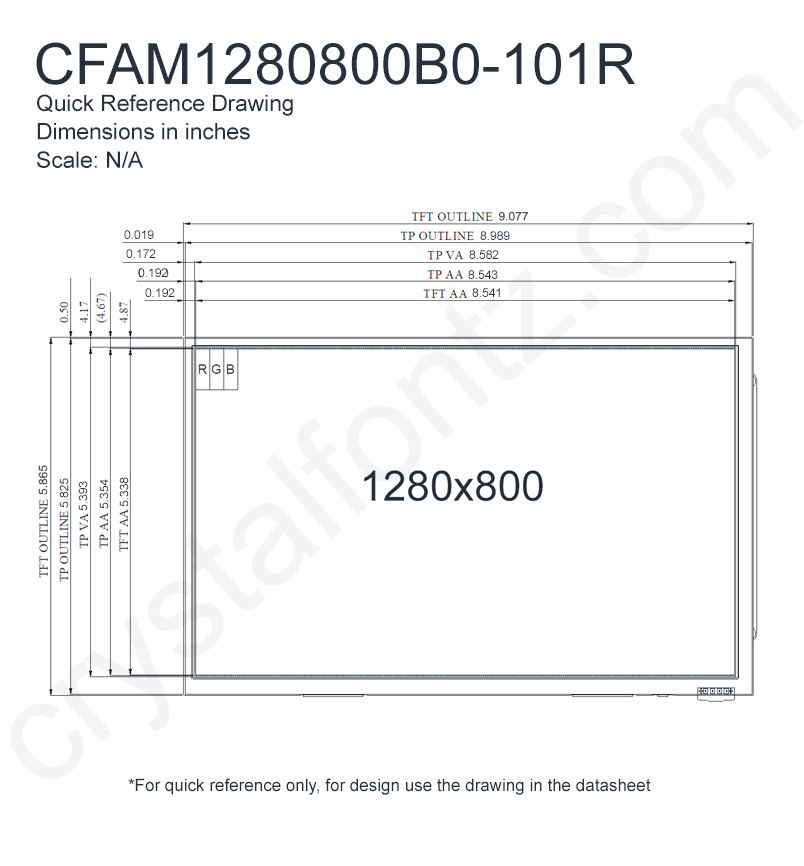

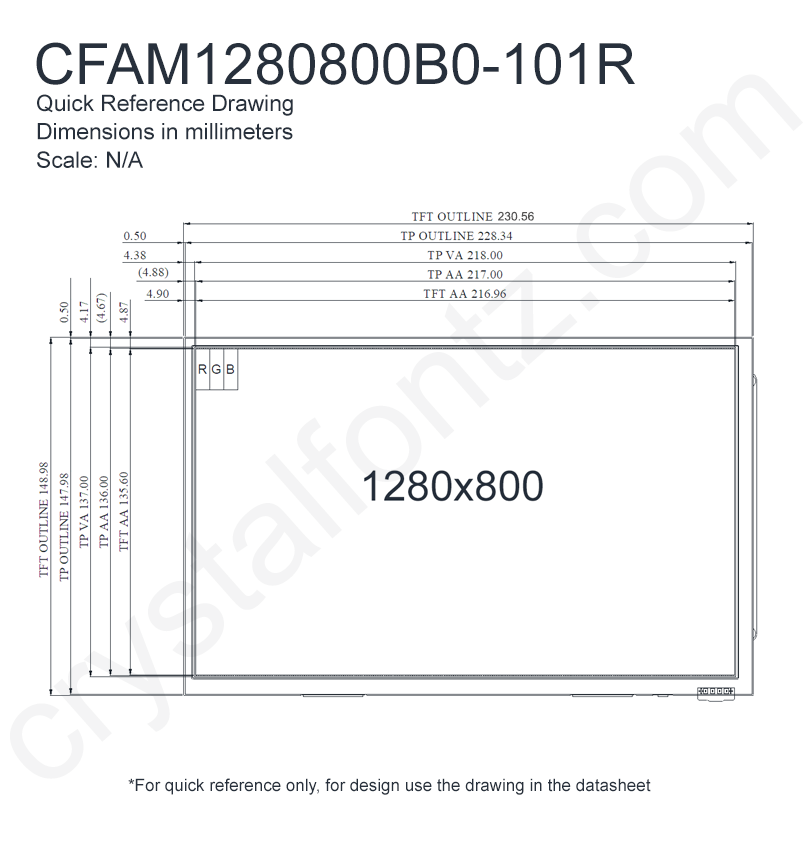

Physical Characteristics

        Column Dots x Row Dots
            1280 x 800

    Module Overall        width
        height
        depth

        millimeters
        230.56
        155.01
        28.4

        inches
        9.08
        6.10
        1.12

        Diagonal Dimension
            10.07"

    Viewing Area        Width
        Height

        millimeters
        218
        137

        inches
        8.58
        5.39

    Active Area        Width
        Height

        millimeters
        216.96
        135.6

        inches
        8.54
        5.34

    Dot Pitch        Width
        Height

        millimeters
        0.1695
        0.1695

        inches
        0.0067
        0.0067

        Weight
            535g

 visibility Optical Characteristics
Optical Characteristics

        Polarizer
            Transmissive
View Angle
            85°

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.9V
Supply Voltage for Logic Maximum
            5.1V
Supply Voltage for Logic Typical
            5V

        Supply Current Maximum
            2700mA
Supply Current Typical
            1900mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

 cable Electronics
Electronics

        Interface
            HDMI

 picture_as_pdf Datasheets
picture_as_pdfCFAM1280800B0-101R Datasheet

 download Files and Downloads
folder_zip CAD Export - 3D Step File
picture_as_pdf Other Document - CFAM rPi Compatibility Modification
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $195.12

10 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						HDMI to HDMI Converter
Connect to your RPI $6.20 ea.

						Short USB for RPi
Connect your RPI Touchscreen $6.27 ea.

Module Overall	width	height	depth
millimeters	230.56	155.01	28.4
inches	9.08	6.10	1.12

Viewing Area	Width	Height
millimeters	218	137
inches	8.58	5.39

Active Area	Width	Height
millimeters	216.96	135.6
inches	8.54	5.34

Dot Pitch	Width	Height
millimeters	0.1695	0.1695
inches	0.0067	0.0067

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Quantity	Unit Price
1	$195.12

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11125: End-Of-Life

Product Affected:	CFAM1280800B0-101R
Date Issued:	May 24, 2022
Summary:	End-Of-Life
Description:	The CFAM1280800B0-101R will be replaced by the CFAM1280800A1-101TR instead of CFAM1280800B1-101TR. This notice supersedes PCN11093.
Reason:	The CFAM1280800A1-101TR is in the same series as the other 10.1" HDMI displays that we offer and is a better replacement option.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11093: End-Of-Life Notification

Products Affected:	CFAM1280800A0-101C, CFAM1280800A0-101N, CFAM1280800B0-101R
Date Issued:	July 27, 2021
Summary:	End-Of-Life Notification
Description:	The 10.1" family of HDMI displays are going EOL and will be replaced by a new version. The parts will be replaced by the following part numbers. CFAM1280800A0-101C -> CFAM1280800A1-101TC CFAM1280800A0-101N -> CFAM1280800A1-101TN CFAM1280800B0-101R -> CFAM1280800B1-101TR The new parts will also be compatible with 3B+ and newer versions of the Raspberry Pi.
Reason:	The TFT panel used on these products is going EOL and will be replaced by a new TFT panel.
