48x64 Graphic OLED Develpment Kit

Part Number: CFAL4864A-071BW-E1-2

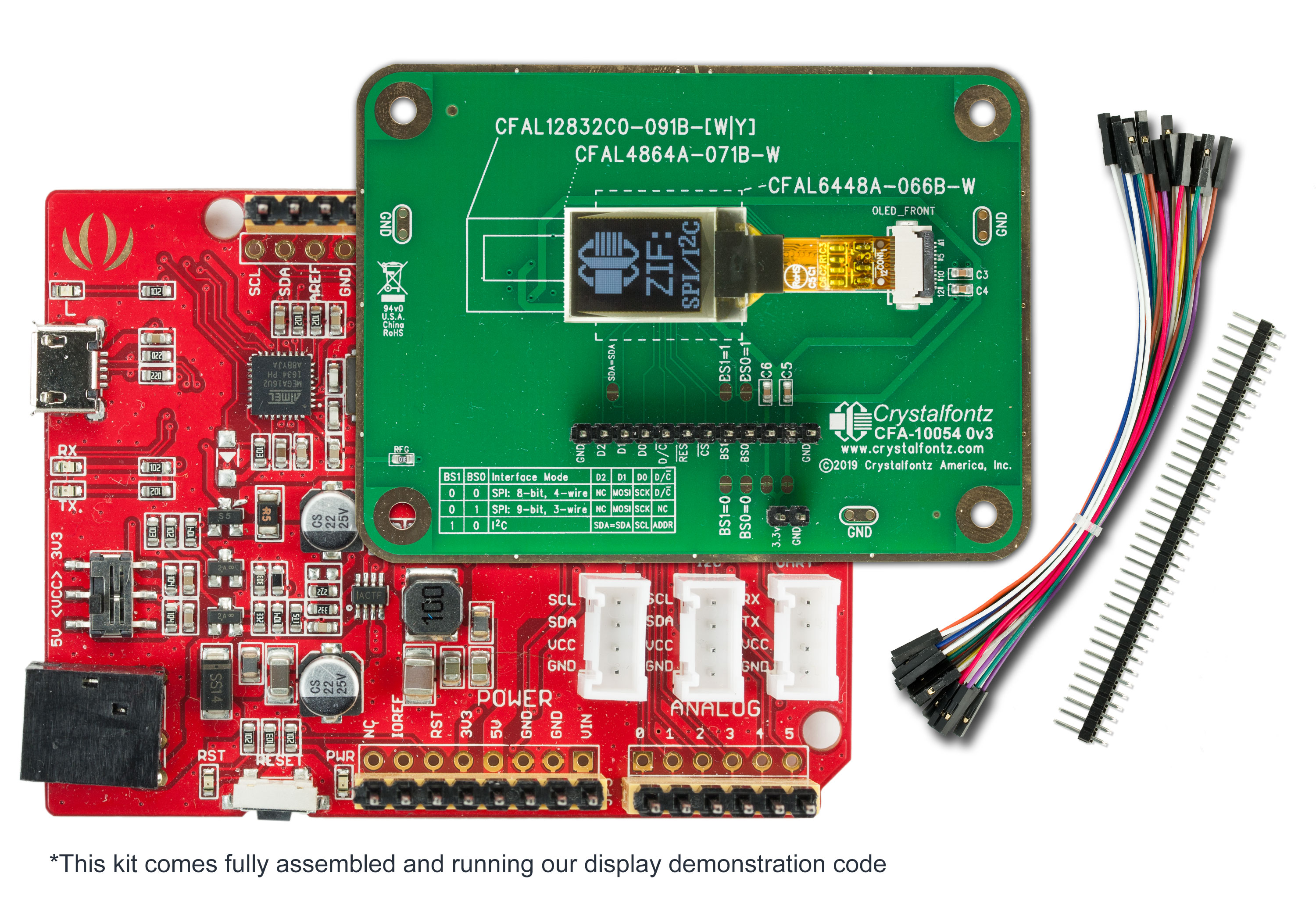

The development kit is perfect for getting started with the white SPI/I2C OLED display. The kit includes the display connected the CFA10054 breakout board, all wired up to a Seeeduino running demo code. Just supply power via a USB cable to see the display in action.

This kit contains:

White OLED display (CFAL4864A-071BW)
OLED breakout board (CFA10054)
Seeeduino
Jumper wires (as needed)
Headers (as needed)
Demo Code pre loaded

OLED Breakout Board Features

PCB jumpers allow quick configuration for 3-wire SPI, 4-wire SPI, or I2C interface
Two 12 pin 0.10" ZIF connectors enable mounting a display on the front or back.
Four 3.2mm diameter mounting holes
Headers for easy connection

OLED Display Features:

Small form factor (0.71" diagonal)
Solomon Systech SSD1306 or compatible controller
Only 3.3v
Easy ZIF tail

Product Variants

Details

128x32 OLED Development Kit

Details

Yellow 128x32 Graphic OLED Dev Kit

Details

64x48 Graphic OLED Development Kit

Physical Characteristics
Physical Characteristics

Weight 52.3g
Datasheets

picture_as_pdf
CFA10054 Datasheet

picture_as_pdf
CFAL4864A-071BW Datasheet

48x64 Graphic OLED Develpment Kit (CFAL4864A-071BW-E1-2)

Quantity	Price
1	$34.36

* Pricing is subject to change. Contact us about potential lead times.

Components worth considering

10 Foot USB Cable
Need a long USB Cable? (10ft) $6.90 ea.

USB-A to Micro-B Cable
Need a USB Cable? $5.75 ea.
