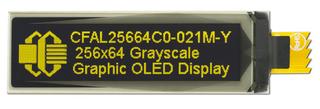

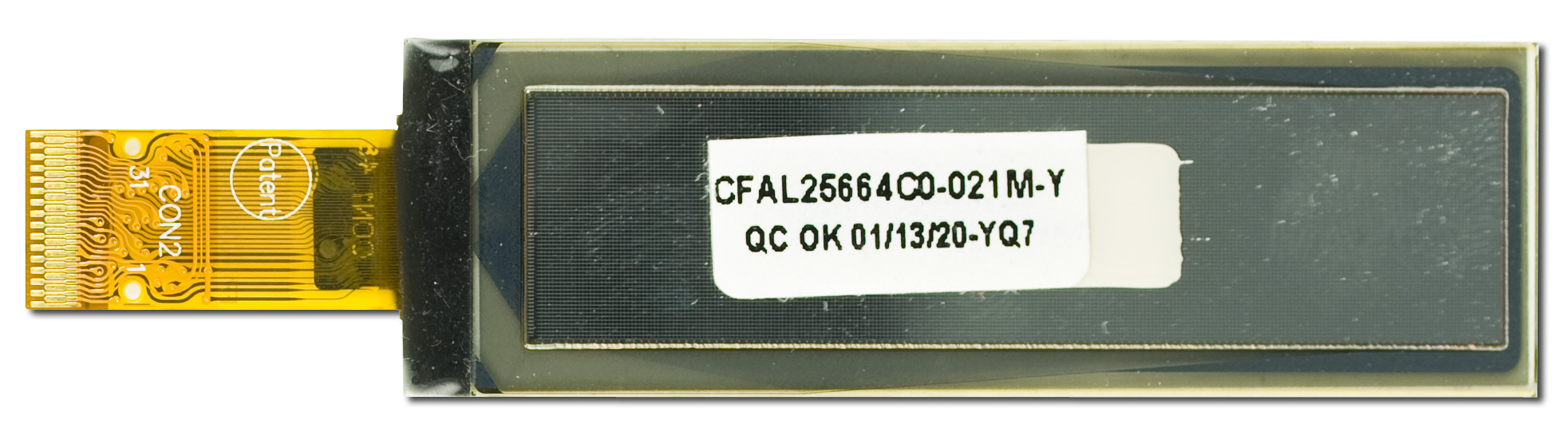

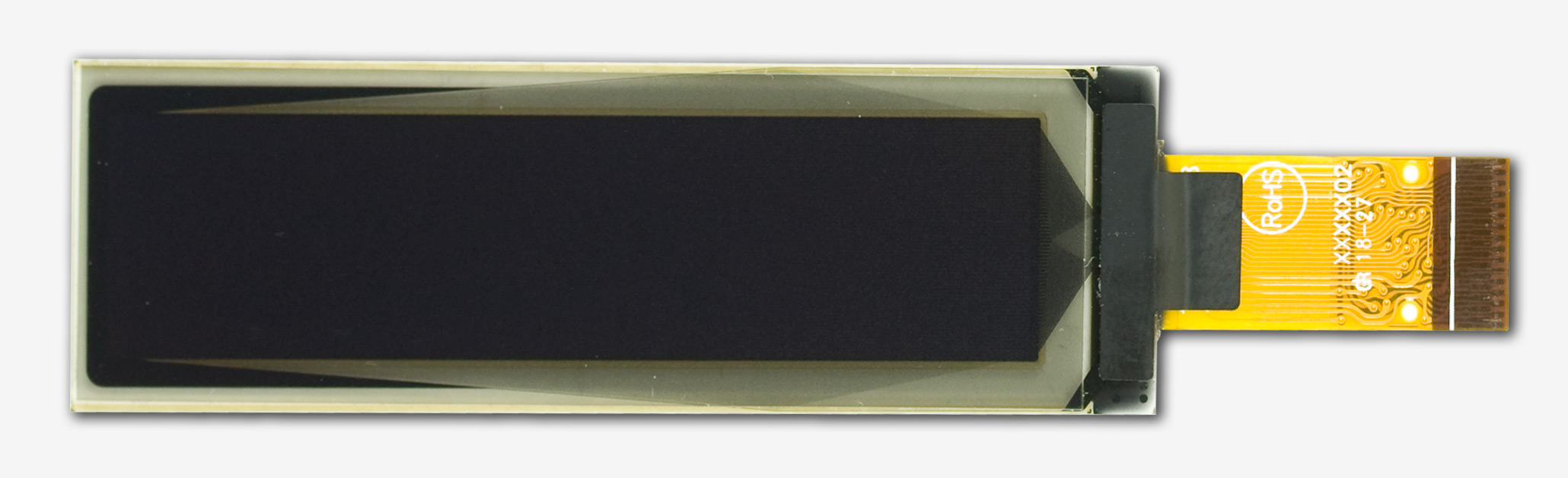

256x64 Yellow Monochrome OLEDPart Number: CFAL25664C0-021M-Y

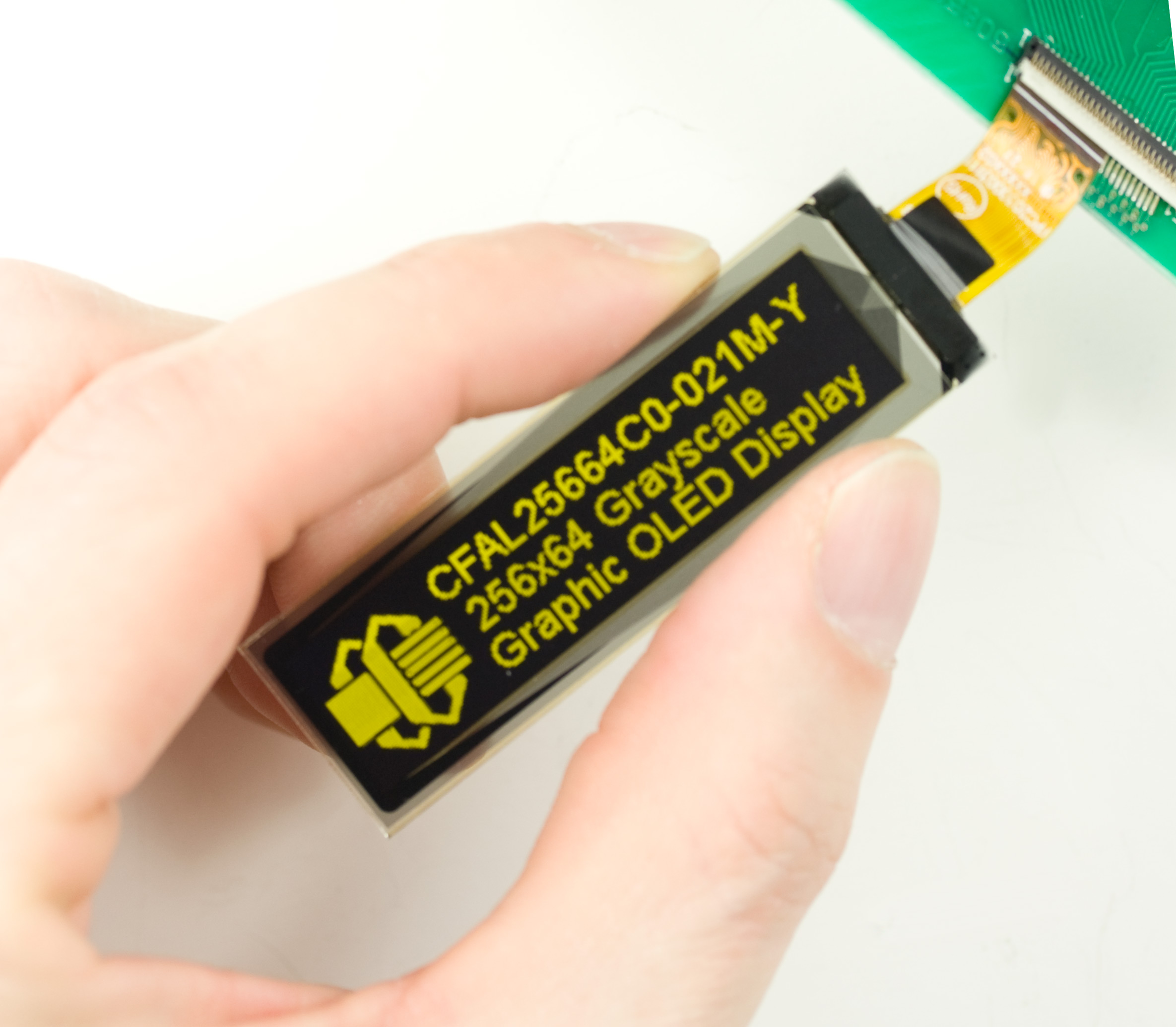

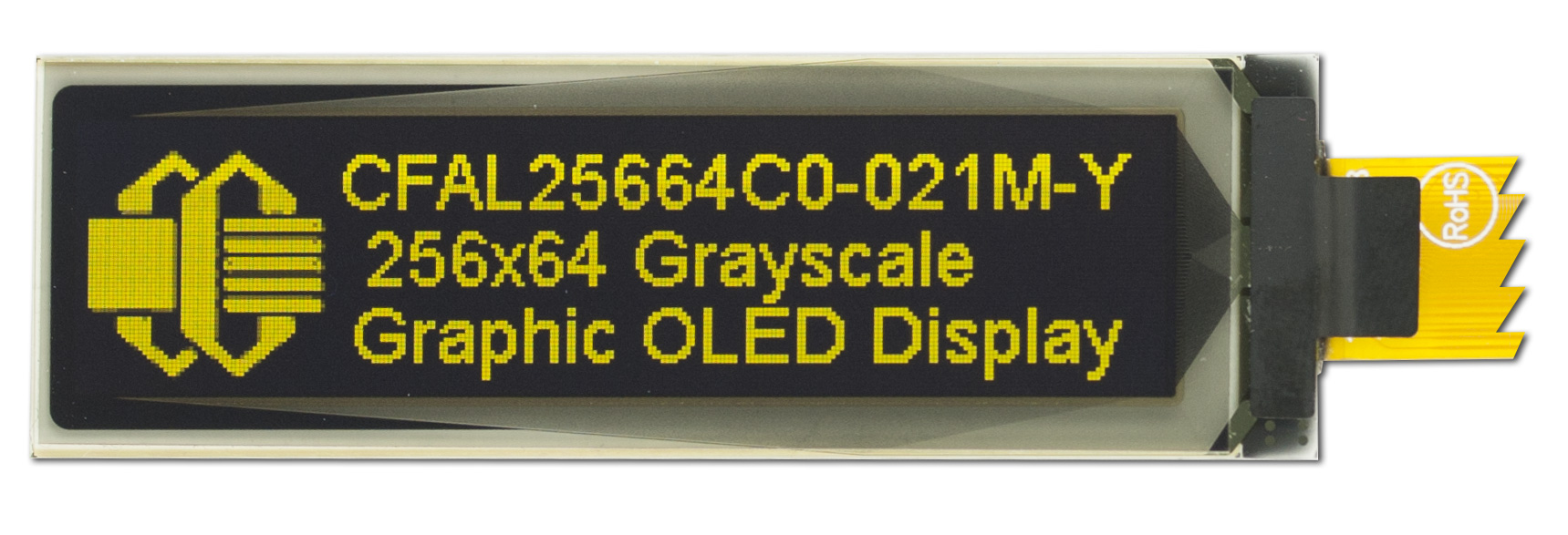

                        Pack a punch with this small OLED display. With 4-bit control over the color, there are 16 shades of yellow to work with. Plus, with 256x64 resolution in a compact 2.1" diagonal, this display can show a whole lot of detail.

This display is slim and lightweight. The tail uses a 0.3mm pitch ZIF connector so it's compact and easy to integrate into your design.

This display can communicate in 3- or 4- wire SPI, I2C, or 8-bit parallel using either 6800 or 8080.Product VariationsColorsYellow on Black
No BacklightWhite on Black
No Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            256 x 64

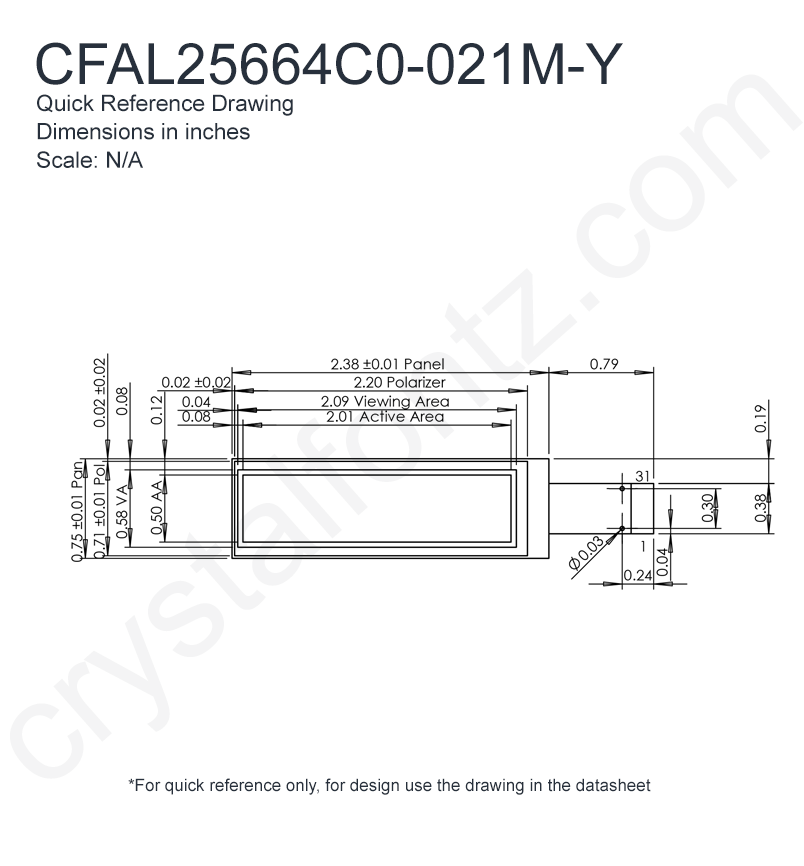

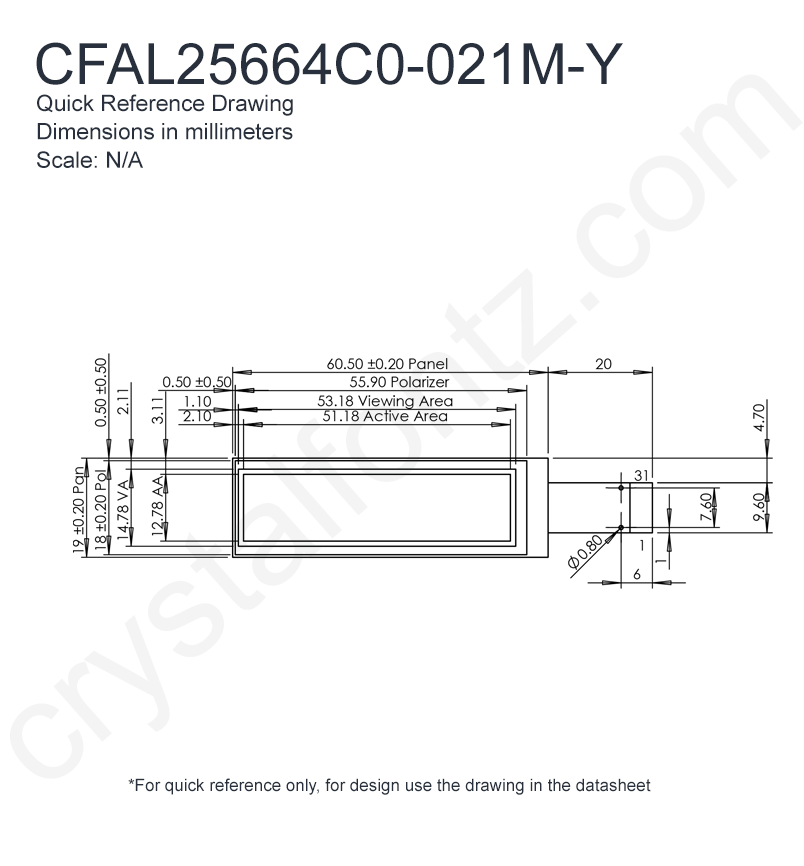

    Module Overall        width
        height
        depth

        millimeters
        80.5
        19
        1.61

        inches
        3.17
        0.75
        0.06

        Diagonal Dimension
            2.08"

    Active Area        Width
        Height

        millimeters
        51.18
        12.78

        inches
        2.02
        0.50

    Dot Size        Width
        Height

        millimeters
        0.18
        0.18

        inches
        0.007
        0.007

    Dot Pitch        Width
        Height

        millimeters
        0.2
        0.2

        inches
        0.008
        0.008

        Optional Connectors
            CS030Z31GA0

    Flexible Cable (FFC/FPC)        length

        millimeters
        20

        inches
        0.787

        Weight
            3.5g
Pin Count
            31

 visibility Optical Characteristics
Optical Characteristics

        View Angle
            160°

        Foreground Color
            Yellow
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.8V
Supply Voltage for Logic Maximum
            3.5V
Supply Voltage for Logic Typical
            3.3V
Supply Voltage for Driving Panel Typical
            12:00V

        Supply Current Minimum
            11.5mA
Supply Current Maximum
            15mA
Supply Current Typical
            12.5mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Storage Temperatures        min
        max

        Celsius
        -40°
        85°

        Fahrenheit
        -40°
        185°

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1362
256 x 64, 16 Gray Scale Dot Matrix High Power

OLED/PLED Segment/Common Driver with Controller
Interface
            8-bit Parallel, I2C, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAL25664C0021M Series Datasheet

download Files and Downloads
folder_zip Software Source - Arduino/Seeeduino Demo Code
folder_zip Hardware Design - 3D Drawings
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $16.41

            10
            $15.13

            20
            $14.63

            50
            $14.12

            100
            $13.33

            200 *
            $13.23

            300 *
            $12.55

            500 *
            $12.45

            1000 *
            $11.64

101 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering

						Multi-use ZIF Breakout Board
Faster development $22.34 ea.

						31 Position, 0.3mm Pitch, Gold, FCC FPC ZIF connector
Add 5 ZIF Connectors $1.14 ea.

						31-Position ZIF Breakout Board
Add a 31-pin ZIF Breakout Board? $6.38 ea.

Colors	Yellow on Black No Backlight White on Black No Backlight

Module Overall	width	height	depth
millimeters	80.5	19	1.61
inches	3.17	0.75	0.06

Active Area	Width	Height
millimeters	51.18	12.78
inches	2.02	0.50

Dot Size	Width	Height
millimeters	0.18	0.18
inches	0.007	0.007

Dot Pitch	Width	Height
millimeters	0.2	0.2
inches	0.008	0.008

Flexible Cable (FFC/FPC)	length
millimeters	20
inches	0.787

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	85°
Fahrenheit	-40°	185°

Quantity	Unit Price
1	$16.41
10	$15.13
20	$14.63
50	$14.12
100	$13.33
200 *	$13.23
300 *	$12.55
500 *	$12.45
1000 *	$11.64

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAL25664C0-021M-Y
