160x128 1 Parallel Graphic OLEDPart Number: CFAL160128B-F-B2This is a 1.77" diagonal 160x128 pixel, 260K full-color graphic OLED display module. The display offers an integrated controller, thin profile, low power consumption, and numerous parallel interfaces. Its 30 pin FPC mates with standard connectors such as 609-1244-1-ND or 609-1882-1-ND, both readily available from Digi-Key.
	160xRGBx128 Full color graphic OLED display module

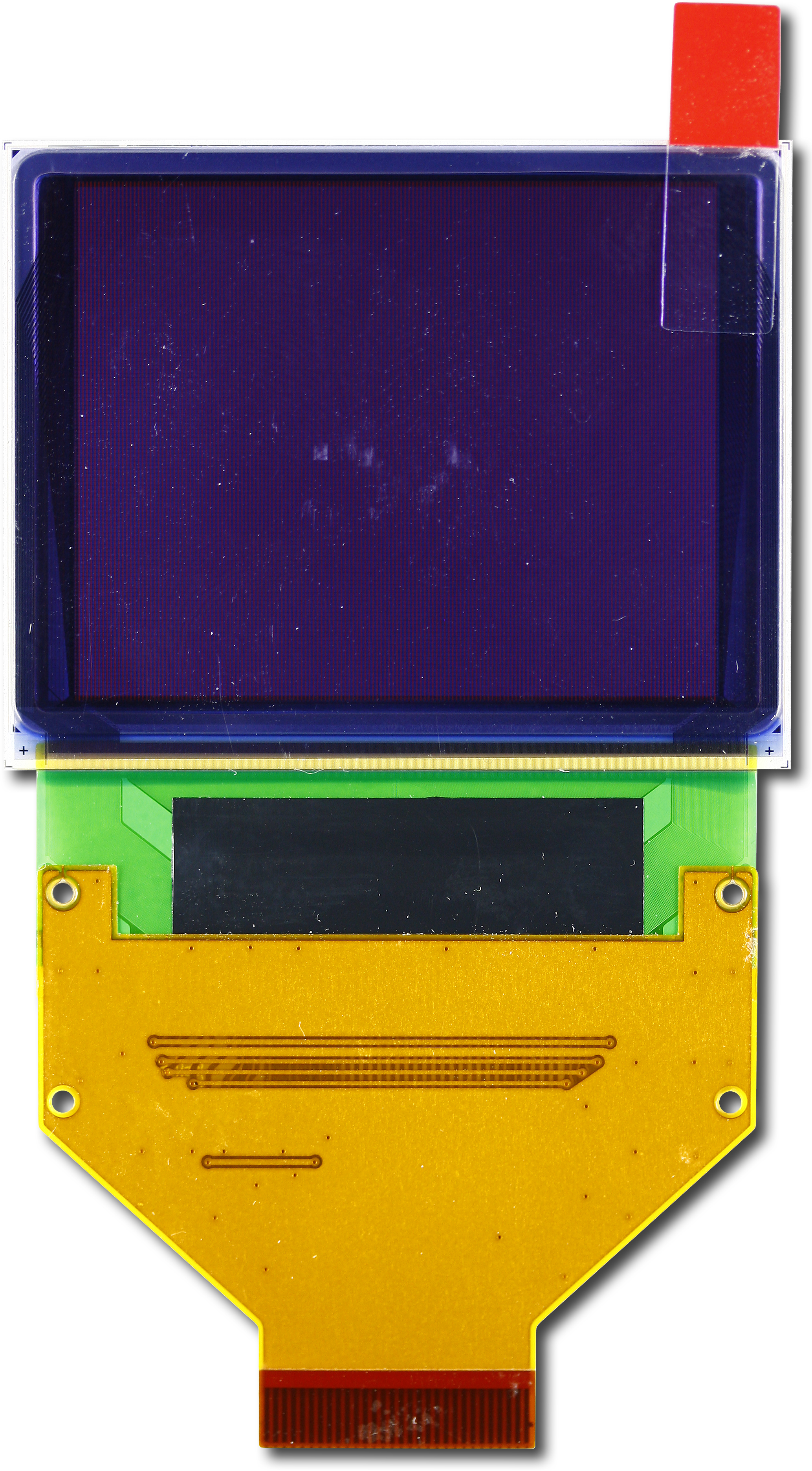

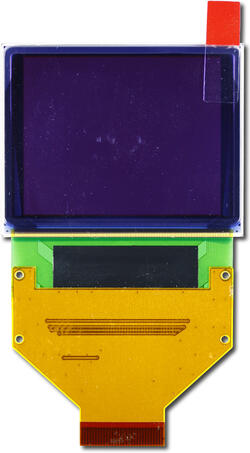

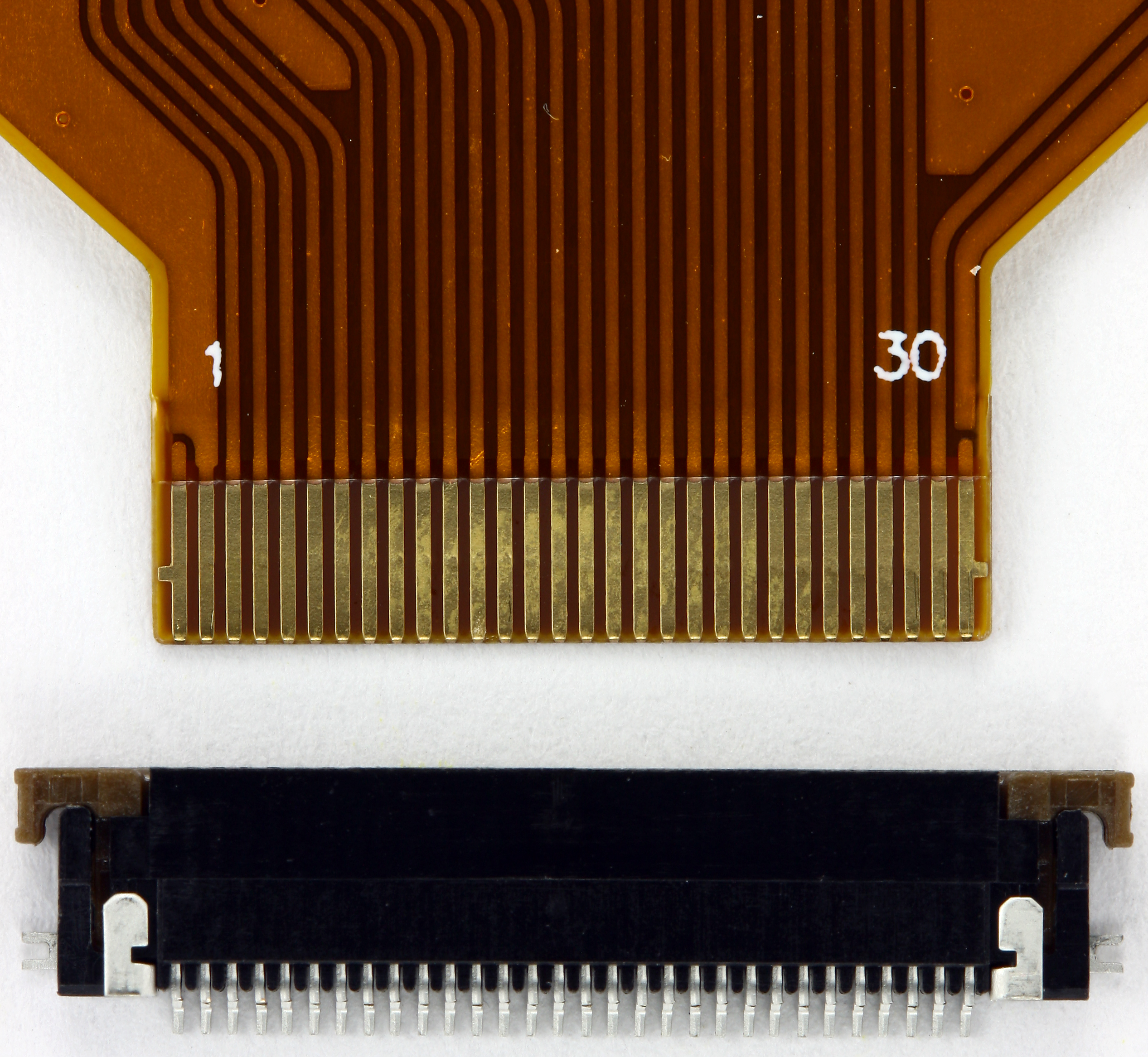

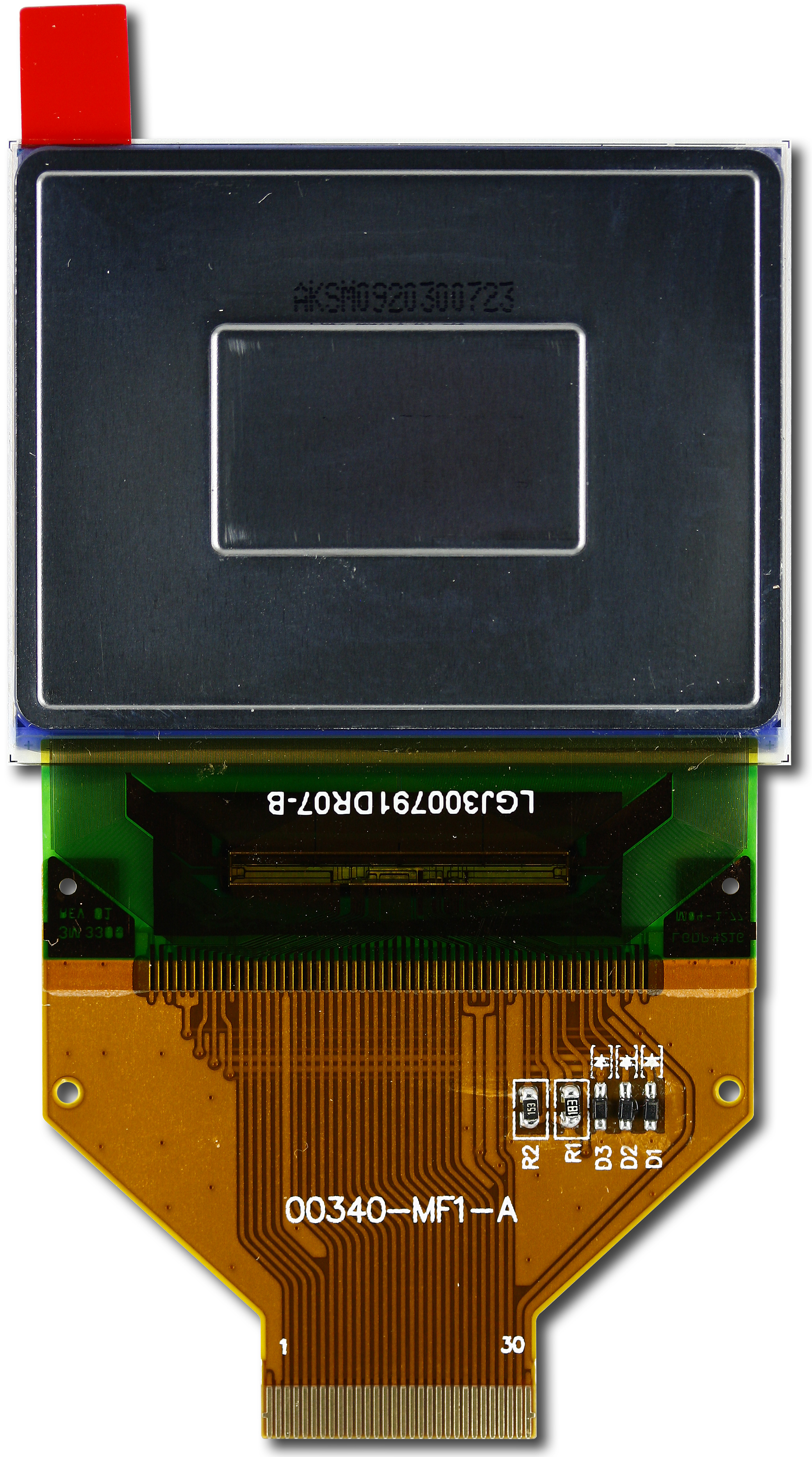

	30 pin FPC mates with standard ZIF sockets.
	18, 16, 8, and 6-bit parallel interfaces
	Built-in LG LGDP4216 or compatible controller
	Operating temperature range from -30C to +80C.

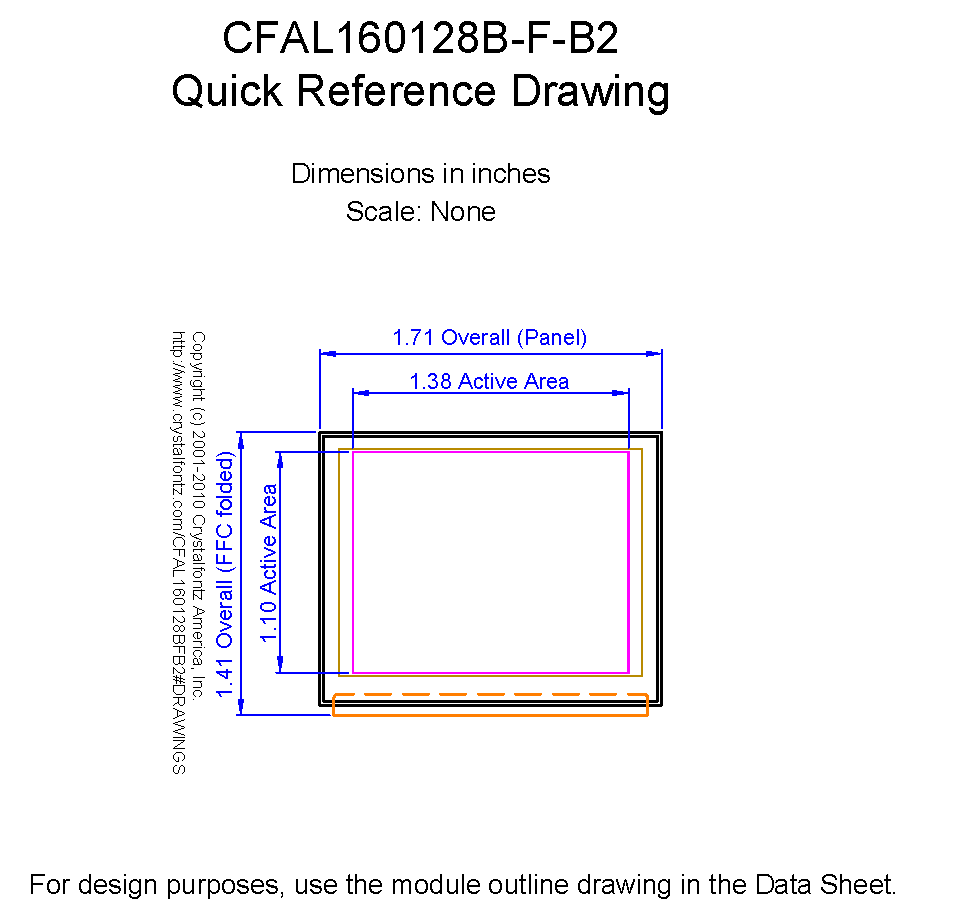

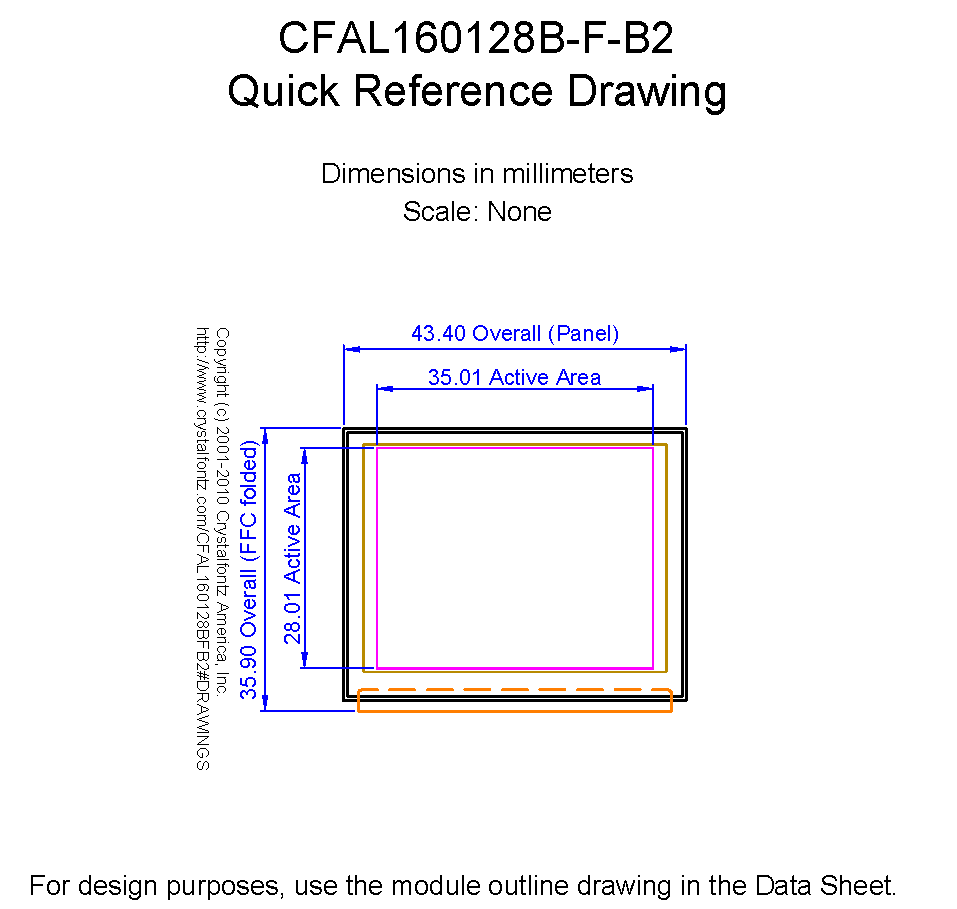

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            160 x 128

    Module Overall        width
        height
        depth

        millimeters
        43.4
        35.9
        1.87

        inches
        1.71
        1.41
        0.07

*width / height does not include Foldable Tab

        Diagonal Dimension
            1.77"

    Viewing Area        Width
        Height

        millimeters
        38.42
        28.82

        inches
        1.51
        1.14

    Active Area        Width
        Height

        millimeters
        35.01
        28.01

        inches
        1.38
        1.10

    Dot Size        Width
        Height

        millimeters
        0.2
        0.2

        inches
        0.008
        0.008

    Dot Pitch        Width
        Height

        millimeters
        0.22
        0.22

        inches
        0.009
        0.009

        Weight
            8g

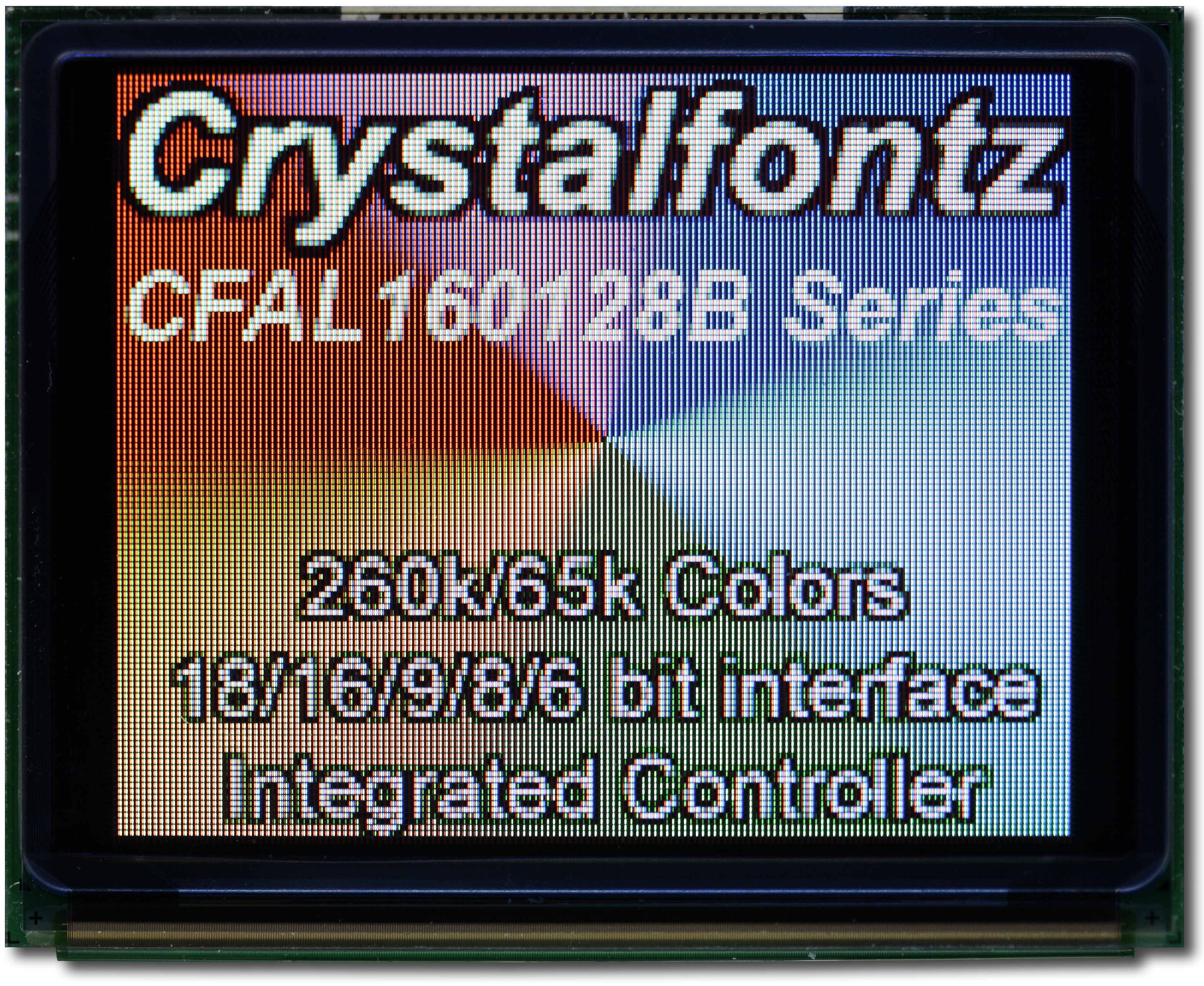

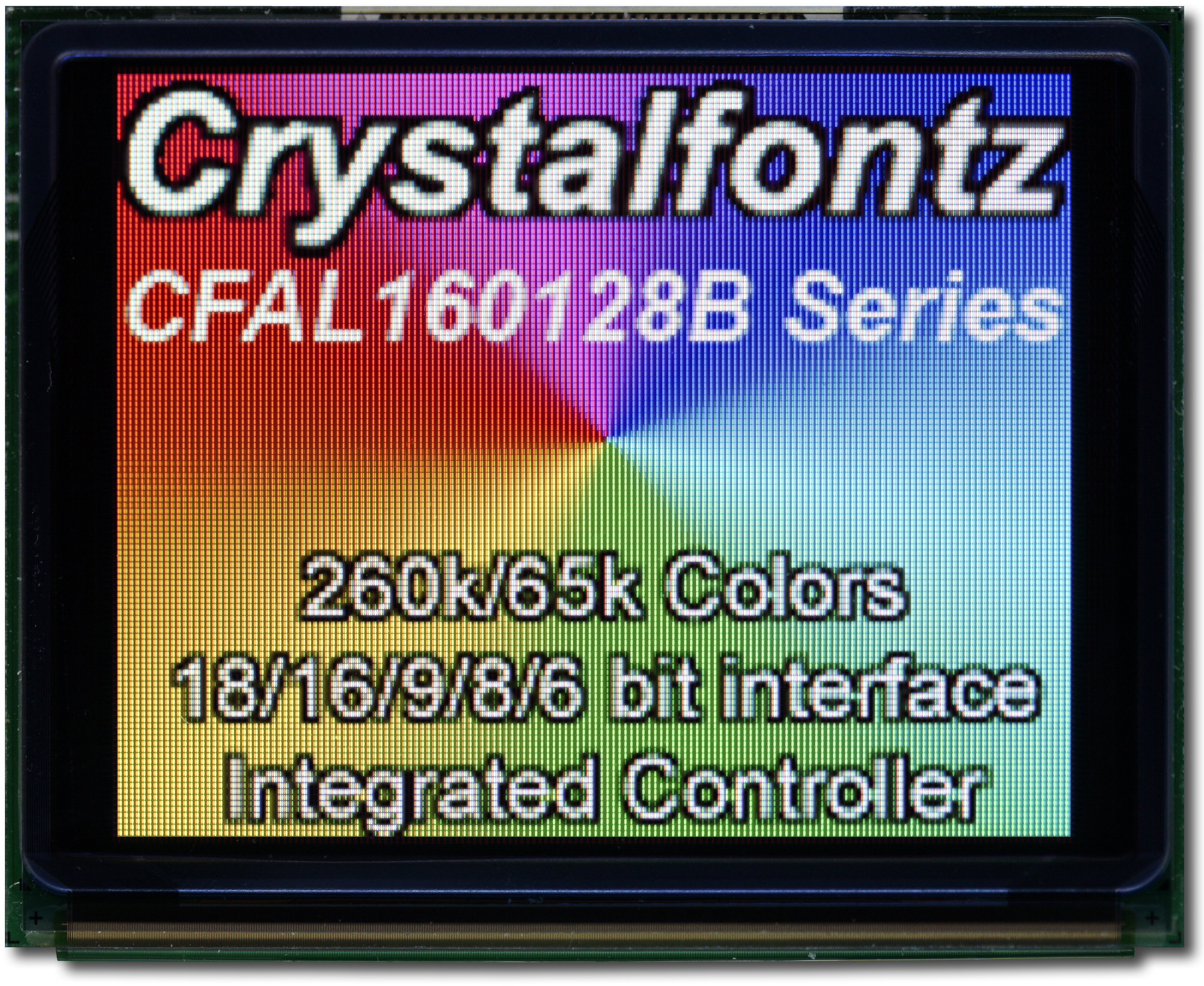

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive

        Backlight Type
            None
Mode
            Positive
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.5mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            LG DP4216
Passive Matrix OLED controller

260k colors 160x128
Interface
            16-bit Parallel, 18-bit Parallel, 6-bit Parallel, 8-bit Parallel, 9-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAL160128B-F-B2 Data Sheet v1.0.pdf
(Datasheet V 1.0, Hardware A)
picture_as_pdfCFAL160128BFB2.pdf

 download Files and Downloads
folder_zip Software Source - Demonstration Code, 8-Bit
folder_zip CAD Export - CFAL160128B-F-B2 2D CAD
picture_as_pdf 1 to 1 Template - CFAL160128B-F-B2 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	43.4	35.9	1.87
inches	1.71	1.41	0.07
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	38.42	28.82
inches	1.51	1.14

Active Area	Width	Height
millimeters	35.01	28.01
inches	1.38	1.10

Dot Size	Width	Height
millimeters	0.2	0.2
inches	0.008	0.008

Dot Pitch	Width	Height
millimeters	0.22	0.22
inches	0.009	0.009

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Note
Notices

Product Note:

Although we do not offer any direct replacements for this product, perhaps one of our many other OLED displays will fit your needs. Feel free to contact our tech support team to get assistance in finding the right display.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10344: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Products Affected:	CFAL12822A-Y-B, CFAL12864L-Y-B2, CFAL12864L-G-B2, CFAL12864L-Y-B4, CFAL12864L-G-B4, CFAL12822A-Y-B1, CFAL12864S-Y-B1, CFAL160128B-F-B2, CFAL12832C-B-B1
Date Issued:	April 21, 2011
Summary:	This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Part Change Notice #10019: Updated pin description for pin 29 to note it as the location where the panel voltage is supplied

Product Affected:	CFAL160128B-F-B2
Date Issued:	September 3, 2009
Summary:	Updated pin description for pin 29 to note it as the location where the panel voltage is supplied
Description:	Datasheet update
Reason:	Previously ambiguous
