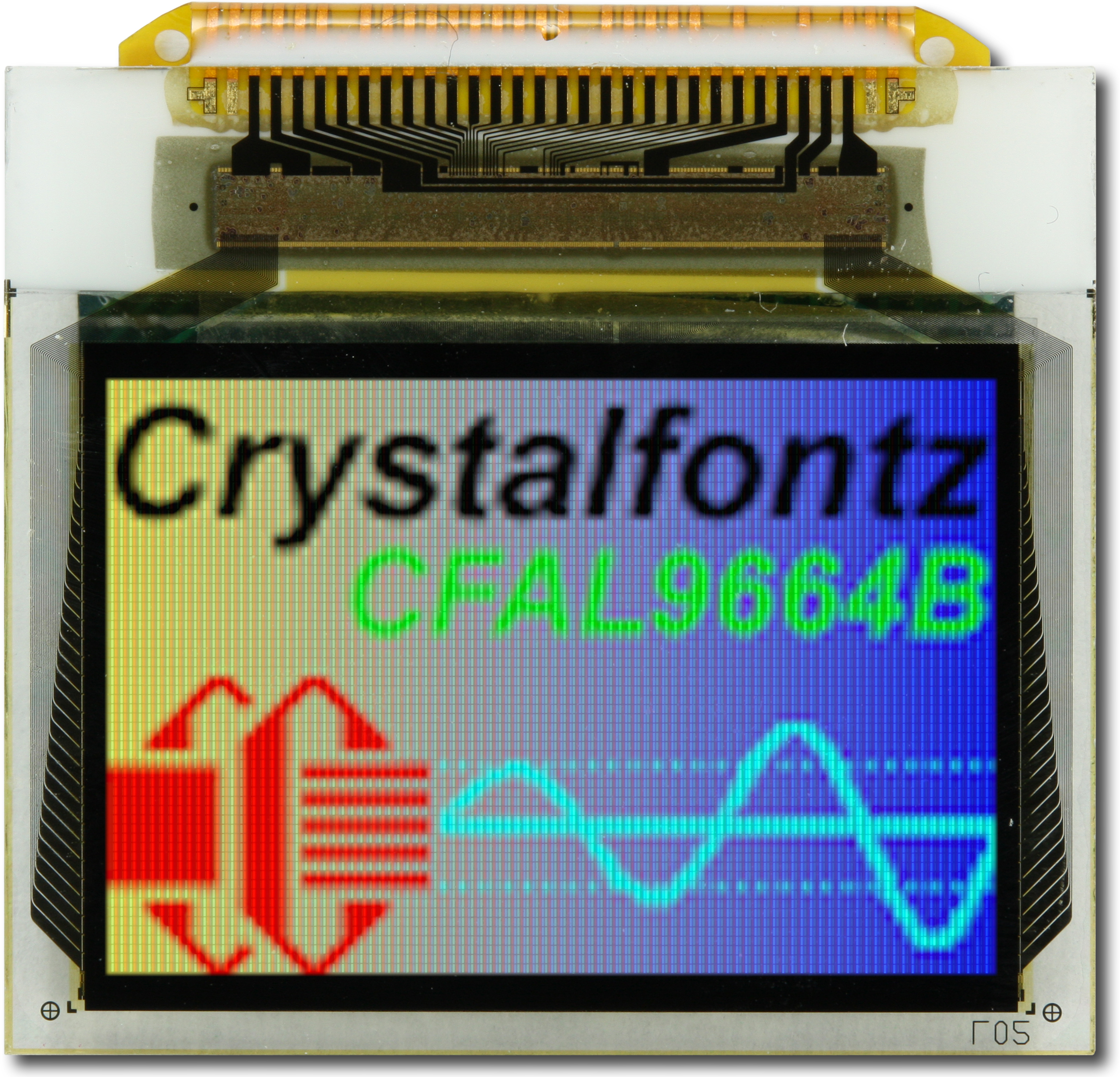

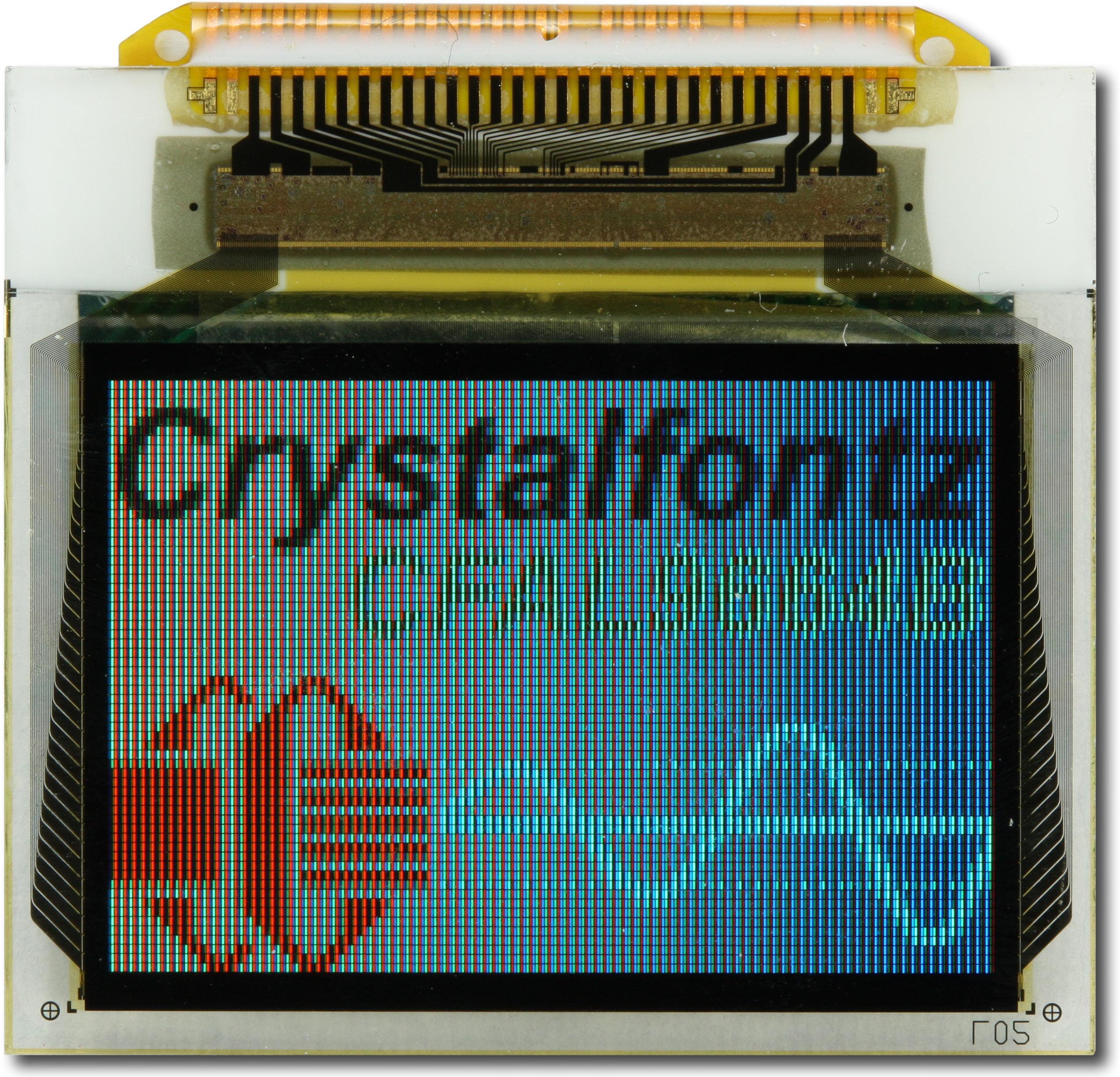

96x64 OLED Full Color DisplayPart Number: CFAL9664B-F-B2

                        This OLED is a thinner, lower power version of the CFAL9664B-F-B1 96x64 Graphic Color OLED Display. This version is 1.33mm thick and uses 2.7v for logic and 10v for driving whereas the CFAL9664B-F-B1 is 1.42mm thick and uses 3v for logic and 13v for driving the display.

OLEDs don't need backlights, so this vibrant full-color OLED is a mere 0.12 mm thick and weighs only 1.4 grams. The low power consumption is an advantage for handheld devices. With excellent readability for small print and graphics, the SPI interface (Serial Peripheral Interface) is popular for Arduino projects. The display's wide >160° viewing angle is a good choice for locations where different users look at the display from different angles.
8-bit parallel (8080 or 6800) or SPI Interface.
Download the Solomon Systech SSD1331 controller datasheet from our website.
 If you manufacture a high volume of your product, connecting is fast and easy with a hot-bar solder machine.
The display's bright contrast ratio of 2,000:1 will attract attention to your product.
The temperature range for operation is -30°C to +70°C.
RoHS compliant.
For a quick start, download the sample code in the Datasheets & Files section.

Undecided? Our free knowledgeable Technical Support team is happy to answer questions before you order.

Product Variations

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            96 x 64

    Module Overall        width
        height
        depth

        millimeters
        24.8
        22.42
        1.33

        inches
        0.98
        0.88
        0.05

*width / height does not include Foldable Tab

        Diagonal Dimension
            0.95"

    Viewing Area        Width
        Height

        millimeters
        22.14
        15.42

        inches
        0.87
        0.61

    Active Area        Width
        Height

        millimeters
        20.14
        13.42

        inches
        0.79
        0.53

    Dot Size        Width
        Height

        millimeters
        0.05
        0.19

        inches
        0.002
        0.007

    Dot Pitch        Width
        Height

        millimeters
        0.07
        0.21

        inches
        0.003
        0.008

        Weight
            1.4g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive
View Angle
            160°

        Foreground Color
            RGB
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.4V
Supply Voltage for Logic Maximum
            3.5V
Supply Voltage for Logic Typical
            2.7V

        Supply Voltage for Driving Panel Typical
            10V
Module Connector Pitch
            0.8mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1331
Advance Information 96RGB x 64 Dot Matrix OLED/PLED Segment/Common Driver with Controller
Interface
            8-bit Parallel, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAL9664BFB2 Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAL9664B-F-B2 Datasheet Release 2016-04-01.pdf

download Files and Downloads
folder_zip Software Source - ATMega2561 SPI Demo Code
folder_zip Hardware Design - 3D Model
folder_zip Hardware Design - Carrier Board Build Package

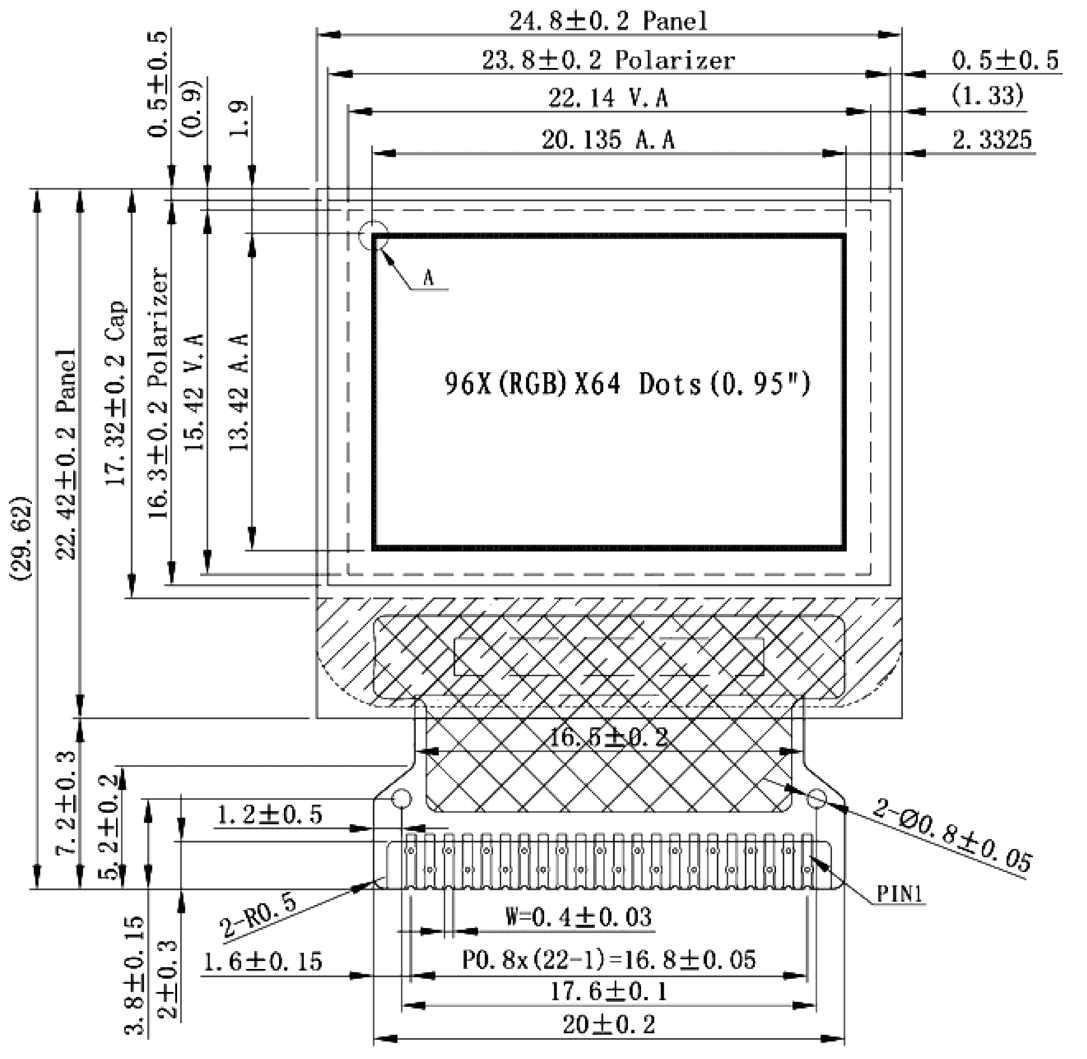

picture_as_pdf Other Document - CFAL9664B-F-B2 1 to 1 Module Outline
link Arduino Code Repository on Github
link Arduino Demo Code Download on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $9.46

            10
            $7.91

            20
            $7.64

            50
            $7.38

            100
            $7.27

            200
            $7.15

            300
            $7.11

            500
            $7.05

            1000
            $6.99

1892 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.

Module Overall	width	height	depth
millimeters	24.8	22.42	1.33
inches	0.98	0.88	0.05
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	22.14	15.42
inches	0.87	0.61

Active Area	Width	Height
millimeters	20.14	13.42
inches	0.79	0.53

Dot Size	Width	Height
millimeters	0.05	0.19
inches	0.002	0.007

Dot Pitch	Width	Height
millimeters	0.07	0.21
inches	0.003	0.008

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$9.46
10	$7.91
20	$7.64
50	$7.38
100	$7.27
200	$7.15
300	$7.11
500	$7.05
1000	$6.99

Additional Options
Resources
Note
Notices

Additional Options

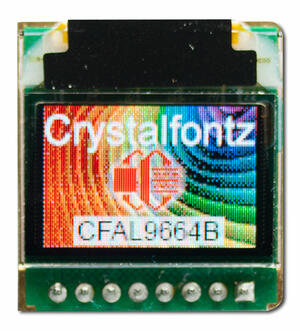

Add a carrier board to quickly integrate this full-color OLED into your product or project quickly.

96x64 OLED with carrier board
Part Number: CFAL9664BFB2-E1-1

Details

Quantity	1	10	20	50	100	200 *	300 *	500 *	1000 *
Unit Price	$24.90	$21.67	$20.90	$20.14	$19.84	$19.53	$19.38	$19.23	$19.08

Quantity:

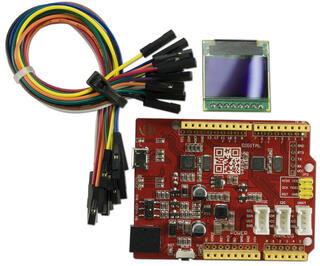

96x64 Full-Color OLED Development Kit
Part Number: CFAL9664BFB2-E1-2

Details

Quantity	1
Unit Price	$45.95

Quantity:

Additional Resources

Product Note:

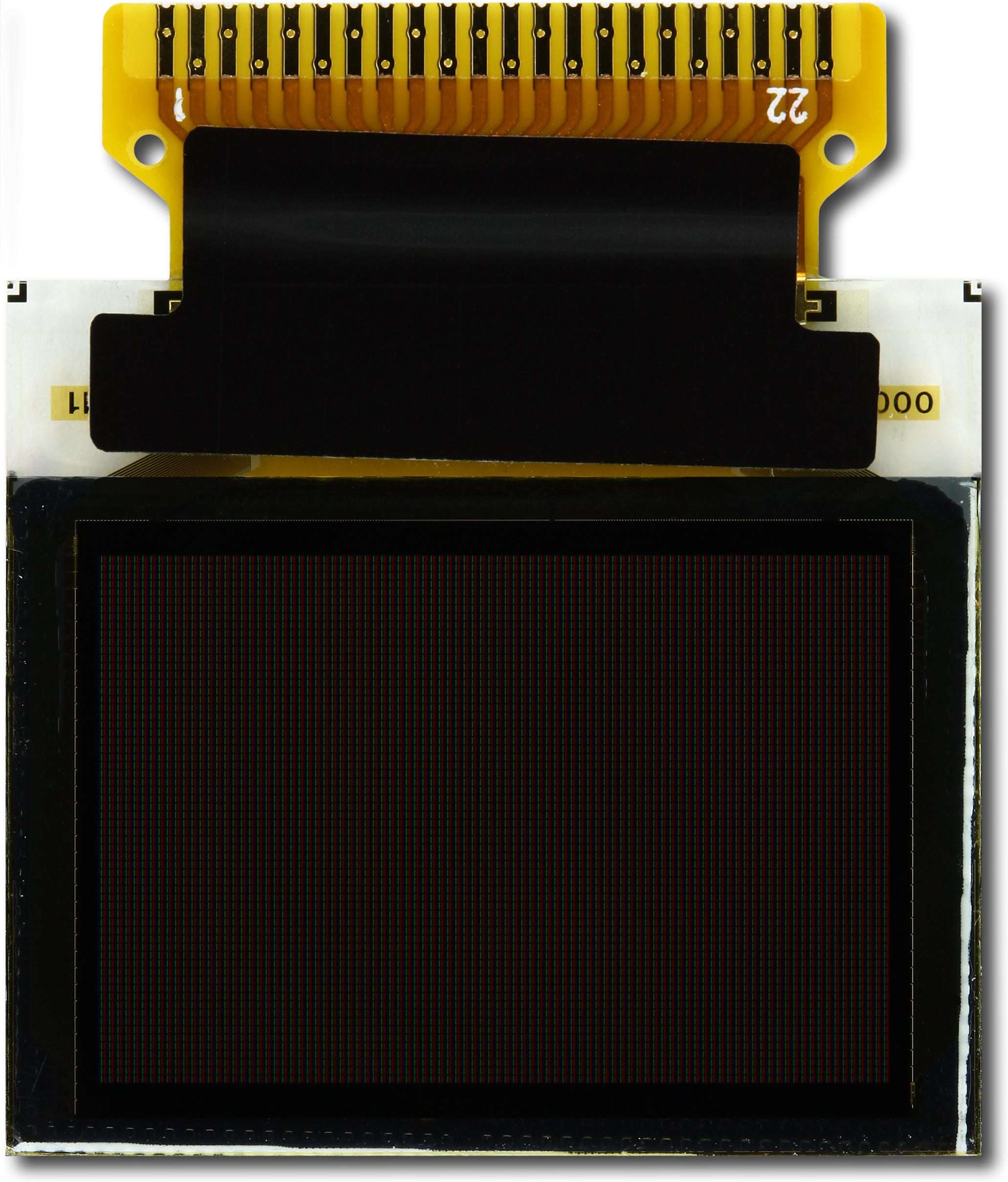

This module is engineered for high volume production. It uses a "TAB" (tape automated bonding) or "COF" (chip on flex) style flex tail mated with a "COG" (chip on glass) display. The TAB connector is soldered directly to corresponding pads on your PCB using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. Hot-bar soldering machines designed for prototype, rework or repair of TAB connections are available from equipment suppliers at reasonable cost. The TAB style connection requires no separate connector, so the cost is very low, and the ultra thin profile of the display is maintained.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10691: (New Product) CFAL9664B-F-B2

New Product:	CFAL9664B-F-B2
Date Issued:	April 1, 2016
Summary:	(New Product) CFAL9664B-F-B2
Description:	OLED Modules: OLEDs don't need backlights, so this vibrant full color OLED is a mere 0.12 mm thick and weighs only 1.4 grams. The low power consumption is an advantage for handheld devices. With excellent readability for small print and graphics, the SPI interface (Serial Peripheral Interface) is popular for Arduino projects. The display's wide >160° viewing angle is a good choice for locations where different users look at the display from different angles. Highlights 8-bit parallel (8080 or 6800) or SPI Interface. Download the Solomon SSD1331 controller datasheet from our website. If you manufacture a high volume of your product, connecting is fast and easy with a hot-bar solder machine. The display's bright contrast ratio of 2,000:1 will attract attention to your product. The temperature range for operation is -30°C to +70°C. RoHS compliant. For a quick start, download the free sample code in the Files section. Undecided? Our free knowledgeable Technical Support team is happy to answer questions before you order. Crystalfontz America, Incorporated is ISO 9001:2008 certified.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAL9664B-F-B2
