                This product is discontinued please contact support to see if there is a replacement part available.

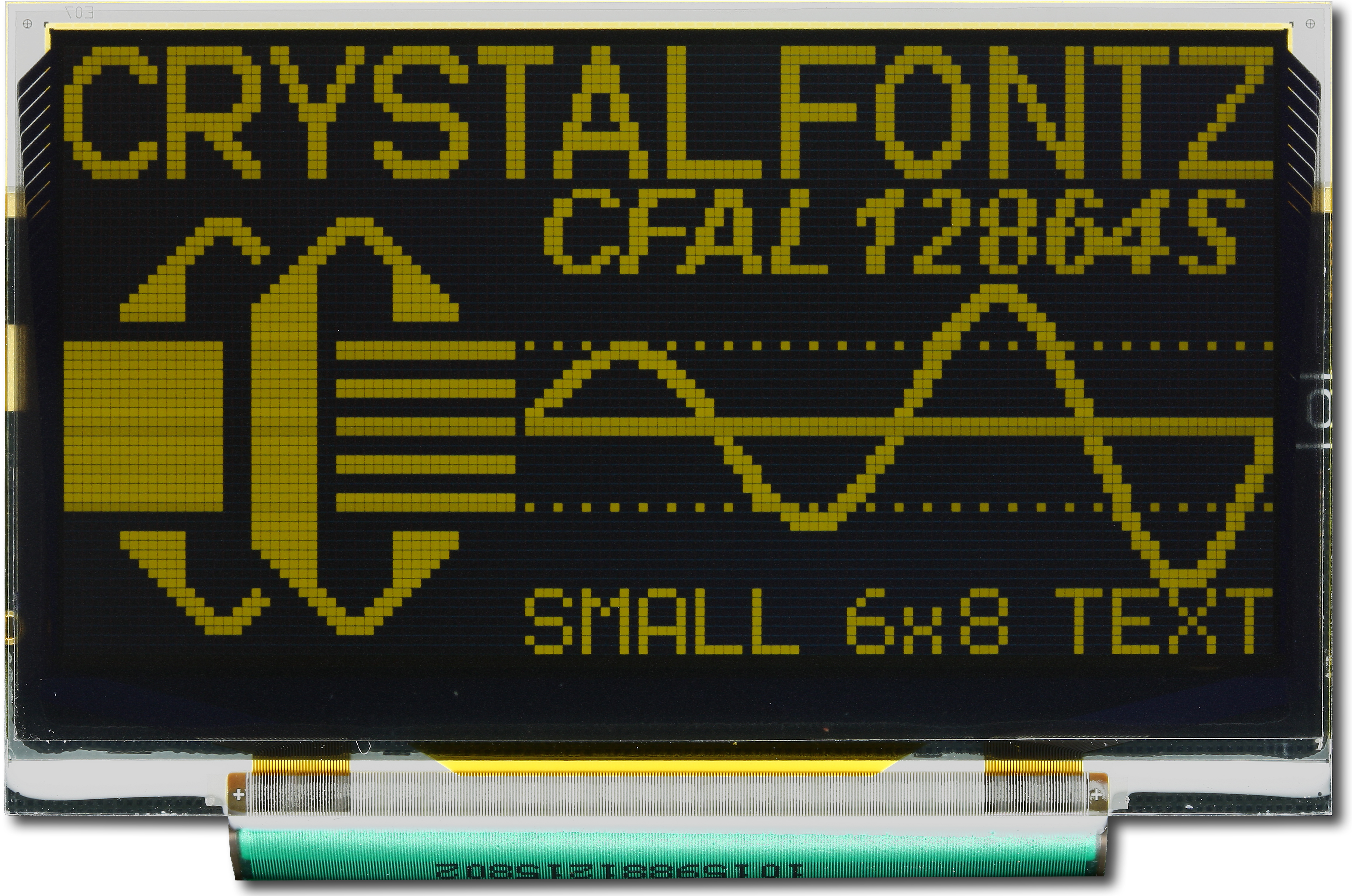

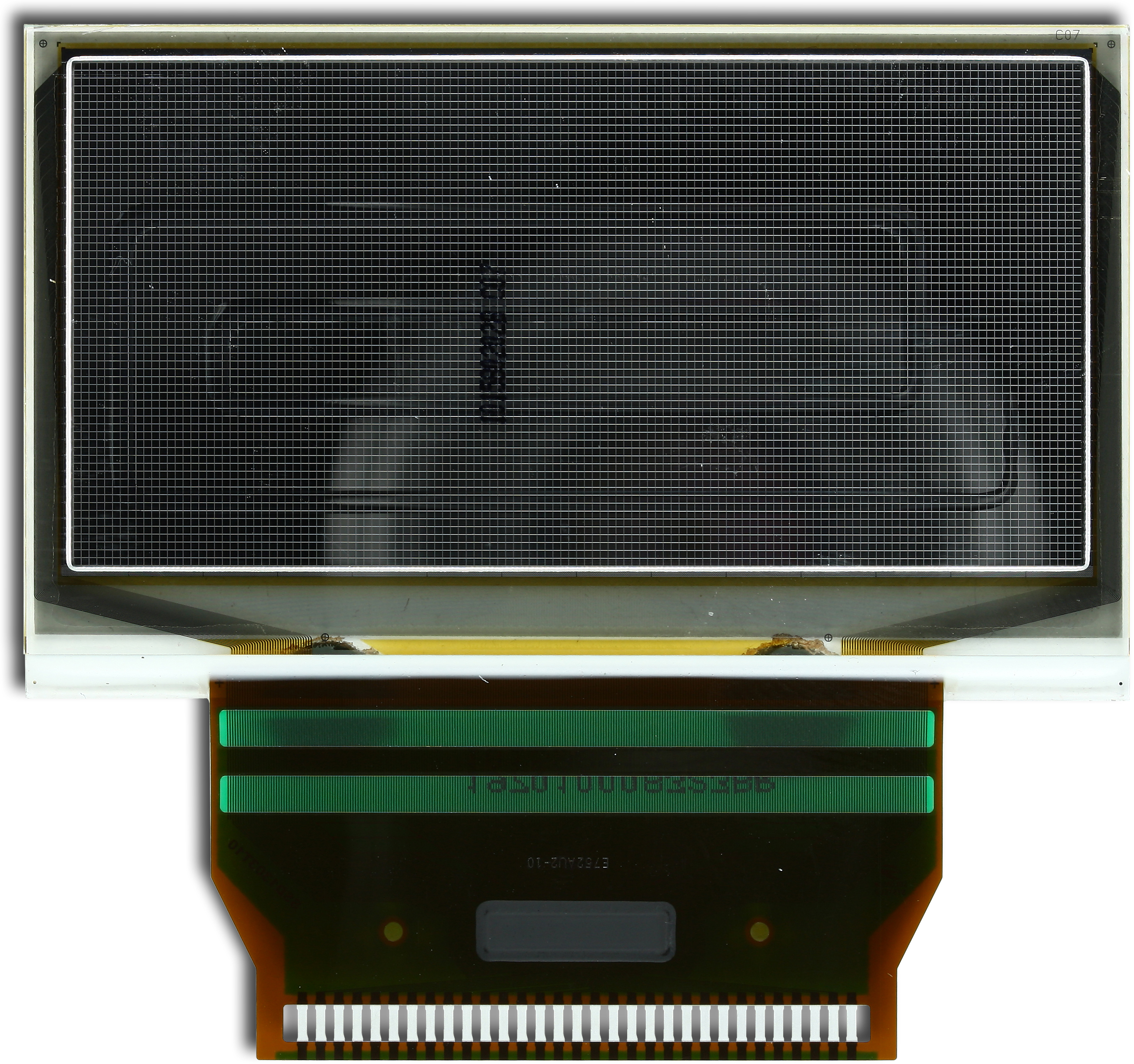

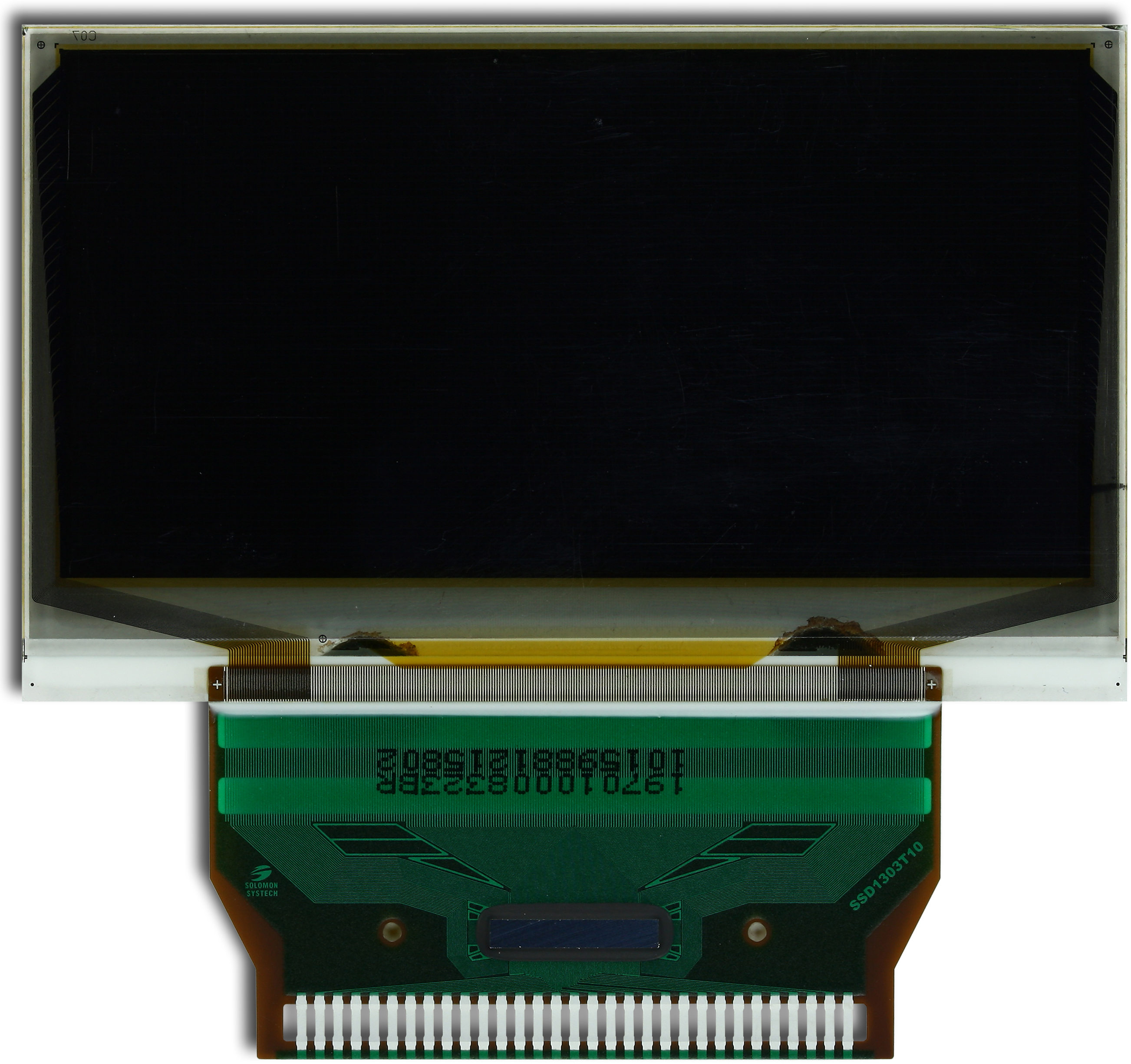

128x64 SPI Graphic OLED [EOL]Part Number: CFAL12864S-Y-B1128 x 64 yellow graphic OLED module.
128x64 graphic OLED display module.
Extremely wide viewing angles.
Very high contrast ratio.
8-bit parallel or SPI interface.
?Built-in Solomon SSD1303 or compatible controller.
Possible drop-in replacement for UMOH-8097N-O.

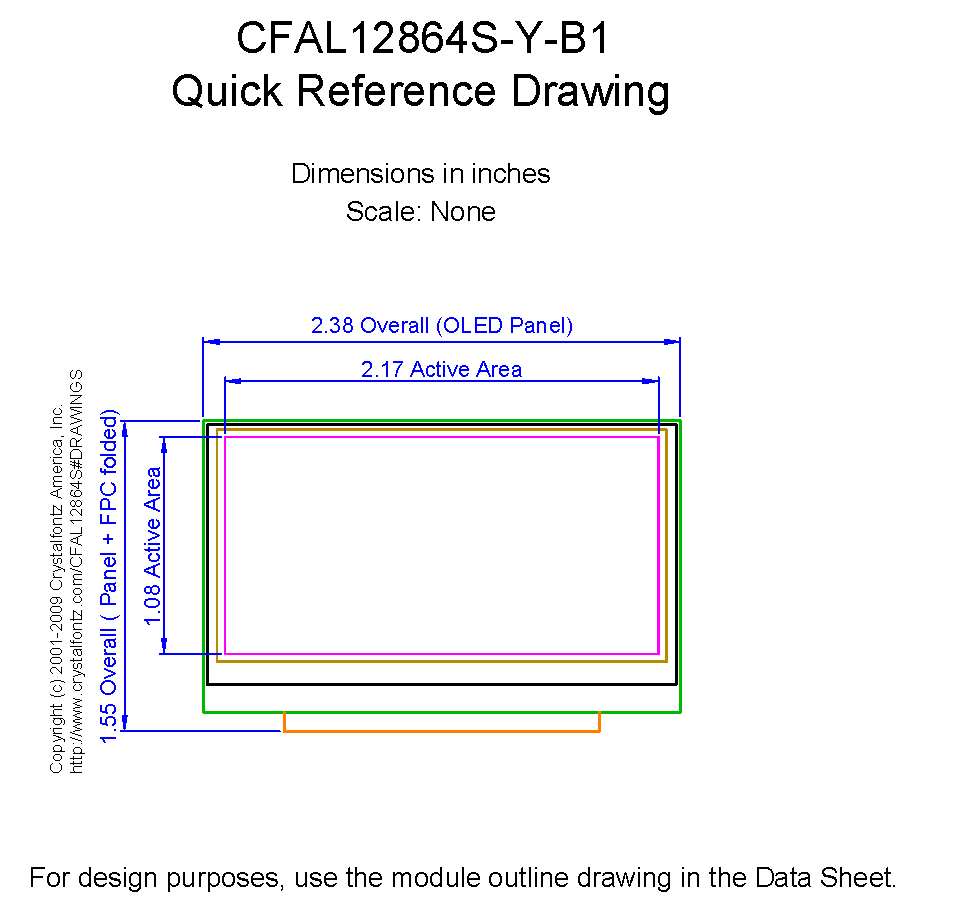

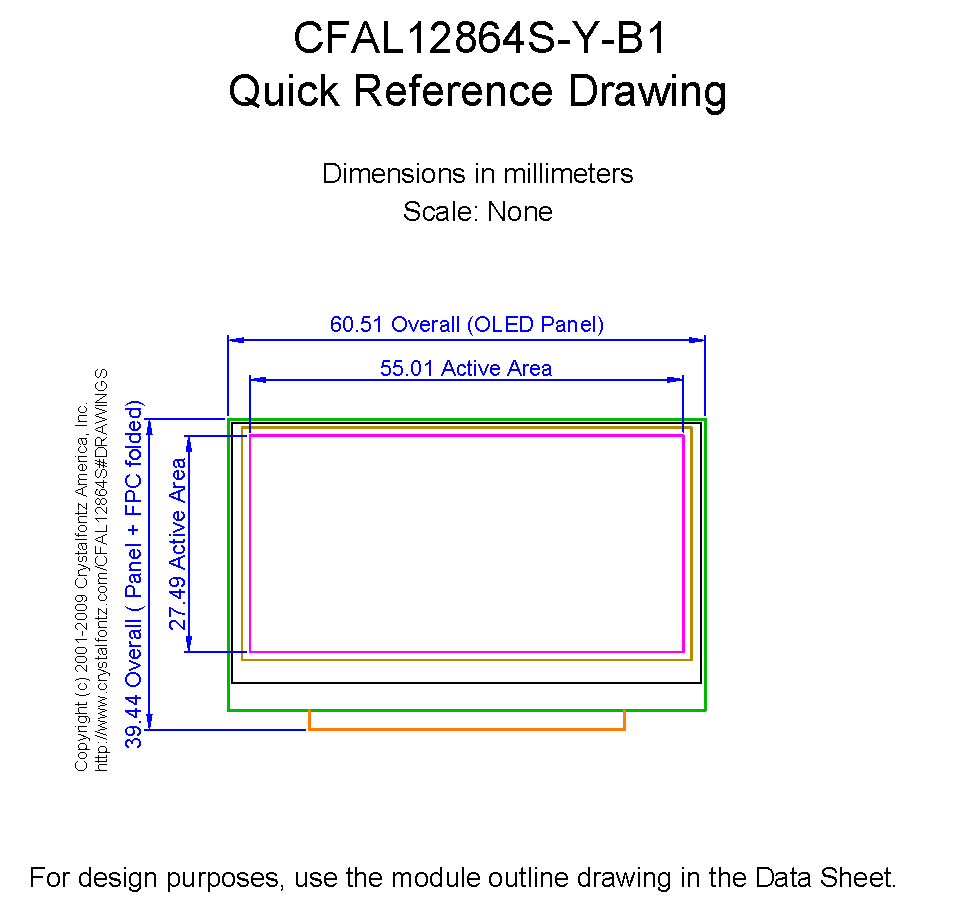

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        60.5
        56.6
        2.01

        inches
        2.38
        2.23
        0.08

*width / height does not include Foldable Tab

    PCB Outline        depth

        millimeters
        2.01

        inches
        0.08

    Viewing Area        Width
        Height

        millimeters
        57.01
        29.49

        inches
        2.24
        1.16

    Active Area        Width
        Height

        millimeters
        55.01
        27.49

        inches
        2.17
        1.08

    Dot Size        Width
        Height

        millimeters
        0.4
        0.4

        inches
        0.016
        0.016

    Dot Pitch        Width
        Height

        millimeters
        0.43
        0.43

        inches
        0.017
        0.017

        Weight
            9g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive

        Mode
            Positive
Foreground Color
            Yellow
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            12.5V
Supply Voltage for Logic Maximum
            13.5V
Supply Voltage for Logic Typical
            13V

        Supply Current Maximum
            400mWmA
Module Connector Pitch
            0.8mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1303
SSD1303 132 x 64 Dot Matrix

OLED/PLED Segment/Common Driver with Controller
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAL12864SYB1 Datasheet

picture_as_pdfCFAL12864SYB1 v1.0.pdf
(Datasheet V 1.0, Hardware A)
picture_as_pdfCFAL12864SYB1.pdf

 download Files and Downloads
folder_zip Software Source - Demonstration Code
folder_zip CAD Export - CFAL12864S-Y-B1 2D CAD
picture_as_pdf 1 to 1 Template - CFAL12864S-Y-B1 1 to 1

Module Overall	width	height	depth
millimeters	60.5	56.6	2.01
inches	2.38	2.23	0.08
*width / height does not include Foldable Tab

PCB Outline	depth
millimeters	2.01
inches	0.08

Viewing Area	Width	Height
millimeters	57.01	29.49
inches	2.24	1.16

Active Area	Width	Height
millimeters	55.01	27.49
inches	2.17	1.08

Dot Size	Width	Height
millimeters	0.4	0.4
inches	0.016	0.016

Dot Pitch	Width	Height
millimeters	0.43	0.43
inches	0.017	0.017

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10344: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Products Affected:	CFAL12822A-Y-B, CFAL12864L-Y-B2, CFAL12864L-G-B2, CFAL12864L-Y-B4, CFAL12864L-G-B4, CFAL12822A-Y-B1, CFAL12864S-Y-B1, CFAL160128B-F-B2, CFAL12832C-B-B1
Date Issued:	April 21, 2011
Summary:	This part will soon be End of Life and no longer available. There is no cross reference or substitute part.
