This product has reached end of life and has been replaced by CFAL12864NAB4

Product

Home » Products

                This product is discontinued and has been replaced by CFAL12864N-A-B4

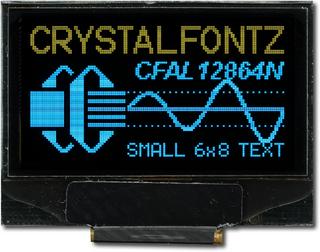

[EOL] Two-Color 128x64 SPI Graphic OLEDPart Number: CFAL12864N-A-B1A 128 x 64 graphic OLED module with two separate areas of color: yellow for the top 16 pixels, and blue for the bottom 48 pixels.  This graphic OLED is super low power, using less than 90 mW with all pixels lit.  Displays like this can be used in MP3 players, as secondary screens in mobile phones, placed on the end of a blade or hard drive enclosure -- the sky is the limit.
	128x64 graphic OLED display module.
	With a small form factor, display diagonal is only .96-inch.
	Two color areas on the display: yellow for the top 16 pixels and blue for the bottom 8 pixels.
	Built-in Solomon Systech SSD1306 controller. See the controller datasheet here.
	Interface choices: 8-bit parallel, 3 or 4 wire SPI, and I2C.
	Extremely wide viewing angle is great for handheld devices.
	Very high contrast ratio.
	RoHS compliant and manufactured by an ISO certified facility.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

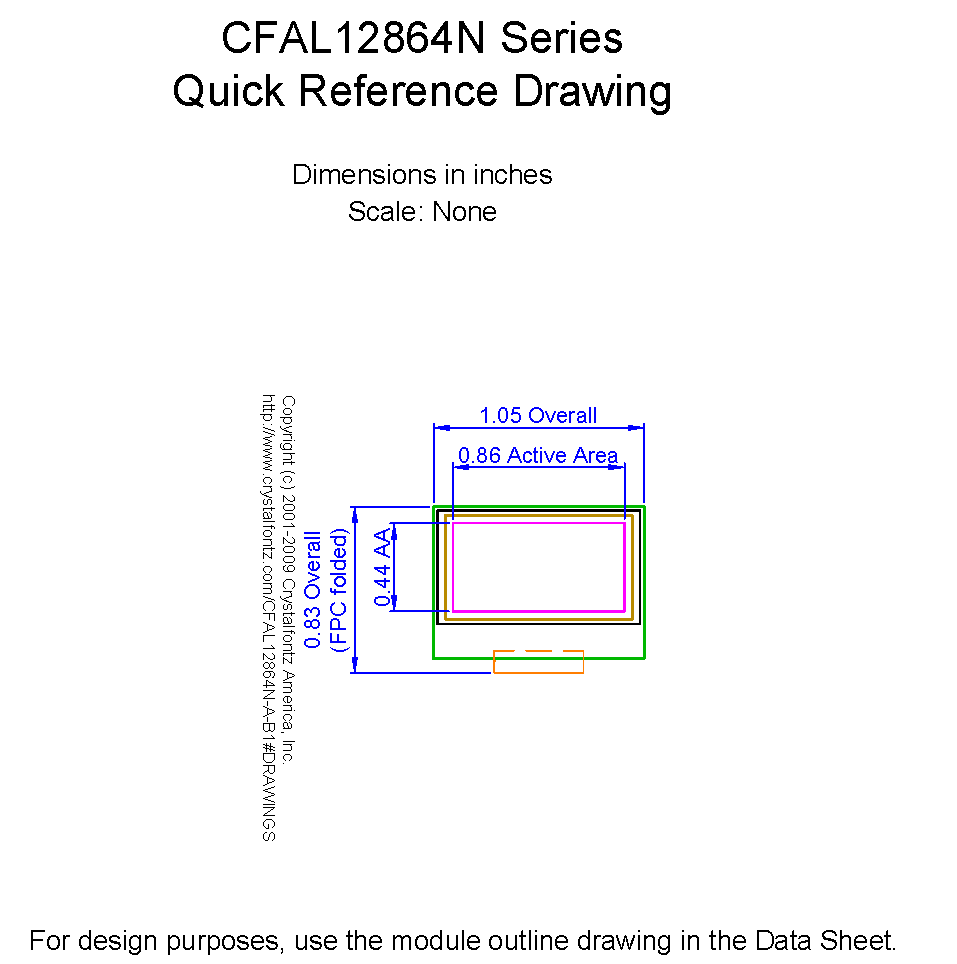

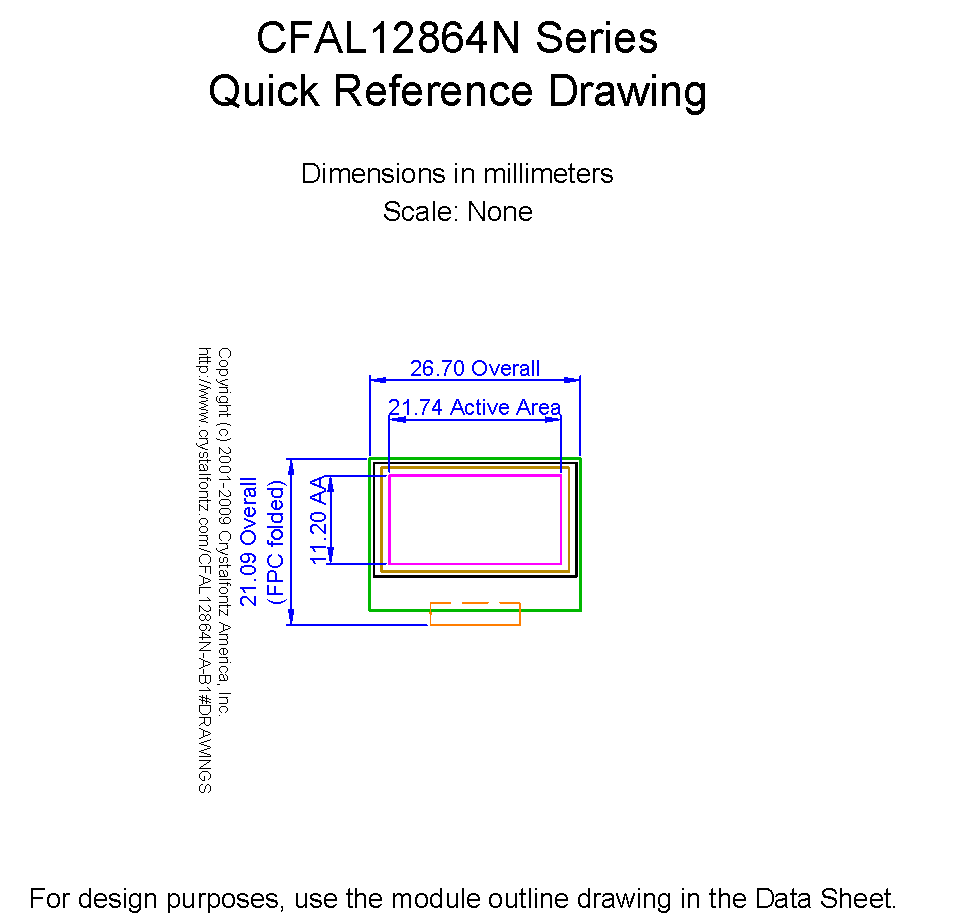

    Module Overall        width
        height
        depth

        millimeters
        26.7
        29.06
        2.2

        inches
        1.05
        1.14
        0.09

*width / height does not include Foldable Tab

    PCB Outline        depth

        millimeters
        2.2

        inches
        0.09

    Viewing Area        Width
        Height

        millimeters
        23.74
        13.2

        inches
        0.94
        0.52

    Active Area        Width
        Height

        millimeters
        21.74
        11.2

        inches
        0.86
        0.44

    Dot Size        Width
        Height

        millimeters
        0.15
        0.15

        inches
        0.006
        0.006

    Dot Pitch        Width
        Height

        millimeters
        0.17
        0.17

        inches
        0.007
        0.007

        Weight
            2g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive

        Backlight Type
            None
Mode
            Positive
Foreground Color
            Blue/Yellow
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.6mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sino Wealth SH1101A
SH1101A

132 X 64 Dot Matrix OLED/PLED

Segment/Common Driver with Controller
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAL12864N-A-B1 Data Sheet v1.5.pdf
(Datasheet V 1.5, Hardware A)
picture_as_pdfCFAL12864N-A-B1 v1.4.pdf
(Datasheet V 1.4, Hardware A)
picture_as_pdfCFAL12864N-A-B1 v1.3.pdf
(Datasheet V 1.3, Hardware A)
picture_as_pdfCFAL12864N-A-B1 v1.2.pdf
(Datasheet V 1.2, Hardware A)
picture_as_pdfCFAL12864NAB1 v1.1.pdf
(Datasheet V 1.1, Hardware A)
picture_as_pdfCFAL12864NAB1 v1.0.pdf
(Datasheet V 1.0, Hardware A)
 download Files and Downloads
folder_zip Software Source - Demonstration Code
folder_zip CAD Export - CFAL12864N-A-B1 2D CAD
picture_as_pdf 1 to 1 Template

Module Overall	width	height	depth
millimeters	26.7	29.06	2.2
inches	1.05	1.14	0.09
*width / height does not include Foldable Tab

PCB Outline	depth
millimeters	2.2
inches	0.09

Viewing Area	Width	Height
millimeters	23.74	13.2
inches	0.94	0.52

Active Area	Width	Height
millimeters	21.74	11.2
inches	0.86	0.44

Dot Size	Width	Height
millimeters	0.15	0.15
inches	0.006	0.006

Dot Pitch	Width	Height
millimeters	0.17	0.17
inches	0.007	0.007

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Note
Notices

Product Note:

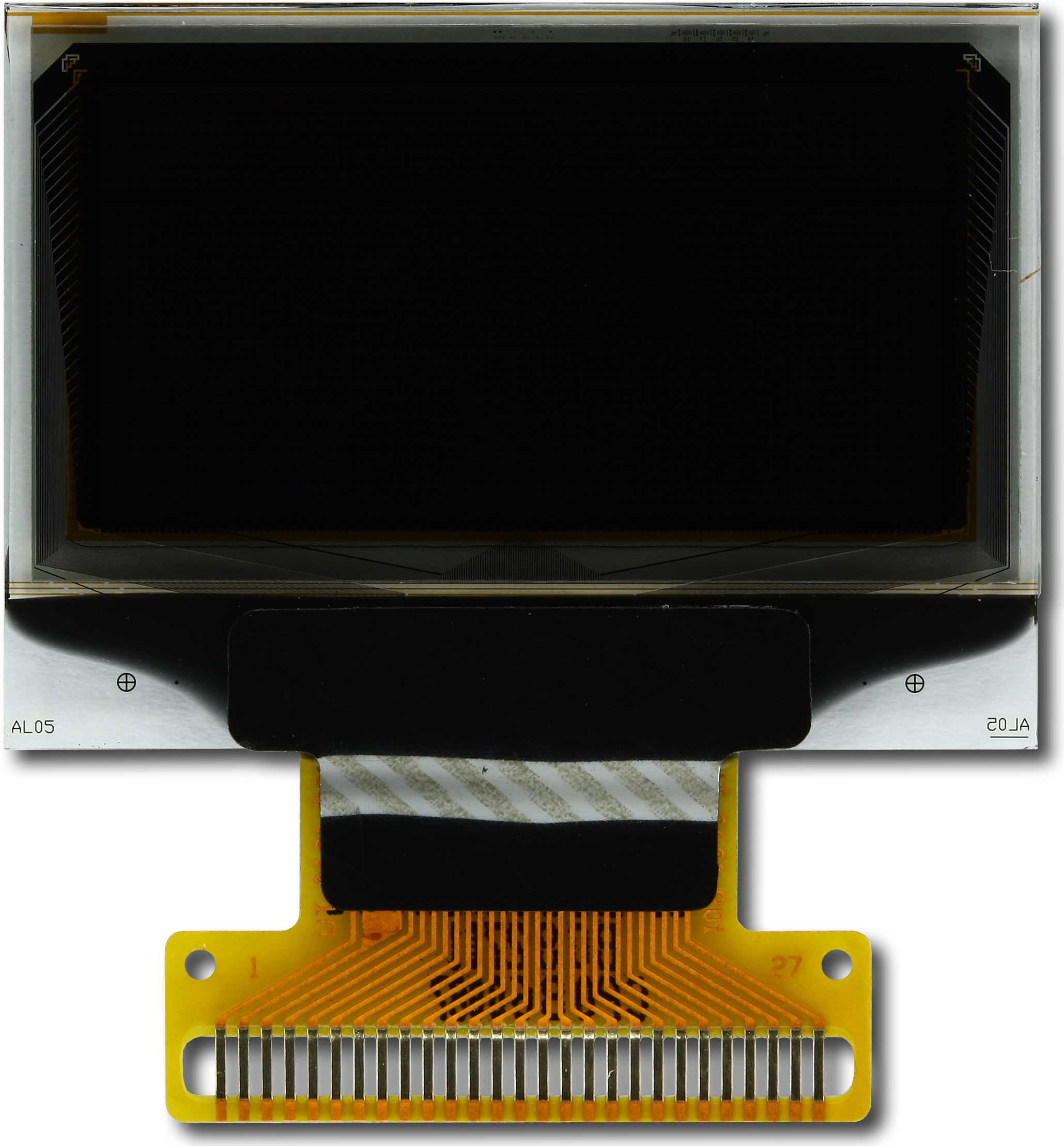

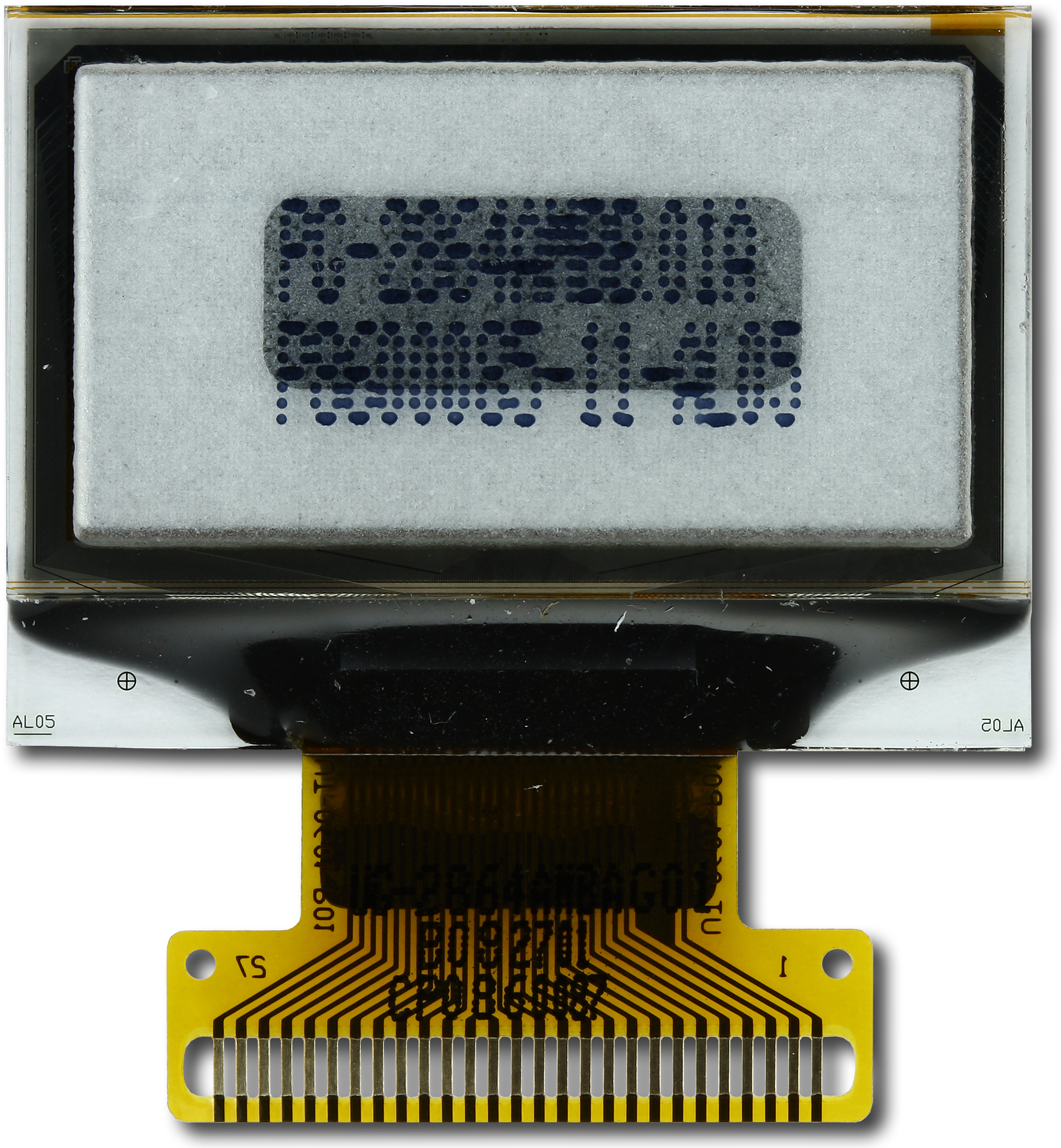

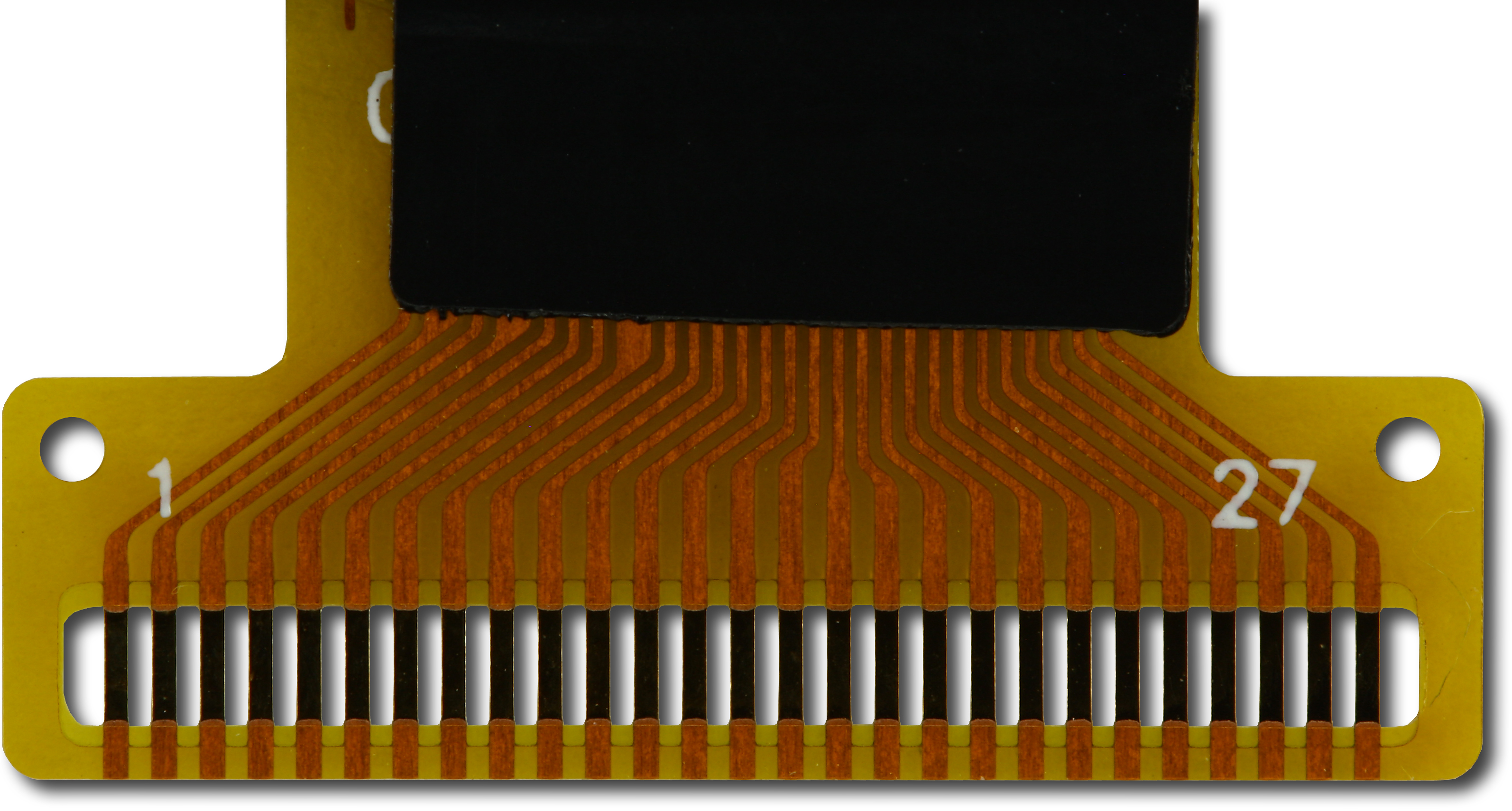

This module is engineered for high volume production. It uses a "TAB" (tape automated bonding) or "COF" (chip on flex) style flex tail mated with a "COG" (chip on glass) display. The TAB connector is soldered directly to corresponding pads on your PCB using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. Hot-bar soldering machines designed for prototype, rework or repair of TAB connections are available from equipment suppliers at reasonable cost. The TAB style connection requires no separate connector, so the cost is very low, and the ultra-thin profile of the display is maintained.

Because this is quickly evolving, cutting edge technology, there may be fit, form or function variances between manufacturing lots.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10013: Datasheet correction

Product Affected:	CFAL12864N-A-B1
Date Issued:	March 4, 2009
Summary:	Datasheet correction
Description:	Corrected error in Circuit Example – Externally Supplied VPANEL (Pg. 11). Drawing incorrectly showed a direct connection between GND and VLOGIC.
Reason:	Suggested creating a short by design from power to ground, resulting in the failure of the display.
