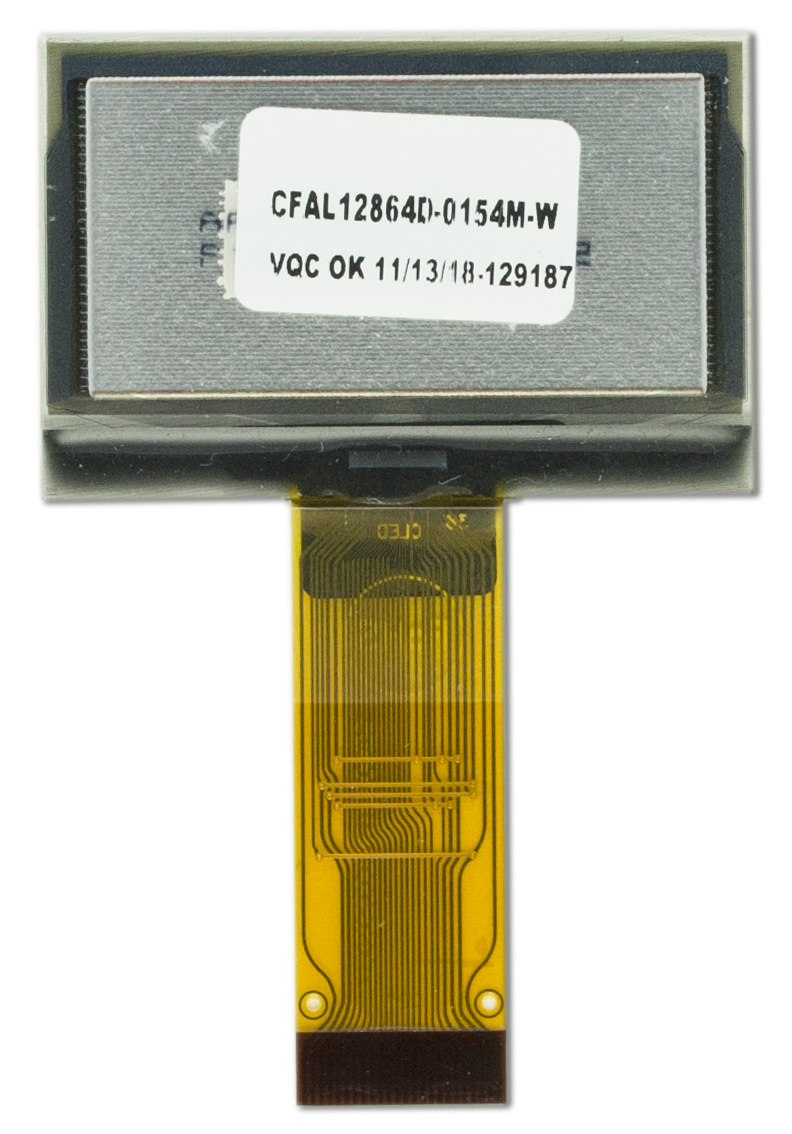

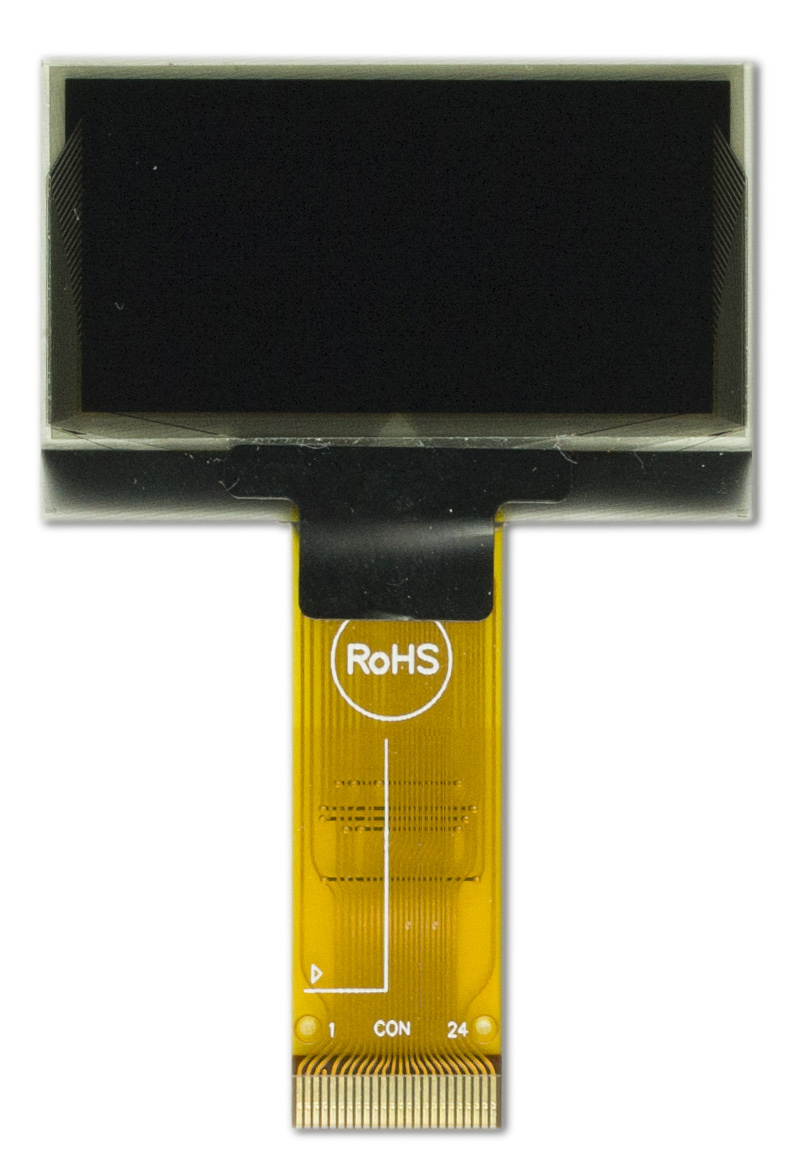

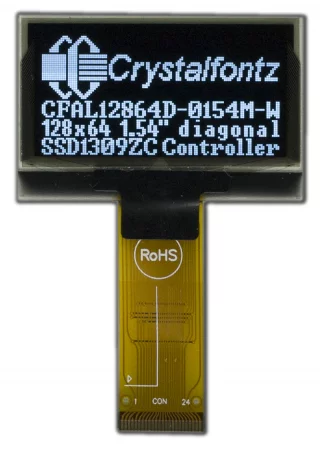

128x64 White Graphic OLEDPart Number: CFAL12864D-0154M-W

                        White 1.54" 128x64 Graphic OLED display offers a crisp, high-contrast display with super-wide viewing angles.
1.54-inch 128x64 graphical OLED display
On-board SSD1309 controller
+3.0V Logic Power Supply
+12.5V Display Power Supply
1/64 Duty
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +80°C
Product VariationsColorsYellow on Black
No BacklightWhite on Black
No Backlight

 square_foot Physical Characteristics

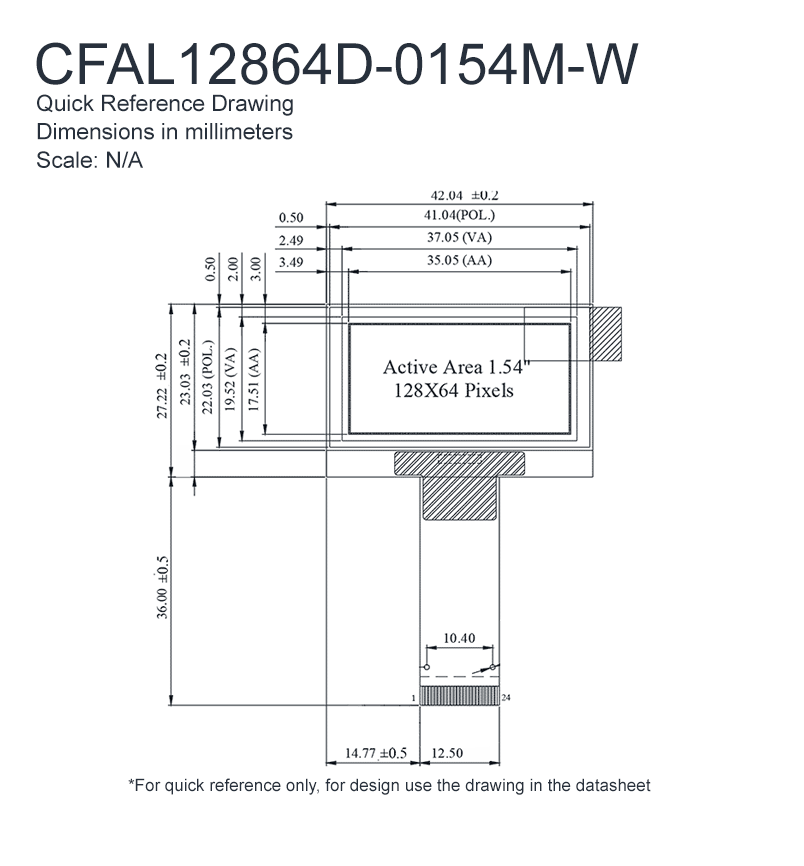

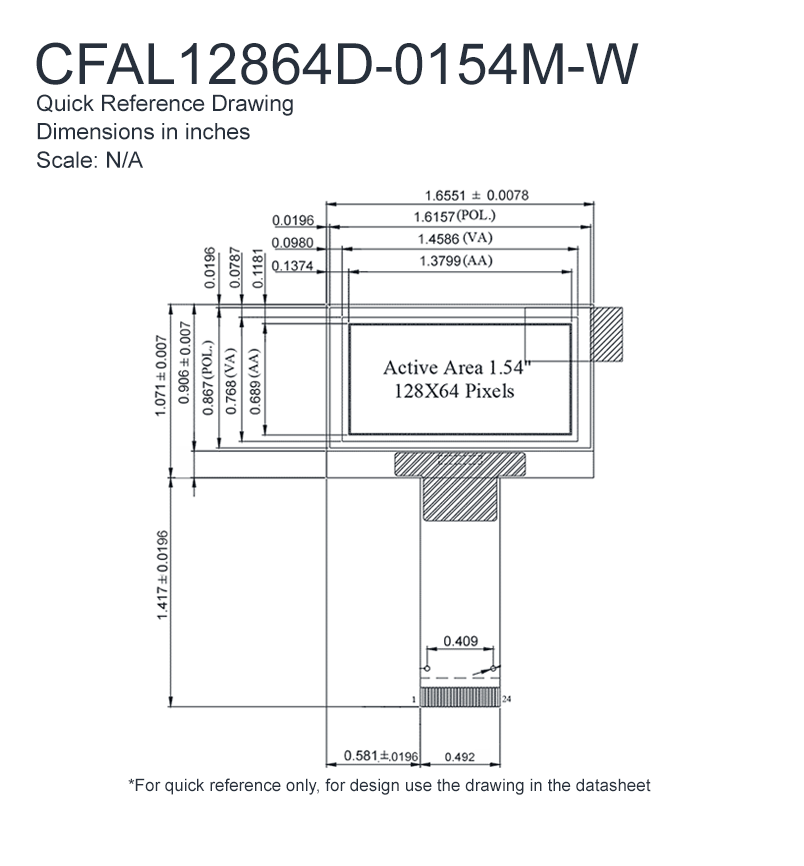

Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        42.04
        27.22
        1.45

        inches
        1.66
        1.07
        0.06

*width / height does not include Foldable Tab

        Diagonal Dimension
            1.54"

    Viewing Area        Width
        Height

        millimeters
        37.05
        19.52

        inches
        1.46
        0.77

    Active Area        Width
        Height

        millimeters
        35.05
        17.51

        inches
        1.38
        0.69

    Dot Pitch        Width
        Height

        millimeters
        0.274
        0.274

        inches
        0.0108
        0.0108

        Optional Connectors
            CS050Z24GA0

    Flexible Cable (FFC/FPC)        length

        millimeters
        36

        inches
        1.417

        Weight
            3.2g
Pin Count
            24

 visibility Optical Characteristics
Optical Characteristics

        Glass Color
            Black
View Angle
            160°

        Foreground Color
            White
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.8V
Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Logic Typical
            3V

        Supply Voltage for Driving Panel Typical
            12.5V
Supply Current Minimum
            12:00mA
Supply Current Maximum
            13mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Storage Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1309
SSD1309 128 x 64 Dot Matrix

OLED/PLED Segment/Common Driver with Controller
Interface
            8-bit Parallel, I2C, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAL12864D-0154M-W Datasheet

download Files and Downloads
folder_zip Software Source - Arduino 4-Wire SPI & Parallel Demo Code
folder_zip Hardware Design - 3D Models
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $15.62

            10
            $14.33

            20
            $13.94

            50
            $13.43

            100
            $12.70

            200
            $12.59

            300
            $11.87

            500
            $11.82

            1000 *
            $10.92

818 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering

						SSD1309 OLED Breakout Board
Speed up development $12.48 ea.

						24 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $0.97 ea.

						24-Position ZIF Breakout Board
Add a 24-pin ZIF Breakout Board? $6.08 ea.

Colors	Yellow on Black No Backlight White on Black No Backlight

Module Overall	width	height	depth
millimeters	42.04	27.22	1.45
inches	1.66	1.07	0.06
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	37.05	19.52
inches	1.46	0.77

Active Area	Width	Height
millimeters	35.05	17.51
inches	1.38	0.69

Dot Pitch	Width	Height
millimeters	0.274	0.274
inches	0.0108	0.0108

Flexible Cable (FFC/FPC)	length
millimeters	36
inches	1.417

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Quantity	Unit Price
1	$15.62
10	$14.33
20	$13.94
50	$13.43
100	$12.70
200	$12.59
300	$11.87
500	$11.82
1000 *	$10.92

Additional Options

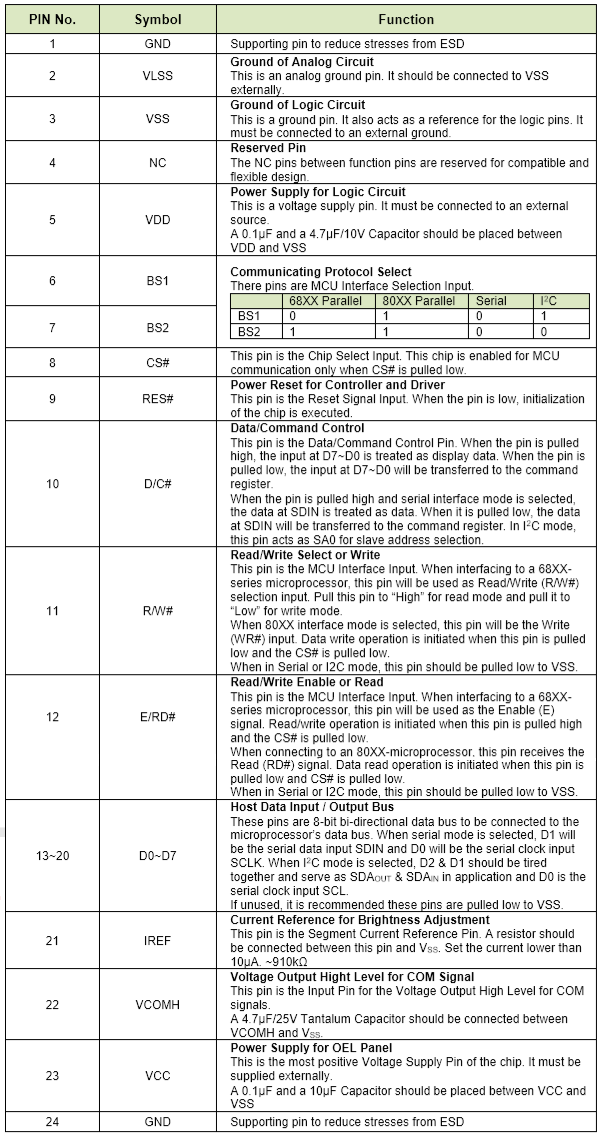

Pin Table

Additional Options

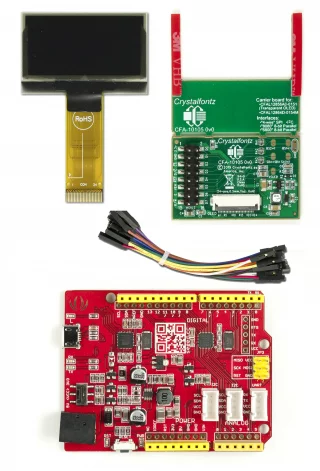

Buy this OLED display in a development kit and save some time!

1.54 Inch White OLED Development Kit
Part Number: CFAL12864D-0154M-W-E1-2

Details

Quantity	1
Unit Price	$49.83

Quantity:

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAL12864D-0154M-W
