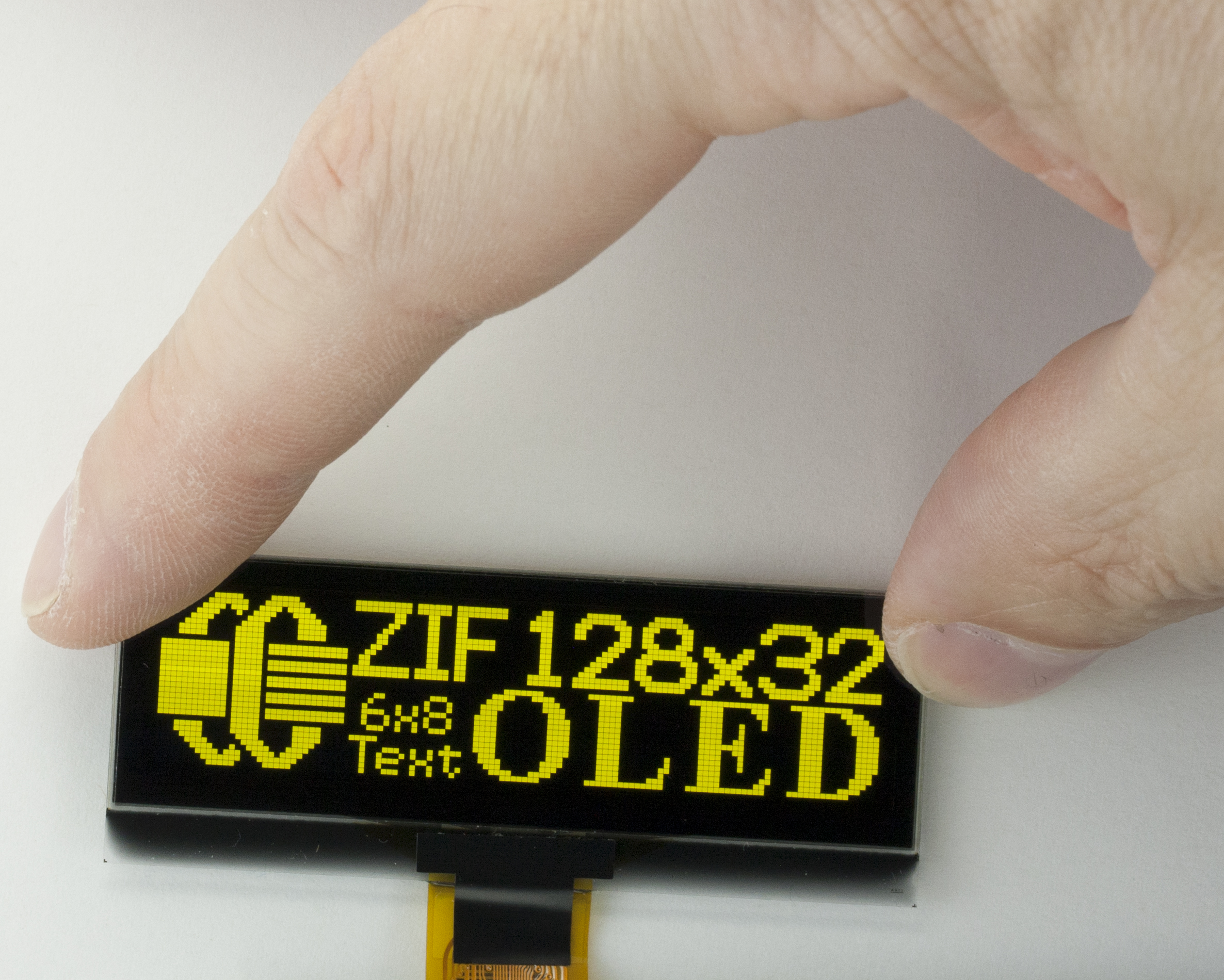

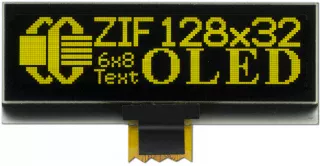

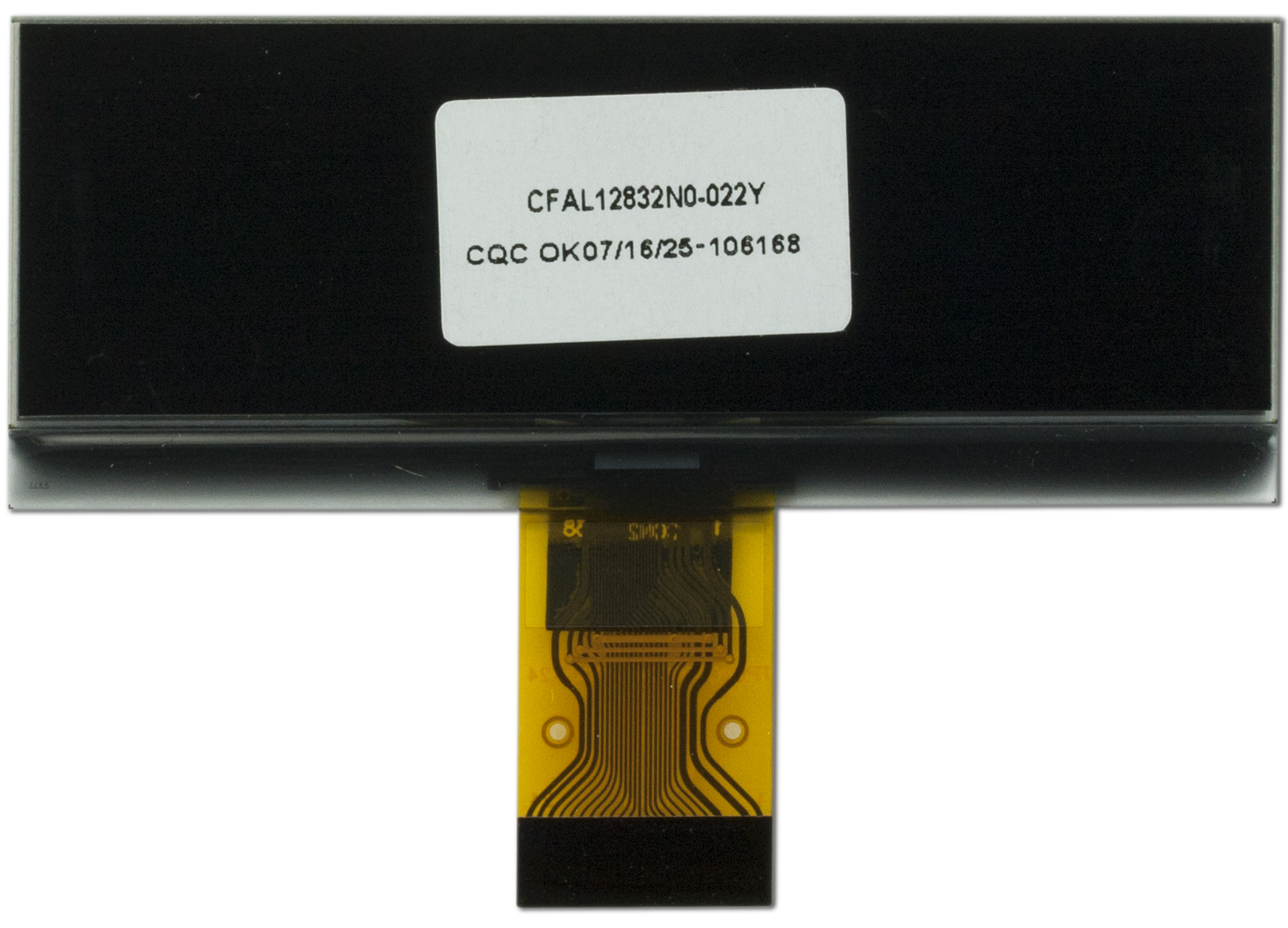

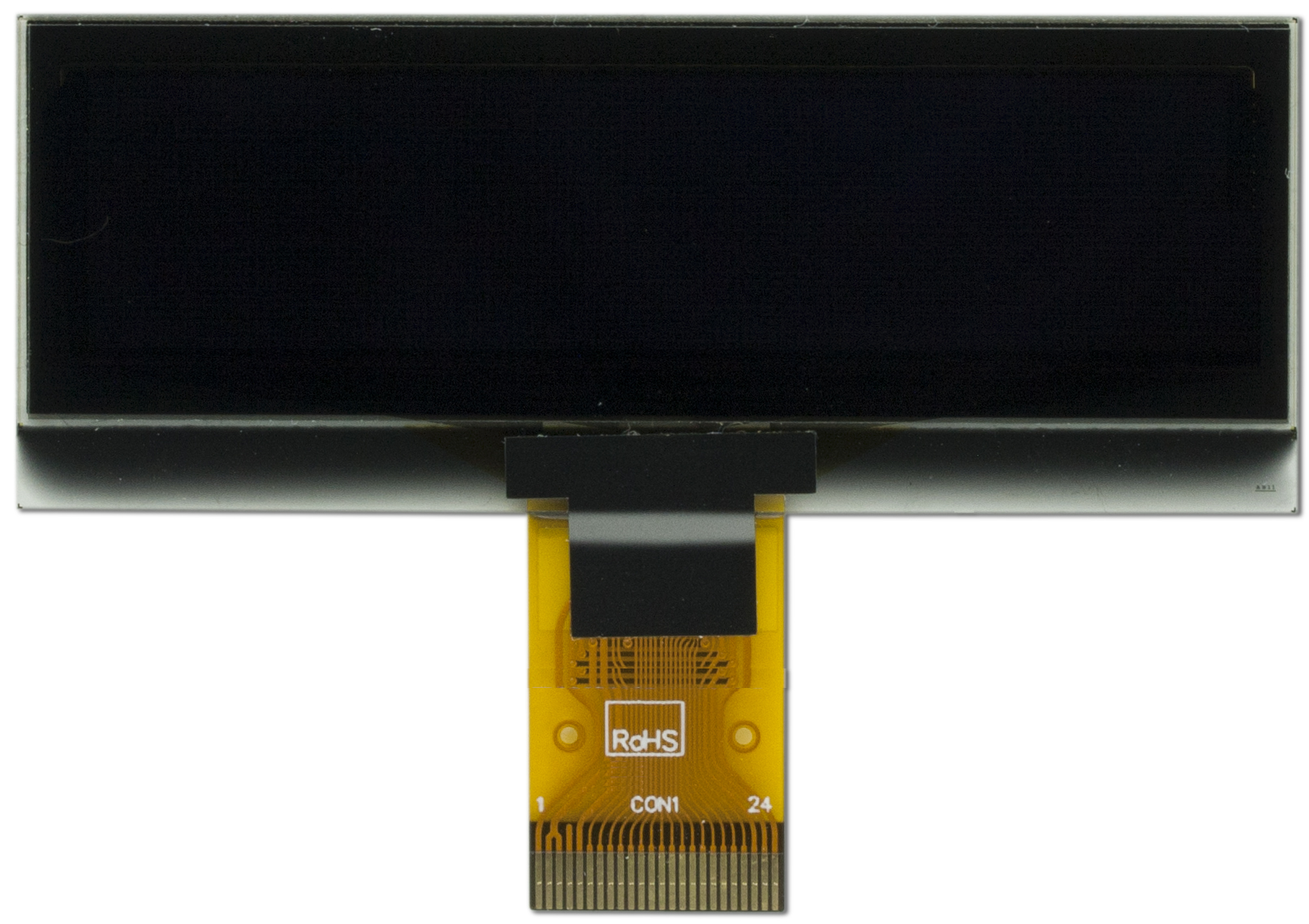

128x32 Yellow Monochrome OLED with Ultra-Thin Design

Part Number: CFAL12832N0-022Y

The CFAL12832N0-022Y is a compact yellow monochrome OLED graphic display module. This ultra-thin, lightweight display utilizes chip-on-glass (COG) technology and delivers exceptional contrast and wide viewing angles, making it ideal for applications requiring clear, bright visibility in various lighting conditions.

Key Features

• Resolution: 128 x 32 pixels
• Display Color: Yellow
• Active Area: 55.016mm x 13.096mm (2.2" x 0.5")
• Module Dimensions: 62.0mm x 24.0mm x 2.17mm (2.4" x 0.9" x 0.09")
• Built-in Controller: Sino Wealth SH1106 (or equivalent)
• Multiple Interface Options: 6800, 8080, 4-Wire SPI, I²C
• Supply Voltage: +3V logic (VDD), 12V display (VPP)
• Exceptional Contrast Ratio: 10,000:1
• Ultra-Fast Response Time: 10µs
• Wide Viewing Angle: 160° both horizontal and vertical
• Brightness: 100-150 cd/m² (typical)
• Operating Temperature Range: -40°C to +80°C
• Long Operating Lifetime: 50,000 hours (typical)

Display Characteristics

This OLED module features self-emissive pixel technology, eliminating the need for a backlight and providing superior contrast compared to traditional LCD displays. The yellow emission provides excellent readability and is particularly effective for status indicators, instrumentation, and industrial applications.

The display offers:

• True Black Pixels: Exceptional contrast with completely dark "off" pixels
• No Backlight Required: Lower power consumption and simpler design
• Polarized Design: 1/32 duty cycle for smooth, flicker-free operation
• Volatile Memory: Display data requires continuous power

This flexibility allows easy integration with a wide variety of microcontrollers and development platforms.

Applications

The CFAL12832N0-022Y is ideal for:

• Industrial instrumentation and control panels
• Medical device status displays
• Consumer electronics
• Automotive dashboard indicators
• Test and measurement equipment
• Portable devices
• Status and notification displays
• IoT and embedded systems

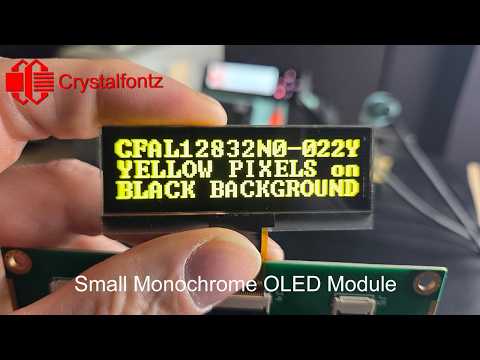

Arduino Compatible! Check out the demo sketch in the files section.

Design Considerations

Power Management: The VPP voltage can be adjusted to control display brightness. Lower VPP values reduce brightness and power consumption while extending OLED lifetime.

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  128 x 32

  Module Overall	width	height	depth
  millimeters	62	24	2.17
  inches	2.44	0.95	0.09
  *width / height does not include Foldable Tab

  Diagonal Dimension

  2.23"

  Viewing Area	Width	Height
  millimeters	57.02	15.1
  inches	2.25	0.59

  Active Area	Width	Height
  millimeters	55.016	13.096
  inches	2.17	0.52

  Dot Size	Width	Height
  millimeters	0.406	0.386
  inches	0.0160	0.0152

  Dot Pitch	Width	Height
  millimeters	0.43	0.41
  inches	0.017	0.016

  Optional Connectors

  CS050Z24G-A0

  Weight	6g
  Pin Count	24

• visibility Optical Characteristics

  Optical Characteristics

  Glass Color	Dark
  View Angle	160°
  Sunlight Readable	Yes

  Foreground Color	Yellow
  Background Color	Black

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	1.65V
  Supply Voltage for Logic Maximum	3.3V
  Supply Voltage for Logic Typical	3V
  Supply Voltage for Driving Panel Typical	12V

  Supply Current Maximum	13.5mA
  Supply Current Typical	9mA
  Module Connector Pitch	0.5mm

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-40°	80°
  Fahrenheit	-40°	176°

  Storage Temperatures	min	max
  Celsius	-40°	85°
  Fahrenheit	-40°	185°

• cable Electronics

  Electronics

  Controller Documents	Sino Wealth SH1106 132 X 64 Dot Matrix OLED/PLED Segment/Common Driver with Controller
  Interface	8-bit Parallel, SPI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAL12832N0-022Y Datasheet




• download Files and Downloads
  link Demo Code Download on Github


  link Demo Code Repository on Github

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
