Small Blue Graphic OLED With ZIF - 128x32 from Crystalfontz

Product

Home » Products » OLED Displays » Graphic » Resolution » 128x64

            This display is no longer available, please choose from another color.

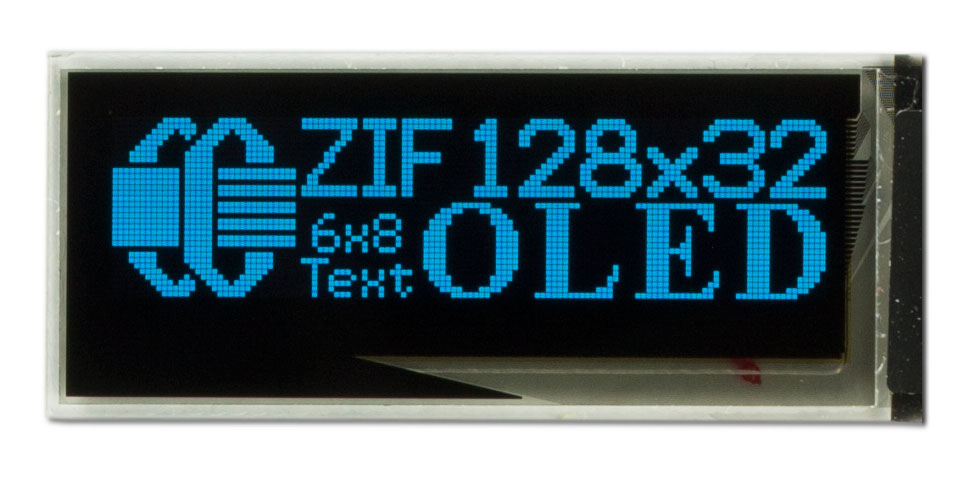

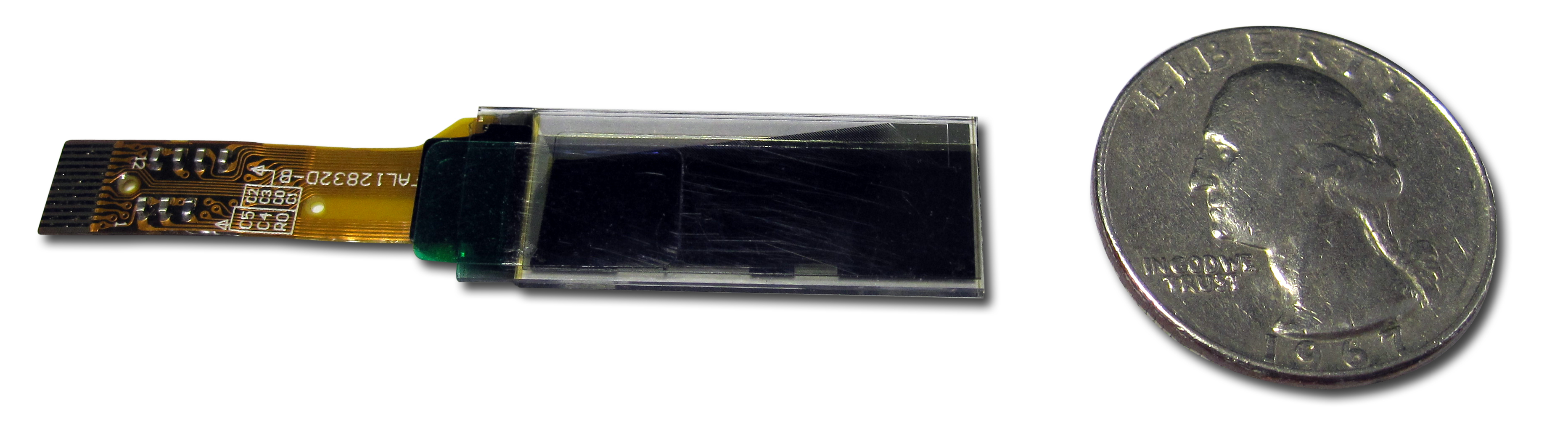

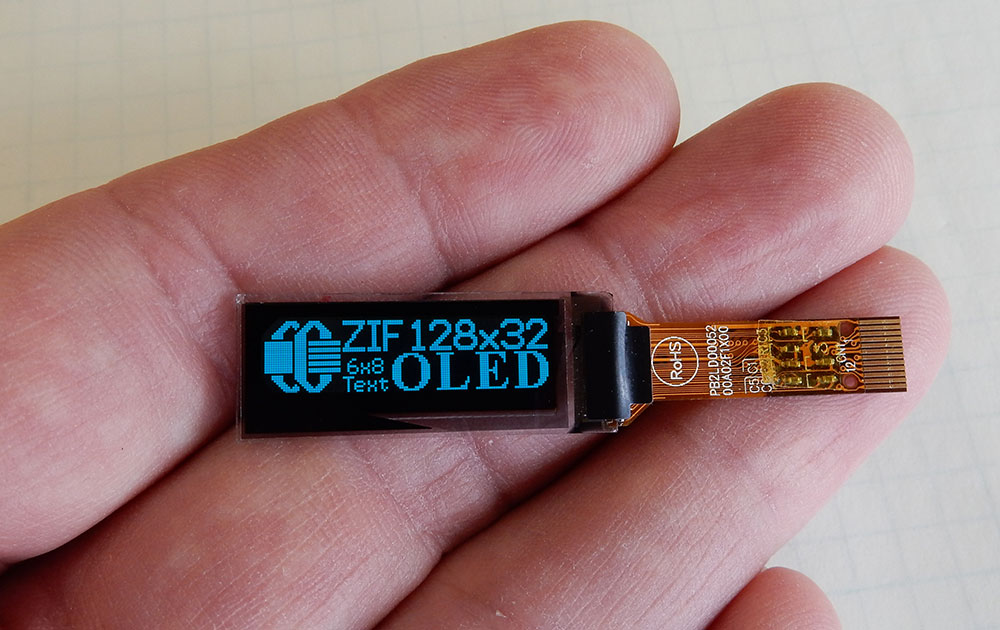

Small Blue Graphic OLED With ZIF - 128x32Part Number: CFAL12832D-BBThis blue-on-black OLED is perfect for display panels that have little space and need a high resolution 128x32 graphic display. With a 24.38mm x 7.58mm viewing area, this is one of the smallest OLEDs available.
Thin form factor! 1.45mm
Solomon Systech SSD1306 or compatible controller communicates with I2C, 3-wire SPI, or 4-wire SPI
Only 3.3v

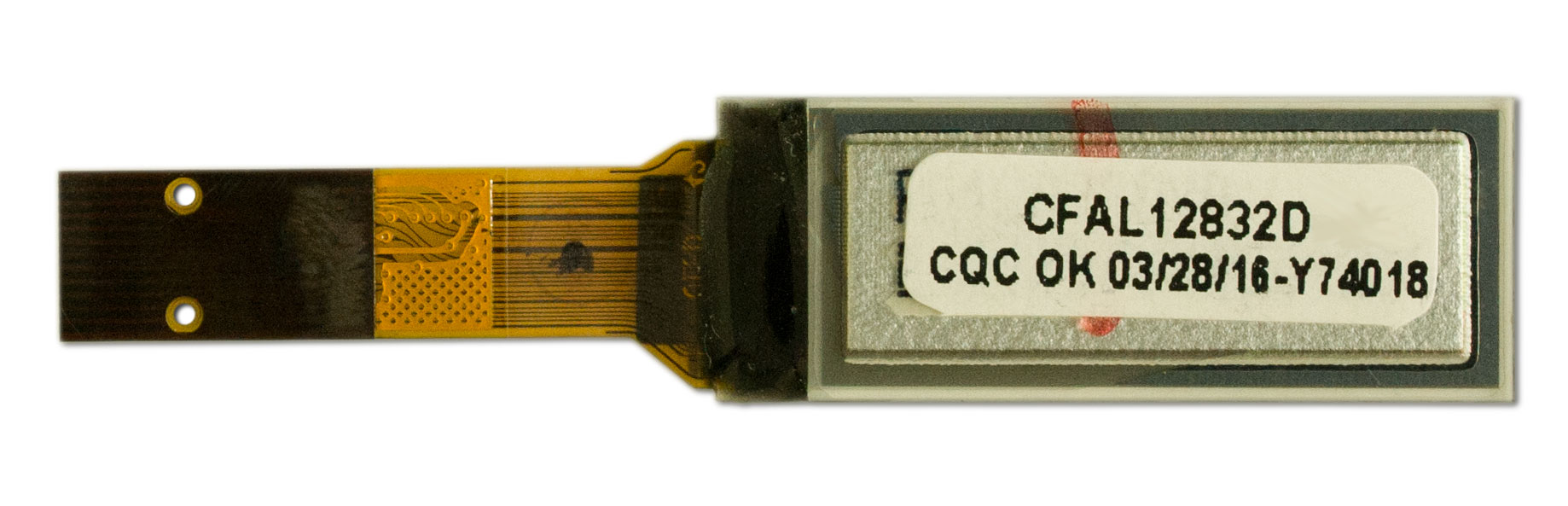

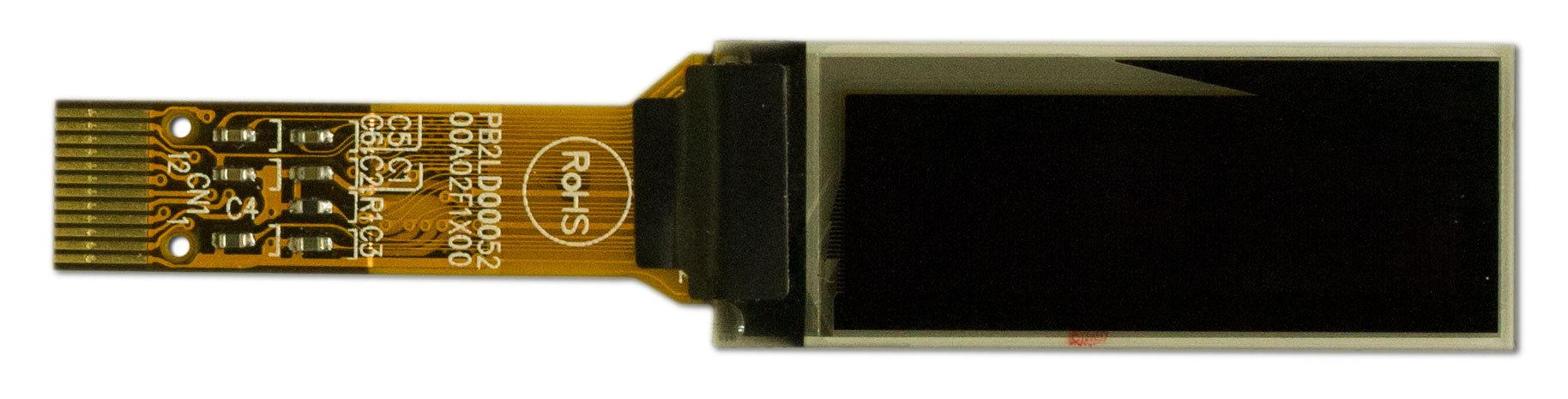

Easy ZIF connection. The FPC mates with a 12-pin ZIF connector which can be processed through your normal SMT reflow.
The Solomon Systech SSD1306 controller needs only a single 3.3v supply for power and logic levels for communication, making it a top choice in low power or battery powered applications. The 3 wire / 4 wire SPI or I2C serial interfaces require only 12 lines. Coupled with a ZIF connection (0.50mm pitch), connecting this module to your host device is a simple task.
Do you need a carrier board to speed up your development? We have the CFA10054 OLED carrier board for this display.
This little blue OLED has the same connector as these other small OLED displays: 64x48 Small Graphic OLED and Small 48x64 .71inch OLED Display.
Product Variations

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 32

    Module Overall        width
        height
        depth

        millimeters
        30
        11.5
        1.45

        inches
        1.18
        0.45
        0.06

*width / height does not include Foldable Tab

        Diagonal Dimension
            0.91"

    Viewing Area        Width
        Height

        millimeters
        24.38
        7.58

        inches
        0.96
        0.30

    Active Area        Width
        Height

        millimeters
        22.38
        5.58

        inches
        0.88
        0.22

    Dot Size        Width
        Height

        millimeters
        0.152
        0.152

        inches
        0.0060
        0.0060

    Dot Pitch        Width
        Height

        millimeters
        0.175
        0.175

        inches
        0.0069
        0.0069

    Flexible Cable (FFC/FPC)        length

        millimeters
        24.99

        inches
        0.984

        Weight
            1.3g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive
View Angle
            >160°

        Foreground Color
            Blue
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.8V
Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Logic Typical
            3.3V

        Supply Current Maximum
            16mA
Supply Current Typical
            13mA
Module Connector Pitch
            0.5mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Storage Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1306
SSD1306 128 x 64 Dot Matrix

OLED/PLED Segment/Common Driver with Controller
Interface
            I2C, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAL12832DBB Datasheet

 download Files and Downloads
folder_zip Software Source - Seeeduino v4.2 (3.3v Arduino) SPI/ I2C Sketch
folder_zip Software Source - ATMega2561 Demo Code for all interfaces
folder_zip CAD Export - CFAL12832D-B Series 2D CAD
picture_as_pdf 1 to 1 Template - CFAL12832D-B* Series 1 to 1 Module Outline
picture_as_pdf Other Document - CFAL12832D-B Pin out to Interface table

Module Overall	width	height	depth
millimeters	30	11.5	1.45
inches	1.18	0.45	0.06
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	24.38	7.58
inches	0.96	0.30

Active Area	Width	Height
millimeters	22.38	5.58
inches	0.88	0.22

Dot Size	Width	Height
millimeters	0.152	0.152
inches	0.0060	0.0060

Dot Pitch	Width	Height
millimeters	0.175	0.175
inches	0.0069	0.0069

Flexible Cable (FFC/FPC)	length
millimeters	24.99
inches	0.984

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Humidity	min	max
Non-condensing	0%	90%

Additional Options
Notices

Additional Options

In addition to the blue-on-black OLED above, the CFAL12832D-B* series includes the two variants shown below.

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11046: End-of-Life Notification

Product Affected:	CFAL12832D-BB
Date Issued:	May 29, 2019
Summary:	End-of-Life Notification
Description:	This part is being set to End of Life Status
Reason:	The chemistry for the Sky Blue colored cells is no longer available
Impact:	This part will not be available once current stocks are depleted
Recommendation:	Crystalfontz recommends the Yellow or White versions of this display. We have sufficient supplies of both colors.

Part Change Notice #11020: Part Change Notification

Products Affected:	CFAL12832D-B, CFAL12832D-CW, CFAL12832D-CY, CFAL12832D-PW, CFAL12832D-PY, CFAL12832D-BY, CFAL12832D-BB
Date Issued:	November 1, 2018
Summary:	Part Change Notification
Description:	The parts listed are being replaced by new part numbers.
Reason:	The glass used in these displays is being replaced by thinner more efficient glass.
Impact:	The part numbers listed will be replaced by new part numbers. The operation of the displays will not change. The overall thickness of each of the displays will decrease by 0.05mm. The part number changes are: CFAL12832D-CW - CFAL12832B-0091C-W CFAL12832D-PY - CFAL12832B-0091P-Y CFAL12832D-PW - CFAL12832B-0091P-W CFAL12832D-B - CFAL12832B-0091B-W CFAL12832D-BB - CFAL12832B-0091B-B CFAL12832D-BY - CFAL12832B-0091B-Y CFAL12832D-CY - EOL
Recommendation:	Users are recommended to verify that the change in the thickness dimension will not affect the installation of the displays.
Availability:	The new parts will be available when current stock is depleted.

Product Update #10695: (New Product) CFAL12832D-BB

New Product:	CFAL12832D-BB
Date Issued:	April 29, 2016
Summary:	(New Product) CFAL12832D-BB
Description:	OLED Modules: 0.91" diagonal 128x32 blue-on-black OLED graphic display, Solomon Systech SSD1306 controller, 3.3v, SPI or I2C, easy 12-pin ZIF connection.
