                In order to keep this display in production over the long term, we revised it to the CFAH4004A1-TMI-JT. Please contact support with any questions.

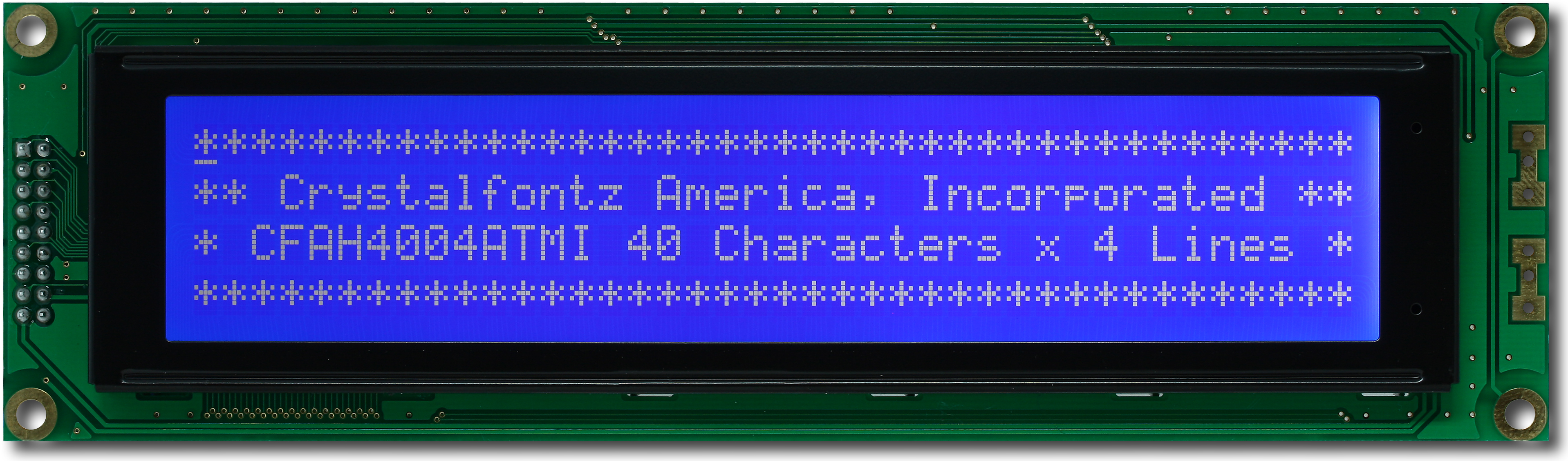

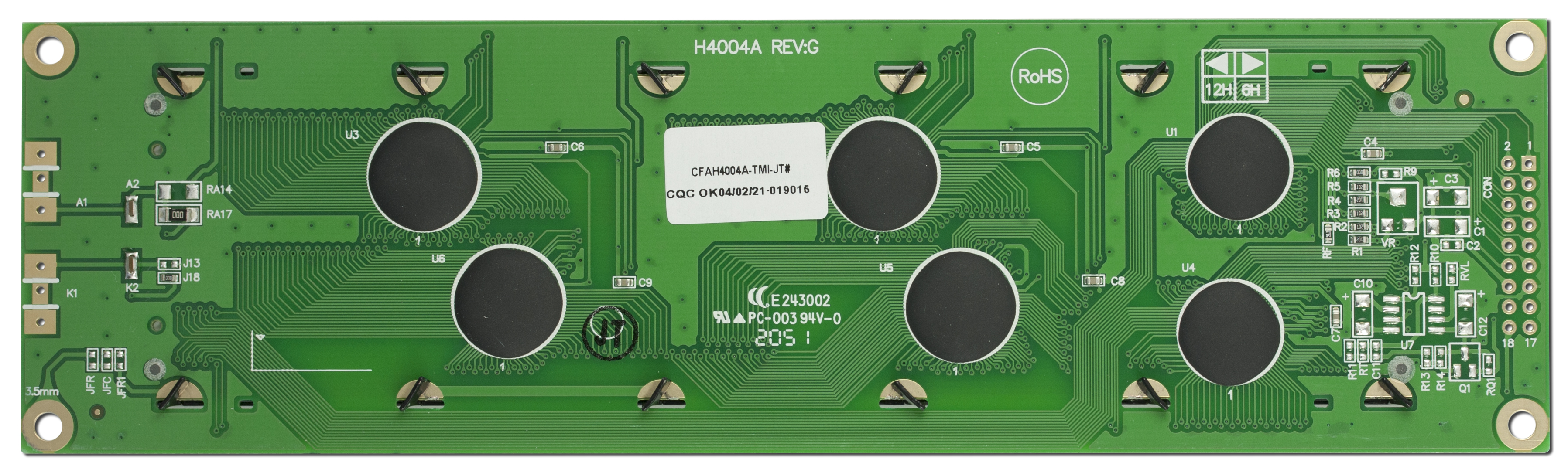

White on Blue 40x4 Character LCDPart Number: CFAH4004A-TMI-JTParallel Character LCD 40x4, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00
Available in several variations of backlight and polarizer  (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
Product VariationsColorsWhite on Blue
White LED BacklightDark on Yellow-Green
Yellow-Green LED BacklightDark on Light Gray
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            40 x 4


    Module Overall        width
        height
        depth


        millimeters
        190
        54
        13.6


        inches
        7.48
        2.13
        0.54



    PCB Outline        width
        height
        depth


        millimeters
        190
        54
        13.6


        inches
        7.48
        2.13
        0.54



        Diagonal Dimension
            5.6"


    Viewing Area        Width
        Height


        millimeters
        147
        29.5


        inches
        5.79
        1.16



    Active Area        Width
        Height


        millimeters
        140.45
        23.16


        inches
        5.53
        0.91



    Character Size        Width
        Height


        millimeters
        2.78
        4.89


        inches
        0.109
        0.193



    Character Pitch        Width
        Height


        millimeters
        3.53
        6.09


        inches
        0.139
        0.240



    Dot Size        Width
        Height


        millimeters
        0.5
        0.55


        inches
        0.020
        0.022



    Dot Pitch        Width
        Height


        millimeters
        0.57
        0.62


        inches
        0.022
        0.024



        Weight
            126g
Pin Count
            18

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            4.35V


        Supply Current Minimum
            1.8mA
Supply Current Maximum
            7mA
Supply Current Typical
            3.5mA
Module Connector Pitch
            2.54mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            20mA
Forward Current Maximum
            80mA
Forward Current Typical
            64mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH4004ATMIJT Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAH4004A 2D CAD
picture_as_pdf 1 to 1 Template - CFAH4004A 1 TO 1 Lf Side.pdf
picture_as_pdf 1 to 1 Template - CFAH4004A 1 TO 1 Rt Side.pdf













Other components worth considering


						72 Pin Header
Add (5) 72-pin headers?  $0.66 ea.





Colors	White on Blue White LED Backlight Dark on Yellow-Green Yellow-Green LED Backlight Dark on Light Gray White LED Backlight

Module Overall	width	height	depth
millimeters	190	54	13.6
inches	7.48	2.13	0.54

PCB Outline	width	height	depth
millimeters	190	54	13.6
inches	7.48	2.13	0.54

Viewing Area	Width	Height
millimeters	147	29.5
inches	5.79	1.16

Active Area	Width	Height
millimeters	140.45	23.16
inches	5.53	0.91

Character Size	Width	Height
millimeters	2.78	4.89
inches	0.109	0.193

Character Pitch	Width	Height
millimeters	3.53	6.09
inches	0.139	0.240

Dot Size	Width	Height
millimeters	0.5	0.55
inches	0.020	0.022

Dot Pitch	Width	Height
millimeters	0.57	0.62
inches	0.022	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11170: End-of-Life Notification

Products Affected:	CFAH4004A-YYH-JT, CFAH4004A-TFH-JT, CFAH4004A-TMI-JT
Date Issued:	January 23, 2023
Summary:	End-of-Life Notification
Description:	The bezel used on these displays is being modified to improve manufacturability. The part numbers are being updated to reflect this change. The replacement part numbers are listed below. CFAH4004A-YYH-JT -> CFAH4004A1-YYH-JT CFAH4004A-TMI-JT -> CFAH4004A1-TMI-JT CFAH4004A-TFH-JT -> CFAH4004A1-TFH-JT There is a limited inventory of the old part available. Contact sales@crystalfontz.com for the latest inventory levels.
Reason:	Manufacturability improvement.
Availability:	Contact Crystalfontz Support for up-to-date information on the replacement parts by emailing support@crystalfontz.com.

Part Change Notice #11034: The Printed Circuit Boards of the parts listed are being revised as part of our continuing product improvement process.

Products Affected:	CFAH4004A-YYH-JT, CFAH4004A-TFH-JT, CFAH4004A-TMI-JT
Date Issued:	January 29, 2019
Summary:	The Printed Circuit Boards of the parts listed are being revised as part of our continuing product improvement process.
Description:	The layout of the circuit board is being changed to improve manufacturability. At the same time, the Temperature Compensation circuit will be improved.
Impact:	There should be no impact to the customer. The form, fit, and function of the modules will remain the same.
Recommendation:	Customers who wish to test the modules with the revised PCBs should contact Sales to obtain samples.
Availability:	The modules with the revised PCBs will be available as current stocks are replaced.
