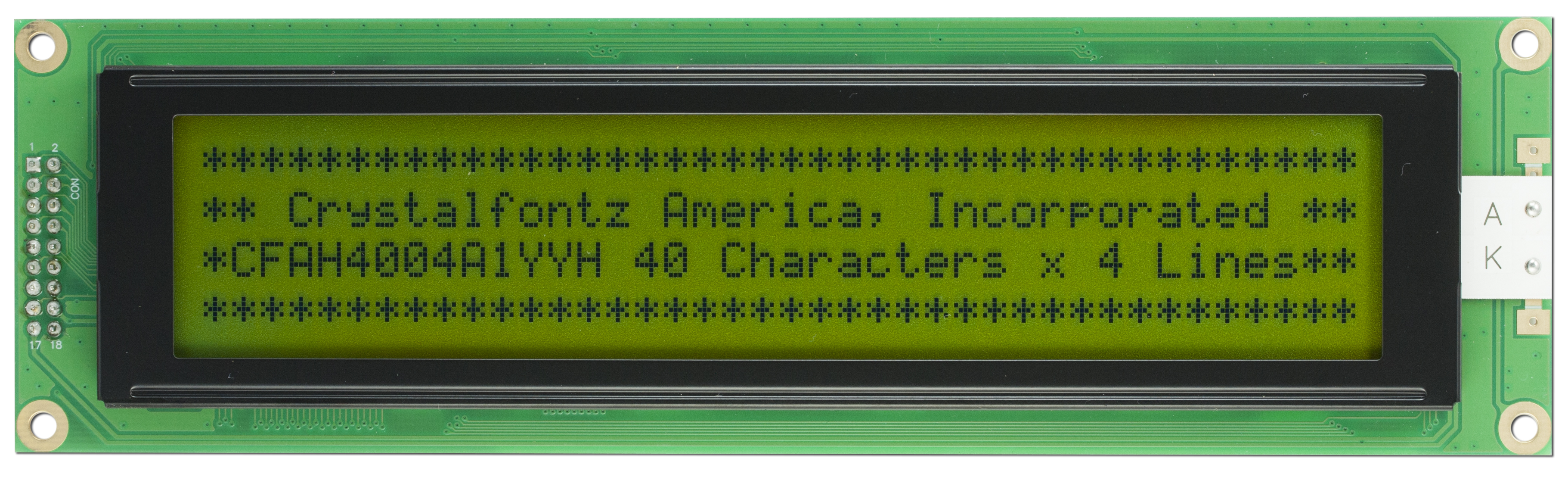

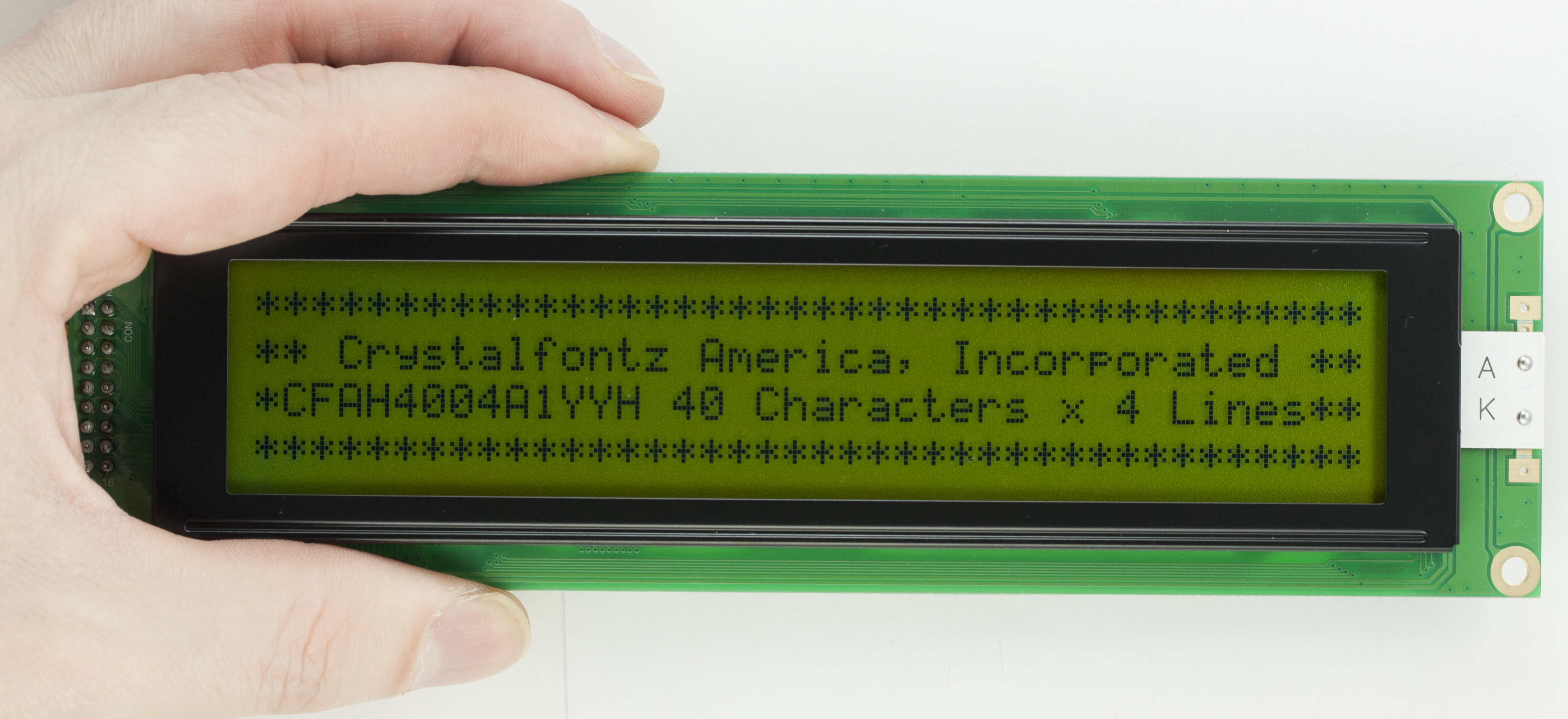

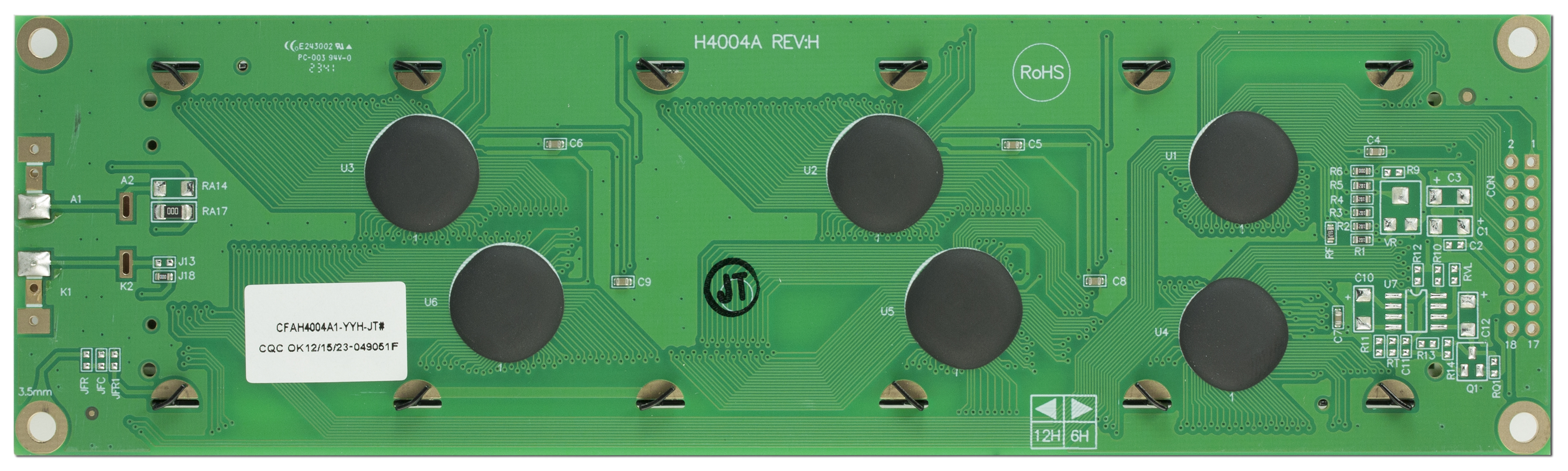

40x4 Sunlight Readable Character LCD DisplayPart Number: CFAH4004A1-YYH-JT

                        This yellow-green 40-character by 4-row display is a great choice for quickly integrating a display that can convey a lot of information.



Thanks to the transflective polarizer, this display is sunlight readable..

Available in several variations of backlight and polarizer (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller

Part Number:
CFA - Crystalfontz America
H- Character display
4004 - 40x4
A1 - Family and Revision (replaces CFAH4004A-YYH-JT)
Y - Yellow LED Backlight
Y - STN Positive, Yellow Green
H -  Transflective, 6:00 viewing direction,  -20°C to +70°C operating temperatures
JT - English and Japanese Character Font Table
Product VariationsColorsWhite on Blue
White LED BacklightDark on Yellow-Green
Yellow-Green LED BacklightDark on Light Gray
White LED Backlight

 square_foot Physical Characteristics

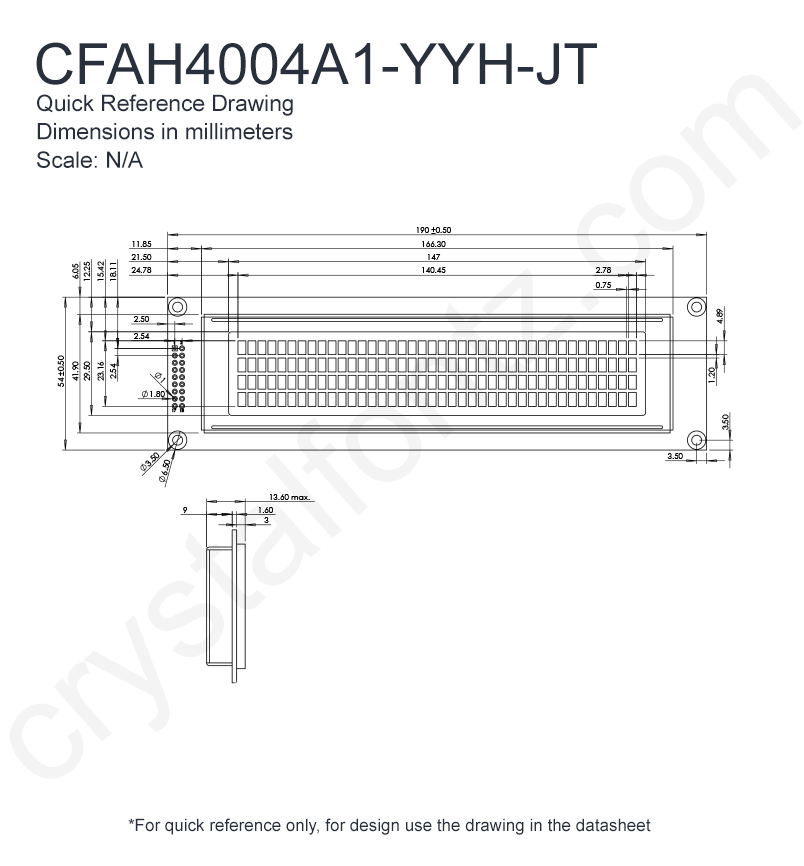

Physical Characteristics

        Characters x Lines
            40 x 4


    Module Overall        width
        height
        depth


        millimeters
        190
        54
        13.6


        inches
        7.48
        2.13
        0.54



    Viewing Area        Width
        Height


        millimeters
        147
        29.5


        inches
        5.79
        1.16



    Active Area        Width
        Height


        millimeters
        140.45
        23.16


        inches
        5.53
        0.91



    Character Size        Width
        Height


        millimeters
        2.78
        4.89


        inches
        0.109
        0.193



    Character Pitch        Width
        Height


        millimeters
        3.53
        6.09


        inches
        0.139
        0.240



    Dot Size        Width
        Height


        millimeters
        .50
        .55


        inches
        0.020
        0.022



    Dot Pitch        Width
        Height


        millimeters
        .57
        .62


        inches
        0.022
        0.024



        Weight
            130g
Pin Count
            18

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
View Angle
            40°
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            4.35V


        Supply Current Minimum
            1.8mA
Supply Current Maximum
            7mA
Supply Current Typical
            3.5mA
Module Connector Pitch
            2.54mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.85V
Forward Voltage Maximum
            4.35V
Forward Voltage Typical
            4.2V


        Forward Current Minimum
            300mA
Forward Current Maximum
            720mA
Forward Current Typical
            600mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAH4004A1-YYH-JT Datasheet

download Files and Downloads
folder_zip Hardware Design - 3D Model
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH












Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $38.82

            10
            $34.20

            20
            $33.19

            50 *
            $31.98

            100 *
            $31.58

            200 *
            $31.38

            300 *
            $29.61

            500 *
            $29.42

            1000 *
            $27.88

48 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering


						72 Pin Header
Add (5) 72 Pin Headers?  $0.66 ea.






						8x2 Pin Dual Row Header
Add (5) 8x2 Pin Dual Row Headers? $0.28 ea.






						LCD Starter Kit with Potentiometer
Add an LCD Starter Kit? $11.06 ea.





Colors	White on Blue White LED Backlight Dark on Yellow-Green Yellow-Green LED Backlight Dark on Light Gray White LED Backlight

Module Overall	width	height	depth
millimeters	190	54	13.6
inches	7.48	2.13	0.54

Viewing Area	Width	Height
millimeters	147	29.5
inches	5.79	1.16

Active Area	Width	Height
millimeters	140.45	23.16
inches	5.53	0.91

Character Size	Width	Height
millimeters	2.78	4.89
inches	0.109	0.193

Character Pitch	Width	Height
millimeters	3.53	6.09
inches	0.139	0.240

Dot Size	Width	Height
millimeters	.50	.55
inches	0.020	0.022

Dot Pitch	Width	Height
millimeters	.57	.62
inches	0.022	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$38.82
10	$34.20
20	$33.19
50 *	$31.98
100 *	$31.58
200 *	$31.38
300 *	$29.61
500 *	$29.42
1000 *	$27.88

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11255: 40x4 Sunlight Readable Character LCD Display is now available

New Product:	CFAH4004A1-YYH-JT
Date Issued:	February 12, 2024
Summary:	40x4 Sunlight Readable Character LCD Display is now available
Description:	CFAH4004A1-YYH-JT has been released on our website (https://www.crystalfontz.com/product/cfah4004a1yyhjt-40x4-transflective-character-display) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
