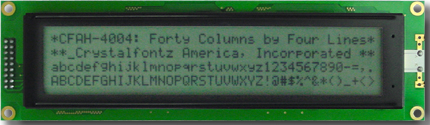

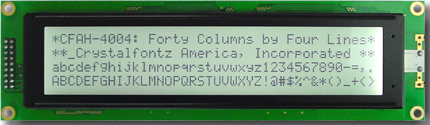

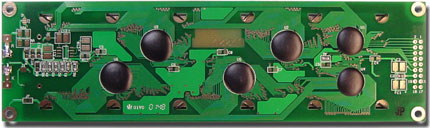

EOL 40x4 Parallel Character LCD

Part Number: CFAH4004A-TFH-JP

Parallel Character LCD 40x4, RoHS Compliant, White Edge LED Backlight, FSTN Positive, Transflective -20°C to +70°C 6:00

• Available in several variations of backlight and polarizer (minimum order may be required)
• 8-bit or 4-bit parallel interface
• Industry-standard HD44780 compatible controller

• square_foot Physical Characteristics

  Physical Characteristics

  Characters x Lines

  40 x 4

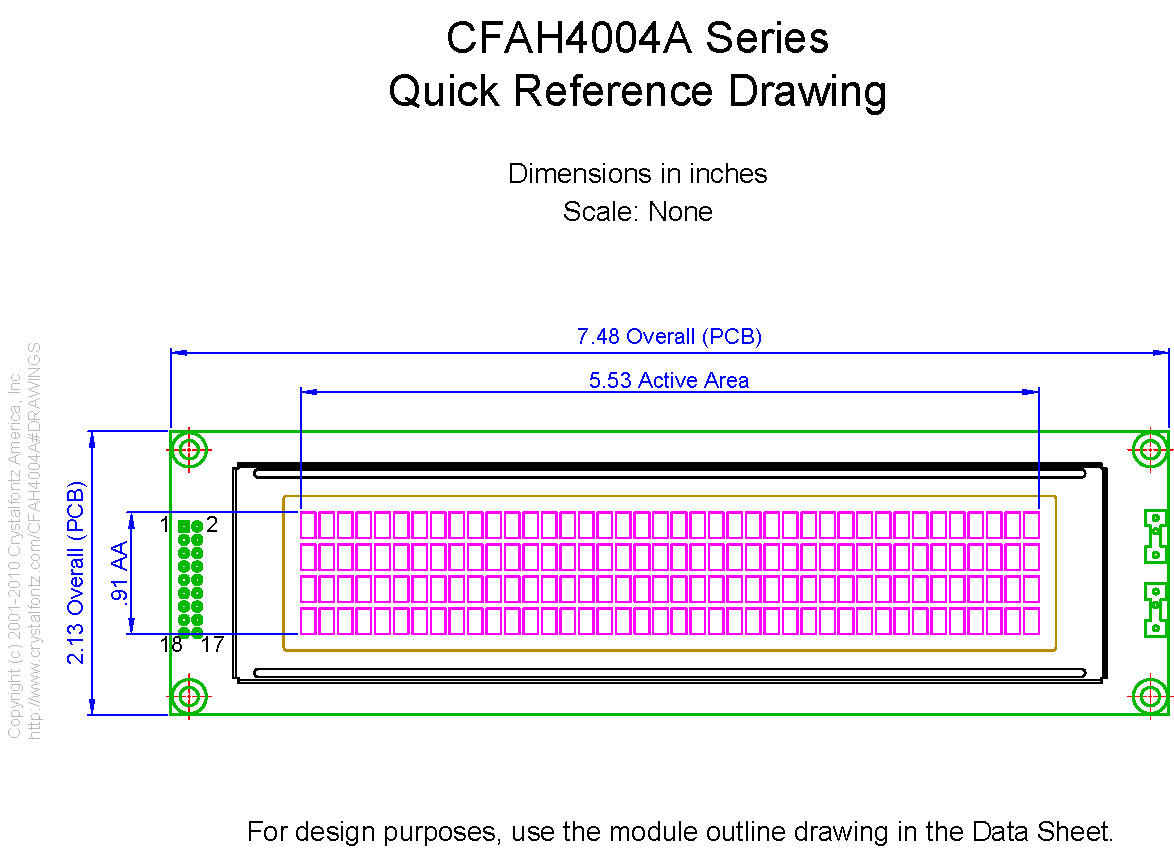

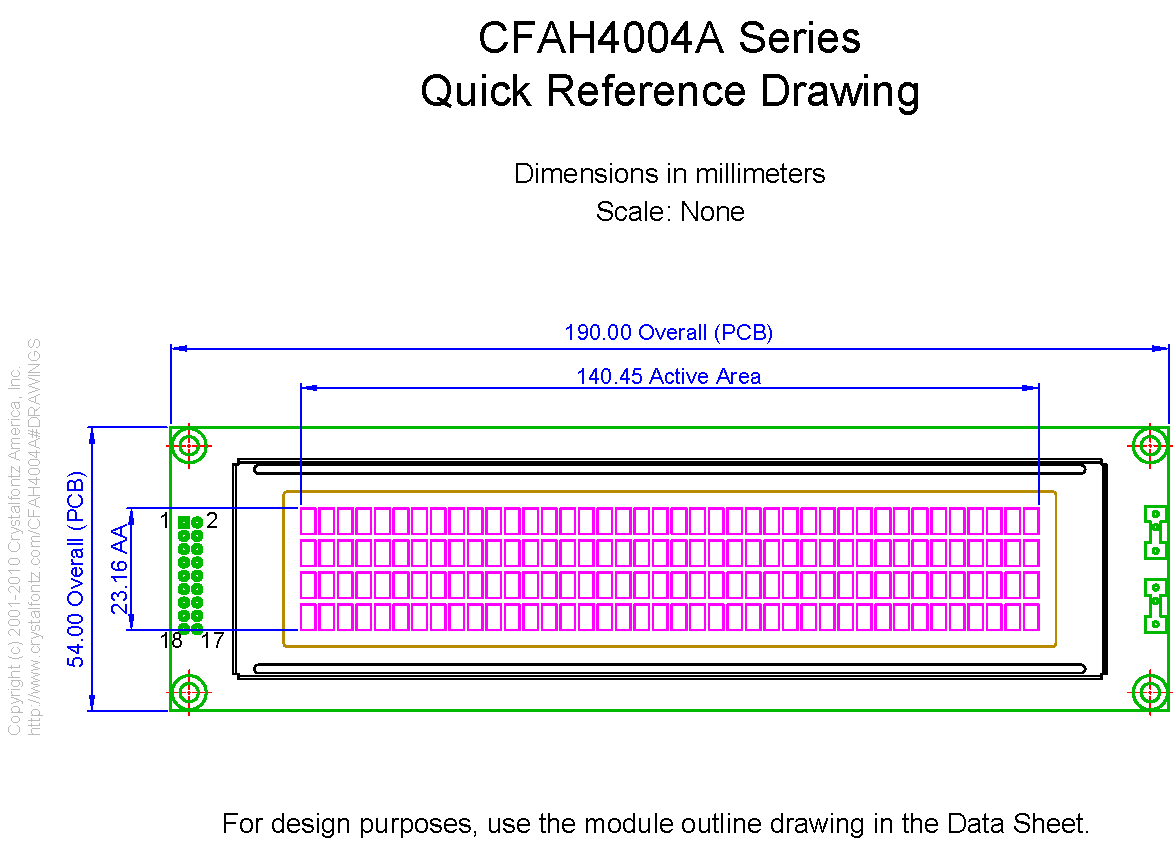

  Module Overall	width	height	depth
  millimeters	190	54	13.6
  inches	7.48	2.13	0.54

  PCB Outline	width	height	depth
  millimeters	190	54	13.6
  inches	7.48	2.13	0.54

  Viewing Area	Width	Height
  millimeters	147	29.5
  inches	5.79	1.16

  Active Area	Width	Height
  millimeters	140.45	23.16
  inches	5.53	0.91

  Character Size	Width	Height
  millimeters	2.78	4.89
  inches	0.109	0.193

  Character Pitch	Width	Height
  millimeters	3.53	6.09
  inches	0.139	0.240

  Dot Size	Width	Height
  millimeters	0.5	0.55
  inches	0.020	0.022

  Dot Pitch	Width	Height
  millimeters	0.57	0.62
  inches	0.022	0.024

  Weight

  126g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	FSTN/Light Gray
  Polarizer	Transflective
  View Direction	6 o'clock
  Sunlight Readable	Yes

  Backlight Color	White
  Backlight Type	LED
  Mode	Positive
  Foreground Color	Dark
  Background Color	White

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Hitachi HD44780 1985: HD44780 Historical Data Sheet
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAH4004ATFHJP.pdf




• download Files and Downloads
  folder_zip CAD Export - CFAH4004A 2D CAD


  picture_as_pdf 1 to 1 Template - CFAH4004A 1 TO 1 Lf Side.pdf


  picture_as_pdf 1 to 1 Template - CFAH4004A 1 TO 1 Rt Side.pdf
