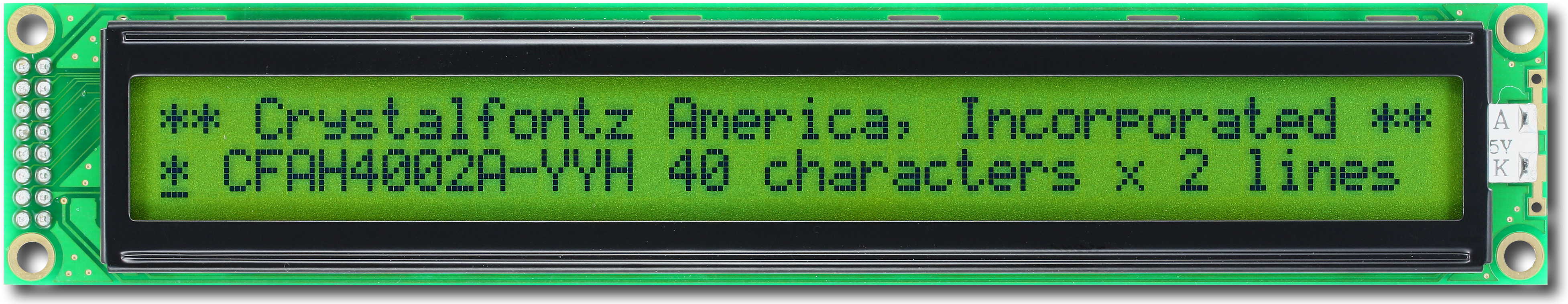

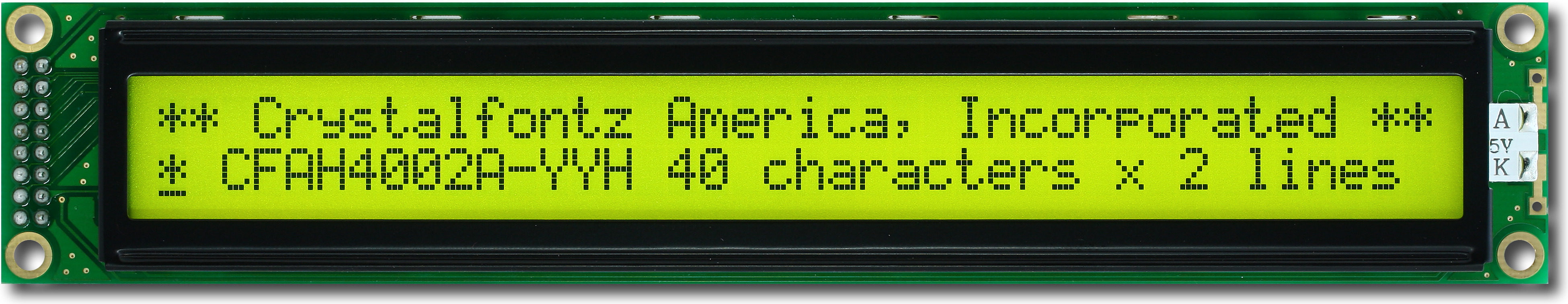

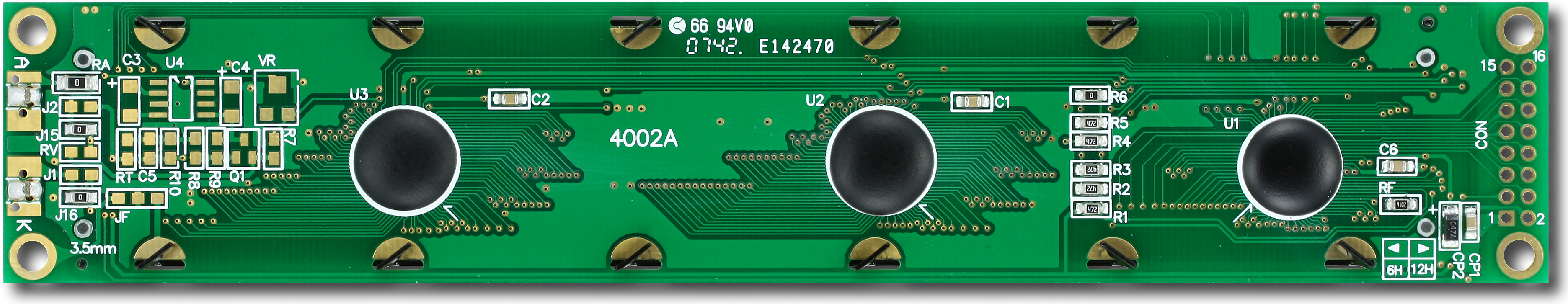

Yellow 40x2 Character Standard LCD

Part Number: CFAH4002A-YYH-JT

Standard 40x2 Character LCD – Dark On Yellow-Green

If you need to display a lot of information on your device, this extra wide LCD will do the job with an active area of 5.8-inches (147.50 millimeters). Like all transflective displays, the 5x8 character matrix on this 40 x 2 LCD screen can be read in direct sunlight, is good for typical office lighting, and is easy to read in dark locations. One of our customers bought a display in the CFAH4002A series to use in an environmental control system for irrigation management.

Key Features

• 2 lines with 40 characters each, industry standard 40x2 form factor
• The built-in alphanumeric set supports Japanese and English text
• Built-in Sitronix ST7066U or compatible controller.
• Sunlight readable
• Adjust backlight contrast by using PWM (Pulse Width Modulation)

As with other standard character displays, the parallel interface communicates with your host using 4-bit or 8-bit mode. The built-in Sitronix ST7066U controller is compatible with the industry standard Hitachi HD44780 controller. Software written for the HD44780 should work without any changes. For controller details, see the Sitronix ST7066U datasheet on our website.

Our goal is to keep every product available as long as possible. We've sold the CFAH4002A series since 2008 and it is still going strong. The yellow-green LED backlight on this STN (Super-Twisted Neumatic) display module is rated to operate continuously for up to 17 years! A simple current limiting resistor in line with the voltage source works well in most applications. The yellow-green LEDs do not demand a current source, although one may be used. For details, see the backlight section starting on page 22 of the datasheet.

Need more information? Our in-house Technical Support team will answer your interface and connection questions.

• square_foot Physical Characteristics

  Physical Characteristics

  Characters x Lines

  40 x 2

  Module Overall	width	height	depth
  millimeters	182	33.5	13.6
  inches	7.17	1.32	0.54

  PCB Outline	width	height	depth
  millimeters	182	33.5	13.6
  inches	7.17	1.32	0.54

  Diagonal Dimension

  5.82"

  Viewing Area	Width	Height
  millimeters	154.4	16.5
  inches	6.08	0.65

  Active Area	Width	Height
  millimeters	147.5	11.5
  inches	5.81	0.45

  Character Size	Width	Height
  millimeters	3.2	5.55
  inches	0.126	0.219

  Character Pitch	Width	Height
  millimeters	3.7	5.95
  inches	0.146	0.234

  Dot Size	Width	Height
  millimeters	0.6	0.65
  inches	0.024	0.026

  Dot Pitch	Width	Height
  millimeters	0.65	0.7
  inches	0.026	0.028

  Weight	92g
  Pin Count	16

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	STN/Yellow-Green
  Polarizer	Transflective
  View Direction	6 o'clock
  Sunlight Readable	Yes

  Backlight Color	Yellow-Green
  Backlight Type	LED
  Mode	Positive
  Foreground Color	Dark
  Background Color	Yellow-Green

• electric_bolt Electrical Specification

  Electrical Specifications

  Module Connector Pitch

  0.1mm

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

  Humidity	min	max
  Non-condensing	0%	90%

• cable Electronics

  Electronics

  Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAH4002A Series Datasheet





  Previous Versions of Datasheet

  picture_as_pdf

  CFAH4002AYYHJT v1.0.pdf


  (Datasheet V 1.0)

• download Files and Downloads
  folder_zip CAD Export - CFAH4002A-***-JT Series 2D CAD


  picture_as_pdf 1 to 1 Template - CFAH4002A-***-JT Series 1 to 1 Module Outline


  link Demo Code Repository on Github

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
