Black on Green 24x2 Character LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Character

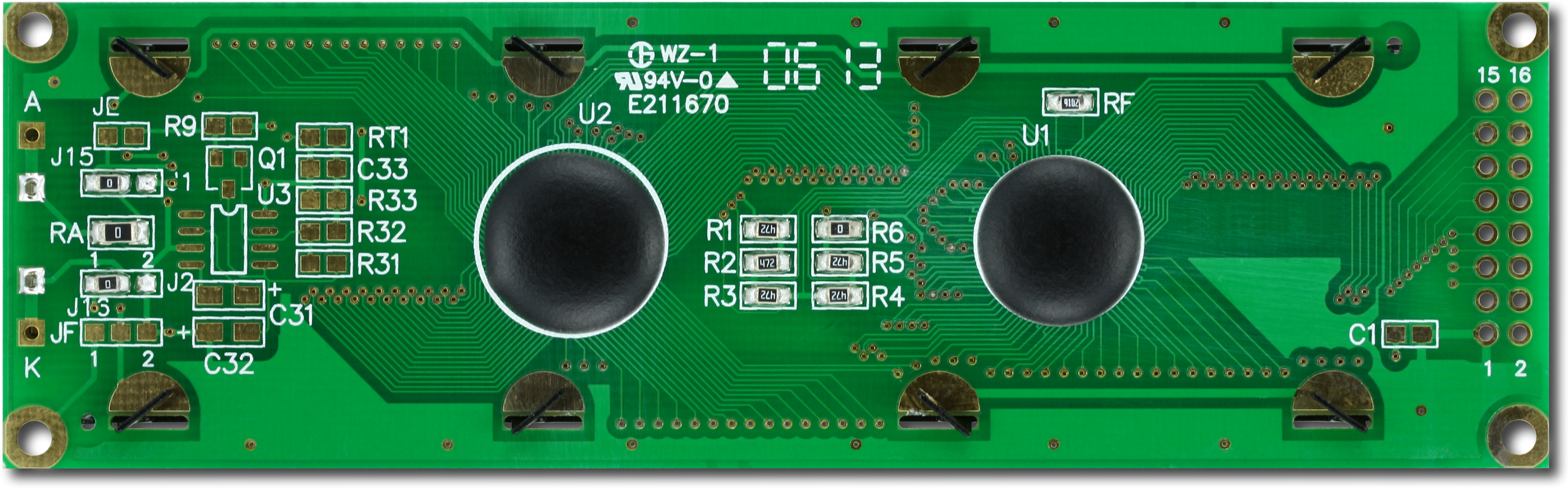

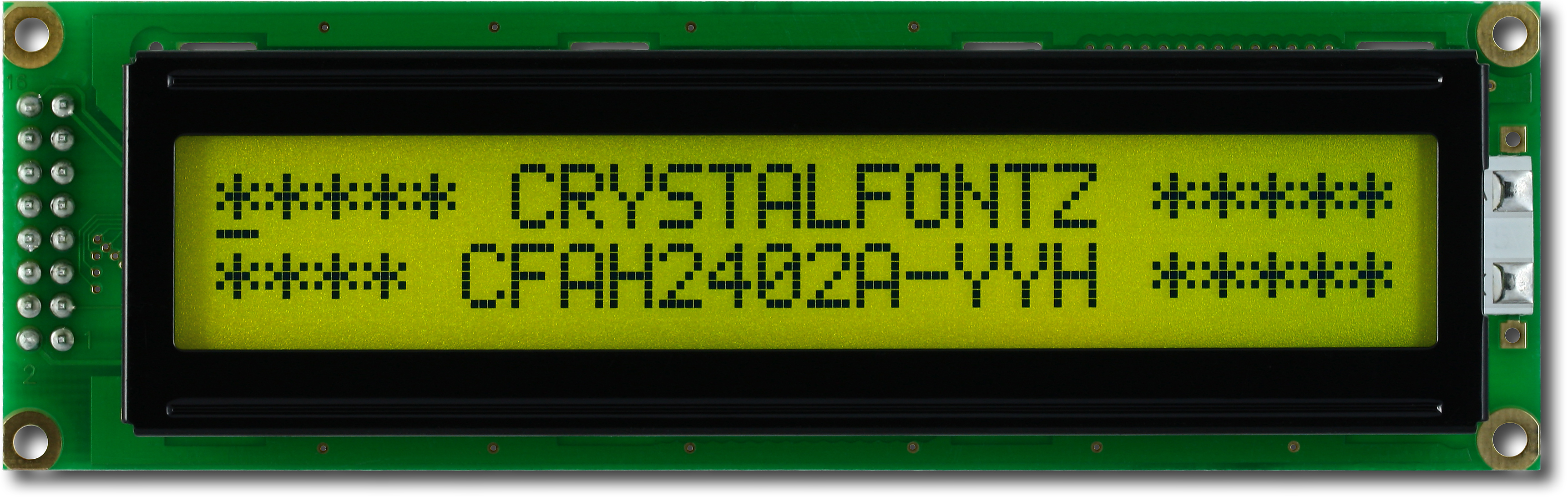

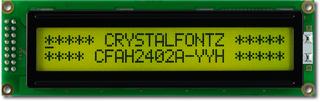

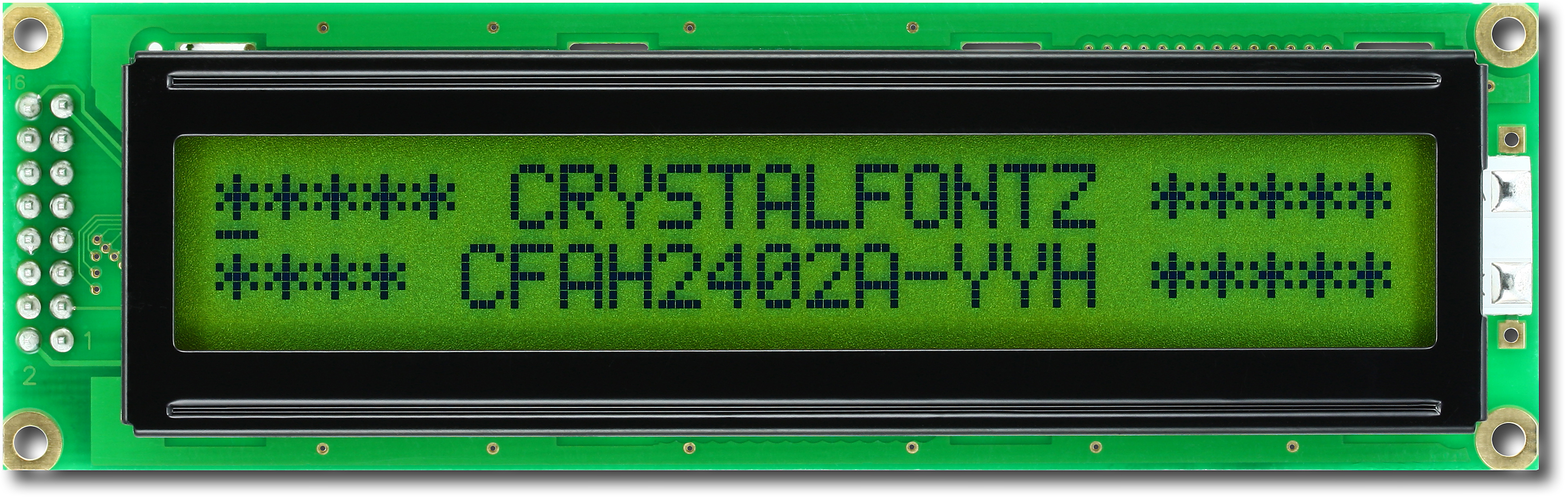

Black on Green 24x2 Character LCDPart Number: CFAH2402A-YYH-JTSunlight readable 24x2 character LCD module with a yellow-green LED backlight. This display module has a transflective polarizer and a temperature range from -20°C to +70°C and a 6:00 o'clock viewing direction.
Available in several variations of backlight and polarizer  (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED BacklightDark on Light Gray
White LED Backlight

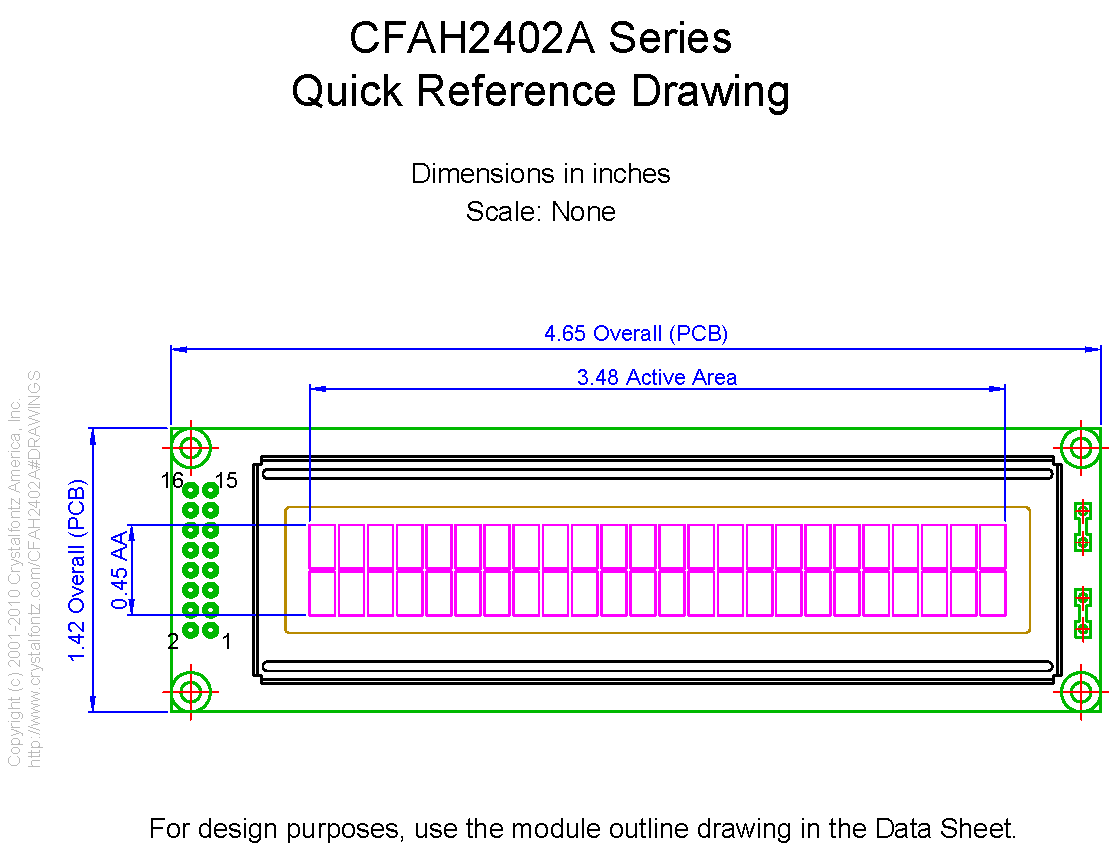

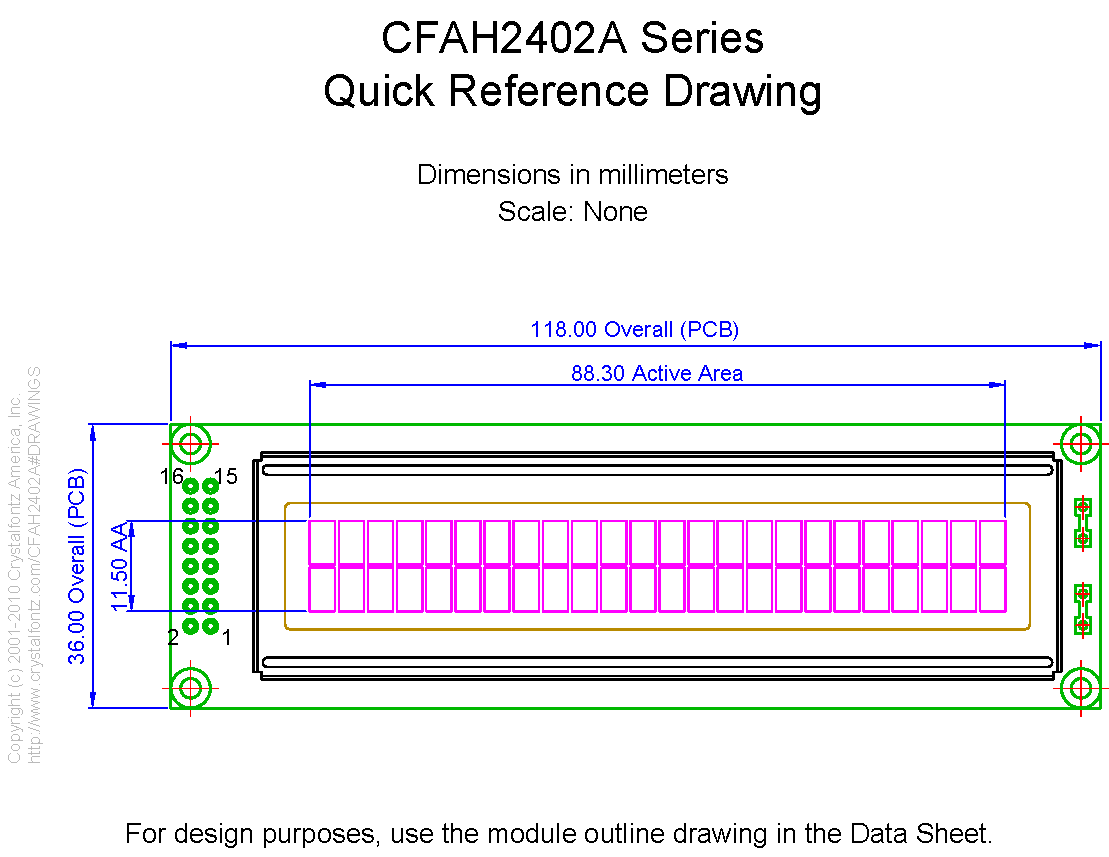

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            24 x 2


    Module Overall        width
        height
        depth


        millimeters
        118
        36
        13.6


        inches
        4.65
        1.42
        0.54



    PCB Outline        width
        height
        depth


        millimeters
        118
        36
        13.6


        inches
        4.65
        1.42
        0.54



        Diagonal Dimension
            3.51"


    Viewing Area        Width
        Height


        millimeters
        94.5
        16


        inches
        3.72
        0.63



    Active Area        Width
        Height


        millimeters
        88.3
        11.5


        inches
        3.48
        0.45



    Character Size        Width
        Height


        millimeters
        3.2
        5.55


        inches
        0.126
        0.219



    Character Pitch        Width
        Height


        millimeters
        3.7
        5.95


        inches
        0.146
        0.234



    Dot Size        Width
        Height


        millimeters
        0.6
        0.65


        inches
        0.024
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.65
        0.7


        inches
        0.026
        0.028



        Weight
            58g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAH2402AYYHJT Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAH2402AYYHJP.pdf

download Files and Downloads
folder_zip CAD Export - CFAH2402A 2D CAD
picture_as_pdf 1 to 1 Template - CFAH2402A 1 TO 1.PDF
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH














Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $14.97

            10
            $13.23

            20
            $12.78

            50
            $12.33

            100
            $12.16

            200
            $12.06

            300
            $11.44

            500
            $11.36

            1000 *
            $10.48

550 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering


						8x2 Pin Dual Row Header
Add header pins? (5pk) $0.28 ea.




Compatible Software
CFAHWINTEST

Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight Dark on Light Gray White LED Backlight

Module Overall	width	height	depth
millimeters	118	36	13.6
inches	4.65	1.42	0.54

PCB Outline	width	height	depth
millimeters	118	36	13.6
inches	4.65	1.42	0.54

Viewing Area	Width	Height
millimeters	94.5	16
inches	3.72	0.63

Active Area	Width	Height
millimeters	88.3	11.5
inches	3.48	0.45

Character Size	Width	Height
millimeters	3.2	5.55
inches	0.126	0.219

Character Pitch	Width	Height
millimeters	3.7	5.95
inches	0.146	0.234

Dot Size	Width	Height
millimeters	0.6	0.65
inches	0.024	0.026

Dot Pitch	Width	Height
millimeters	0.65	0.7
inches	0.026	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$14.97
10	$13.23
20	$12.78
50	$12.33
100	$12.16
200	$12.06
300	$11.44
500	$11.36
1000 *	$10.48
