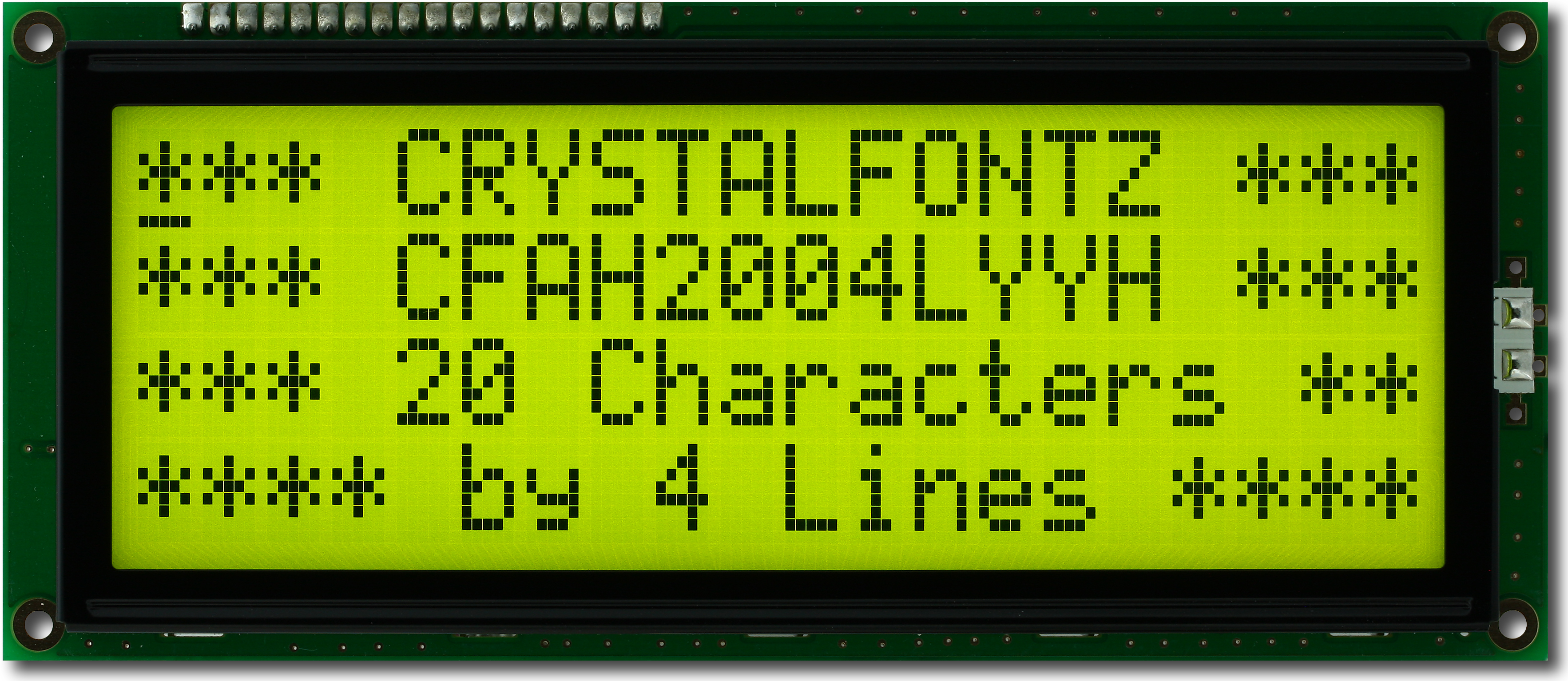

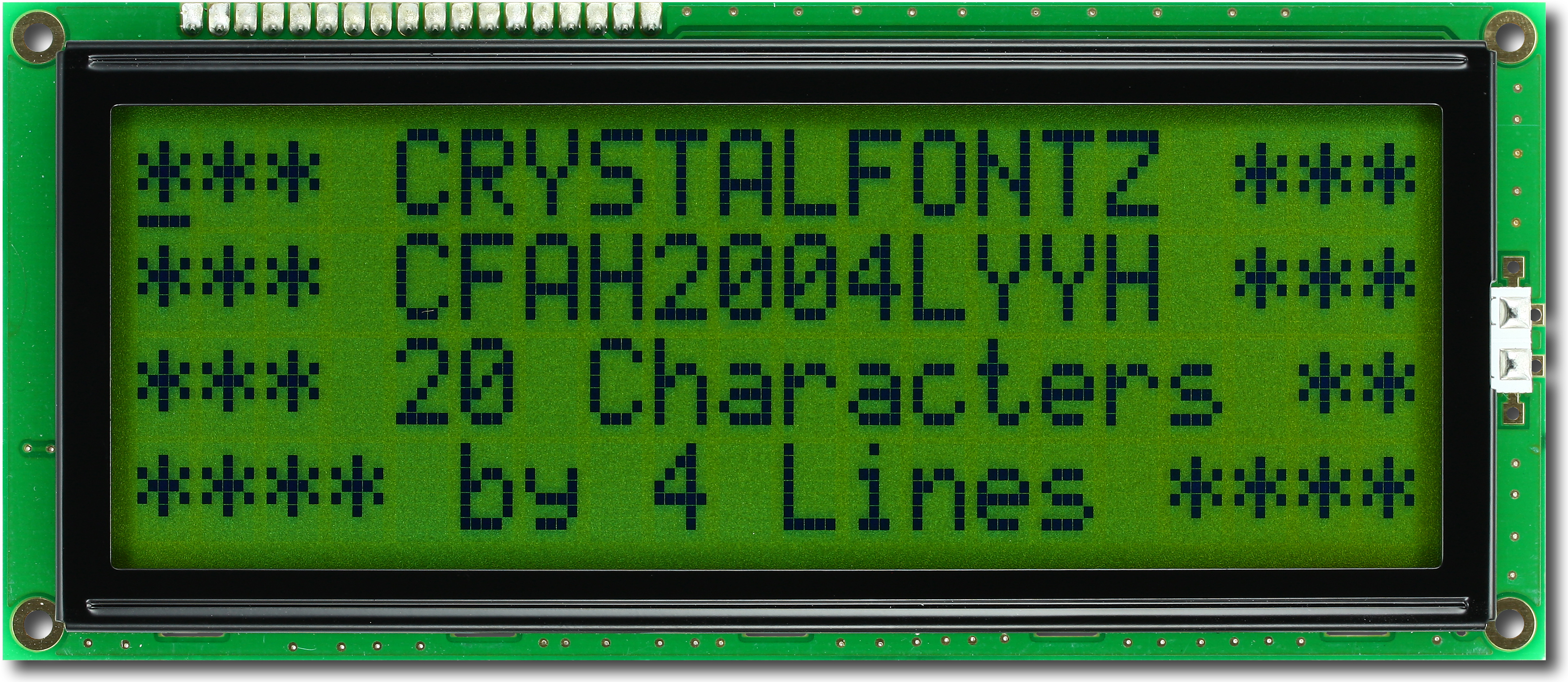

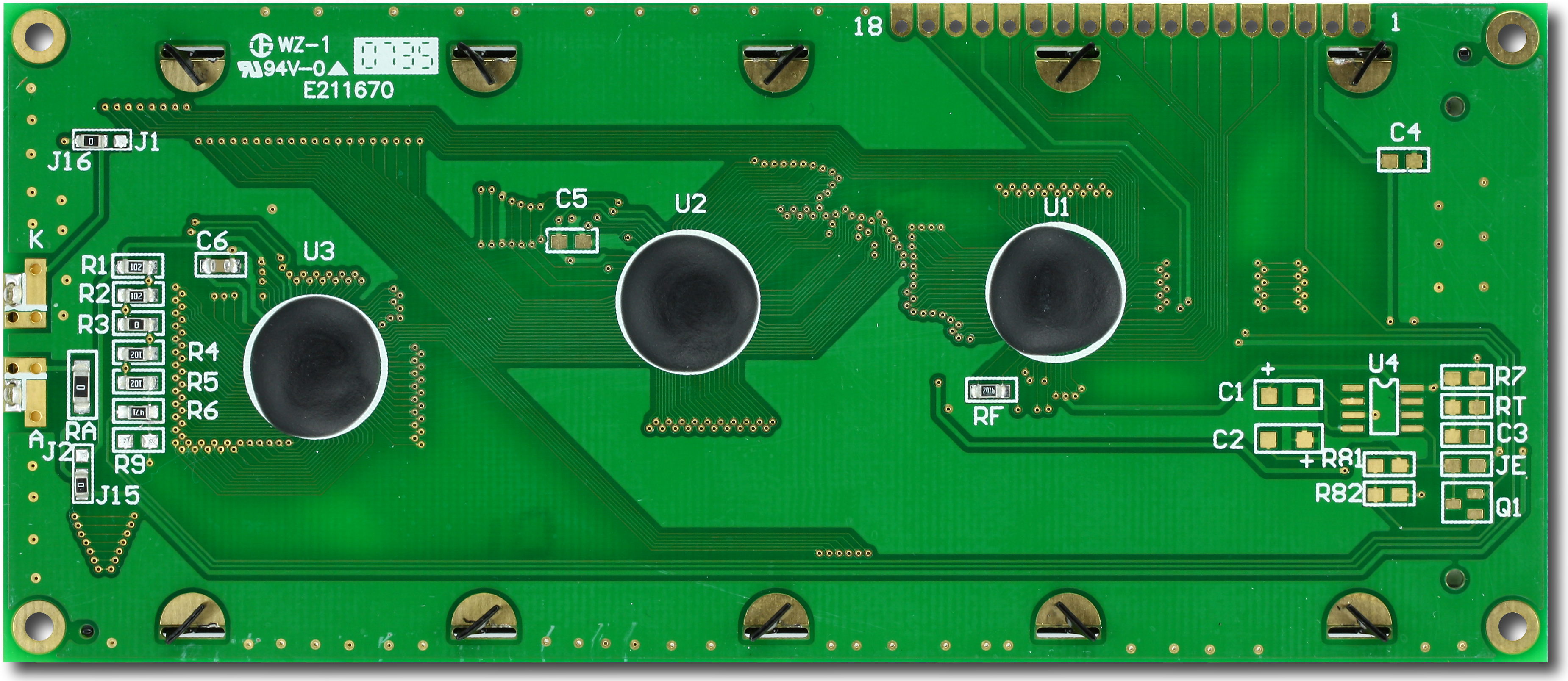

Yellow-Green 20x4 Character ModulePart Number: CFAH2004L-YYH-JTParallel Character LCD 20x4, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00
Available in several variations of backlight and polarizer  (minimum order may be required)
Large characters
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
Product VariationsColorsDark on Yellow-Green
No BacklightWhite on Blue
White LED BacklightDark on Yellow-Green
Yellow-Green LED Backlight

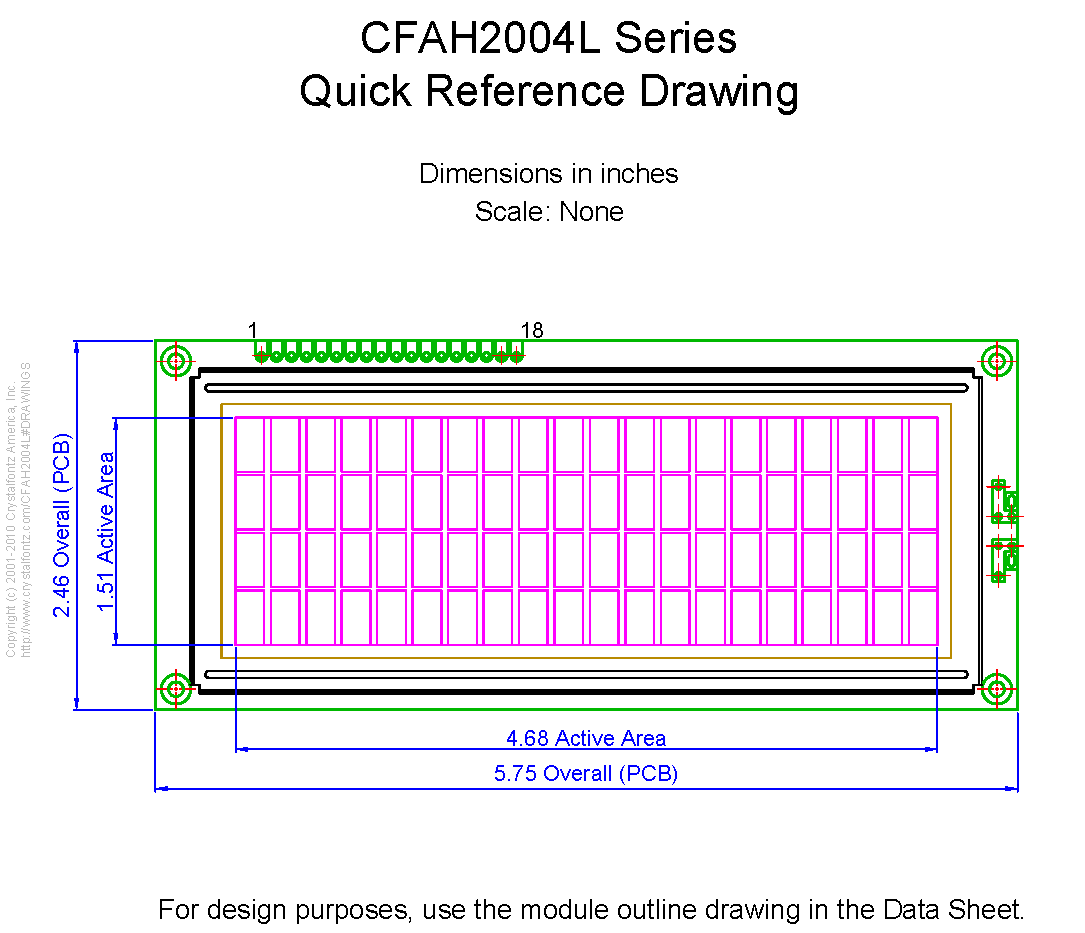

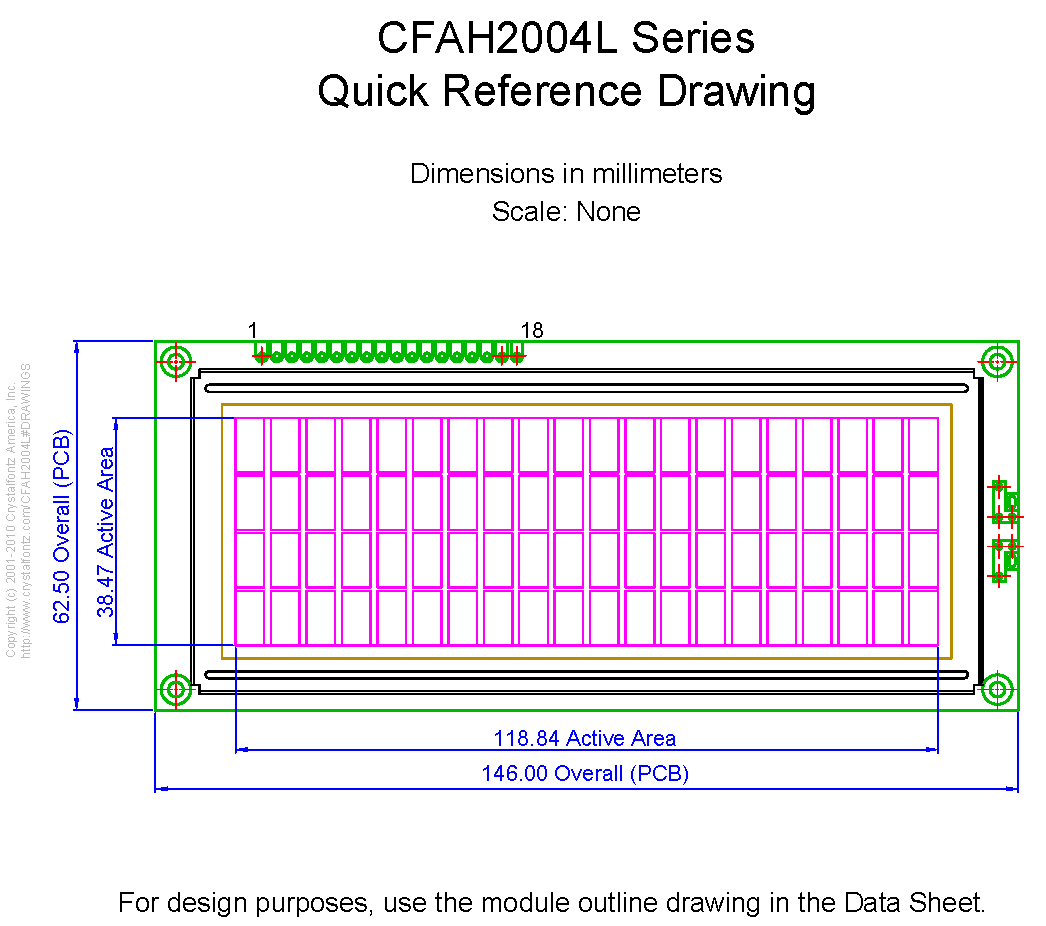

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            20 x 4


    Module Overall        width
        height
        depth


        millimeters
        146
        62.5
        13.6


        inches
        5.75
        2.46
        0.54



    PCB Outline        width
        height
        depth


        millimeters
        146
        62.5
        13.6


        inches
        5.75
        2.46
        0.54



        Diagonal Dimension
            4.92"


    Viewing Area        Width
        Height


        millimeters
        123.5
        43


        inches
        4.86
        1.69



    Active Area        Width
        Height


        millimeters
        118.84
        38.47


        inches
        4.68
        1.52



    Character Size        Width
        Height


        millimeters
        4.84
        9.22


        inches
        0.191
        0.363



    Character Pitch        Width
        Height


        millimeters
        6
        9.75


        inches
        0.236
        0.384



    Dot Size        Width
        Height


        millimeters
        0.92
        1.1


        inches
        0.036
        0.043



    Dot Pitch        Width
        Height


        millimeters
        0.98
        1.16


        inches
        0.039
        0.046



        Weight
            122g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH2004L-YYH-JT Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAH2004LYYHJP.pdf

 download Files and Downloads
folder_zip Hardware Design - 3D Model
folder_zip CAD Export - CFAH2004L 2D CAD
picture_as_pdf 1 to 1 Template - CFAH2004L 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $39.86

            5 *
            $36.80

            10 *
            $32.41

            20 *
            $31.46

            50 *
            $30.31

            100 *
            $29.93

            200 *
            $29.74

            300 *
            $28.07

            500 *
            $27.88

            1000 *
            $26.43

2 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Colors	Dark on Yellow-Green No Backlight White on Blue White LED Backlight Dark on Yellow-Green Yellow-Green LED Backlight

Module Overall	width	height	depth
millimeters	146	62.5	13.6
inches	5.75	2.46	0.54

PCB Outline	width	height	depth
millimeters	146	62.5	13.6
inches	5.75	2.46	0.54

Viewing Area	Width	Height
millimeters	123.5	43
inches	4.86	1.69

Active Area	Width	Height
millimeters	118.84	38.47
inches	4.68	1.52

Character Size	Width	Height
millimeters	4.84	9.22
inches	0.191	0.363

Character Pitch	Width	Height
millimeters	6	9.75
inches	0.236	0.384

Dot Size	Width	Height
millimeters	0.92	1.1
inches	0.036	0.043

Dot Pitch	Width	Height
millimeters	0.98	1.16
inches	0.039	0.046

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$39.86
5 *	$36.80
10 *	$32.41
20 *	$31.46
50 *	$30.31
100 *	$29.93
200 *	$29.74
300 *	$28.07
500 *	$27.88
1000 *	$26.43

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAH2004L-YYH-JT

Yellow-Green 20x4 Character Module

Part Number: CFAH2004L-YYH-JT

Product Variations

Colors

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Yellow-Green
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Color	Yellow-Green
Backlight Type	LED
Mode	Positive
Foreground Color	Dark
Background Color	Yellow-Green

Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel
