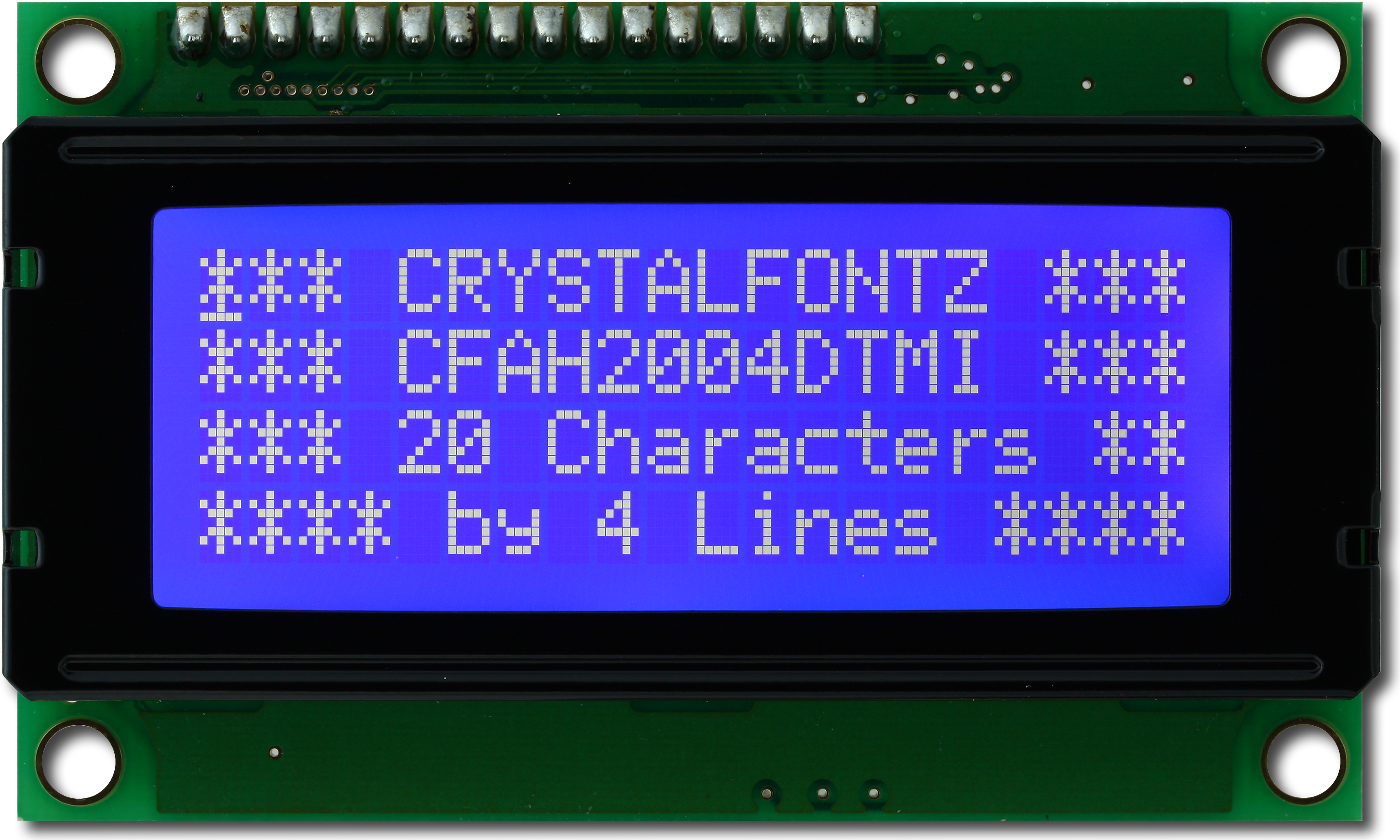

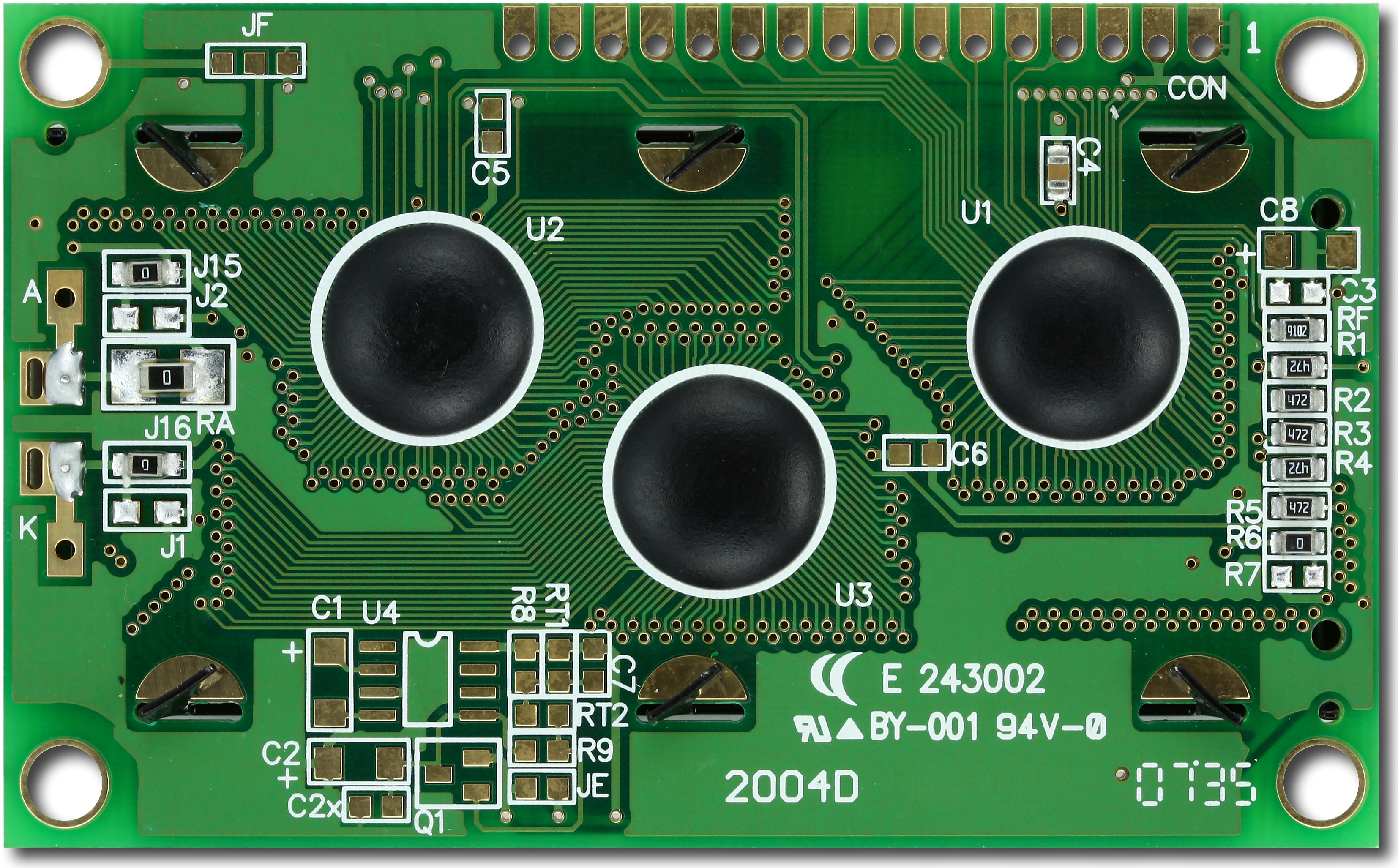

White on Blue 20x4 Character LCDPart Number: CFAH2004D-TMI-ETParallel Character LCD 20x4, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00
Available in several variations of backlight and polarizer  (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
Product VariationsColorsWhite on Blue
White LED backlightDark on Yellow-Green
Yellow-Green LED backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            20 x 4


    Module Overall        width
        height
        depth


        millimeters
        77
        47
        12.4


        inches
        3.03
        1.85
        0.49



    PCB Outline        width
        height
        depth


        millimeters
        77
        47
        12.4


        inches
        3.03
        1.85
        0.49



        Diagonal Dimension
            2.28"


    Viewing Area        Width
        Height


        millimeters
        60
        22


        inches
        2.36
        0.87



    Active Area        Width
        Height


        millimeters
        55.1
        17.56


        inches
        2.17
        0.69



    Character Size        Width
        Height


        millimeters
        2.3
        4.03


        inches
        0.091
        0.159



    Character Pitch        Width
        Height


        millimeters
        2.78
        4.51


        inches
        0.109
        0.178



    Dot Size        Width
        Height


        millimeters
        0.42
        0.46


        inches
        0.017
        0.018



    Dot Pitch        Width
        Height


        millimeters
        0.47
        0.51


        inches
        0.019
        0.020



        Weight
            52g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            4.5V


        Supply Current Minimum
            4.4mA
Supply Current Maximum
            4.6mA
Supply Current Typical
            1.2mA
Module Connector Pitch
            0.1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            10mA
Forward Current Maximum
            40mA
Forward Current Typical
            32mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH2004D-TMI-ET Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAH2004D 2D CAD
picture_as_pdf 1 to 1 Template - CFAH2004D 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $26.05

            10
            $25.29

            20
            $21.61

            50 *
            $19.04

            100 *
            $16.84

            200 *
            $15.27

            500 *
            $13.49

            1000 *
            $12.24

25 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Colors	White on Blue White LED backlight Dark on Yellow-Green Yellow-Green LED backlight

Module Overall	width	height	depth
millimeters	77	47	12.4
inches	3.03	1.85	0.49

PCB Outline	width	height	depth
millimeters	77	47	12.4
inches	3.03	1.85	0.49

Viewing Area	Width	Height
millimeters	60	22
inches	2.36	0.87

Active Area	Width	Height
millimeters	55.1	17.56
inches	2.17	0.69

Character Size	Width	Height
millimeters	2.3	4.03
inches	0.091	0.159

Character Pitch	Width	Height
millimeters	2.78	4.51
inches	0.109	0.178

Dot Size	Width	Height
millimeters	0.42	0.46
inches	0.017	0.018

Dot Pitch	Width	Height
millimeters	0.47	0.51
inches	0.019	0.020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$26.05
10	$25.29
20	$21.61
50 *	$19.04
100 *	$16.84
200 *	$15.27
500 *	$13.49
1000 *	$12.24

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAH2004D-TMI-ET

White on Blue 20x4 Character LCD

Part Number: CFAH2004D-TMI-ET

Product Variations

Colors

Physical Characteristics

Optical Characteristics

Electrical Specifications

Backlight Electrical Specifications

Environmental

Electronics

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Blue
Polarizer	Transmissive
View Direction	6 o'clock

Backlight Color	White
Backlight Type	LED
Mode	Negative
Foreground Color	White
Background Color	Blue

Supply Voltage for Logic Minimum	4.5V
Supply Voltage for Logic Maximum	5.5V
Supply Voltage for Logic Typical	5V
Supply Voltage for Driving Panel Typical	4.5V

Supply Current Minimum	4.4mA
Supply Current Maximum	4.6mA
Supply Current Typical	1.2mA
Module Connector Pitch	0.1mm

Forward Voltage Minimum	3.4V
Forward Voltage Maximum	3.6V
Forward Voltage Typical	3.5V

Forward Current Minimum	10mA
Forward Current Maximum	40mA
Forward Current Typical	32mA

Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel
