20x4 SPI Character LCD Module from Crystalfontz

Product

Home » Products » Serial LCD Displays » Character

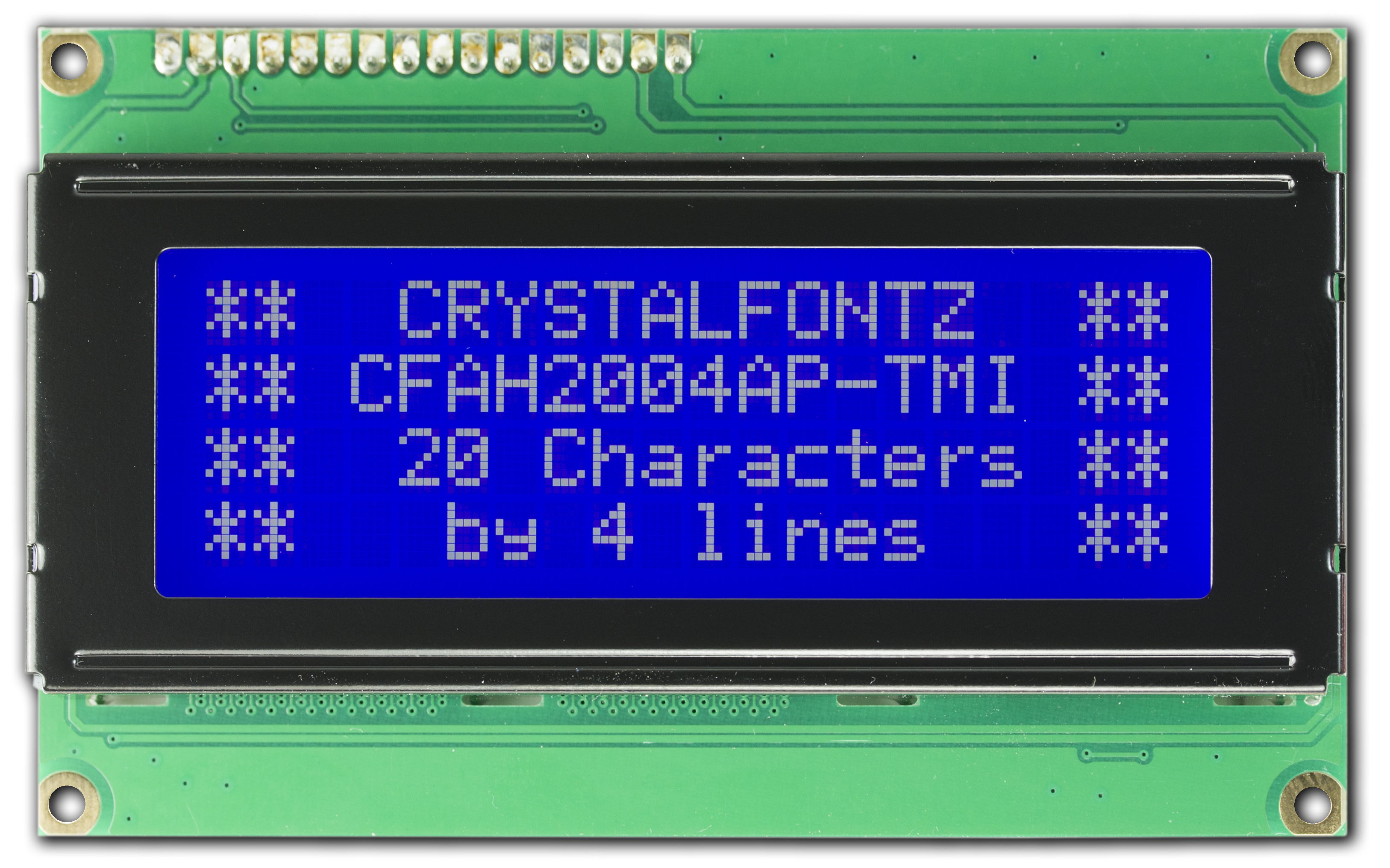

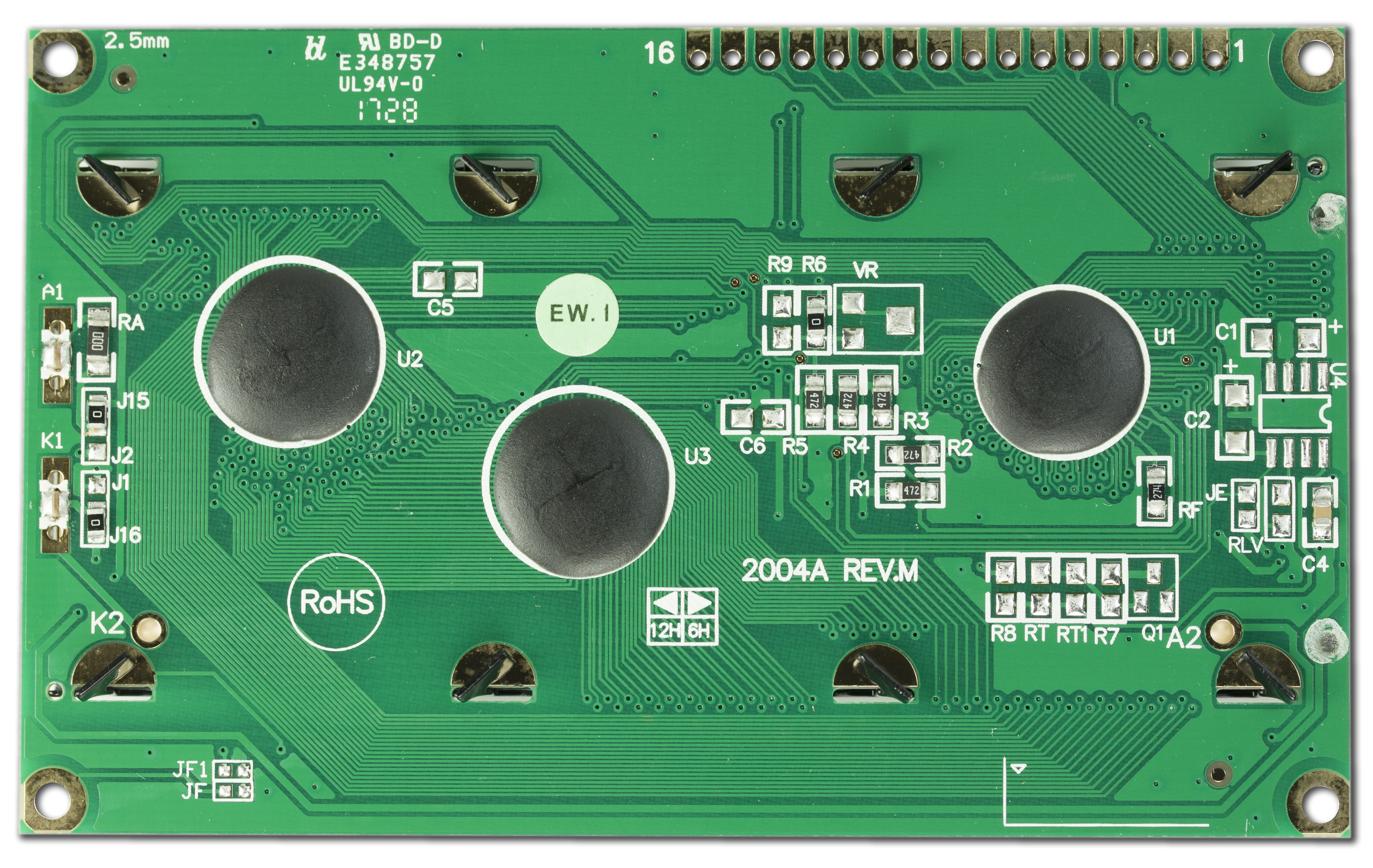

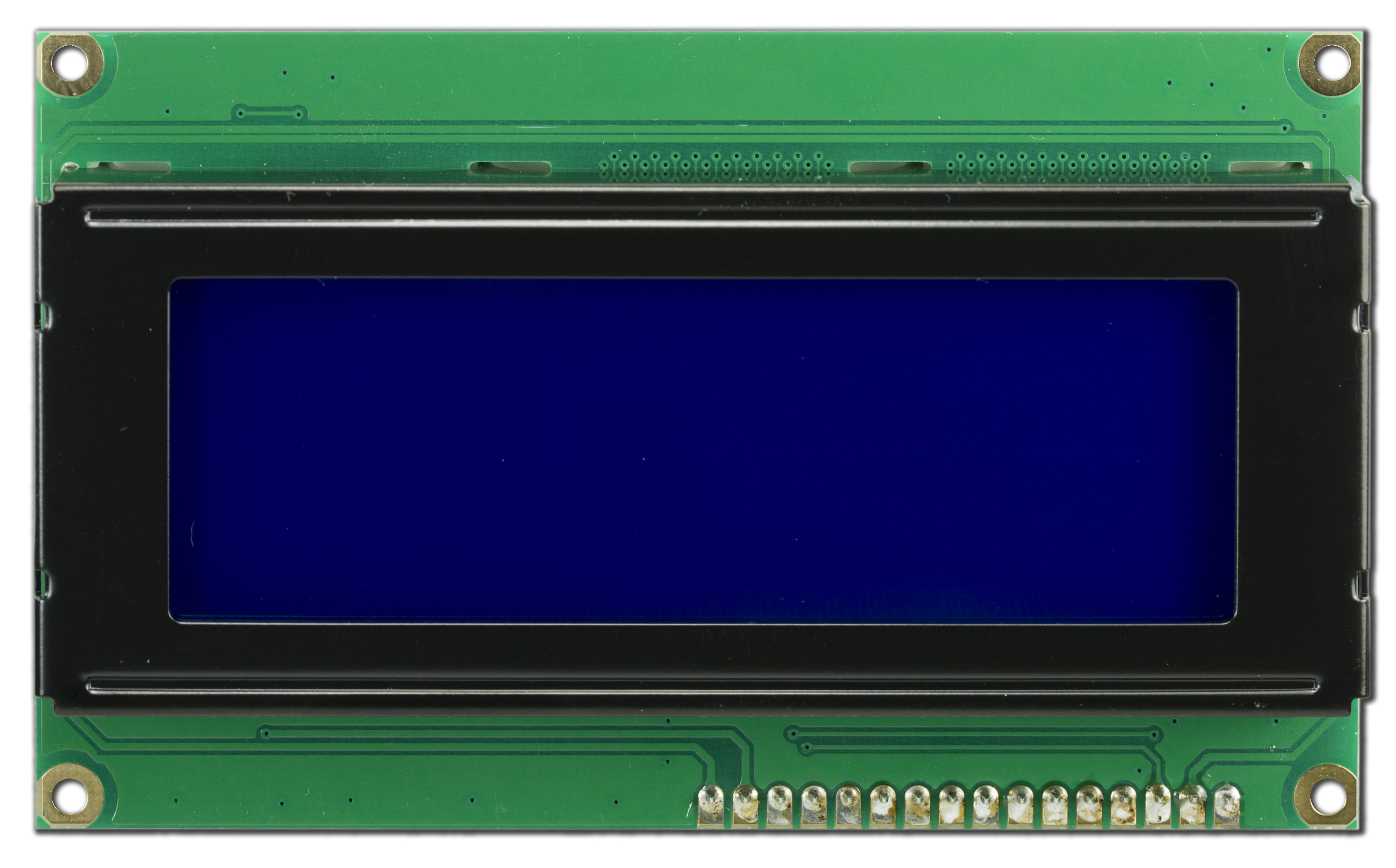

20x4 SPI Character LCD ModulePart Number: CFAH2004AP-TMI-EW20x4 SPI character LCD module, white text on blue background
Character Matrix: 20x4 Characters
Optics: 6:00 viewing direction
Backlight: White LED
Glass: STN Negative, Transmissive
Controller: Sitronix ST7066U (HD44780 compatible)
Operating Temp: -20°C to +70°C
Compliance: REACH & RoHS Compliant
Product VariationsInterfacesSPII2C4-bit Parallel, 8-bit Parallel
ColorsDark on Gray
White LED BacklightWhite on Blue
White LED BacklightDark on Yellow-Green
Yellow-Green LED BacklightYellow-Green on Dark
Yellow-Green LED BacklightDark on Yellow-Green
No Backlight

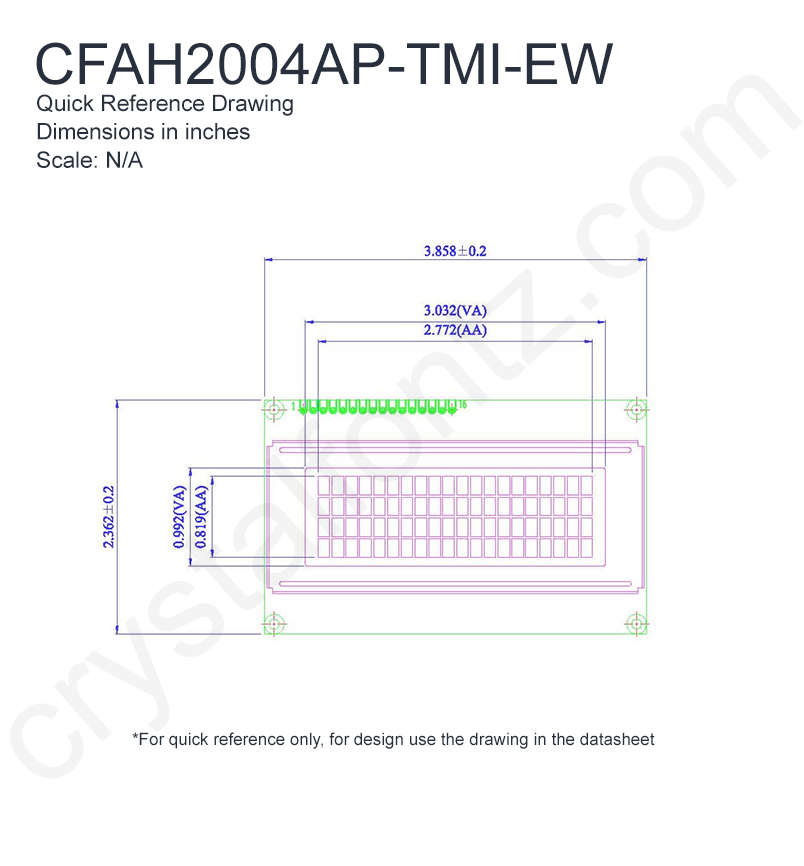

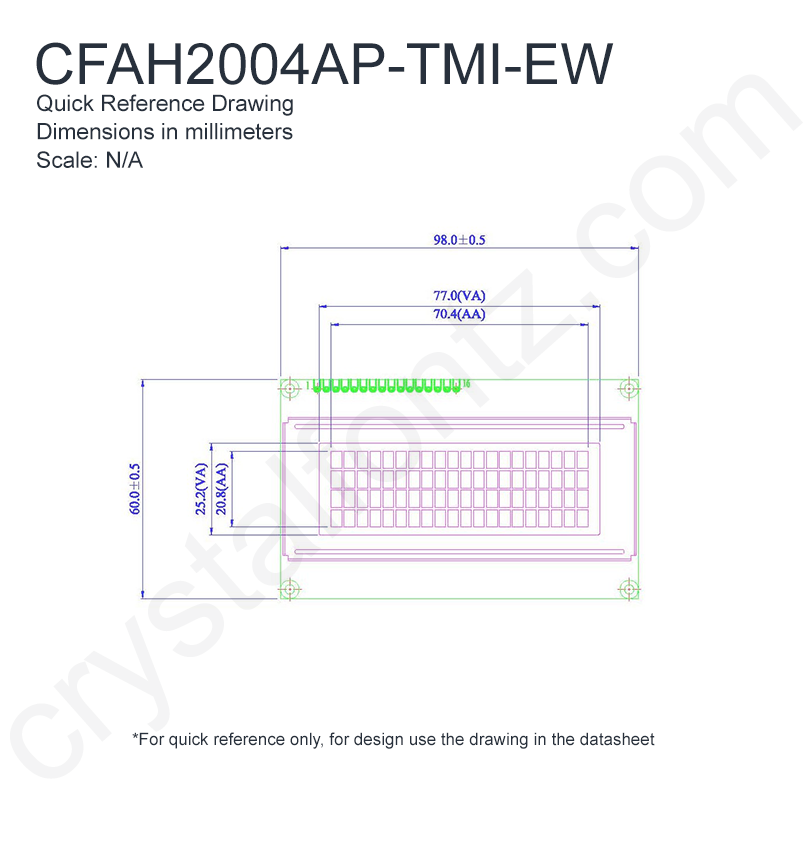

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            20 x 4


    Module Overall        width
        height
        depth


        millimeters
        98
        60
        13.6


        inches
        3.86
        2.36
        0.54



        Diagonal Dimension
            2.89"


    Viewing Area        Width
        Height


        millimeters
        77
        25.2


        inches
        3.03
        0.99



    Active Area        Width
        Height


        millimeters
        70.4
        20.8


        inches
        2.77
        0.82



    Character Size        Width
        Height


        millimeters
        2.95
        4.75


        inches
        0.116
        0.187



    Character Pitch        Width
        Height


        millimeters
        3.35
        5.35


        inches
        0.132
        0.211



    Dot Size        Width
        Height


        millimeters
        0.55
        0.55


        inches
        0.022
        0.022



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.6


        inches
        0.024
        0.024



        Weight
            73.3g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            4.5V


        Supply Current Minimum
            1mA
Supply Current Maximum
            1.5mA
Supply Current Typical
            1.2mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°


 cable Electronics
Electronics

        Controller Documents
            RockWorks RW1063-0B-002
RW1063-0B-002

16COM/40SEG DRIVER & CONTROLLER
Interface
            SPI

picture_as_pdf Datasheets
picture_as_pdfCFAH2004AP-TMI-EW Datasheet

download Files and Downloads
folder_zip Software Source - SPI Arduino Demonstration Sketch
folder_zip Hardware Design - 3D Model
link Fork this on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH














Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $21.92

            10
            $19.35

            20 *
            $18.70

            50 *
            $18.04

            100 *
            $17.78

            200 *
            $16.50

            300 *
            $16.76

            500 *
            $16.63

            1000 *
            $15.35

14 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering


						36-Pin 0.1" Header Pins
Need 5 header pins? $0.33 ea.





Interfaces	SPI I2C 4-bit Parallel, 8-bit Parallel

Colors	Dark on Gray White LED Backlight White on Blue White LED Backlight Dark on Yellow-Green Yellow-Green LED Backlight Yellow-Green on Dark Yellow-Green LED Backlight Dark on Yellow-Green No Backlight

Module Overall	width	height	depth
millimeters	98	60	13.6
inches	3.86	2.36	0.54

Viewing Area	Width	Height
millimeters	77	25.2
inches	3.03	0.99

Active Area	Width	Height
millimeters	70.4	20.8
inches	2.77	0.82

Character Size	Width	Height
millimeters	2.95	4.75
inches	0.116	0.187

Character Pitch	Width	Height
millimeters	3.35	5.35
inches	0.132	0.211

Dot Size	Width	Height
millimeters	0.55	0.55
inches	0.022	0.022

Dot Pitch	Width	Height
millimeters	0.6	0.6
inches	0.024	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$21.92
10	$19.35
20 *	$18.70
50 *	$18.04
100 *	$17.78
200 *	$16.50
300 *	$16.76
500 *	$16.63
1000 *	$15.35

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10884: (New Product) CFAH2004AP-TMI-EW

New Product:	CFAH2004AP-TMI-EW
Date Issued:	October 16, 2017
Summary:	(New Product) CFAH2004AP-TMI-EW
Description:	Standard Character Modules: 20x4 SPI Character LCD in with Blue Text

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAH2004AP-TMI-EW
