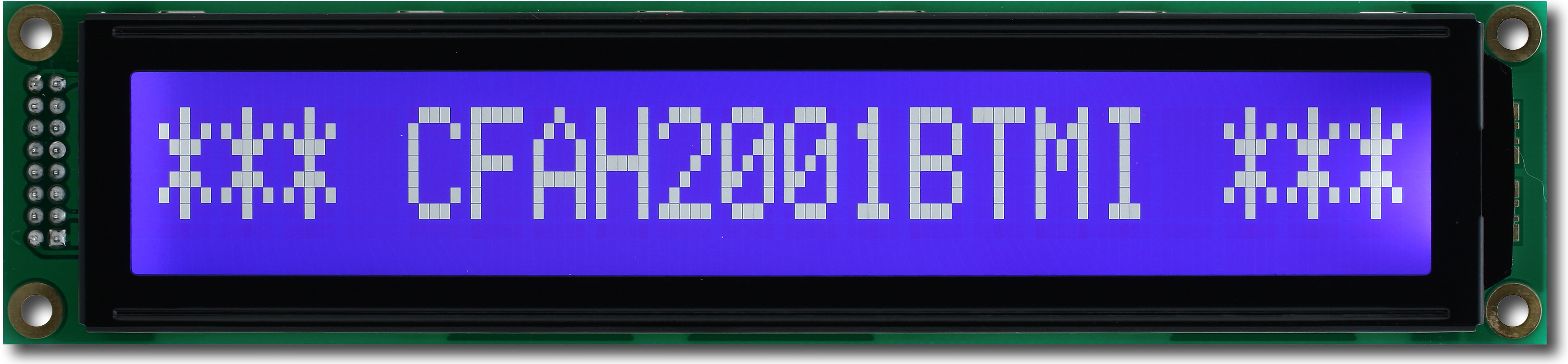

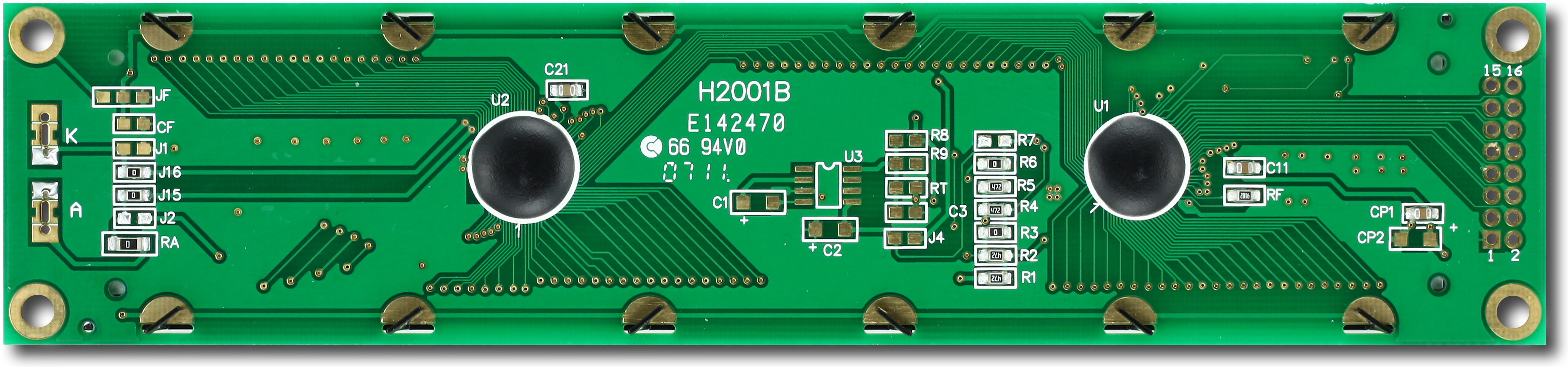

Standard 20x1 Character LCDPart Number: CFAH2001B-TMI-ETParallel Character LCD 20x1, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00
Available in several variations of backlight and polarizer  (minimum order may be required)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
Product VariationsColorsWhite on Blue
White LED BacklightDark on Yellow-Green
Yellow-Green LED Backlight

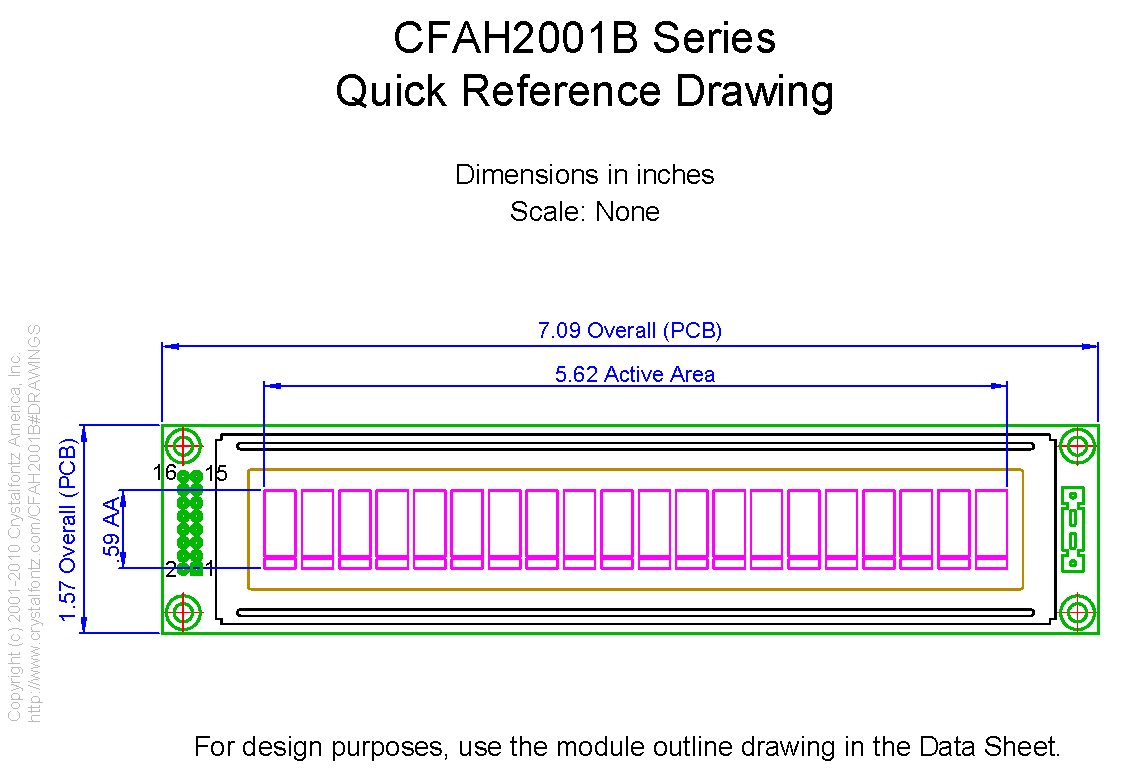

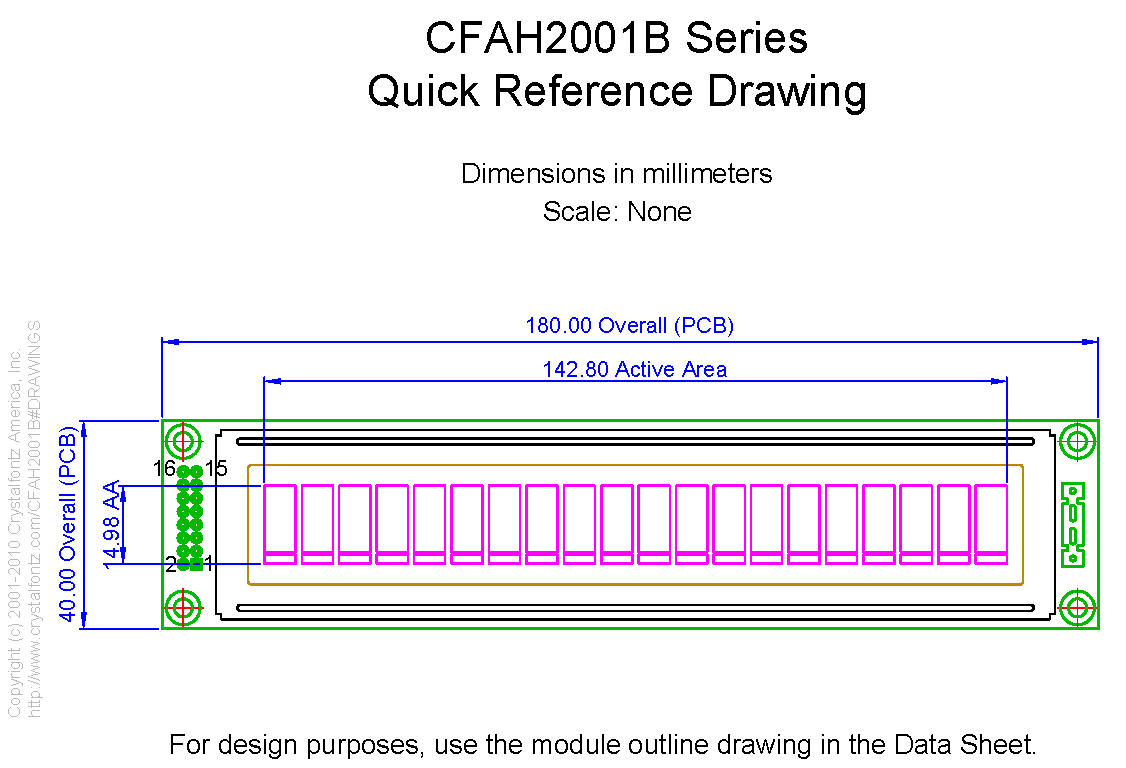

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            20 x 1

    Module Overall        width
        height
        depth

        millimeters
        180
        40
        13.9

        inches
        7.09
        1.58
        0.55

    PCB Outline        width
        height
        depth

        millimeters
        180
        40
        13.9

        inches
        7.09
        1.58
        0.55

        Diagonal Dimension
            5.65"

    Viewing Area        Width
        Height

        millimeters
        149
        23

        inches
        5.87
        0.91

    Active Area        Width
        Height

        millimeters
        142.8
        14.98

        inches
        5.62
        0.59

    Character Size        Width
        Height

        millimeters
        6
        12.7

        inches
        0.236
        0.500

    Character Pitch        Width
        Height

        millimeters
        7.2
        13.22

        inches
        0.283
        0.520

    Dot Size        Width
        Height

        millimeters
        1.15
        1.77

        inches
        0.045
        0.070

    Dot Pitch        Width
        Height

        millimeters
        1.21
        1.83

        inches
        0.048
        0.072

        Weight
            105g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH2001B-TMI-ET Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAH2001BTMIET Datasheet

picture_as_pdfCFAH2001BTMIET.pdf

 download Files and Downloads
folder_zip Hardware Design - 3D Model
folder_zip CAD Export - CFAH2001B 2D CAD
picture_as_pdf 1 to 1 Template - CFAH2001B 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $25.69

            5
            $23.70

            10
            $20.88

            20
            $20.27

            50
            $19.53

            100
            $19.29

            200
            $19.16

            300
            $18.09

            500
            $17.97

            1000 *
            $17.01

590 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						8x2 Pin Dual Row Header
Add header pins? (5pk) $0.28 ea.

Colors	White on Blue White LED Backlight Dark on Yellow-Green Yellow-Green LED Backlight

Module Overall	width	height	depth
millimeters	180	40	13.9
inches	7.09	1.58	0.55

PCB Outline	width	height	depth
millimeters	180	40	13.9
inches	7.09	1.58	0.55

Viewing Area	Width	Height
millimeters	149	23
inches	5.87	0.91

Active Area	Width	Height
millimeters	142.8	14.98
inches	5.62	0.59

Character Size	Width	Height
millimeters	6	12.7
inches	0.236	0.500

Character Pitch	Width	Height
millimeters	7.2	13.22
inches	0.283	0.520

Dot Size	Width	Height
millimeters	1.15	1.77
inches	0.045	0.070

Dot Pitch	Width	Height
millimeters	1.21	1.83
inches	0.048	0.072

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$25.69
5	$23.70
10	$20.88
20	$20.27
50	$19.53
100	$19.29
200	$19.16
300	$18.09
500	$17.97
1000 *	$17.01

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAH2001B-TMI-ET

Standard 20x1 Character LCD

Part Number: CFAH2001B-TMI-ET

Product Variations

Colors

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Blue
Polarizer	Transmissive
View Direction	6 o'clock

Backlight Color	White
Backlight Type	LED
Mode	Negative
Foreground Color	White
Background Color	Blue

Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel

Weight	105g
Pin Count	16
