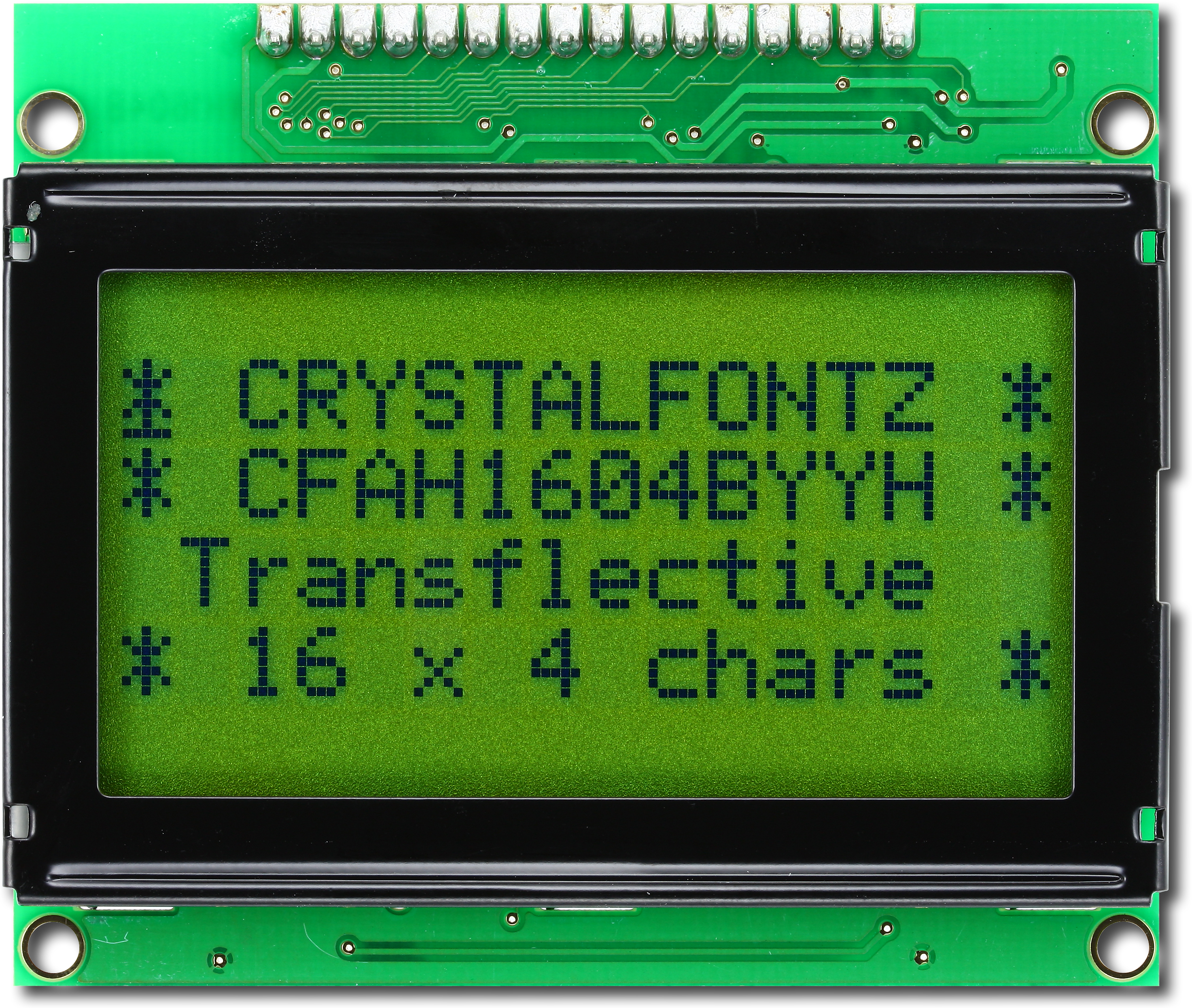

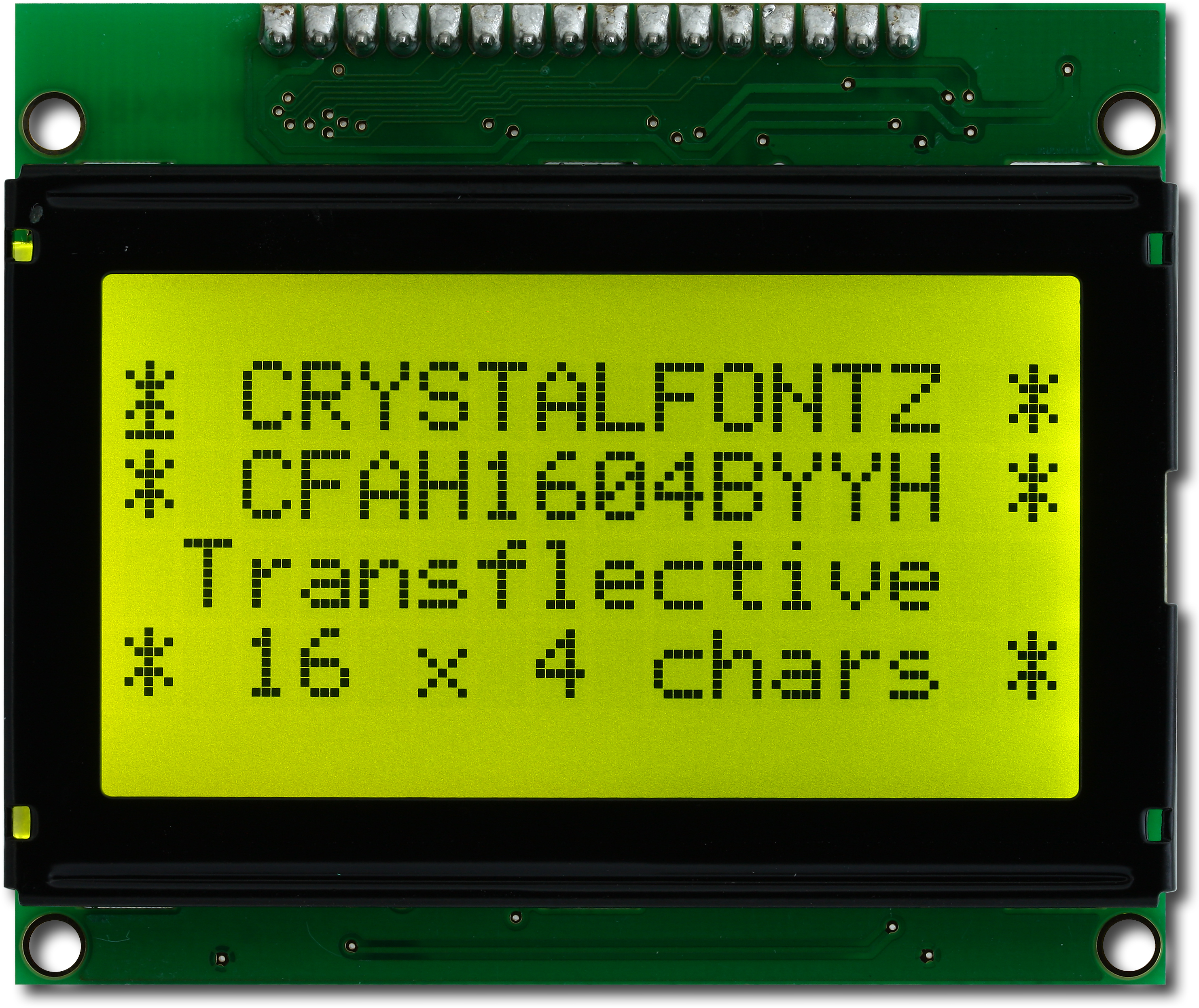

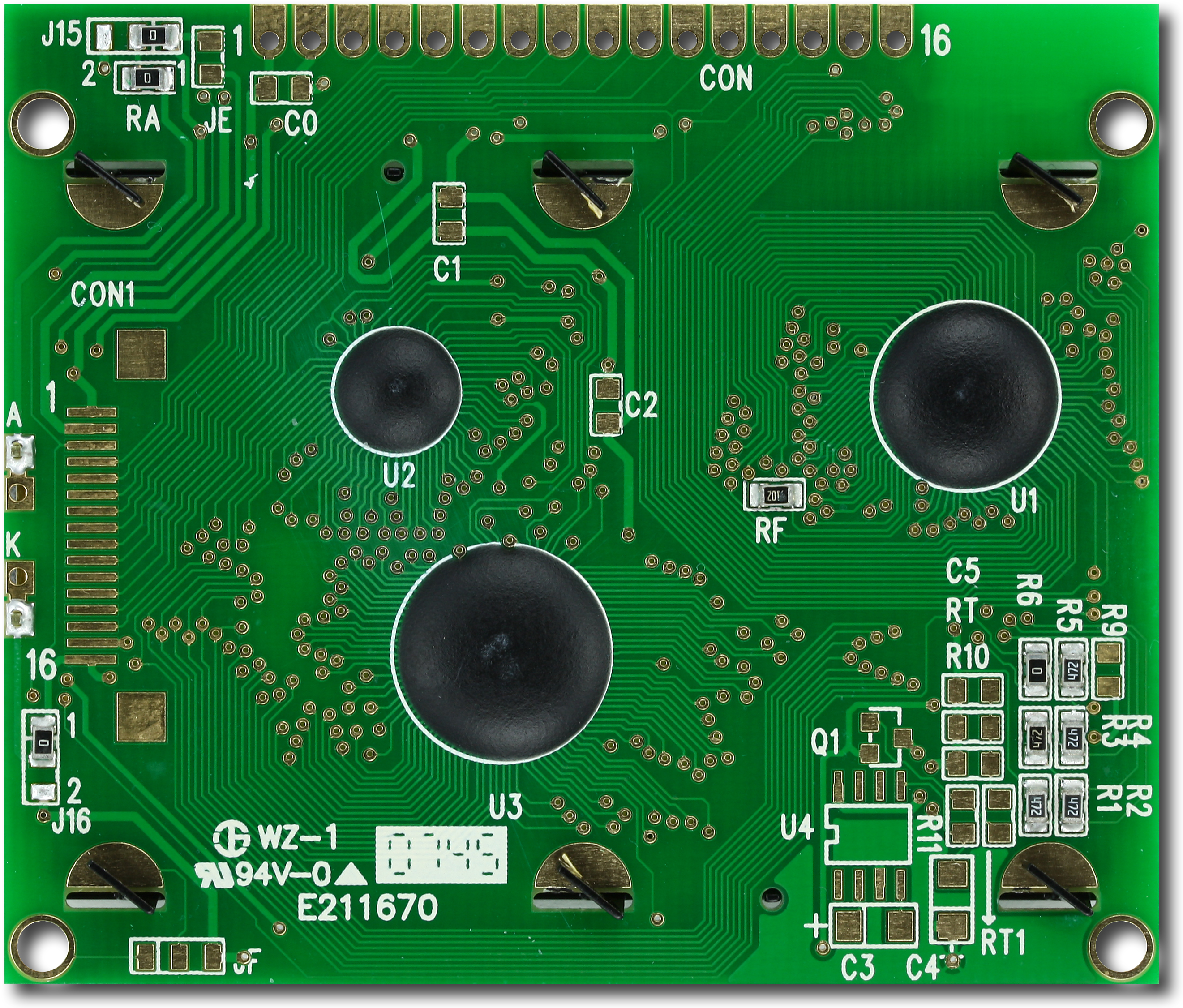

Transflective 16x4 Character LCDPart Number: CFAH1604B-YYH-ETThis is a 16x4 transflective/sunlight readable parallel character LCD with yellow-green LED backlight, STN Positive, and a transflective polarizer. Operating temps are -20°C to +70°C. A 6:00 o'clock viewing direction is best-suited for mounting at or below eye-level.
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED backlightWhite on Blue
White LED backlightDark on Green
 None backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 4

    Module Overall        width
        height
        depth

        millimeters
        70.6
        60
        8.9

        inches
        2.78
        2.36
        0.35

    PCB Outline        width
        height
        depth

        millimeters
        70.6
        60
        8.9

        inches
        2.78
        2.36
        0.35

        Diagonal Dimension
            2.36"

    Viewing Area        Width
        Height

        millimeters
        58.8
        31.4

        inches
        2.32
        1.24

    Active Area        Width
        Height

        millimeters
        56.2
        20.8

        inches
        2.21
        0.82

    Character Size        Width
        Height

        millimeters
        2.95
        4.75

        inches
        0.116
        0.187

    Character Pitch        Width
        Height

        millimeters
        3.55
        5.35

        inches
        0.140
        0.211

    Dot Size        Width
        Height

        millimeters
        0.55
        0.55

        inches
        0.022
        0.022

    Dot Pitch        Width
        Height

        millimeters
        0.6
        0.6

        inches
        0.024
        0.024

        Weight
            34g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1604BYYHET Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAH1604BYYHET.pdf

 download Files and Downloads

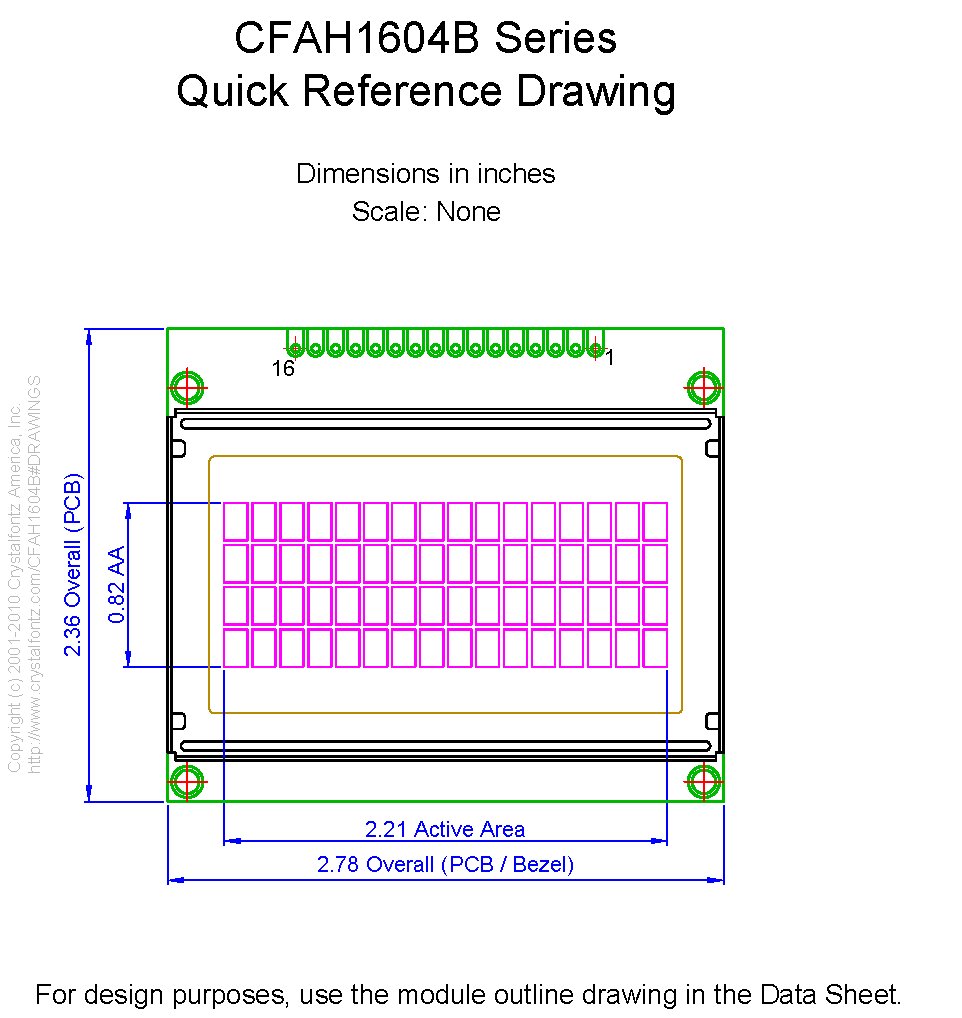

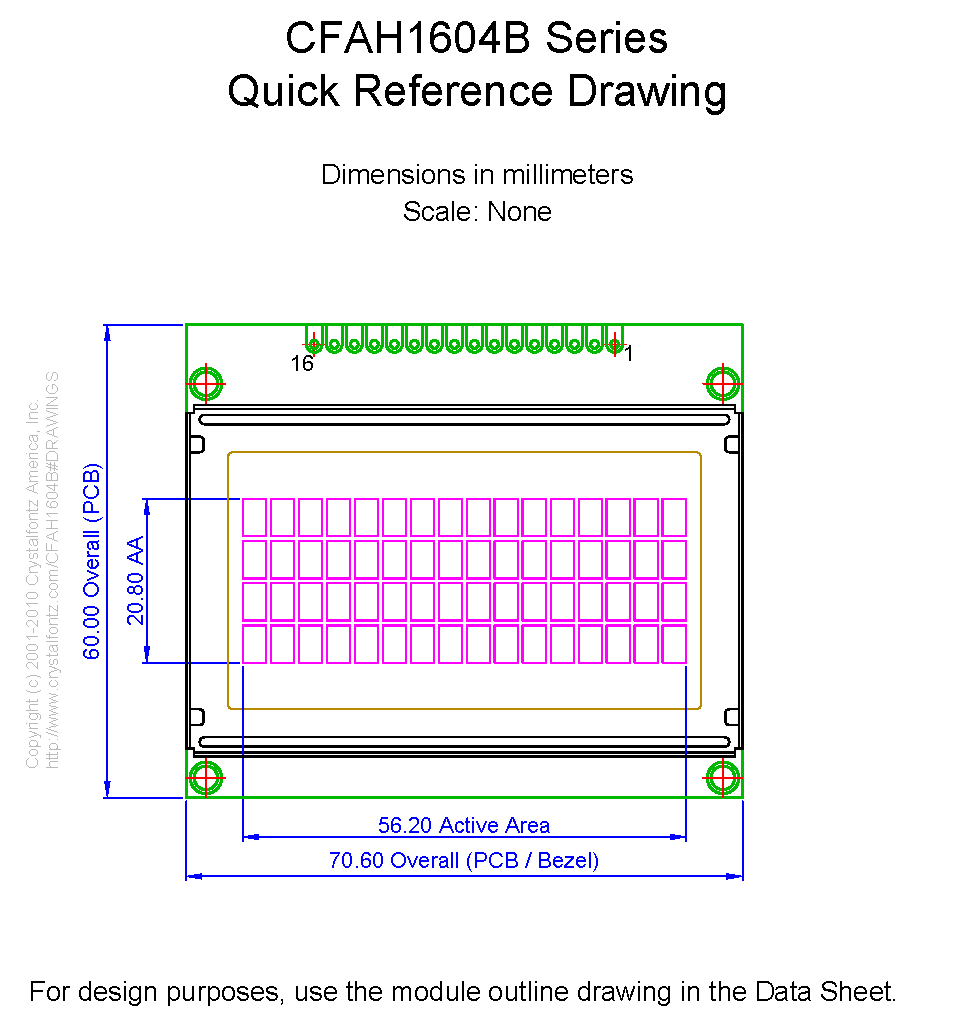

folder_zip CAD Export - CFAH1604B 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1604B 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $17.62

            5
            $16.23

            10
            $14.32

            20
            $13.83

            50
            $13.35

            100 *
            $13.16

            200 *
            $13.06

            300 *
            $12.39

            500 *
            $12.29

            1000 *
            $11.36

58 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.

Colors	Dark on Yellow-Green Yellow-Green LED backlight White on Blue White LED backlight Dark on Green None backlight

Module Overall	width	height	depth
millimeters	70.6	60	8.9
inches	2.78	2.36	0.35

PCB Outline	width	height	depth
millimeters	70.6	60	8.9
inches	2.78	2.36	0.35

Viewing Area	Width	Height
millimeters	58.8	31.4
inches	2.32	1.24

Active Area	Width	Height
millimeters	56.2	20.8
inches	2.21	0.82

Character Size	Width	Height
millimeters	2.95	4.75
inches	0.116	0.187

Character Pitch	Width	Height
millimeters	3.55	5.35
inches	0.140	0.211

Dot Size	Width	Height
millimeters	0.55	0.55
inches	0.022	0.022

Dot Pitch	Width	Height
millimeters	0.6	0.6
inches	0.024	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$17.62
5	$16.23
10	$14.32
20	$13.83
50	$13.35
100 *	$13.16
200 *	$13.06
300 *	$12.39
500 *	$12.29
1000 *	$11.36

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAH1604B-YYH-ET

Transflective 16x4 Character LCD

Part Number: CFAH1604B-YYH-ET

Product Variations

Colors

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Yellow-Green
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Color	Yellow-Green
Backlight Type	LED
Mode	Positive
Foreground Color	Dark
Background Color	Yellow-Green

Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel
