16x2 Character Non-Backlit LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Character

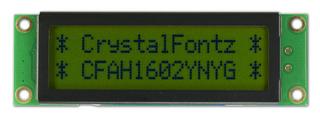

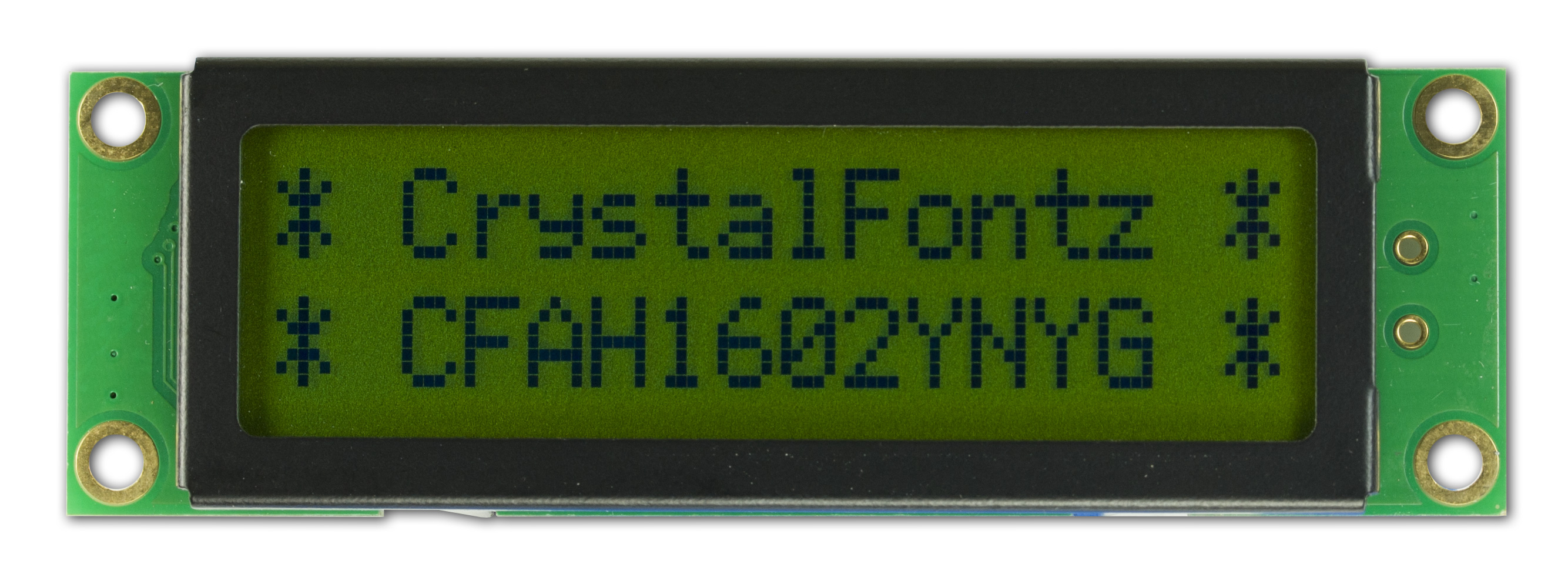

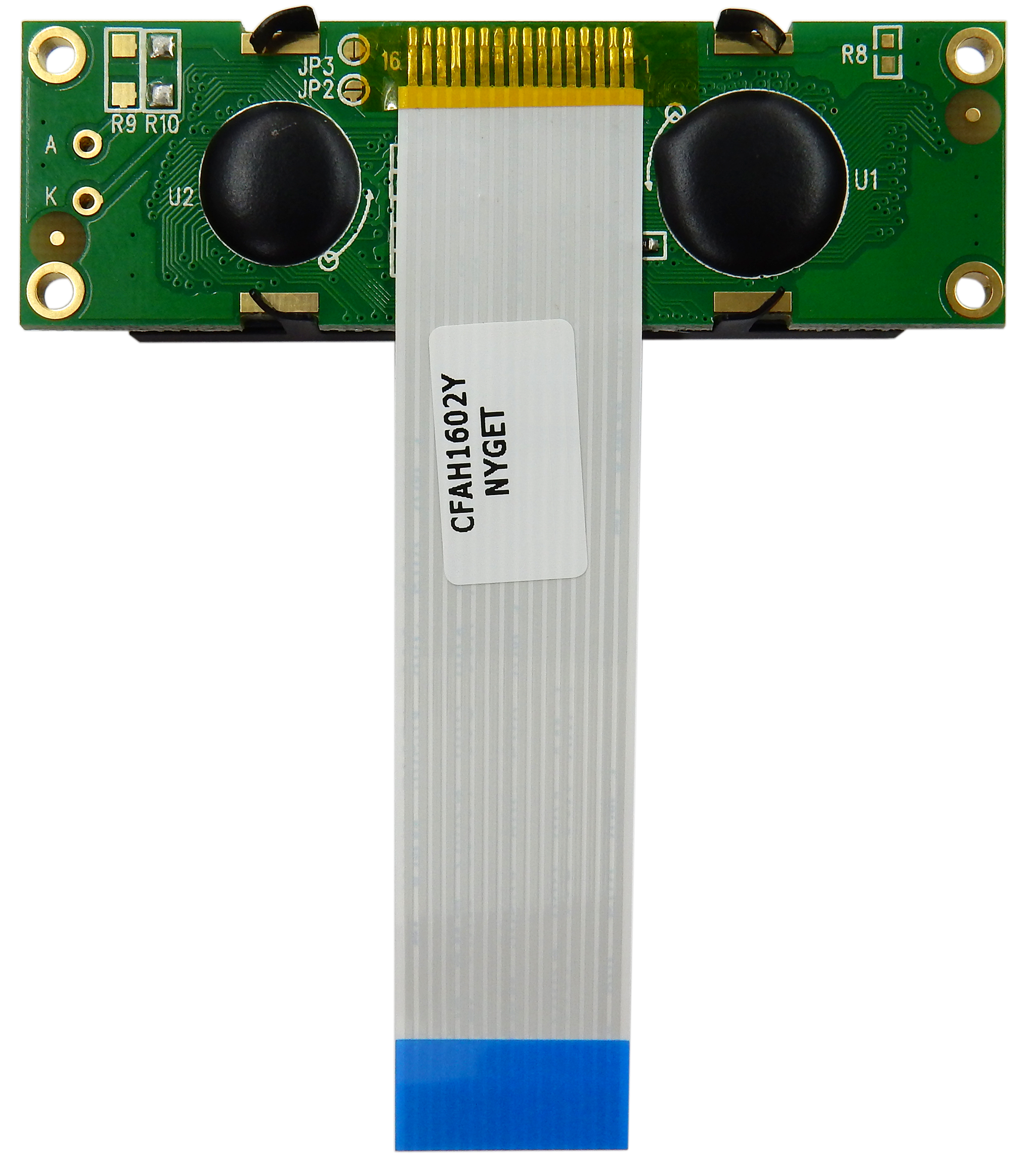

16x2 Character Non-Backlit LCDPart Number: CFAH1602Y-NYG-ETParallel Character LCD 16x2, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C to +70°C 6:00
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightDark on Yellow-Green
No Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2


    Module Overall        width
        height
        depth


        millimeters
        69
        21.5
        8


        inches
        2.72
        0.85
        0.32



    PCB Outline        width
        height
        depth


        millimeters
        69
        21.5
        8


        inches
        2.72
        0.85
        0.32



        Diagonal Dimension
            1.92"


    Viewing Area        Width
        Height


        millimeters
        51
        14.8


        inches
        2.01
        0.58



    Active Area        Width
        Height


        millimeters
        47.56
        11


        inches
        1.87
        0.43



    Character Size        Width
        Height


        millimeters
        2.56
        4.9


        inches
        0.101
        0.193



    Character Pitch        Width
        Height


        millimeters
        3
        6.1


        inches
        0.118
        0.240



    Dot Size        Width
        Height


        millimeters
        0.48
        0.56


        inches
        0.019
        0.022



    Dot Pitch        Width
        Height


        millimeters
        0.52
        0.62


        inches
        0.020
        0.024



        Weight
            13g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Reflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Type
            None
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V


        Supply Voltage for Logic Typical
            5V
Module Connector Pitch
            1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1602YNYGET Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAH1602YNYGET.pdf

 download Files and Downloads
folder_zip Software Source - Arduino / Seeeduino Demo Code

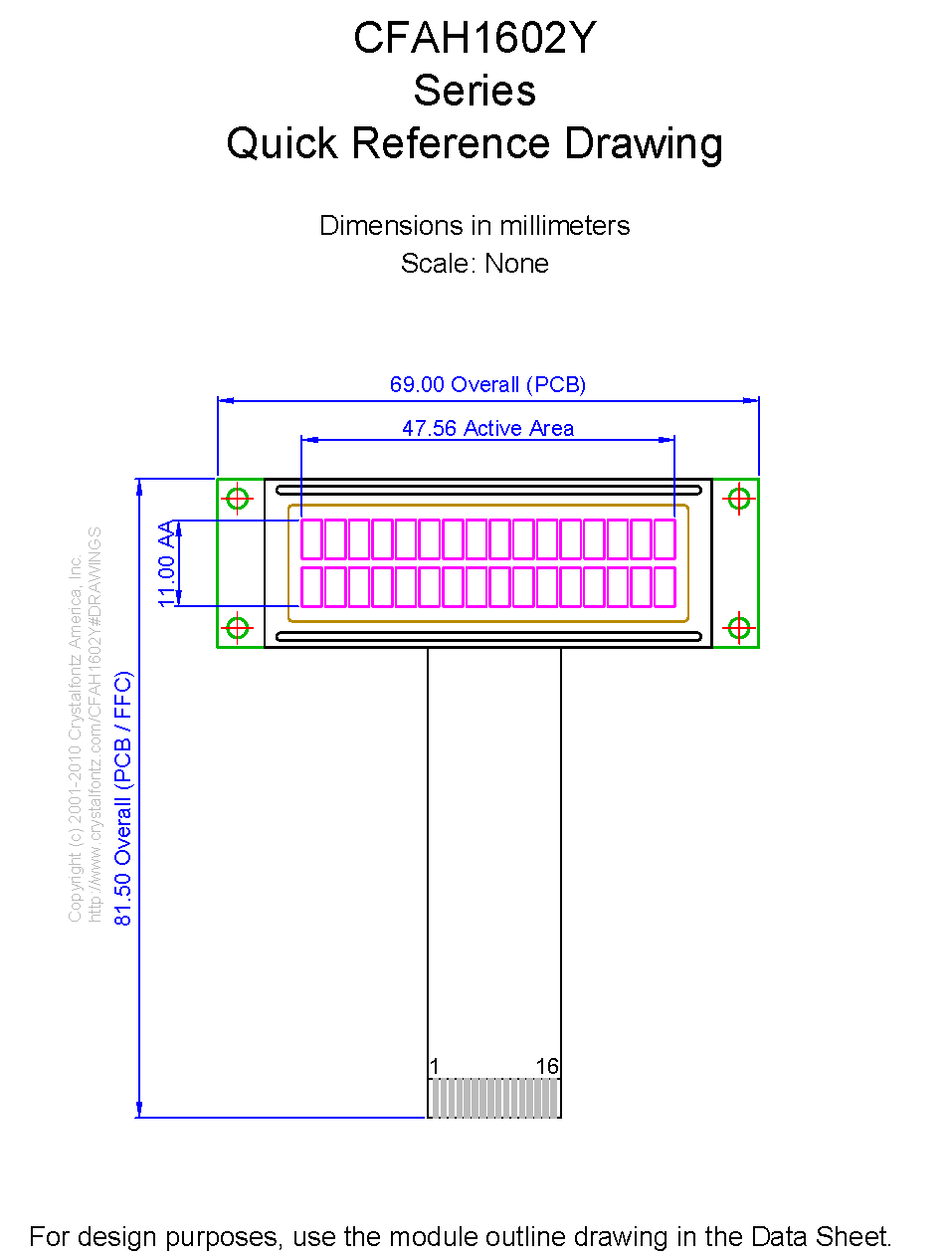

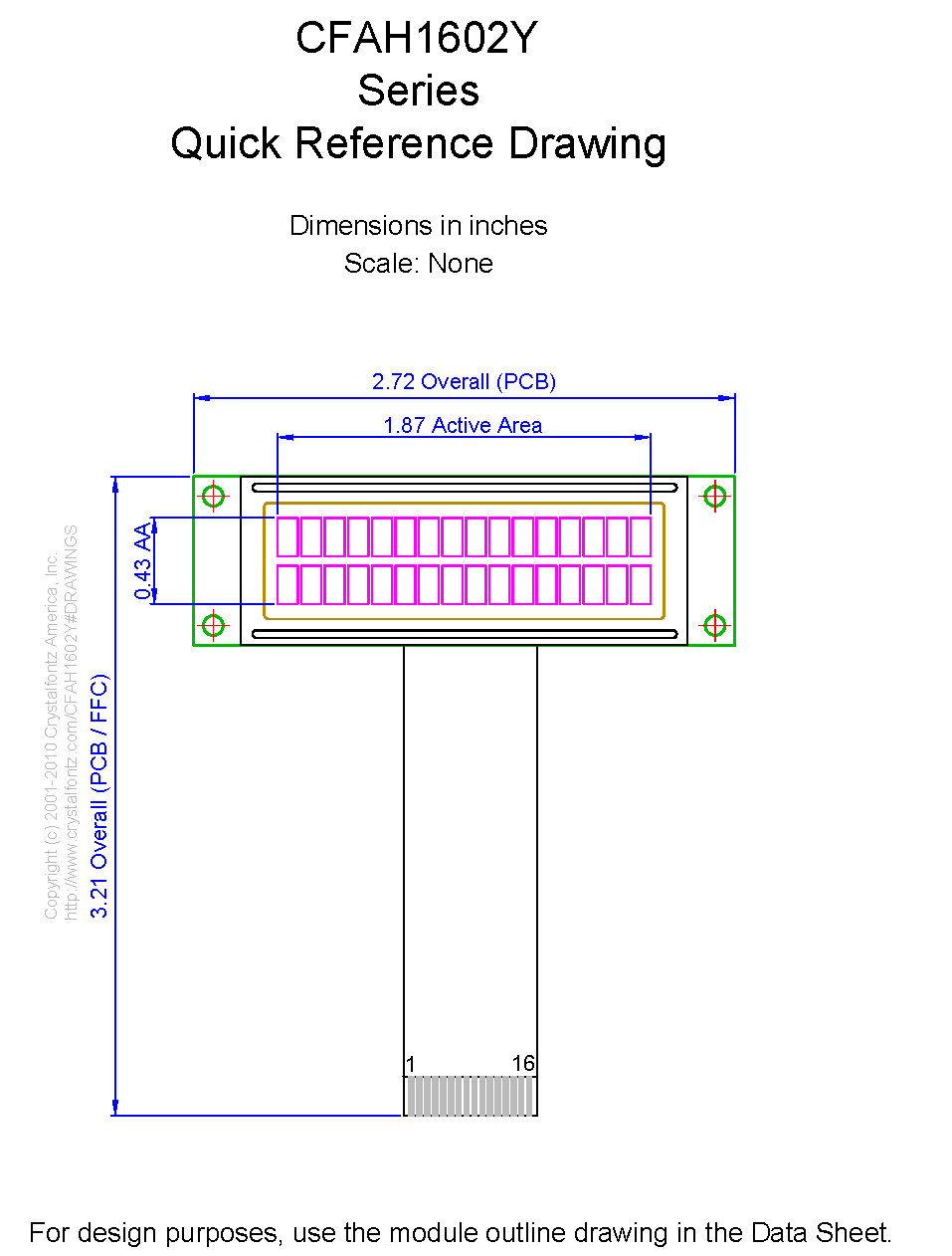

folder_zip CAD Export - CFAH1602Y 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1602Y 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $11.52

            5
            $9.63

            10
            $9.37

            20
            $9.05

            50
            $8.74

            100
            $8.61

            200
            $8.54

            300
            $8.49

            500
            $8.42

            1000
            $6.22

2523 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Colors	Dark on Yellow-Green Yellow-Green LED Backlight Dark on Yellow-Green No Backlight

Module Overall	width	height	depth
millimeters	69	21.5	8
inches	2.72	0.85	0.32

PCB Outline	width	height	depth
millimeters	69	21.5	8
inches	2.72	0.85	0.32

Viewing Area	Width	Height
millimeters	51	14.8
inches	2.01	0.58

Active Area	Width	Height
millimeters	47.56	11
inches	1.87	0.43

Character Size	Width	Height
millimeters	2.56	4.9
inches	0.101	0.193

Character Pitch	Width	Height
millimeters	3	6.1
inches	0.118	0.240

Dot Size	Width	Height
millimeters	0.48	0.56
inches	0.019	0.022

Dot Pitch	Width	Height
millimeters	0.52	0.62
inches	0.020	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$11.52
5	$9.63
10	$9.37
20	$9.05
50	$8.74
100	$8.61
200	$8.54
300	$8.49
500	$8.42
1000	$6.22

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10876: SunPlus Controller Change

Products Affected:	CFAH0802D-YYH-JP, CFAH0802D-NYG-JP, CFAH0802Z-YYH-JP, CFAH1602Y-NYG-ET, CFAH1602Y-YYH-ET, CFAH1602Z-YYH-ET
Date Issued:	September 13, 2017
Summary:	SunPlus Controller Change
Description:	The parts listed currently use a SunPlus SPLC7800D Controller Chip. This controller is being discontinued by the manufacturer. The part will be replaced by a Sitronix ST7066U controller. A PCB revision will be made as part of the change to the new controller chip.
Reason:	The SunPlus SPLC7800 Controller is EOL. The new controller is a different size package with different pinouts.
Impact:	There should be no impact to users.
Recommendation:	It is highly recommended that users of the displays with the SunPlus controller verify that there are no operational differences in the systems where they are used.
Availability:	Last time buys of the current parts may be made until November 15, 2017, depending upon the availability of the SunPlus Controller.
Price Change:	To be determined when the parts with the Sitronix controllers are available.
Response:	Last time buys are available until 11/17/2017
