                This product is discontinued please contact support to see if there is a replacement part available.

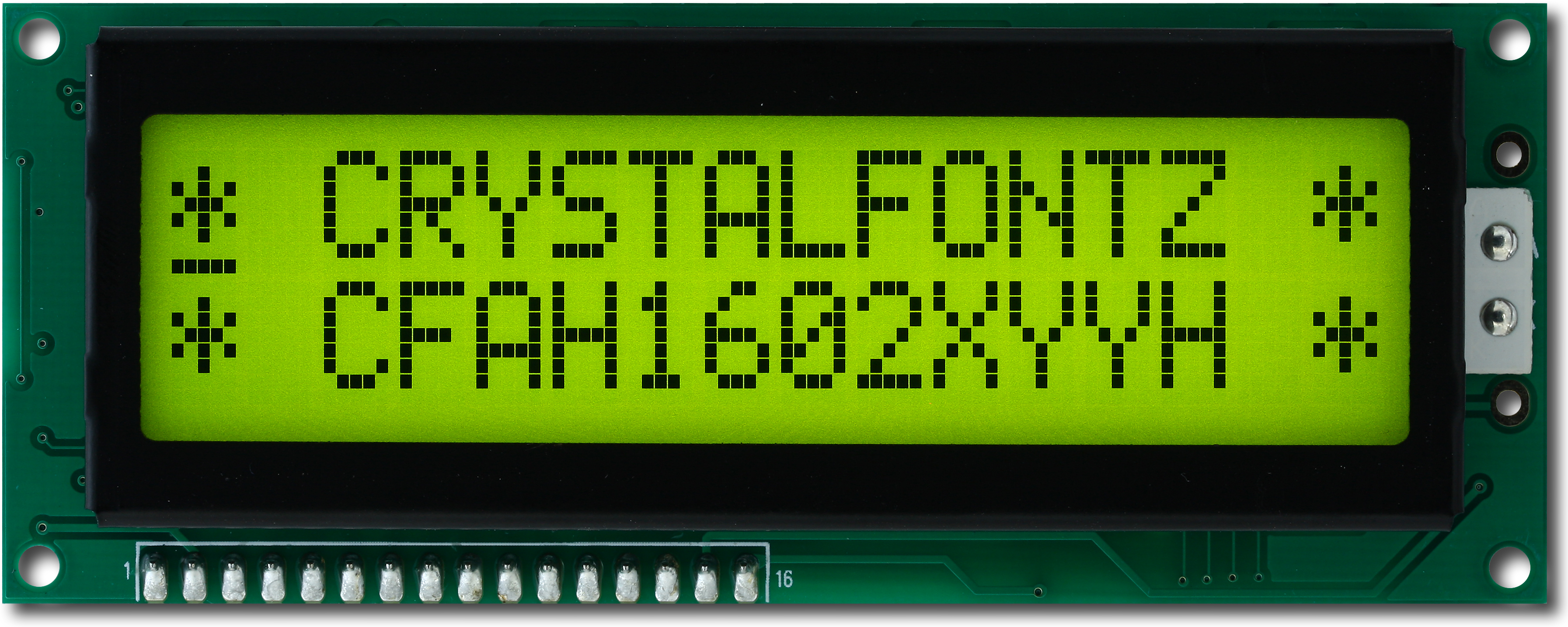

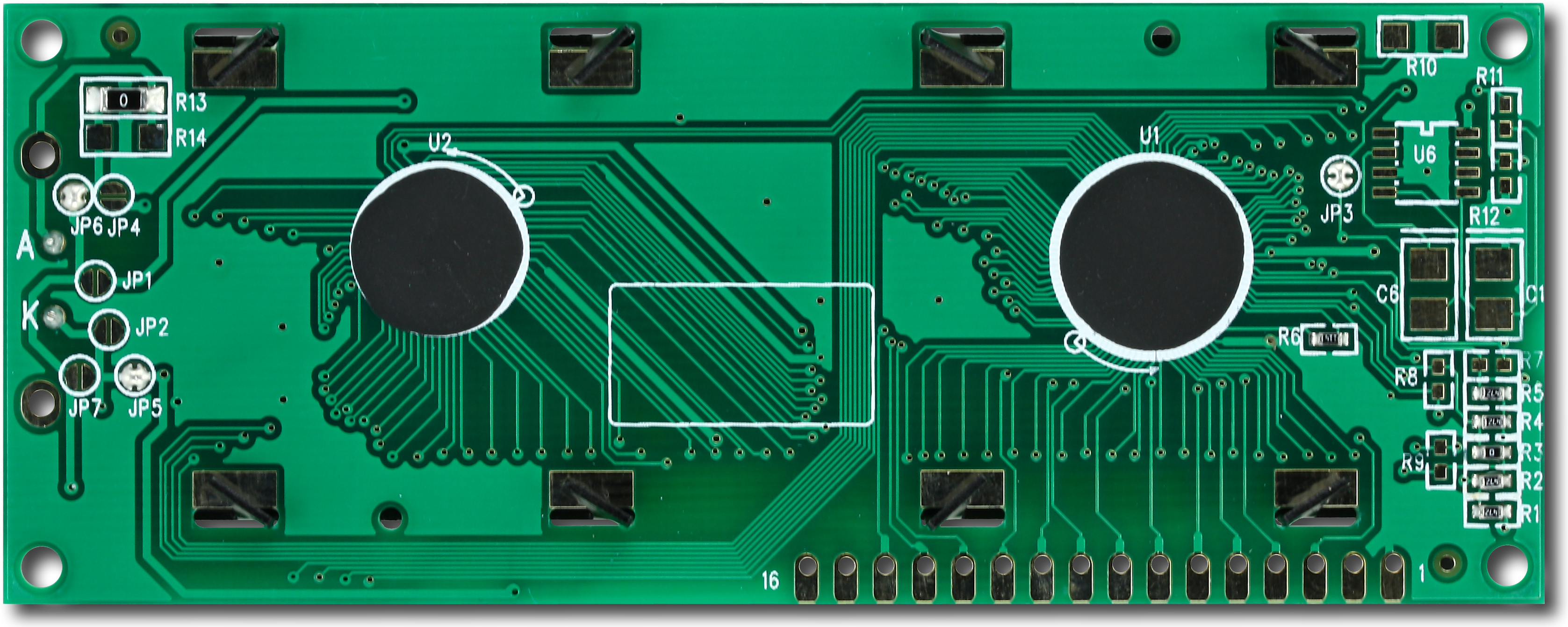

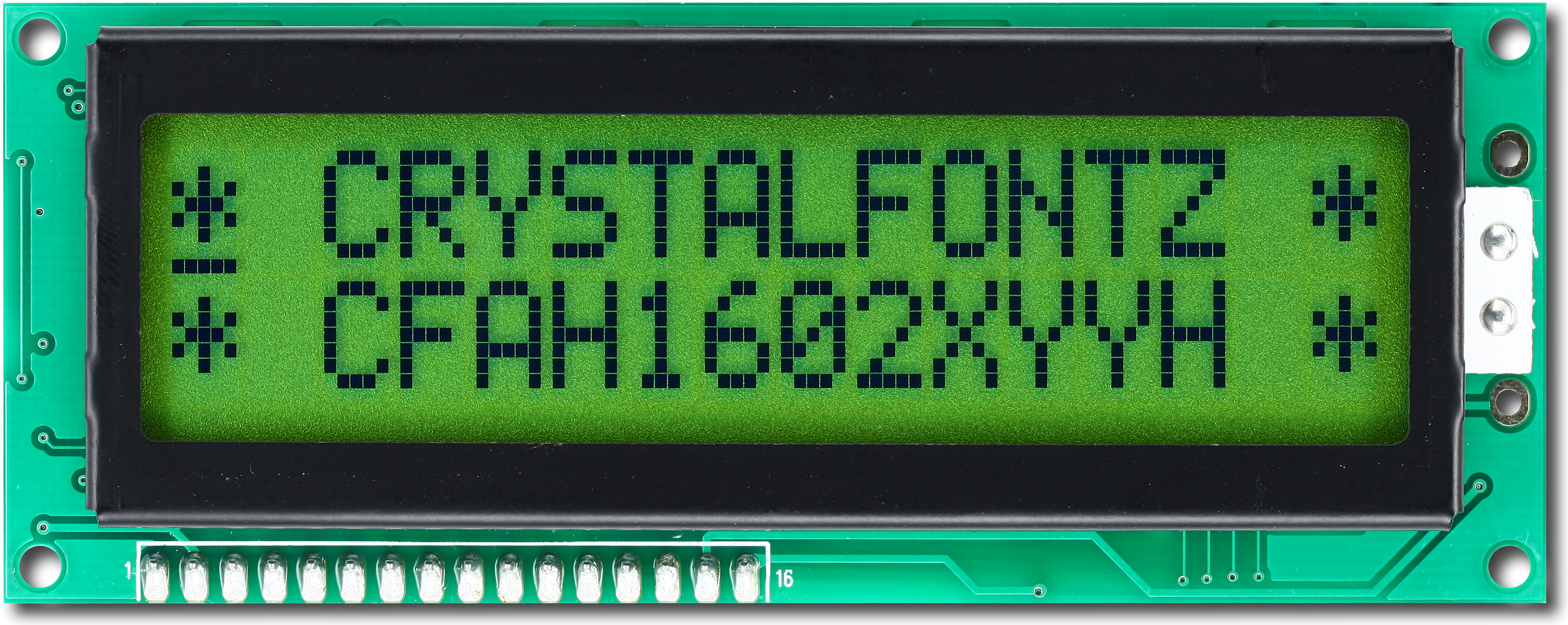

Yellow Green 16x2 LCD (EOL)Part Number: CFAH1602X-YYH-JPWide temperature range: -20°C to 70°C (-4°F to 158°F)
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller
RoHS Compliant

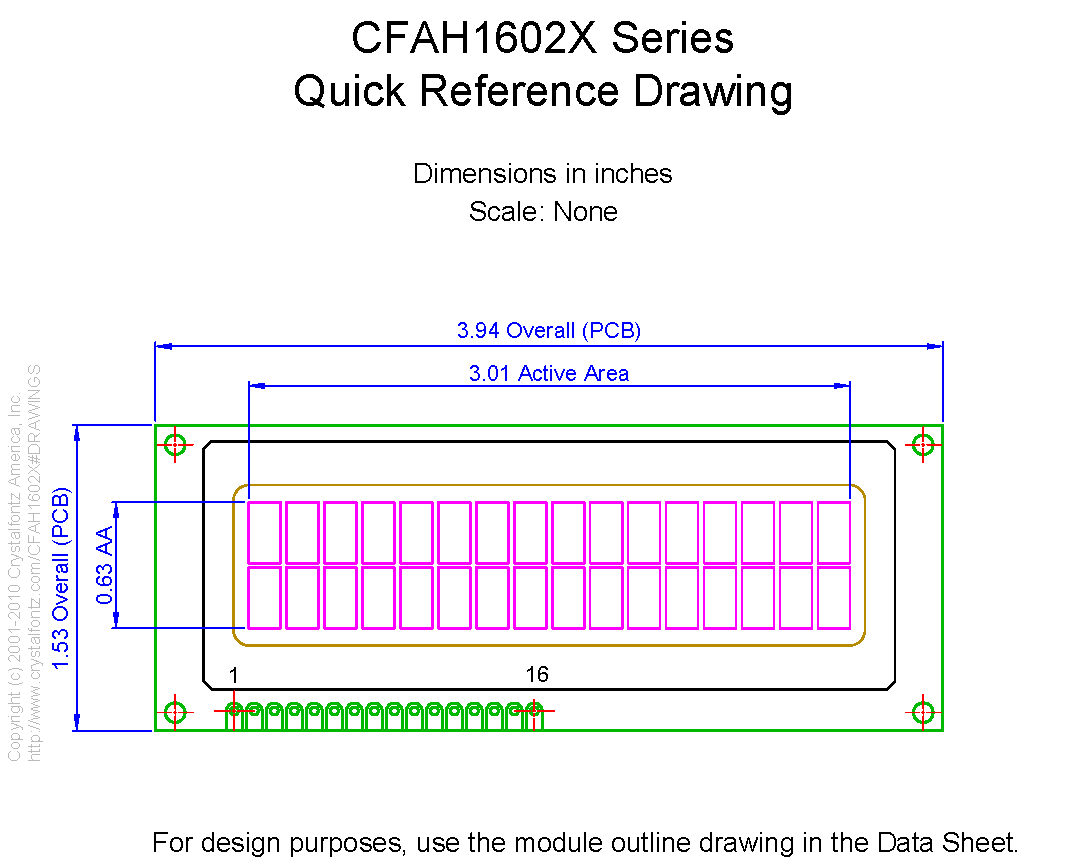

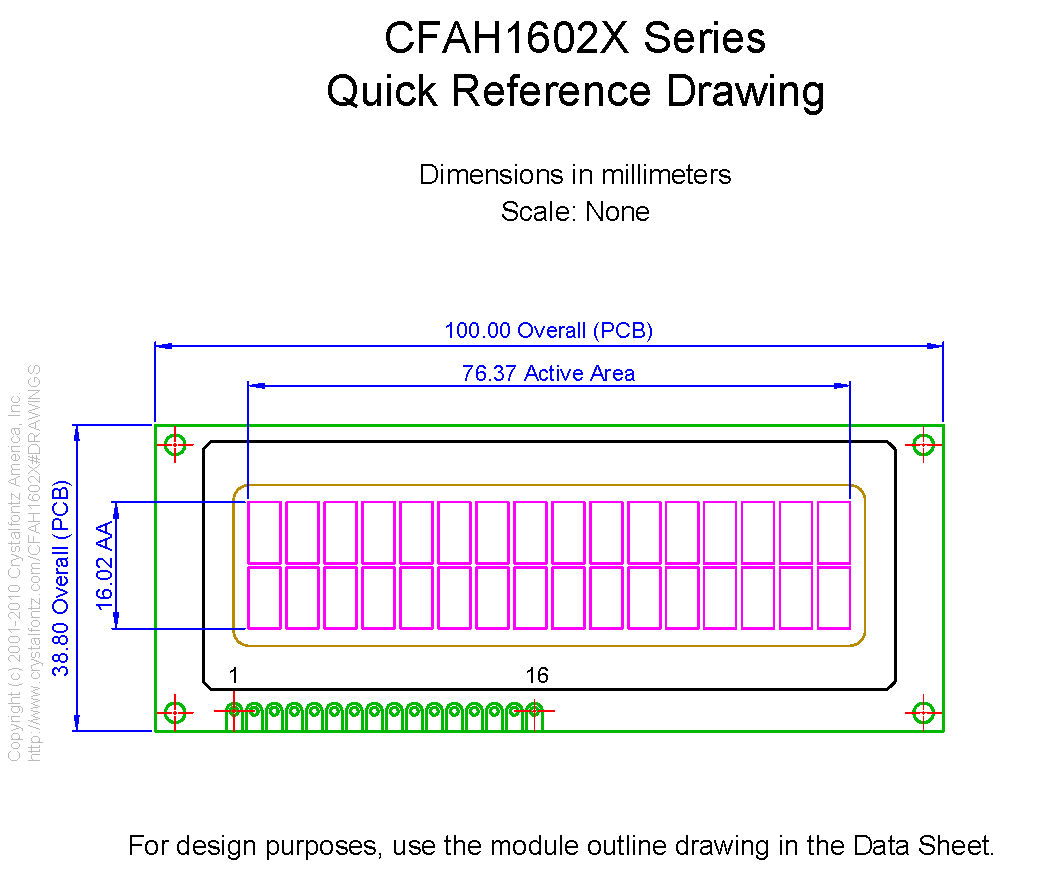

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2

    Module Overall        width
        height
        depth

        millimeters
        100
        38.8
        14

        inches
        3.94
        1.53
        0.55

    PCB Outline        width
        height
        depth

        millimeters
        100
        38.8
        14

        inches
        3.94
        1.53
        0.55

    Viewing Area        Width
        Height

        millimeters
        80.2
        20.4

        inches
        3.16
        0.80

    Active Area        Width
        Height

        millimeters
        76.37
        16.02

        inches
        3.01
        0.63

    Character Size        Width
        Height

        millimeters
        4.07
        7.76

        inches
        0.160
        0.306

    Character Pitch        Width
        Height

        millimeters
        4.82
        8.26

        inches
        0.190
        0.325

    Dot Size        Width
        Height

        millimeters
        0.75
        0.9

        inches
        0.030
        0.035

    Dot Pitch        Width
        Height

        millimeters
        0.83
        0.98

        inches
        0.033
        0.039

        Weight
            50g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sunplus SPLC780D
16COM/40SEG Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1602XYYHJP v2.0.pdf
(Datasheet V 2.0, Hardware A)
picture_as_pdfCFAH1602XYYHJP.pdf

 download Files and Downloads
folder_zip CAD Export - CFAH1602X 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1602X 1 TO 1.PDF
