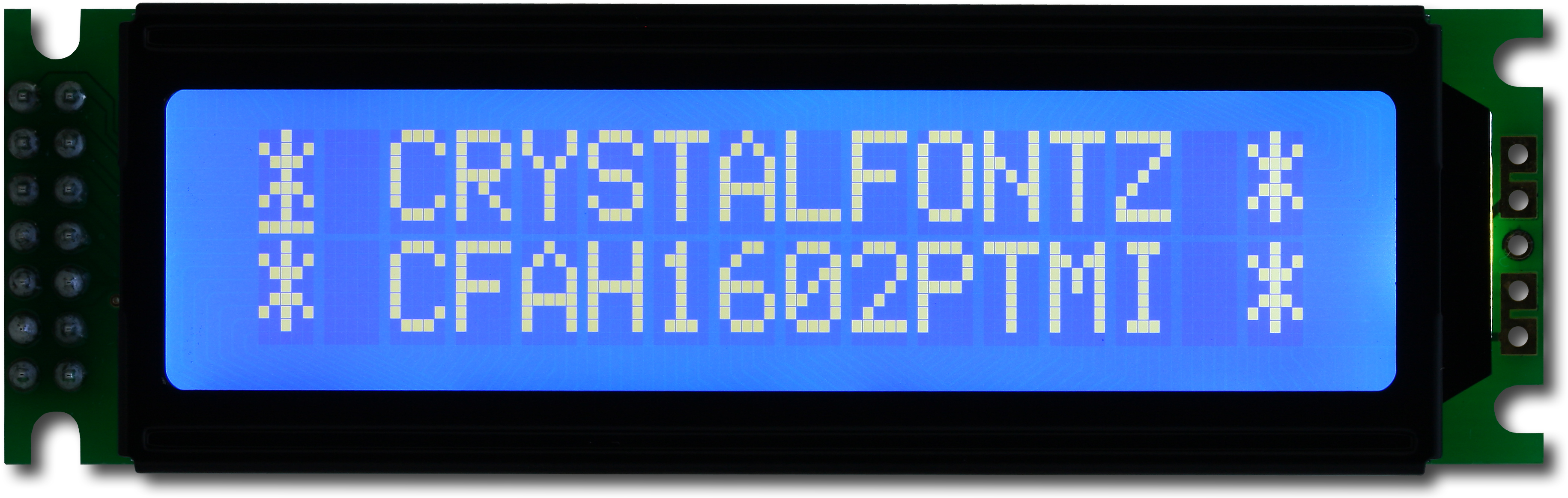

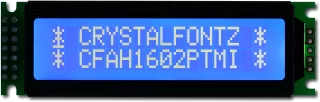

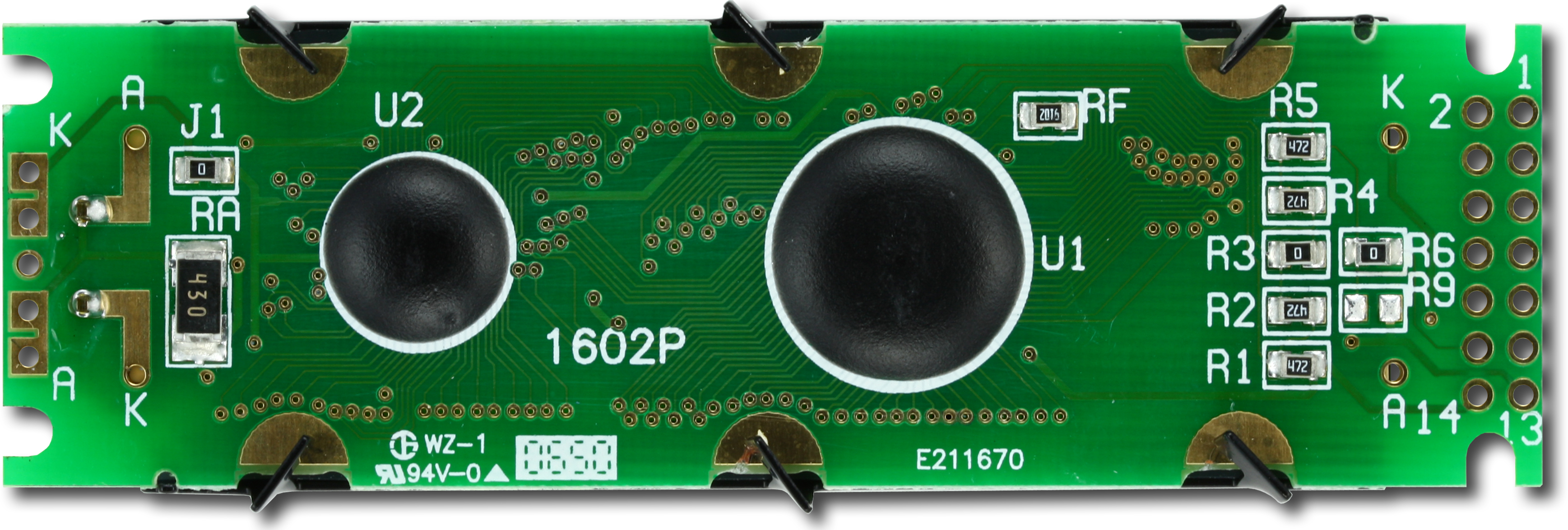

16x2 Character White on Blue LCDPart Number: CFAH1602P-TMI-ET16x2 character LCD module with white text on blue background and an edge LED backlight.
Characters / Columns: 16x2
Optics: 6:00 viewing direction
Backlight: White Edge LED
Glass: STN Negative, Transmissive
Controller: Sitronix ST7066U (HD44780 compatible)
Operating Temp: -20°C to +70°C
Interfaces: 4 & 8 bit parallel
Compliance: REACH & RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED backlightWhite on Blue
White LED backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2


    Module Overall        width
        height
        depth


        millimeters
        85
        25.2
        13.5


        inches
        3.35
        0.99
        0.53



    PCB Outline        width
        height
        depth


        millimeters
        85
        25.2
        13.5


        inches
        3.35
        0.99
        0.53



        Diagonal Dimension
            2.26"


    Viewing Area        Width
        Height


        millimeters
        66
        16


        inches
        2.60
        0.63



    Active Area        Width
        Height


        millimeters
        56.2
        11.5


        inches
        2.21
        0.45



    Character Size        Width
        Height


        millimeters
        2.95
        5.55


        inches
        0.116
        0.219



    Character Pitch        Width
        Height


        millimeters
        3.55
        5.95


        inches
        0.140
        0.234



    Dot Size        Width
        Height


        millimeters
        0.55
        0.65


        inches
        0.022
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.7


        inches
        0.024
        0.028



        Weight
            32g
Pin Count
            14

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1602PTMIET Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAH1602P-2D CAD
picture_as_pdf 1 to 1 Template
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $8.76

            5
            $8.05

            10
            $7.12

            20
            $6.88

            50
            $6.65

            100
            $6.54

            200 *
            $6.50

            300 *
            $6.15

            500 *
            $6.11

            1000 *
            $5.65

191 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Colors	Dark on Yellow-Green Yellow-Green LED backlight White on Blue White LED backlight

Module Overall	width	height	depth
millimeters	85	25.2	13.5
inches	3.35	0.99	0.53

PCB Outline	width	height	depth
millimeters	85	25.2	13.5
inches	3.35	0.99	0.53

Viewing Area	Width	Height
millimeters	66	16
inches	2.60	0.63

Active Area	Width	Height
millimeters	56.2	11.5
inches	2.21	0.45

Character Size	Width	Height
millimeters	2.95	5.55
inches	0.116	0.219

Character Pitch	Width	Height
millimeters	3.55	5.95
inches	0.140	0.234

Dot Size	Width	Height
millimeters	0.55	0.65
inches	0.022	0.026

Dot Pitch	Width	Height
millimeters	0.6	0.7
inches	0.024	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$8.76
5	$8.05
10	$7.12
20	$6.88
50	$6.65
100	$6.54
200 *	$6.50
300 *	$6.15
500 *	$6.11
1000 *	$5.65

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAH1602P-TMI-ET

16x2 Character White on Blue LCD

Part Number: CFAH1602P-TMI-ET

Product Variations

Colors

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Blue
Polarizer	Transmissive
View Direction	6 o'clock

Backlight Color	White
Backlight Type	LED
Mode	Negative
Foreground Color	White
Background Color	Blue

Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel

Weight	32g
Pin Count	14
