White on Blue 16x2 Character LCD from Crystalfontz

Product

Home » Products » Character LCD Displays » Character X Lines » 16x2 Character

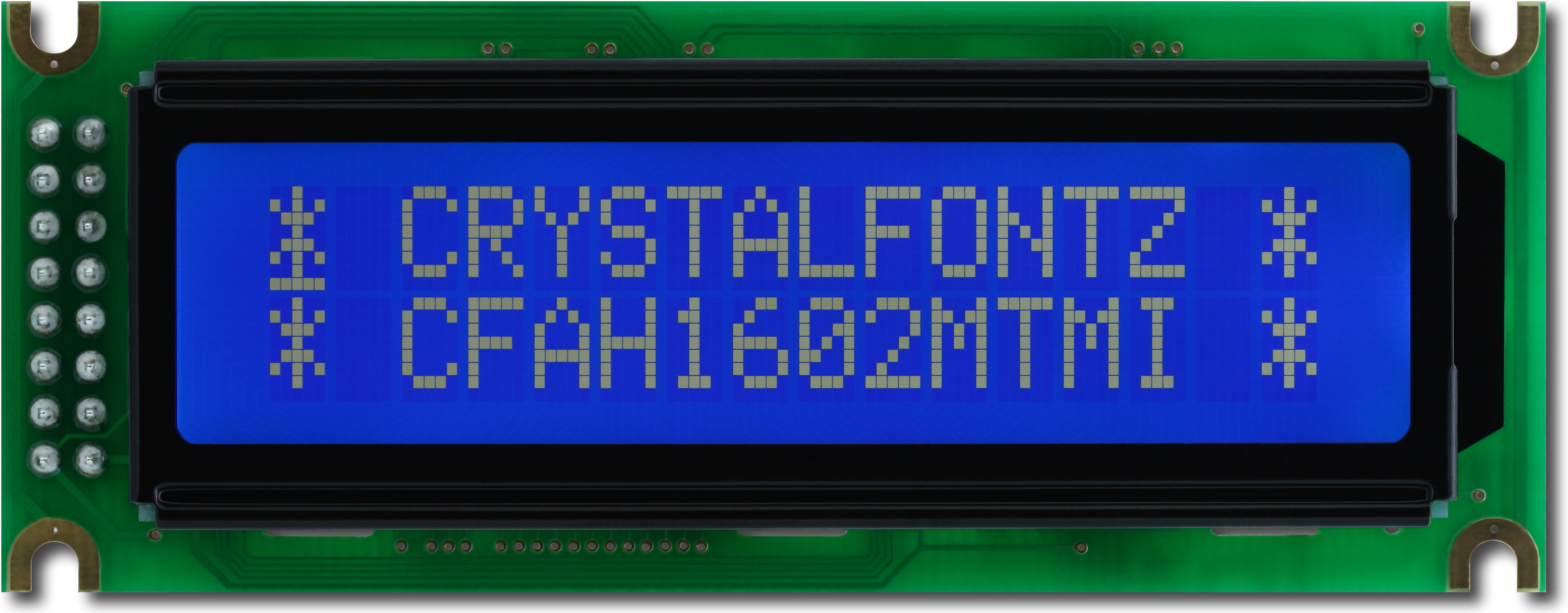

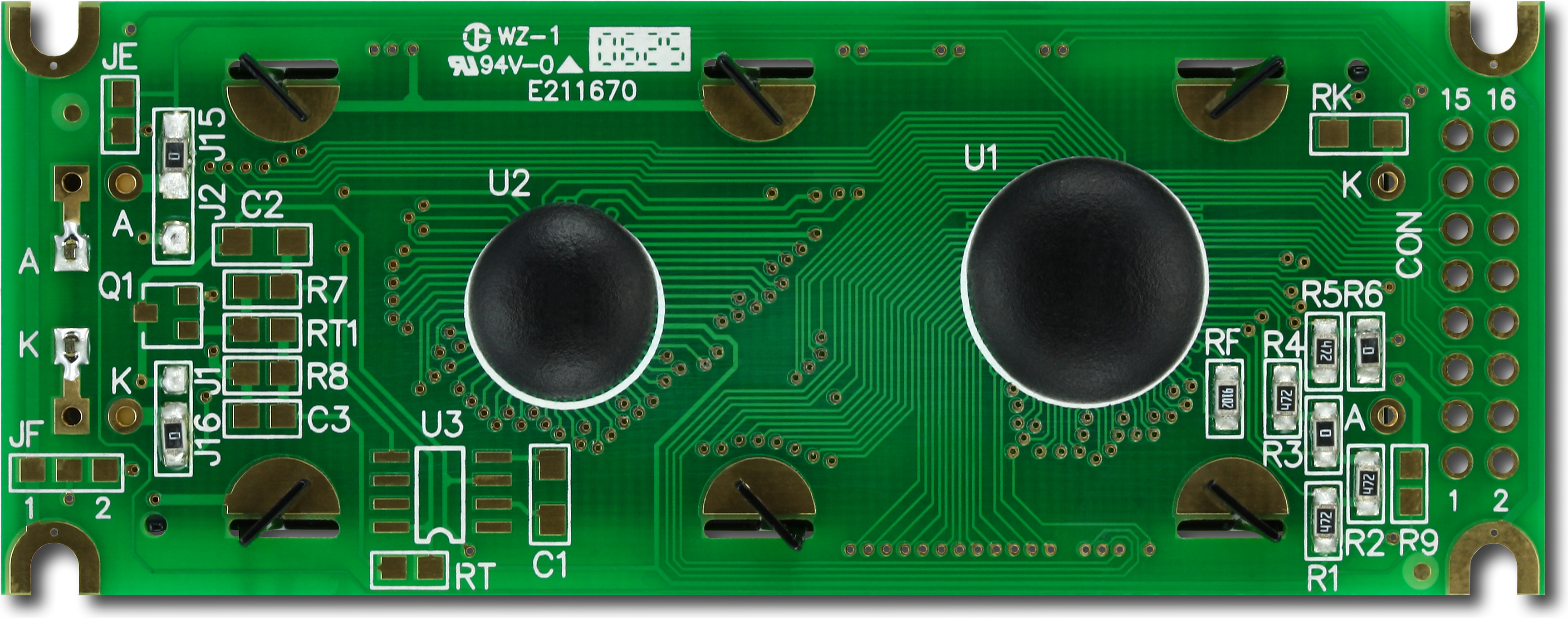

White on Blue 16x2 Character LCDPart Number: CFAH1602M-TMI-ETWhite on blue 16x2 character LCD with LED backlight.
Characters / Columns: 16x2
Optics: 6:00 viewing direction
Backlight: White LED
Glass: STN Negative, Transmissive
Controller: Sitronix ST7066U (HD44780 compatible)
Operating Temp: -20°C to +70°C
Interfaces: 4 & 8 bit parallel
Compliance: REACH & RoHS Compliant
Product VariationsColorsWhite on Dark
White LED BacklightDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2


    Module Overall        width
        height
        depth


        millimeters
        85
        32.6
        13.2


        inches
        3.35
        1.28
        0.52



    PCB Outline        width
        height
        depth


        millimeters
        85
        32.6
        13.2


        inches
        3.35
        1.28
        0.52



        Diagonal Dimension
            2.26"


    Viewing Area        Width
        Height


        millimeters
        66
        16


        inches
        2.60
        0.63



    Active Area        Width
        Height


        millimeters
        56.2
        11.5


        inches
        2.21
        0.45



    Character Size        Width
        Height


        millimeters
        2.96
        5.56


        inches
        0.117
        0.219



    Character Pitch        Width
        Height


        millimeters
        3.55
        5.94


        inches
        0.140
        0.234



    Dot Size        Width
        Height


        millimeters
        0.56
        0.66


        inches
        0.022
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.7


        inches
        0.024
        0.028



        Weight
            34g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            3.7V


        Supply Current Minimum
            1mA
Supply Current Maximum
            1.5mA
Supply Current Typical
            1.2mA
Module Connector Pitch
            0.1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            10mA
Forward Current Maximum
            40mA
Forward Current Typical
            32mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1602MTMIET Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAH1602MTMIET v1.0.pdf
(Datasheet V 1, Hardware A)
picture_as_pdfCFAH1602MTMIET.pdf

 download Files and Downloads
folder_zip CAD Export - CFAH1602M 2D CAD
picture_as_pdf 1 to 1 Template - 1:1 Outline drawing, prints at actual size. (PDF)
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1 *
            $8.86

            10 *
            $7.69

            20 *
            $7.42

            50 *
            $7.15

            100 *
            $7.04

            200 *
            $6.93

            500 *
            $6.49

            1000 *
            $5.83

0 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						8x2 Pin Dual Row Header
Add header pins (5pk)? $0.28 ea.





Colors	White on Dark White LED Backlight Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight

Module Overall	width	height	depth
millimeters	85	32.6	13.2
inches	3.35	1.28	0.52

PCB Outline	width	height	depth
millimeters	85	32.6	13.2
inches	3.35	1.28	0.52

Viewing Area	Width	Height
millimeters	66	16
inches	2.60	0.63

Active Area	Width	Height
millimeters	56.2	11.5
inches	2.21	0.45

Character Size	Width	Height
millimeters	2.96	5.56
inches	0.117	0.219

Character Pitch	Width	Height
millimeters	3.55	5.94
inches	0.140	0.234

Dot Size	Width	Height
millimeters	0.56	0.66
inches	0.022	0.026

Dot Pitch	Width	Height
millimeters	0.6	0.7
inches	0.024	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1 *	$8.86
10 *	$7.69
20 *	$7.42
50 *	$7.15
100 *	$7.04
200 *	$6.93
500 *	$6.49
1000 *	$5.83

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10917: The parts listed are being revised to improve manufacturability and function. The new PCB will be marked as REV A.

Products Affected:	CFAH1602M-TMI-ET, CFAH1602M-YYH-ET, CFAH1602M-TTI-ET
Date Issued:	January 4, 2018
Summary:	The parts listed are being revised to improve manufacturability and function. The new PCB will be marked as REV A.
Impact:	Form, Fit and Function of these parts has not changed. Customers will not need to make any modifications to products using these devices.
Availability:	The revised modules will be available when current stocks are replenished.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAH1602M-TMI-ET

White on Blue 16x2 Character LCD

Part Number: CFAH1602M-TMI-ET

Product Variations

Colors

Physical Characteristics

Optical Characteristics

Electrical Specifications

Backlight Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10917: The parts listed are being revised to improve manufacturability and function. The new PCB will be marked as REV A.

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Blue
Polarizer	Transmissive
View Direction	6 o'clock

Backlight Color	White
Backlight Type	LED
Mode	Negative
Foreground Color	White
Background Color	Blue

Supply Voltage for Logic Minimum	4.5V
Supply Voltage for Logic Maximum	5.5V
Supply Voltage for Logic Typical	5V
Supply Voltage for Driving Panel Typical	3.7V

Supply Current Minimum	1mA
Supply Current Maximum	1.5mA
Supply Current Typical	1.2mA
Module Connector Pitch	0.1mm

Forward Voltage Minimum	3.4V
Forward Voltage Maximum	3.6V
Forward Voltage Typical	3.5V

Forward Current Minimum	10mA
Forward Current Maximum	40mA
Forward Current Typical	32mA

Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel

Weight	34g
Pin Count	16
